Understanding Lexus ES Brake Pad Functionality

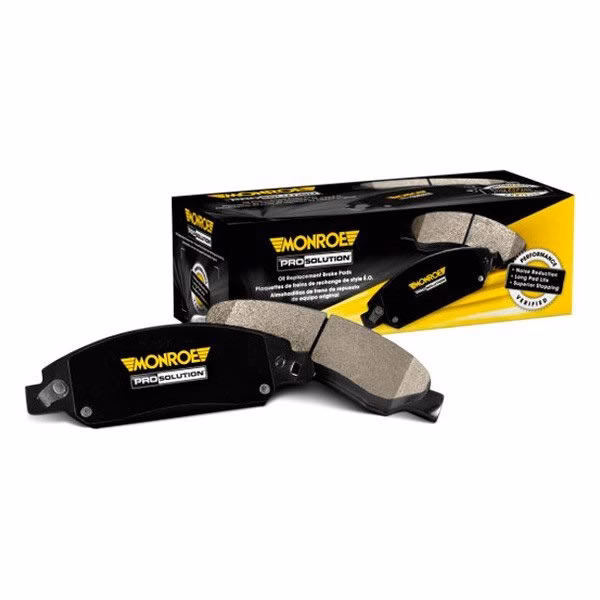

Your Lexus ES, like most modern vehicles, relies on a robust braking system to ensure safety and control. At the heart of this system are the brake pads. These critical components are engineered to generate the friction necessary to slow and stop your vehicle. When you depress the brake pedal, a hydraulic system engages, forcing a caliper to clamp down on a rotating disc, known as the brake rotor. The brake pads are situated within this caliper, acting as the intermediary material that creates the vital friction against the rotor. Over time, due to the immense heat and pressure they endure, brake pads wear down. This wear is a natural part of their function, but it necessitates timely replacement to maintain optimal braking performance and safety.
This guide is specifically tailored for Lexus ES and RX models manufactured between 2005 and 2014, offering a clear, step-by-step process for replacing worn brake pads. Undertaking this task yourself can lead to significant cost savings compared to professional servicing, making it an attractive option for the more mechanically inclined owner. While some prior knowledge is beneficial, this guide aims to provide sufficient detail for a successful DIY replacement.
Essential Materials for Brake Pad Replacement
Before embarking on this maintenance task, ensure you have the following tools and materials readily available:
- Jack and Jack Stands: For safely lifting and supporting the vehicle.
- Lug Wrench: To remove and tighten wheel lug nuts.
- 3/8" Ratchet: For loosening and tightening caliper bolts.
- 14mm Socket: The specific size required for the caliper bolts on most Lexus ES models.
- C-Clamp: Crucial for compressing the caliper piston.
- Brake/Parts Cleaner: For cleaning brake components.
- Mop Bucket or Similar Object: To safely support the caliper once removed, preventing strain on the brake line.
Step-by-Step Brake Pad Replacement Process
Step 1: Accessing the Brake Assembly
The first step involves safely lifting your Lexus ES and removing the wheel to expose the brake caliper and rotor assembly. It is advisable to slightly loosen the lug nuts before jacking the vehicle, as this will make tire removal easier. Once the vehicle is raised, always secure it with jack stands. Never rely solely on the jack, as a mechanical failure could lead to serious injury or damage. With the wheel removed, you will have clear access to the brake components.
Pro Tip: When lifting your Lexus, use a floor jack or bottle jack positioned on the front crossmember for stability and safety.
Step 2: Removing the Caliper and Old Brake Pads
Using your 3/8" ratchet and the 14mm socket, locate and remove the two bolts that secure the brake caliper to the caliper bracket. Once these bolts are removed, the caliper should be able to be gently wiggled free from the rotor. Carefully slide the old brake pads out of their retaining clips within the caliper carrier. Pay close attention to how the old pads are seated, as the new pads will be installed in the reverse order. It is imperative to support the caliper properly once it's free from the rotor. Rest it on a mop bucket or another sturdy object that is tall enough to prevent any tension or stress on the brake line connected to the caliper. Failure to do so could damage the brake line, leading to a dangerous loss of braking ability.
After removing the pads, take this opportunity to clean the caliper and the metal clips that hold the brake pads using a spray of brake cleaner. This will ensure a clean surface for the new pads and improve their seating.
| Component | Function | Notes |
|---|---|---|
| Brake Pad | Provides friction against the rotor to slow the vehicle. | Wears down over time and requires replacement. |
| Caliper | Houses the piston and brake pads, clamping onto the rotor. | Hydraulically actuated. |
| Rotor (Disc) | Rotating metal disc that the pads clamp onto. | Can also wear and require resurfacing or replacement. |
| Caliper Bolts | Secure the caliper to the bracket. | Typically require a 14mm socket. |
Step 3: Resetting the Caliper Piston and Installing New Pads
With the old pads removed, you'll need to retract the caliper piston back into its cylinder. This is necessary because the new brake pads are thicker than the worn ones, and the caliper needs to accommodate this increased thickness. Use a C-clamp for this task. Position the C-clamp around the caliper, with one end pressing against the piston and the other against the caliper body. Slowly tighten the C-clamp, which will gradually push the piston back into the caliper housing.
Pro Tip for Piston Retraction: To ensure even pressure and prevent damage to the piston, place one of the old brake pads between the C-clamp screw and the caliper piston. This distributes the force more effectively.
Once the piston is fully retracted, carefully install the new brake pads into the caliper carrier. Ensure they are seated correctly and in the same orientation as the old pads were. Repeat this process for all brake pads on the affected axle (both inner and outer pads).
Step 4: Reassembly and Test Drive
After the new brake pads are installed and the caliper piston is retracted, carefully slide the caliper back over the new pads and rotor. Re-insert and tighten the caliper bolts using your ratchet and 14mm socket. Ensure they are snug but do not overtighten, which could strip the threads.
Now, remount the wheel onto the hub. Tighten the lug nuts by hand first, then use the lug wrench to snug them up. Lower the vehicle carefully off the jack stands. Once the vehicle is on the ground, use the lug wrench to fully tighten the lug nuts in a star or cross pattern. This ensures even pressure distribution and proper seating of the wheel.
Before driving at normal speeds, it is crucial to perform a test drive. Start by driving slowly in a safe area, such as an empty parking lot. Gently apply the brakes several times. You should feel a firmer pedal and consistent stopping power. This initial braking helps to properly seat the new pads against the rotors. Since no brake lines were opened during this process, bleeding the brake system is typically not required. However, if you notice a spongy brake pedal or suspect air in the lines, consult a professional or refer to a guide on brake bleeding procedures.
Frequently Asked Questions (FAQs)
- How often should I replace my Lexus ES brake pads?
- Brake pad lifespan varies greatly depending on driving habits and conditions. Generally, they should be inspected every 6 months or 10,000 miles, and replaced when the friction material reaches approximately 3mm (1/8 inch) in thickness or if you notice reduced braking performance, unusual noises (like grinding or squealing), or a pulsating brake pedal.
- Can I replace just one set of brake pads?
- It is strongly recommended to replace brake pads in pairs on the same axle (both front or both rear). This ensures even braking performance and prevents uneven wear on the rotors and pads.
- What causes brake pads to wear out quickly?
- Aggressive driving, frequent hard braking, driving in hilly or mountainous terrain, and carrying heavy loads can all accelerate brake pad wear. Poor quality brake pads can also wear out faster.
- What is the difference between ceramic and semi-metallic brake pads?
- Ceramic brake pads are quieter, produce less dust, and tend to last longer, but may offer slightly less initial bite. Semi-metallic brake pads offer excellent stopping power and heat dissipation but can be noisier and produce more dust.
- Do I need to replace my brake rotors at the same time?
- It's a good practice to inspect your brake rotors for wear, scoring, or warping when replacing brake pads. If the rotors are significantly worn, glazed, or damaged, they should be resurfaced or replaced to ensure optimal performance and longevity of the new pads.
Maintaining Your Lexus Braking System
Regular inspection and maintenance of your Lexus ES's braking system are crucial for safety. Beyond changing brake pads, consider having your brake fluid checked and replaced according to your vehicle's maintenance schedule. Also, keep an eye on the condition of your brake rotors and consult a professional if you notice any signs of damage or excessive wear. Proper maintenance not only ensures your safety but also prolongs the life of your braking components.
Remember, while this guide provides detailed instructions, if you are ever unsure about any step or encounter difficulties, it is always best to seek assistance from a qualified mechanic. Your safety on the road is paramount.
