Mastering MOT Type 1 for UK Sandstone Paving

Creating a beautiful and enduring sandstone patio or driveway in the UK requires more than just selecting the perfect slabs; it demands a robust and well-prepared foundation. At the heart of this foundation lies the MOT Type 1 sub-base, a crucial layer that provides stability, ensures proper drainage, and ultimately dictates the longevity of your paving. Neglecting this vital step can lead to unsightly subsidence, pooling water, and premature failure of your hard work. This comprehensive guide will walk you through every essential stage of laying a high-quality MOT Type 1 sub-base, ensuring your sandstone paving project is built to withstand the test of time and the unique challenges of the British climate.

Understanding the intricacies of ground preparation, material selection, and proper compaction is paramount. From the initial planning and design to the final checks, we’ll cover all the details necessary to achieve a professional-grade finish that will look fantastic for years to come. Let's dig in and lay the groundwork for a truly exceptional outdoor space.

What is MOT Type 1 and Why is it Essential?

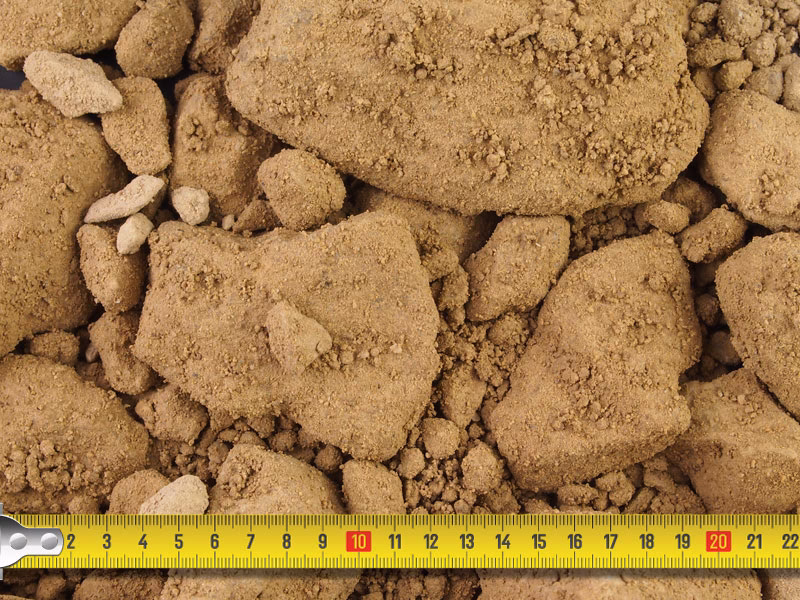

MOT Type 1 is a specific grade of crushed aggregate, often referred to as 'hardcore', which consists of a mix of particle sizes from dust up to 40mm. This varied particle size is key to its effectiveness, allowing the material to interlock and compact tightly, forming a very strong and stable base. The 'MOT' in its name refers to its compliance with the Department of Transport's specifications for highway works, indicating its suitability for load-bearing applications.

For any paving project, especially those using natural stone like sandstone, MOT Type 1 serves several critical functions:

• Load Distribution: It spreads the weight of the paving and any traffic (pedestrian or vehicular) evenly across the underlying soil, preventing localised sinking or cracking.
• Stability: A well-compacted MOT Type 1 layer provides a firm, unyielding base, preventing your paving slabs from shifting or rocking over time.
• Drainage: While compact, its granular nature still allows water to permeate and drain away, preventing waterlogging beneath your slabs, which can lead to frost heave in colder months.
• Capillary Break: It helps prevent moisture from rising from the ground into the bedding layer and slabs, which can cause efflorescence and other damp-related issues.

Given the often wet and unpredictable UK weather, the drainage and stability provided by a correctly laid MOT Type 1 sub-base are non-negotiable for achieving a durable and long-lasting paved area.

Planning Your Paving Project: The Foundation of Success

Before you even think about moving earth, thorough planning is crucial. A well-thought-out design and material selection will save you time, effort, and money in the long run.

• Measure the Area Accurately: Use a tape measure to determine the precise dimensions of your intended paved area. Always factor in a small buffer for cutting slabs, especially if your design involves intricate patterns or curves.
• Select Your Sandstone: Sandstone slabs come in various thicknesses. For general patios and pedestrian areas, a minimum thickness of 22mm is recommended. For driveways or areas expecting heavier loads, thicker slabs (e.g., 30-50mm) will offer greater resilience. The slab thickness will directly influence your excavation depth.
• Plan for Effective Drainage: This is perhaps the most critical aspect for UK weather conditions. You must ensure a slight fall or slope across your paved area to allow rainwater to run off efficiently. A gradient of approximately 1:80 (meaning a 1cm drop for every 80cm of length) away from buildings or towards designated drainage channels (like linear drains or soakaways) is ideal. Poor drainage will lead to standing water, moss growth, and potential damage to your paving and property.

Essential Tools and Materials for Your MOT Sub-Base

Having all your materials and tools ready before you start will make the process much smoother and more efficient. Here’p a comprehensive list:

Materials:

• Sandstone Slabs: The star of your project, chosen to your taste and thickness requirements.
• MOT Type 1 Sub-Base: The core of your foundation. Calculate your required volume based on the area and desired thickness (100-150mm).
• Sharp Sand: For the bedding layer.
• Cement: To mix with sharp sand for the bedding mortar.
• Jointing Compound (Optional but Recommended): For filling the gaps between slabs. Offers flexibility and weather resistance. Alternatively, a traditional sand and cement mix can be used.

Tools:

• String Line and Stakes: For accurately marking out your area and establishing levels.
• Spirit Level (Long and Short): Essential for checking levels and slopes at every stage.
• Measuring Tape: For all your dimensioning needs.
• Shovel and Spade: For excavation and spreading materials.
• Wheelbarrow: For transporting excavated soil and aggregates.
• Rubber Mallet: For gently bedding paving slabs into position.
• Bucket: For mixing mortar and carrying smaller quantities of materials.
• Whacker Plate (Plate Compactor): Absolutely essential for compacting the MOT Type 1 sub-base. You can usually hire these from local tool hire shops.
• Rake: For spreading aggregates evenly.
• Gloves and Safety Goggles: Always prioritise personal safety.

Step-by-Step Guide to Preparing the Ground and Laying MOT Type 1

This is where the real work begins. Following these steps carefully will ensure your sub-base provides maximum durability.

1. Mark Out the Area with Precision

Using your string lines and stakes, meticulously mark out the exact perimeter of your paving. Ensure all corners are square (if applicable) and edges are straight. This initial preparation is critical for the overall aesthetic and accuracy of your finished paving.

2. Excavation: Digging to the Correct Depth

Now it's time to dig. The total depth of your excavation needs to accommodate:

• MOT Type 1 Sub-Base: Typically 100mm for pedestrian patios, or 150mm for driveways.
• Bedding Layer: Usually 30-50mm of mortar.
• Sandstone Slabs: The thickness of your chosen slabs (e.g., 22mm, 30mm, 50mm).

For example, for a pedestrian patio with 22mm slabs: 100mm (MOT) + 30mm (bedding) + 22mm (slab) = 152mm total excavation depth. Dig down to this calculated depth, ensuring the base of your excavation is firm and solid. If you hit soft spots, you may need to excavate deeper and fill with additional MOT Type 1, compacting in layers.

3. Initial Levelling and Drainage Check

Before laying any hardcore, use your spirit level and a straight edge to check the excavated base. Ensure it has the planned slight slope for drainage. It doesn't need to be perfectly smooth at this stage, but the overall fall should be evident.

4. Laying the MOT Type 1 Sub-Base

Begin spreading the MOT Type 1 hardcore across your excavated area. Aim for an even layer:

• For Pedestrian Areas: Approximately 100mm (4 inches) thick.
• For Driveways and Heavy Loads: Approximately 150mm (6 inches) thick.

Use a rake to spread the material as evenly as possible. If your required sub-base is thicker than 150mm, it's advisable to lay and compact the MOT Type 1 in two separate layers (e.g., two 100mm layers for a 200mm total depth).

5. Compacting the Sub-Base with a Whacker Plate

This is arguably the most crucial step for a long-lasting patio. Use your whacker plate to thoroughly compact the MOT Type 1. Work systematically across the entire area, overlapping each pass to ensure no sections are missed. You should see the material visibly compact and feel firm underfoot. Continue compacting until the sub-base is dense, stable, and no longer moves when walked upon. Proper compaction is key to preventing future subsidence.

6. Final Level and Slope Verification

After compaction, re-check the levels and, crucially, the drainage slope. Use your spirit level and a long straight edge. Make any minor adjustments by adding a small amount of MOT Type 1 to low spots or carefully scraping away from high spots, then re-compacting these areas. The goal is a consistently firm surface with the correct fall for water runoff.

Beyond the Sub-Base: Completing Your Sandstone Paving

While the MOT Type 1 is the foundation, the subsequent steps are vital for the overall finish and performance of your paving.

• Prepare the Bedding Layer: Mix sharp sand and cement in a ratio of 4 parts sand to 1 part cement. Add water gradually to achieve a 'damp mix' consistency – it should hold its shape when squeezed but not be wet or runny. Spread a 30-50mm layer of this mortar mix over the compacted MOT Type 1, working in small sections to prevent it from drying out prematurely.
• Lay the Sandstone Slabs: Carefully position each slab onto the fresh mortar bed, starting from a corner. Use a rubber mallet to gently tap the slab down, bedding it firmly into the mortar. Continuously check the level of each slab against its neighbours and ensure the overall drainage slope is maintained. Adjust the mortar beneath as needed.
• Jointing the Paving: Once the slabs are laid and the bedding mortar has had at least 24 hours to partially set, you can apply your chosen jointing material. A flexible jointing compound is often preferred in the UK for its resistance to movement and weather. Alternatively, a traditional sand and cement mortar mix (4:1 sand:cement, slightly damp) can be used. Ensure joints are completely filled and then smoothed for a tidy finish, wiping off any excess from the slab surfaces as you go.
• Curing and Final Checks: Allow the entire paving area to cure for several days, ideally keeping it dry. Avoid heavy loads or traffic for at least 3-4 days, or longer in damp conditions, to allow the mortar to fully harden. Finally, sweep the area clean and lightly rinse if necessary.

Common Pitfalls to Avoid When Laying Your Sub-Base

Even with the best intentions, mistakes can happen. Being aware of common issues can help you sidestep them:

• Insufficient Compaction: This is the biggest culprit for failed paving. If the MOT Type 1 isn't thoroughly compacted, it will settle unevenly over time, leading to sinking slabs and an unstable surface. Don't rush this step!
• Incorrect Depth: Excavating too shallow means your paving will sit too high, potentially causing trip hazards or drainage issues against buildings. Digging too deep is less problematic but wastes material.
• Ignoring Drainage: Failing to incorporate a proper slope will lead to standing water, which can damage the paving, encourage moss, and even seep into your property.
• Soft Ground: If your excavated base is soft or waterlogged, simply laying MOT Type 1 on top might not be enough. You may need to improve the underlying soil by compacting it, or in severe cases, laying a geo-textile membrane before the MOT Type 1 to provide additional separation and stability.
• Working in Poor Weather: While you can't always predict UK weather, try to avoid laying your sub-base and paving in extremely wet or freezing conditions, as this can compromise the compaction and curing processes.

Frequently Asked Questions About Laying MOT Type 1

How much MOT Type 1 do I need for my project?

To calculate the required volume, multiply the length (m) by the width (m) by the desired thickness (m). For example, a 10m x 5m patio needing 0.1m (100mm) of MOT Type 1 would require 10 x 5 x 0.1 = 5 cubic metres. Remember to add a small percentage (5-10%) for wastage and compaction.

Can I use something else instead of MOT Type 1?

While other aggregates like scalping or crushed concrete can be used, MOT Type 1 is highly recommended due to its consistent grading and superior compaction properties. Its quality ensures optimal performance for paving foundations, especially under varying UK weather conditions.

What if my soil isn't firm after excavation?

If you encounter soft or unstable soil, you may need to excavate a little deeper and lay a geo-textile membrane (terram) directly on the soil before adding your MOT Type 1. This membrane helps to separate the sub-base from the soil, preventing migration of fines and improving overall stability. Then, compact additional MOT Type 1 in layers.

How long does MOT Type 1 need to compact?

The compaction process with a whacker plate should continue until the material is visibly dense and no longer shows significant movement or vibration when the compactor passes over it. This typically involves several passes in different directions over the entire area. There's no set time, but rather a visual and tactile assessment of firmness.

What slope is ideal for drainage on my patio?

A fall of 1:80 is generally recommended. This means for every 80 units of length, there should be 1 unit of drop. For example, over a 4-metre (400cm) patio, you would want a fall of 5cm (400/80 = 5). This subtle slope is usually enough to shed water without being noticeable underfoot.

Conclusion

Laying a high-quality MOT Type 1 sub-base is not merely a step in the paving process; it is the cornerstone of a successful, long-lasting, and aesthetically pleasing sandstone patio or driveway. By meticulously following the planning, preparation, and installation steps outlined in this guide, you equip your outdoor space with the essential durability and robust drainage needed to withstand the rigours of UK weather and daily use. Invest the time and effort into this foundational stage, and you will be rewarded with a beautiful, stable paved area that you can enjoy for many years to come.
