LB7 Duramax: Issues & Fixes

The Iconic LB7 Duramax: A Deep Dive into its Strengths and Weaknesses

The Duramax LB7 holds a special place in the hearts of many truck enthusiasts. As the very first engine to bear the "Duramax" name, it represented a significant leap forward for General Motors in the heavy-duty truck segment. Born from a strategic partnership between GM and Isuzu Motors Ltd., the LB7 was designed to meet the growing demand for a diesel powerplant that offered both robust torque and impressive fuel efficiency, rivalling the large petrol engines of the time. While not without its quirks, the LB7 laid the groundwork for future Duramax generations and remains a popular choice for many. This article will explore the origin of the LB7, its technical specifications, its reliability, and crucially, the common issues that owners might encounter and how to address them.

The Genesis of the Duramax: A GM-Isuzu Collaboration

The story of the LB7 is intrinsically linked to the 1970s oil crisis. GM, recognising the need for more fuel-efficient vehicles, forged a relationship with Isuzu, a Japanese manufacturer already renowned for its expertise in small, economical cars. This initial collaboration, which saw the Chevrolet LUV pickup truck emerge, provided the foundation for a deeper partnership focused on diesel technology. By the 1990s, GM identified a gap in its heavy-duty truck lineup for a modern, powerful diesel engine. Isuzu, with its extensive experience and patents in diesel engineering, was the ideal partner. This led to the formation of DMAX Ltd. in 1997, a joint venture dedicated to developing and manufacturing a new heavy-duty diesel engine. In an impressive feat of engineering and manufacturing, DMAX not only designed the LB7 from the ground up but also built a state-of-the-art factory in Moraine, Ohio, capable of producing 100,000 engines annually, all within a remarkable 37-month timeframe. Despite Isuzu's eventual withdrawal from the US market, GM's stake in DMAX increased, solidifying its commitment to the Duramax legacy.

LB7 Engine Specifications: A Technical Overview

The LB7 was a clean-sheet design engineered to fit seamlessly into GM's Heavy Duty (HD) truck chassis. The challenge of packaging a complex diesel engine, complete with turbochargers, intercoolers, oil coolers, and fuel rails, into the same footprint as a petrol engine was met with innovative solutions. Key technical highlights of the LB7 include:

Block and Construction

The LB7 block is cast from a robust grey iron alloy, featuring a "deep skirt" design for enhanced rigidity. The main bearing caps are secured with substantial main bolts and further reinforced by two side bolts, ensuring exceptional strength. To combat cylinder wall wear, the upper two inches of each cylinder bore are induction hardened and precisely machined to be perfectly round and square to the deck surface. This meticulous attention to detail in the block construction contributes significantly to the engine's durability.

Rotating Assembly and Top End

Internal components were designed with a focus on being both lightweight and incredibly durable. The crankshaft, forged from 4340 steel, underwent a Tufftride process to boost fatigue strength and was further heat-treated (nitrided) by DMAX to create a hardened surface. To maintain density and balance, counterweights were integrated into the crankshaft pulley and the flex plate. The connecting rods are forged steel with a cracked cap design, offering superior resilience under high horsepower loads. The aluminium cylinder heads feature a 4-valve-per-cylinder configuration, secured by six torque-to-yield bolts per cylinder to ensure optimal sealing and efficient combustion.

Turbocharger and Fuel System

The LB7 was equipped with a fixed-geometry turbocharger supplied by IHI, a unique characteristic as it's the only fixed-geometry unit used across all Duramax generations. In a departure from typical diesel setups, the LB7 did not feature a lift pump. Instead, it relied on a powerful Bosch CP3 fuel injection pump to supply fuel to the common rails at high pressures. This pioneering direct injection system, coupled with solenoid-style injectors, was advanced for its time but also contributed to some of the engine's well-documented issues.

LB7 Reliability: Common Issues and Solutions

Despite its groundbreaking design, the LB7 is not immune to common problems. However, many of these issues have well-established solutions and are manageable with proper maintenance and timely repairs. Here are the most frequently encountered problems:

1. Fuel Injector Failures

This is arguably the most notorious issue with the LB7. The advanced direct fuel injection system, while innovative, placed significant stress on the fuel injectors. The primary failure modes included:

• Internal Wear: Over time, internal components, specifically the ball seat, would wear out, leading to fuel leaks.
• Cracked Injectors: Injectors could develop cracks, resulting in air and fuel mixture problems.

GM acknowledged the severity of this problem and implemented a significant redesign of the injectors, offering an extended warranty of 7 years or 200,000 miles for replacements. However, even replacement factory injectors can be prone to failure. For long-term reliability and performance, upgrading to high-quality aftermarket injectors is highly recommended. These aftermarket units are often built with more robust materials and improved designs to withstand the demands of the LB7's fuel system.

2. Head Gasket Issues

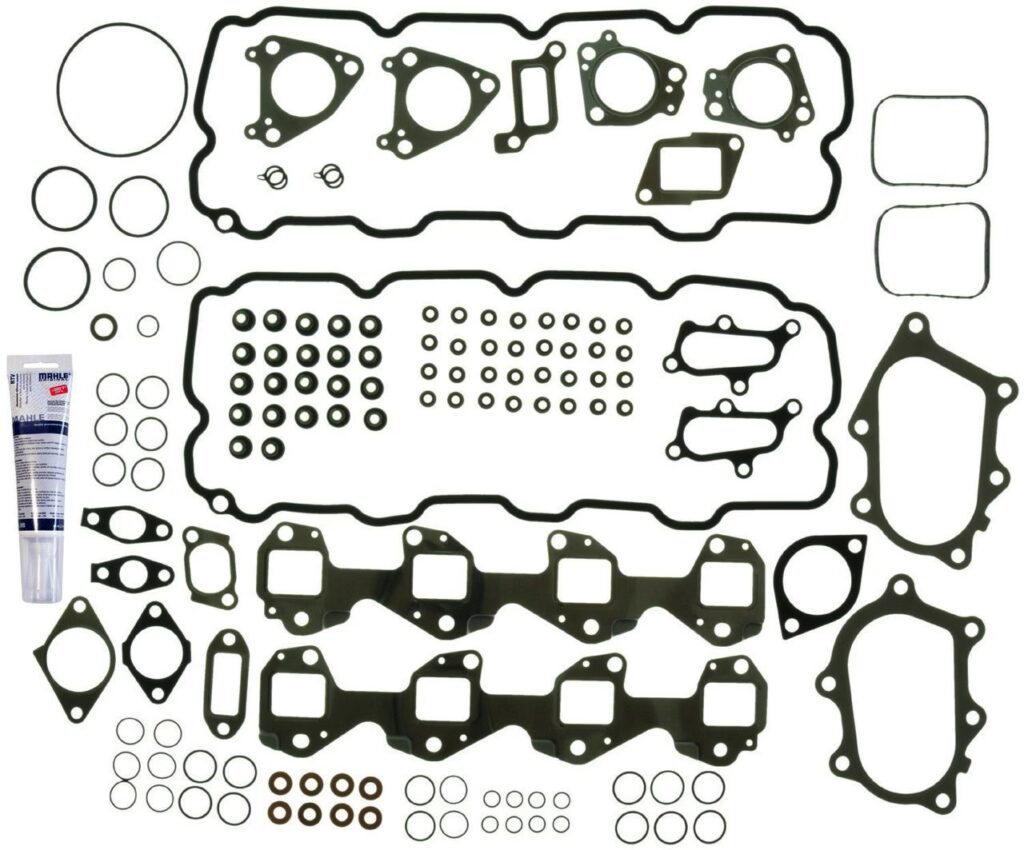

A flawed design in the original head gaskets made failures almost inevitable over time. The original gaskets featured a "crimped" design that formed a containment ring around the cylinders. Under the immense pressures of diesel combustion, this design was prone to allowing the gasket layers to separate, leading to leaks and potential engine damage. Similar to the injector issue, GM addressed this by redesigning the head gaskets. The revised version utilises a multi-layered steel design, eliminating the problematic crimped edge. When replacing head gaskets, it is crucial to use a comprehensive kit that includes all necessary components for a complete and proper repair.

3. Fuel Filter Housing O-Ring Leaks

The O-rings sealing the fuel filter housing are another common point of failure on the LB7. Over time, these seals can degrade, leading to fuel leaks. These leaks can not only be a fire hazard but can also allow air into the fuel system, affecting engine performance. Upgrading to a high-quality aftermarket O-ring kit is a cost-effective way to prevent these leaks and reinforce this known weak point.

Performance Upgrades for the LB7

While addressing common issues is essential, many LB7 owners also look to enhance their engine's performance. Popular upgrades include:

• Performance Injectors: Beyond reliability, aftermarket injectors can offer increased fuel delivery for more power.
• Upgraded Turbochargers: Larger or more efficient turbochargers can significantly boost horsepower and torque.
• Exhaust and Intake Systems: Improving airflow in and out of the engine can enhance performance and sound.
• Tuning: Electronic control modules (ECMs) can be reprogrammed to optimise fuel delivery, boost pressure, and other parameters for increased power and improved drivability.

Frequently Asked Questions about the LB7 Duramax

Q1: Are LB7 Duramax engines reliable?
While the LB7 had specific common issues, particularly with injectors and head gaskets, it is generally considered a reliable engine, especially considering it was the first of its kind from GM. With proper maintenance and addressing known failure points, many LB7 engines offer many years of service.

Q2: What is the most common problem with the LB7?
The most frequently reported and significant issue with the LB7 Duramax is fuel injector failure. This was due to the pioneering direct injection system and the components used in the early injectors.

Q3: How much horsepower can an LB7 engine handle?
Stock LB7 engines are typically rated around 300-325 horsepower. With upgrades to injectors, turbochargers, and tuning, they can reliably handle significantly more power, often exceeding 500-600 horsepower in modified setups. However, exceeding these figures may require internal engine upgrades.

Q4: What is the lifespan of an LB7 engine?
With regular maintenance, including oil changes, fuel filter replacements, and addressing common issues promptly, an LB7 engine can easily last for 250,000 to 300,000 miles or more. Many owners report engines exceeding these mileages.

Q5: Is it worth upgrading LB7 injectors?
Yes, upgrading LB7 injectors is highly recommended, especially if you are experiencing issues with the stock units or planning performance modifications. High-quality aftermarket injectors offer improved reliability and can support increased power output.

Trusting the LB7 Experts

For owners of the LB7 Duramax, finding reliable parts and expert advice is crucial. Companies like Merchant Automotive specialise in these engines, offering a comprehensive range of products from fuel injector replacement kits to lubricants and additives. Their extensive experience with the LB7 ensures that customers receive the best quality parts and knowledgeable support, whether their truck is in stock form or a highly modified performance machine. Investing in quality parts and expert service is key to unlocking the full potential and longevity of your LB7 Duramax.

The LB7 Duramax, with its rich history and robust engineering, remains a testament to the successful GM-Isuzu collaboration. While it presented certain challenges, the solutions are well-understood, making it a rewarding engine for enthusiasts who appreciate its power and durability. By understanding and addressing its common issues, LB7 owners can ensure their trucks continue to perform reliably for years to come.
