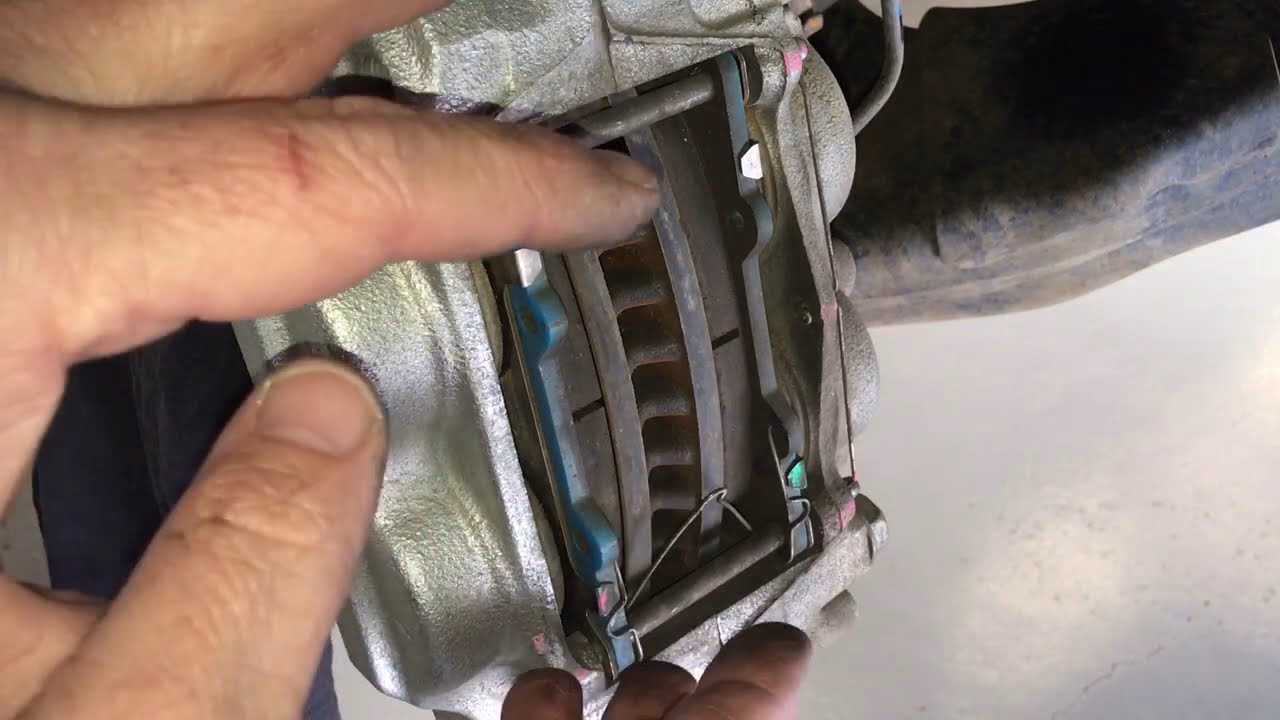

Brake Pad Replacement: The Right Way

The Importance of Proper Brake Pad Replacement

The braking system is arguably the most critical safety feature on any vehicle. When it comes to maintaining this vital system, precision and adherence to best practices are paramount. One common question that arises among DIY mechanics and car owners alike is whether brake pads should be replaced on a one-wheel-at-a-time basis. The short answer, and the one that prioritises your safety and the longevity of your braking system, is a resounding no. This article will delve into why replacing brake pads on one wheel at a time is a detrimental practice and will guide you through the correct procedure for a safe and effective brake pad replacement.

Why Not Change One Brake Pad at a Time?

The information provided from the Toyota Land Cruiser Service Manual highlights a crucial point in step 7(b): "Always change the pads on one wheel at a time as there is a possibility of opposite piston fling out." While this statement might seem counter-intuitive at first glance, it underscores a fundamental principle of hydraulic braking systems. When you compress a brake caliper piston to accommodate a new, thicker brake pad, you are essentially pushing brake fluid back into the master cylinder reservoir. If you only replace the pads on one side of an axle, the hydraulic pressure distribution can become uneven. This unevenness can lead to:

• Uneven Braking Force: The side with new pads will have a different braking performance compared to the side with older, worn pads. This can cause the vehicle to pull to one side during braking, significantly compromising steering control and stability.
• Reduced Braking Efficiency: The overall stopping power of your vehicle can be diminished. The system is designed to work in harmony, and introducing mismatched components disrupts this balance.
• Potential for Piston Issues: As the manual warns, performing the replacement on one wheel can lead to the opposite piston "flinging out." This means the piston on the other side of the same axle could be pushed out too far, potentially losing brake fluid and compromising the entire brake circuit.
• Premature Wear on New Pads: The new pads on one side will be working harder or differently than the old pads on the other, leading to accelerated and uneven wear on the new components.

The Correct Approach: Replacing Brake Pads in Pairs

The universally accepted and safest method for replacing brake pads is to do so on both wheels of an axle at the same time. This ensures that both sides of the vehicle have identical braking components, providing balanced and predictable stopping power. Here's a breakdown of the general procedure, incorporating the details from the Toyota Land Cruiser manual:

Step-by-Step Brake Pad Replacement (Axle Set)

The following steps outline the general process. Always refer to your vehicle's specific service manual for precise details and torque specifications.

1. Preparation and Safety

Before you begin, ensure you have the correct replacement brake pads for your vehicle, along with any necessary hardware like new clips and shims. Gather your tools, including a jack, jack stands, lug wrench, socket set, torque wrench, C-clamp or piston compressor tool, and brake cleaner.

• Park your vehicle on a level surface and engage the parking brake.
• Loosen the lug nuts on the wheels you'll be working on, but do not remove them yet.
• Safely lift the vehicle using a jack and support it securely with jack stands. Never work under a vehicle supported only by a jack.
• Remove the lug nuts and the front wheel (as per Step 1 in the provided manual).

2. Accessing and Inspecting the Brake Pads

With the wheel removed, you'll have direct access to the brake caliper and pads.

• Inspect Pad Lining Thickness: As noted in Step 2 of the manual, check the thickness of the brake pad lining through the caliper inspection hole. The minimum thickness is specified as 1.0 mm (0.039 in.). If the pads are worn down to or near this limit, they need replacement. It's prudent to measure both inner and outer pads.

3. Disassembling the Caliper

This is where you'll carefully remove the old brake pads.

• Remove Caliper Bolts/Pins: Typically, there are bolts or pins securing the caliper to the bracket. Remove these. For some designs, you might only need to remove the lower caliper bolt to pivot the caliper upwards.
• Remove Clip and Pins (Step 3): The manual mentions removing a clip and two pins. These often secure the brake pads in place.
• Remove Pad Retainer Clips (Step 4): These small clips help keep the pads seated correctly.
• Remove Old Pads, Shims, and Retainers (Step 5): Carefully slide out the old brake pads, along with any anti-squeal shims and pad retainers. Note how they are oriented for easier reinstallation.

NOTICE: As per the manual, if the pad retainer clip and clip are in good condition (sufficient rebound, no deformation, cracks or wear, and thoroughly cleaned), they can be reused. However, for critical safety components like brake pads, it's often recommended to replace associated hardware if there's any doubt about their condition.

4. Checking the Brake Disc (Rotor)

While the caliper is off, it's an excellent opportunity to inspect the brake disc.

• Check Disc Thickness and Runout (Step 6): Refer to the manual's specification (BR-21) for minimum disc thickness. Inspect the disc surface for deep grooves, cracks, or signs of overheating (blueing). Excessive runout (wobble) can also cause vibration and uneven braking. If the disc is worn beyond its minimum thickness or shows significant damage, it should be replaced or machined (resurfaced).

5. Compressing the Caliper Piston

Before installing the new, thicker pads, you need to retract the caliper piston(s) back into the caliper body.

• Draw out Brake Fluid (Step 7a): Slightly open the brake fluid reservoir cap and draw out a small amount of fluid using a clean syringe or turkey baster. This prevents the reservoir from overflowing when the piston is compressed. Do not overfill the reservoir.
• Compress the Piston (Step 7b): Use a C-clamp or a dedicated brake piston compressor tool to slowly and steadily push the piston back into the caliper. Apply even pressure.

HINT: If the piston is particularly stubborn, as mentioned in the hint, you might need to loosen the bleeder plug slightly to allow fluid to escape while compressing. Be prepared to catch any dripping fluid and immediately retighten the bleeder plug once the piston is retracted. Close the bleeder plug securely after this.

6. Installing New Brake Pads and Hardware

Now it's time to fit the new components.

• Install New Pads (Step 7): Slide the new brake pads into their respective positions within the caliper bracket.
• Install Anti-Squeal Shims (Step 7e): These shims help to dampen noise. As noted in the manual, when replacing worn pads, the anti-squeal shims must be replaced along with the pads.
• Apply Disc Brake Grease (Step 7e Hint): Apply a thin layer of high-temperature disc brake grease to the back of the shims and the edges of the pads where they contact the caliper bracket and pistons. This lubrication helps prevent sticking and noise. Crucially, ensure no grease or oil gets onto the friction material of the pads or the surface of the brake disc, as this will severely compromise braking performance.

7. Reassembling the Caliper

Reverse the disassembly process.

• Install Pad Retainers (Step 7c): Place the pad retainers onto the caliper pistons.
• Install New Pads (Step 7e): Ensure the new pads are correctly seated.
• Install Pins and Clips (Step 8 & 9): Reinstall the pins and retainer clips that hold the pads and caliper components together. Ensure they are properly secured.

8. Final Steps

• Reinstall the Wheel (Step 10): Mount the wheel back onto the hub and hand-tighten the lug nuts.
• Lower the Vehicle: Carefully lower the vehicle off the jack stands.
• Torque Lug Nuts: Tighten the lug nuts to the manufacturer's specified torque using a torque wrench (103 N·m or 76 ft·lbf for the Land Cruiser example). Tighten them in a star pattern.
• Depress Brake Pedal (Step 11): Before driving, you must depress the brake pedal several times. This pushes the caliper pistons back out to seat against the new pads, restoring pedal feel and ensuring the brakes are engaged.
• Check Fluid Level (Step 12): Open the bonnet and check the brake fluid level in the reservoir. Top it up to the 'MAX' line if necessary, using the correct type of brake fluid for your vehicle.

Table: Key Differences - Single Pad vs. Pair Replacement

Frequently Asked Questions (FAQs)

Q1: Can I just replace the worn brake pad on one side if the other side still looks okay?
Absolutely not. While one pad might appear to have more material left, braking systems are designed to work as a pair on each axle. Replacing only one can lead to significant safety issues due to uneven braking force.

Q2: What happens if I don't replace the anti-squeal shims?
Anti-squeal shims are designed to absorb vibrations that cause brake noise (squealing). If they are worn or damaged and not replaced, you are highly likely to experience annoying brake squeal, even with new pads. The manual explicitly states they must be replaced with the pads.

Q3: How do I know when to replace my brake pads?
Common indicators include a grinding noise (metal on metal, indicating severe wear), a squealing noise from the wear indicator tab, a spongy or soft brake pedal, and the vehicle pulling to one side when braking. Visually inspecting the pad thickness (as per Step 2) is the most reliable method.

Q4: Do I need to bleed my brakes after replacing pads?
Generally, no. Bleeding the brakes is typically only necessary if you have opened the brake lines or if the brake fluid has been contaminated. Simply retracting the pistons and replacing the pads should not require a full bleed, but ensuring the pedal is firm after the replacement is crucial.

Q5: What is the purpose of disc brake grease?
Disc brake grease is applied to specific contact points (like the back of the shims, pad ears, and caliper slide pins) to ensure smooth operation, prevent seizing, and reduce noise. It is crucial to use the correct type of grease and apply it only to the designated areas, avoiding the friction surfaces.

Conclusion

The safety of yourself and others on the road hinges on the proper functioning of your vehicle's braking system. While the temptation to save a little time or effort by replacing brake pads on one wheel at a time might exist, it is a dangerous practice that compromises braking performance and can lead to more serious issues. Always adhere to the principle of replacing brake pads in pairs for each axle. By following the correct procedures, using quality parts, and paying attention to the details outlined in your vehicle's service manual, you can ensure your brakes remain in optimal condition for safe and reliable operation.
