DVSA Approved Brake Testers Explained

Ensuring the roadworthiness of commercial vehicles is paramount for safety, efficiency, and legal compliance. At the heart of this assurance lies the commercial vehicle brake tester, a sophisticated piece of equipment designed to rigorously assess the braking performance of trucks, coaches, and buses. When we talk about a 'DVSA approved' commercial vehicle brake tester, we're referring to a unit that has met the stringent standards set by the Driver and Vehicle Standards Agency (DVSA) in the United Kingdom. These approvals signify that the equipment is capable of performing the necessary brake tests to a professional and accurate standard, essential for Authorised Testing Facilities (ATFs) and vehicle operators alike.

What is a DVSA Approved Commercial Vehicle Brake Tester?

A DVSA approved commercial vehicle brake tester is a specialised piece of garage equipment that has been officially recognised and certified by the Driver and Vehicle Standards Agency. This approval means the brake tester has undergone rigorous testing and validation to ensure it can accurately measure a vehicle's braking efficiency, brake force distribution, and other critical braking parameters. For an ATF to conduct official MOT tests on commercial vehicles, it must utilise brake testing equipment that has received DVSA approval. This ensures a consistent and reliable assessment of braking systems across the country, contributing significantly to road safety.

The Importance of DVSA Approval

DVSA approval is not merely a bureaucratic hurdle; it's a cornerstone of quality and reliability in commercial vehicle testing. When a brake tester carries DVSA approval, it signifies that it adheres to the specific testing protocols and accuracy requirements mandated by the agency. This is crucial for several reasons:

• Road Safety: Faulty brakes are a major cause of accidents. DVSA approval ensures that the equipment used to test brakes is accurate, identifying potential defects before they lead to dangerous situations on the road.
• Legal Compliance: For commercial vehicles to operate legally, they must pass regular inspections, including brake tests. Using DVSA approved equipment ensures that these tests are conducted correctly and are legally recognised.
• ATF Requirements: Authorised Testing Facilities (ATFs) are designated sites where commercial vehicle MOT tests are carried out. These facilities are legally obliged to use DVSA approved equipment, including brake testers.
• Accuracy and Repeatability: DVSA approved testers are designed for high accuracy and repeatability. This means that a vehicle's braking performance will be measured consistently, regardless of when or where it is tested, provided the same approved equipment is used.
• Operator Confidence: Vehicle operators can have confidence that their vehicles are being tested using reliable equipment, giving them peace of mind regarding their fleet's safety and compliance.

Tecalemit DE/9700 CV Brake Tester: A Leading Example

The Tecalemit DE/9700 CV Brake Tester stands out as a prime example of a DVSA approved commercial vehicle brake tester specifically designed to meet the demanding requirements of UK Authorised Testing Facilities (ATFs). As the first commercial vehicle brake tester (CVBT) engineered and manufactured with these specific UK ATF testing requirements in mind, the DE/9700 embodies the precision and reliability needed for testing trucks, coaches, and buses.

Key Features of the Tecalemit DE/9700

The DE/9700 is built to offer exceptional performance and ease of use, incorporating features that streamline the testing process for ATF operators:

• Designed for UK ATFs: Its design and functionality are directly aligned with the testing procedures and standards required by the DVSA for ATFs.
• Comprehensive Testing Capabilities: It can accurately measure a wide range of braking parameters, including brake force, brake efficiency, ovality, slip, and side forces.
• Robust Construction: Built to withstand the heavy-duty demands of commercial vehicle workshops, ensuring durability and a long service life.
• User-Friendly Interface: Designed with the operator in mind, offering clear displays and intuitive controls for efficient operation.
• Integration Capabilities: Often designed to integrate with other testing equipment, such as headlamp aim testers and emission analysers, for a complete testing bay solution.

How Commercial Vehicle Brake Testers Work

Commercial vehicle brake testers, often referred to as roller brake testers or decelerometers, work by simulating the braking action of a vehicle under controlled conditions. The fundamental principle involves measuring the force generated by each wheel when the brakes are applied.

Roller Brake Testers

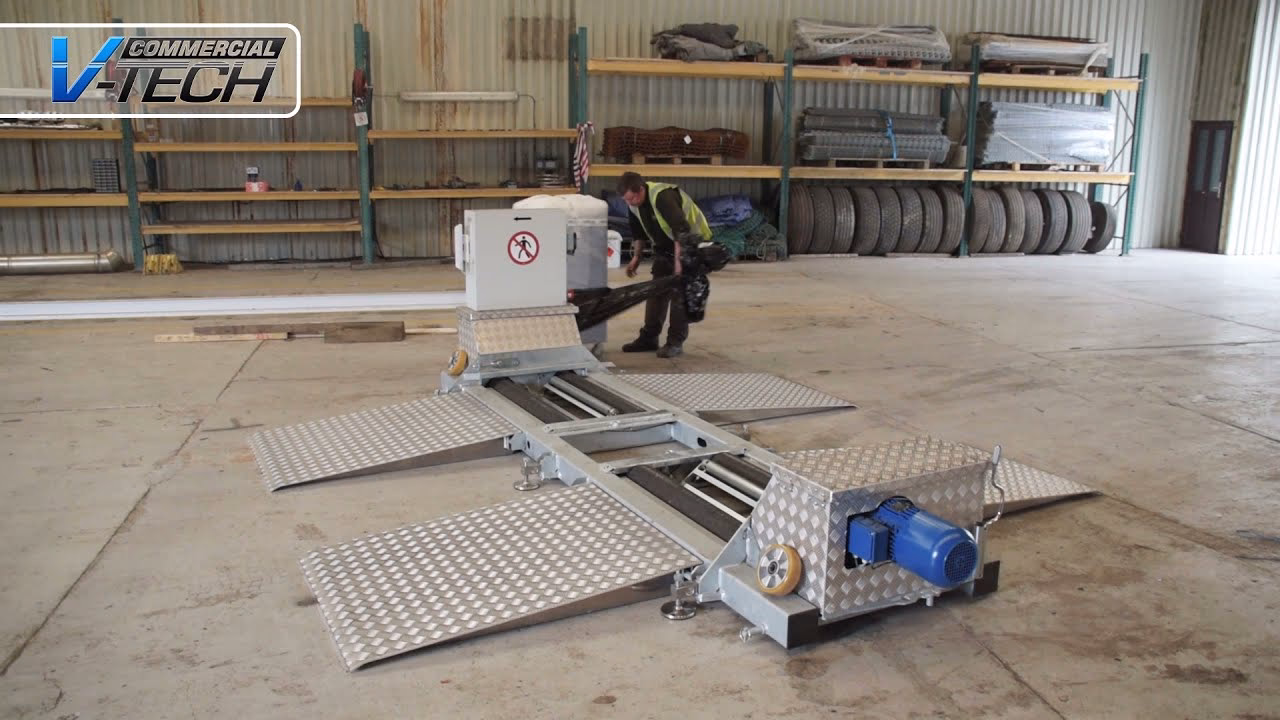

Roller brake testers are the most common type used in ATFs. They typically consist of a pair of rollers for the drive wheels and often a separate set for the non-drive wheels. The vehicle is driven onto the rollers, and the brake pedal is then depressed. As the rollers spin, the brake force applied by the vehicle's system resists this rotation. Sensors within the rollers measure the force exerted by each wheel. The equipment then calculates:

• Brake Efficiency: This is the percentage of the vehicle's weight that can be stopped by the braking system. A higher percentage indicates more effective braking.
• Brake Force: The actual force applied by each brake.
• Imbalance: The difference in braking force between wheels on the same axle or between front and rear axles. Significant imbalances can lead to unpredictable handling and increased stopping distances.
• Ovality/Binding: This measures how consistently the brake applies force as the wheel rotates. High ovality can indicate worn or damaged brake components.
• Slip: The percentage by which the wheels slip against the rollers. Excessive slip can indicate issues with tyre condition or brake application.

Decelerometers

While roller brake testers are common for stationary testing, decelerometers are sometimes used for in-service testing or as a supplementary method. These devices measure the rate at which a vehicle slows down when the brakes are applied. They can be either hand-held or installed within the vehicle. DVSA approval for decelerometers also ensures accuracy in measuring the vehicle's deceleration rate.

Choosing the Right Brake Tester

Selecting a DVSA approved commercial vehicle brake tester is a significant investment for any ATF or fleet operator. Several factors should be considered:

Table: Key Considerations When Choosing a Brake Tester

Maintenance and Calibration

Once a DVSA approved brake tester is installed, its ongoing accuracy is critical. Regular maintenance and calibration are not just recommended; they are often a requirement for maintaining DVSA approval. Calibration involves checking the tester's readings against known standards and adjusting it to ensure it remains accurate. This process should be carried out by qualified technicians, typically on an annual basis, or as specified by the manufacturer and the DVSA. Proper maintenance also includes keeping the equipment clean, checking for wear and tear on components like rollers, and ensuring all electrical connections are secure.

Frequently Asked Questions (FAQs)

Q1: What is the minimum brake efficiency required for a heavy goods vehicle (HGV)?

A1: The minimum brake efficiency for an HGV is generally considered to be 50% for the service brake, with specific requirements for secondary and parking brakes also in place. The DVSA sets these precise figures, and approved brake testers are calibrated to measure against them.

Q2: Can I use a portable brake meter (decelerometer) instead of a roller brake tester for an MOT?

A2: For most commercial vehicle MOTs conducted at an ATF, a roller brake tester is the standard and usually mandatory equipment. Portable decelerometers may be used in certain specific circumstances or for supplementary checks, but they do not typically replace the need for a roller brake tester at an ATF.

Q3: How often does a commercial vehicle brake tester need to be calibrated?

A3: DVSA approved brake testers typically require calibration at least annually. However, the exact frequency may depend on the manufacturer's recommendations and the specific operating environment. It's essential to follow the calibration schedule to maintain compliance and accuracy.

Q4: What happens if my brake tester fails calibration?

A4: If a brake tester fails calibration, it must not be used for official testing until it is repaired and successfully recalibrated. The ATF operator will need to arrange for servicing and recalibration by a qualified professional. Failure to do so could invalidate MOT tests and lead to compliance issues with the DVSA.

Q5: Does DVSA approval apply to the software or just the hardware?

A5: DVSA approval typically covers the entire system, including both the hardware (rollers, sensors, chassis) and the software that processes the data and presents the results. Any updates or modifications to the software may also require re-approval or verification by the DVSA to ensure continued compliance.

Conclusion

A DVSA approved commercial vehicle brake tester is an indispensable tool for any Authorised Testing Facility or large fleet operator in the UK. It is the benchmark for accurately assessing the critical braking systems of heavy goods vehicles, buses, and coaches. Equipment like the Tecalemit DE/9700 exemplifies the advanced engineering and adherence to regulatory standards that define these essential testing devices. By investing in and properly maintaining DVSA approved brake testing equipment, operators not only ensure legal compliance but, more importantly, contribute to the safety of our roads by confirming that commercial vehicles can stop effectively and reliably.
