Ford Kuga Leaks: Common Causes & Fixes

Encountering an oil leak from your Ford Kuga can be a source of considerable anxiety for any vehicle owner. While pinpointing the exact source without direct inspection is challenging, understanding the common areas prone to leaks can significantly aid in diagnosis and repair. This article delves into the most frequent culprits behind Kuga oil leaks, with a particular focus on the often-problematic cam box seal, and explores the underlying engineering reasons for these issues.

The Elusive Oil Leak: Identifying the Source

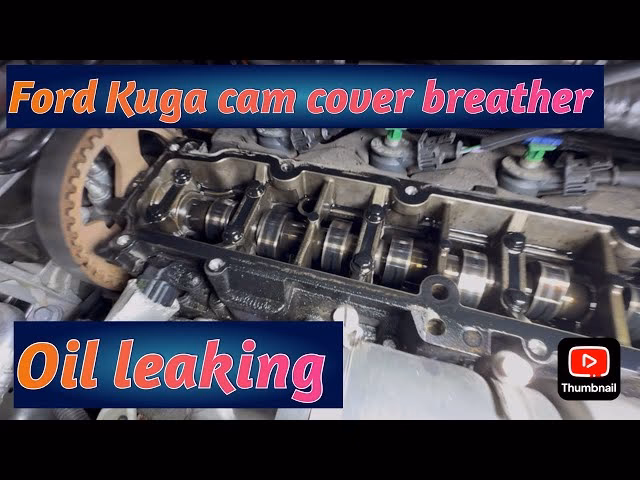

Oil leaks in vehicles are notoriously difficult to diagnose without hands-on examination. The nature of oil means it can travel down engine components, making the initial point of egress appear far from the actual source. For the Ford Kuga, one of the most prevalent areas for oil leaks is the cam box, also known as the camshaft housing or cover. This component sits atop the engine's cylinder head and houses the camshafts, which are crucial for operating the engine's valves.

The specific failure point often cited is the rear right corner of the cam box. Here, a seal is employed to prevent oil from escaping. Unfortunately, Ford's chosen method for creating this seal has been a point of contention among mechanics. Instead of a traditional gasket or a more robust sealant, a viscous, treacle-like substance was employed. While this might offer an initial seal, its long-term durability and resistance to heat and pressure are often found wanting. Over time, this sealant can degrade, crack, or lose its adhesive properties, allowing oil to seep out. This oil then typically runs down the back of the engine, potentially leading the owner to believe the leak is originating from a lower, less accessible, or even more critical component.

The Cam Box Seal: A Common Kuga Weakness

The cam box seal is a critical component, and its failure can lead to significant oil loss. When this seal begins to leak, oil can drip onto the exhaust manifold, causing unpleasant burning smells and, in severe cases, posing a fire risk. More commonly, it will simply drip onto the engine block and chassis, creating a mess and potentially leading to low oil levels if not addressed promptly. The design choice of using a specific, non-standard sealant for this area means that a straightforward gasket replacement might not always be the solution. Often, the entire sealing surface needs to be meticulously cleaned of the old sealant, and a high-quality, engine-specific sealant must be applied correctly to ensure a lasting repair.

Accessing the Cam Box: A Mechanical Challenge

Gaining access to the cam box on a Ford Kuga, like many modern vehicles, is not a simple task. It typically requires the removal of several other engine components to create sufficient space for a mechanic to work. This can include air intake systems, various hoses, electrical connectors, and sometimes even engine covers. The complexity of this access means that what might seem like a minor seal replacement can quickly escalate in terms of labour time and cost. Therefore, it's essential to have a qualified mechanic diagnose the leak properly to confirm it originates from the cam box before authorising any work.

Understanding the "Ladder Rack": Crankshaft and Sump Clearance

Beyond the cam box, understanding other aspects of the Kuga's engine design can provide valuable context. One such component is the "ladder rack." This is not a part of the camshaft system but rather an integral part of the engine block's structure, specifically designed to accommodate the crankshaft. The ladder rack acts as an extension of the main engine block, providing support for the crankshaft bearings.

The reason for its existence is directly related to the positioning of the crankshaft within the engine. In many engine designs, the crankshaft sits relatively low in the block. However, in the Kuga, the crankshaft is positioned higher. This design choice offers several advantages. Firstly, it allows for shorter connecting rods. Shorter connecting rods, in turn, can contribute to a more compact engine design and potentially reduce internal friction. More importantly, this higher crankshaft position, facilitated by the ladder rack structure, provides greater clearance between the crankshaft and the oil sump (the pan at the bottom of the engine that holds the oil). This increased clearance is crucial for preventing the rapidly spinning crankshaft from coming into contact with the oil sloshing in the sump, which could lead to catastrophic engine damage.

The ladder rack provides a more robust and stable platform for the crankshaft, especially in engines designed to handle higher performance parameters. The lobes on the crankshaft, which are essentially counterweights designed to balance the rotational forces, require adequate space. The ladder rack ensures that even with these larger lobes, there is sufficient gap between the crankshaft assembly and the sump pan, even under strenuous operating conditions where the oil level might fluctuate.

Engine Design Philosophy: Strength and Performance

The Kuga's engine design, with its higher-set crankshaft and the accompanying ladder rack structure, reflects a philosophy geared towards strength and the capacity to handle increased performance demands. By allowing for shorter connecting rods, the engine can be engineered to withstand higher compression ratios and greater boost pressures, particularly in turbocharged variants. This means the engine is inherently built with a degree of robustness that can handle the stresses associated with performance driving or towing, common uses for SUVs like the Kuga.

Common Leak Scenarios and Diagnostic Tips

When diagnosing an oil leak on a Kuga, consider these common scenarios:

• Cam Box Seal: As discussed, this is the most frequent offender. Look for oil weeping from the rear-right side of the engine, often dripping down the back.
• Oil Filter Housing: The seal or O-ring on the oil filter housing can also degrade, leading to leaks. This is often located on the front or side of the engine.
• Sump Plug: A loose or damaged sump plug washer can cause leaks from the bottom of the engine.
• Oil Cooler Lines: If your Kuga has an oil cooler, the lines connecting to it can develop leaks over time due to vibration or corrosion.
• Valve Cover Gasket: While distinct from the cam box, the valve cover gasket (if applicable to the specific Kuga model) can also fail, though this is generally less common than the cam box issue.

Diagnostic Tips:

• Cleanliness is Key: A mechanic will often thoroughly clean the suspected area of the leak. Driving the vehicle for a short period afterwards can help reveal the fresh oil trail, pinpointing the exact source.
• UV Dye: In persistent cases, a special UV-sensitive dye can be added to the engine oil. With a UV light, the exact path of the leak becomes visible, even for very small seepages.
• Visual Inspection: Always check your oil level regularly. If it's consistently dropping, a leak is almost certainly present.

Repairing the Cam Box Seal: What to Expect

Repairing a leaking cam box seal typically involves the following steps:

1. Access: Remove necessary components to gain clear access to the cam box.
2. Cleaning: Meticulously clean the sealing surfaces on both the cam box and the cylinder head. This is a crucial step, as any residue from the old sealant can compromise the new seal.
3. Sealant Application: Apply a high-quality, automotive-grade sealant specifically designed for engine sealing and resistant to oil and heat. The application must be precise and follow the manufacturer's recommended bead size and pattern.
4. Curing: Allow the sealant to cure completely according to the product's instructions before refilling the engine with oil and starting it.
5. Reassembly: Reinstall all removed components.

It is advisable to use genuine Ford parts or high-quality aftermarket equivalents for any replacement components and sealants. Given the labour involved, it's often cost-effective to address other potential maintenance items in the same vicinity if necessary.

Frequently Asked Questions

Q1: How serious is a leaking cam box seal on a Ford Kuga?
A1: A leaking cam box seal is serious enough to warrant prompt attention. It can lead to significant oil loss, potentially causing engine damage if the oil level drops too low. It can also create a mess and a fire hazard if oil drips onto hot exhaust components.

Q2: Can I fix a cam box leak myself?
A2: While possible for experienced DIY mechanics with the right tools and knowledge, it is a complex job. The need for precise cleaning and sealant application, along with the requirement to disassemble parts of the engine, makes it a task best left to professionals for most owners.

Q3: How much does it cost to fix a cam box leak on a Kuga?
A3: The cost can vary significantly depending on your location and the specific garage. Expect costs to range from several hundred to over a thousand pounds, primarily due to the labour involved in accessing the cam box.

Q4: Will using a different type of sealant work better?
A4: Yes, using a high-quality, specifically formulated automotive engine sealant designed for sealing metal-to-metal surfaces under high temperatures and pressures is crucial. The original Ford sealant was not ideal for long-term sealing in this application.

Q5: Are there other common oil leaks on a Ford Kuga?
A5: While the cam box seal is a frequent issue, other potential leak points include the oil filter housing, sump plug, and oil cooler lines, depending on the specific model and age of the vehicle.

In conclusion, while an oil leak from your Ford Kuga can be a concerning issue, understanding the common points of failure, such as the cam box seal, and the underlying engineering principles can help you have more informed conversations with your mechanic and ensure your vehicle receives the correct diagnosis and repair.
