Getting Your Kioti Tractor Fired Up: A Step-by-Step Ignition Guide

For many, a tractor is more than just a machine; it's a vital tool for work, whether on a farm, a construction site, or managing a large property. Kioti tractors are renowned for their robust performance and reliability. However, like any complex piece of machinery, knowing the correct procedure to start it is crucial for both longevity and safety. This guide will walk you through the essential steps to get your Kioti tractor, specifically focusing on popular models like the CK3510 and CK4010 series (including 'D' and 'H' variants), up and running. Understanding these procedures can prevent common starting issues and ensure you're ready to tackle your tasks efficiently.

Pre-Start Checks: The Foundation of a Smooth Ignition

Before you even turn the key, a few fundamental checks can save you considerable trouble down the line. Think of these as your pre-flight checks, ensuring everything is in order for a successful start. Neglecting these can lead to starting difficulties or even damage to the tractor's systems.

1. Fuel Level and Quality

This might sound obvious, but it's the most frequent culprit for a tractor that won't start. Ensure you have sufficient diesel fuel in the tank. More importantly, check the quality of your fuel. Contaminated fuel, water in the lines, or stale fuel can prevent ignition. If you suspect fuel issues, it might be worth draining and refilling the tank with fresh diesel.

2. Engine Oil Level

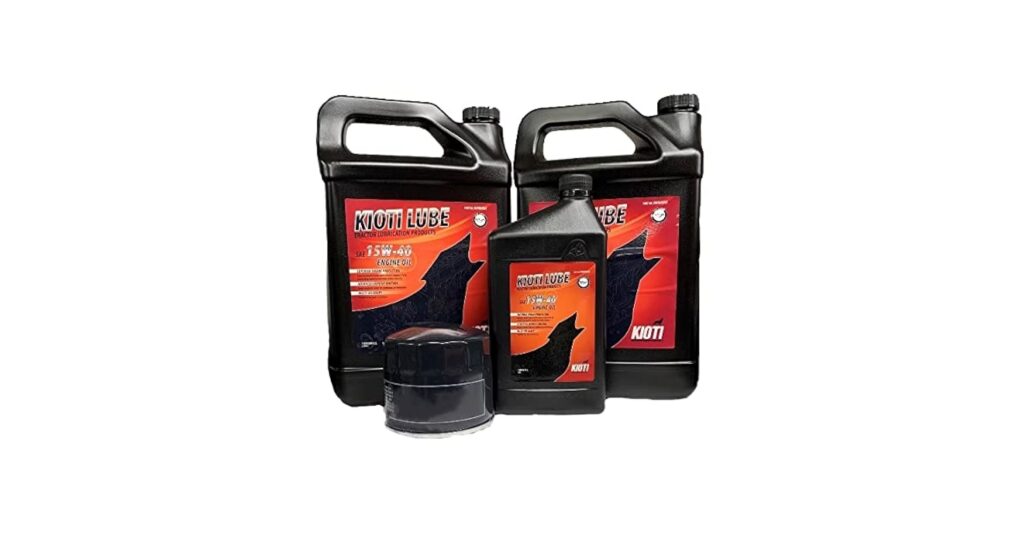

The engine oil is the lifeblood of your tractor's engine. Low oil levels can lead to overheating and severe damage, and in some modern tractors, a low oil sensor might prevent the engine from starting altogether. Locate the dipstick, pull it out, wipe it clean, reinsert it fully, and then pull it out again to check the level. It should be between the 'min' and 'max' marks. Ensure you're using the correct type of engine oil as specified in your Kioti operator's manual.

3. Coolant Level

While not directly related to the ignition sequence, an improperly filled cooling system can lead to overheating once the engine is running, which can be a significant problem. Check the coolant level in the radiator and the expansion tank when the engine is cold. Top it up if necessary with the appropriate coolant mixture.

4. Battery Condition and Connections

A weak or dead battery is another common reason for a no-start situation. Ensure your battery is charged. More importantly, check the battery terminals. They should be clean and free from corrosion. Loose or corroded connections will impede the flow of electrical current, preventing the starter motor from engaging properly. If you see white or bluish powdery residue, clean it thoroughly with a wire brush and a mixture of baking soda and water. Ensure the terminals are securely tightened.

5. Operator Presence Lever/Pedal

Modern tractors, including Kioti models, are equipped with safety features to prevent accidental movement. One of the most common is the operator presence system. Typically, this involves a lever or pedal that must be in the correct position (usually disengaged or in the 'park' position) for the tractor to start. Consult your operator's manual to identify the specific operator presence control on your CK3510 or CK4010 model and ensure it's correctly set.

The Ignition Sequence: Step-by-Step

Once your pre-start checks are complete, you can proceed with the actual ignition process. Always refer to your specific Kioti operator's manual for the most accurate and model-specific instructions.

Step 1: Mount the Tractor and Secure Yourself

Approach the tractor safely. Mount the driver's seat and ensure you are comfortably seated. Fasten your seatbelt if your tractor is equipped with one. This is a critical safety step.

Step 2: Engage the Parking Brake

Locate the parking brake lever. This is usually a distinct lever, often red or with a 'P' symbol. Engage the parking brake firmly. This ensures the tractor will not move when the engine starts.

Step 3: Place the Transmission Lever in Neutral

Ensure the transmission is in the neutral position. For models with a main gear lever and a range selector (like Hi/Lo), both must be in neutral. Some hydrostatic transmission (HST) models may have a specific neutral pedal or lever. Confirming neutral is paramount for safety.

Step 4: Ensure the Operator Presence Control is Correct

As mentioned in the pre-start checks, ensure the operator presence lever or pedal is in the correct position. For most Kioti tractors, this means the clutch pedal (if applicable) should be fully depressed, or the HST pedal should be in the neutral position, and the PTO lever should be disengaged.

Step 5: Turn the Ignition Key to the 'On' Position

Insert the key into the ignition switch. Turn the key to the 'On' position (usually indicated by a light or symbol). At this stage, various dashboard indicator lights should illuminate, showing that the electrical system is active. This is also when the glow plugs (if your diesel engine is equipped with them) will begin to heat up. You might hear a faint hum or click.

Step 6: Wait for Glow Plugs (Diesel Engines)

If your Kioti tractor is a diesel model (like the CK3510D or CK4010D), you will likely have glow plugs. These pre-heat the combustion chamber to aid in starting a cold diesel engine. You'll typically see a glow plug indicator light on the dashboard. Wait until this light turns off, or for the duration specified in your manual (often 5-15 seconds, depending on ambient temperature). This is a crucial step for diesel engines, especially in colder weather.

Step 7: Turn the Ignition Key to the 'Start' Position

Once the glow plugs have completed their cycle (if applicable), turn the ignition key further to the 'Start' position. Hold it there only as long as necessary for the engine to crank and start. Do not crank the engine for more than 10-15 seconds at a time. If the engine doesn't start, release the key back to the 'On' position and wait a short period (e.g., 30 seconds) before attempting to crank again. This allows the starter motor and battery to cool down and recover.

Step 8: Monitor the Engine and Dashboard

As soon as the engine starts, release the ignition key. It should automatically return to the 'On' position. Observe the engine for smooth running. Check the dashboard for any warning lights that remain illuminated. The oil pressure warning light should go out shortly after starting. If any warning lights stay on, shut down the engine and consult your operator's manual or a qualified technician.

Post-Start Procedures: Warming Up Your Kioti

Once the engine has successfully started, it's good practice to let it warm up slightly before putting it under heavy load. This allows the engine oil to circulate properly and reach optimal operating temperature. For diesel engines, allowing them to idle for a few minutes is beneficial.

Common Starting Issues and Troubleshooting

Even with careful adherence to procedures, you might encounter starting problems. Here's a quick troubleshooting guide:

Tractor Cranks but Won't Start:

• Fuel System: Check for air in the fuel lines (bleed the system if necessary), clogged fuel filters, or an empty fuel tank.
• Ignition System: Ensure the glow plugs are functioning correctly (on diesel engines).
• Engine Issues: Less common, but could indicate compression problems or other internal engine faults.

Tractor Doesn't Crank at All:

• Battery: Check battery charge and terminal connections. A completely dead battery is the most likely cause.
• Starter Motor: The starter motor itself could be faulty.
• Safety Switches: Ensure all safety interlocks (operator presence, neutral safety switch) are correctly engaged.
• Ignition Switch: The ignition switch itself might be malfunctioning.

Tractor Starts but Stalls Immediately:

• Fuel Supply: Could be an intermittent fuel supply issue, or air in the fuel lines.
• Idle Speed: The engine might be set to too low an idle speed.

Table: Key Ignition Components and Their Function

Frequently Asked Questions (FAQs)

Q1: How long should I wait for the glow plugs on my Kioti CK3510D?
A1: The exact time can vary with ambient temperature. Typically, wait for the glow plug indicator light on the dashboard to turn off, or refer to your operator's manual. In very cold weather, you might need to cycle the glow plugs twice.

Q2: My Kioti tractor won't start, and the engine doesn't even crank. What's the most likely cause?
A2: The most common causes are a dead battery, loose or corroded battery terminals, or a faulty starter motor. Also, double-check that the parking brake is engaged and the transmission is in neutral, as safety interlocks can prevent cranking.

Q3: Can I start my Kioti tractor if the transmission is not in neutral?
A3: No, most Kioti tractors are equipped with a neutral safety switch. The engine will not crank if the transmission is not in neutral, or if the clutch pedal (if applicable) is not fully depressed. This is a crucial safety feature.

Q4: What is the 'H' in CK3510H or CK4010H referring to?
A4: The 'H' typically denotes a hydrostatic transmission (HST) model, which uses a pedal-based system for forward and reverse movement instead of a traditional clutch and gear shifter. The starting procedure is largely the same, but pay close attention to the HST pedal's neutral position.

Q5: Is it okay to hold the ignition key in the 'Start' position for a long time if the engine isn't starting?
A5: No, you should not hold the key in the 'Start' position for more than 10-15 seconds at a time. Prolonged cranking can overheat and damage the starter motor and drain the battery. If it doesn't start, wait a bit before trying again.

Starting your Kioti tractor correctly is a fundamental skill for any operator. By performing thorough pre-start checks and following the ignition sequence diligently, you can ensure a reliable start every time, keeping your tractor in optimal condition and ready for whatever task you have planned. Always remember that your specific operator's manual is the ultimate authority for your particular model.
