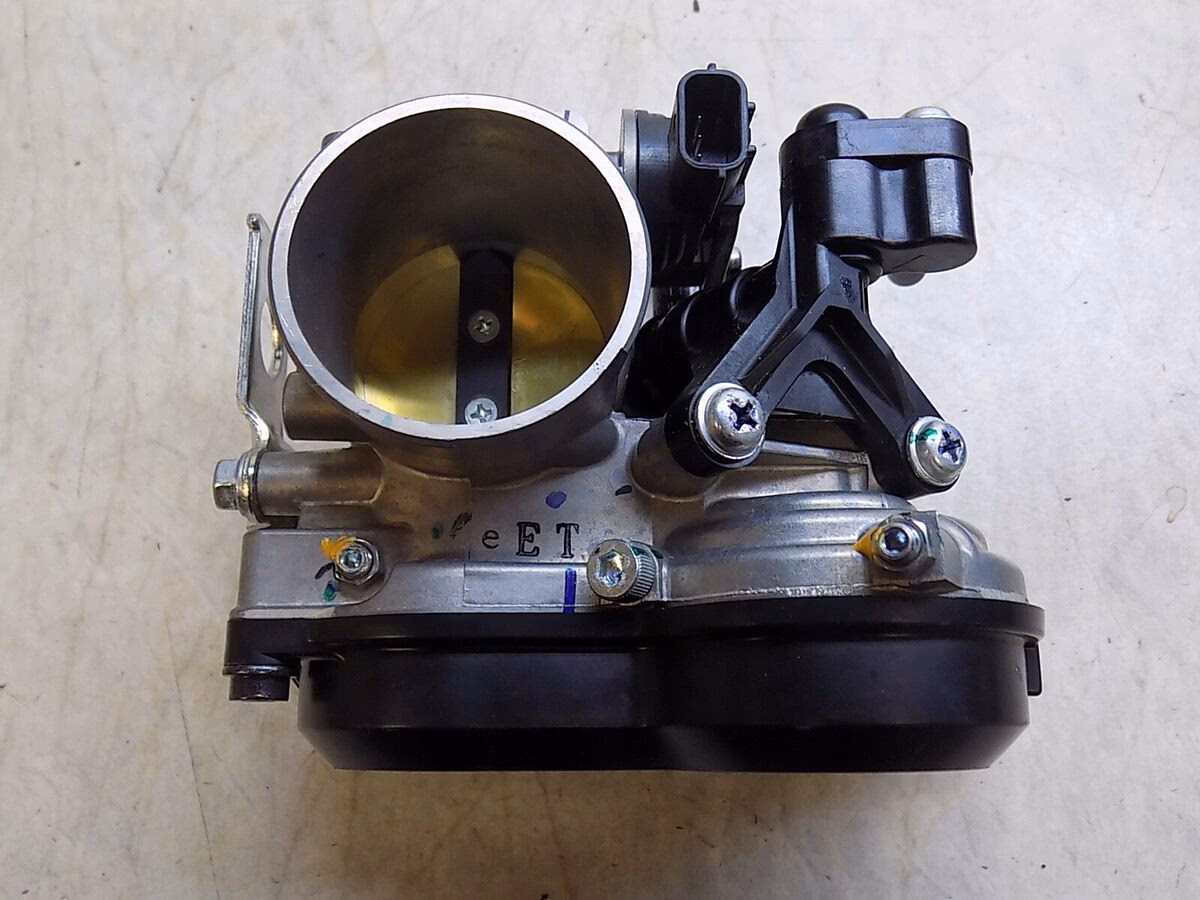

Keihin Gen 2 EFI Kit Components

The Keihin Gen 2 Electronic Fuel Injection (EFI) kit represents a significant upgrade for motorcycle enthusiasts looking to enhance their engine's performance, fuel efficiency, and throttle response. While specific kit configurations can vary slightly depending on the application and the manufacturer's packaging, the core components of a Keihin Gen 2 EFI system are designed to work in synergy to deliver optimal results. This article will delve into the fundamental parts you can expect to find within a typical Keihin Gen 2 EFI kit, providing a comprehensive overview for those considering this advanced tuning solution.

Understanding Electronic Fuel Injection

Before we dissect the kit's contents, it's beneficial to understand the fundamental principles of EFI. Unlike older carburettor systems that rely on vacuum and mechanical linkages to mix fuel and air, EFI systems use electronic sensors and a computer (the Engine Control Unit or ECU) to precisely control fuel delivery. This allows for more accurate air-fuel ratios under varying engine loads, temperatures, and altitudes, leading to improved power, better fuel economy, and cleaner emissions. The Keihin Gen 2 system is a sophisticated iteration of this technology, often favoured for its robustness and tunable nature.

Key Components of the Keihin Gen 2 EFI Kit

A typical Keihin Gen 2 EFI kit will include the following essential components, each playing a crucial role in the system's operation:

1. The Engine Control Unit (ECU)

The ECU is the brain of the EFI system. In the Keihin Gen 2 kit, this is a compact, powerful electronic control module that receives data from various sensors. It then processes this information and sends precise commands to the fuel injectors and, in some cases, other engine management systems. The Gen 2 ECU is often designed for enhanced processing power and may offer more advanced tuning capabilities compared to earlier generations. It's the central hub that orchestrates the entire fuel delivery process, ensuring the correct amount of fuel is injected at the optimal time for combustion. The ECU is typically pre-programmed with base maps tailored to specific motorcycle models, but it can also be reprogrammed or tuned to accommodate modifications like exhaust systems, air filters, and camshafts.

2. Fuel Injectors

These are the devices responsible for atomising and delivering fuel directly into the engine's intake manifold or cylinder head. Keihin Gen 2 kits usually come with high-quality, high-flow fuel injectors that are precisely calibrated. The number of injectors will depend on the engine configuration (e.g., single-cylinder, V-twin, inline-four). These injectors are electronically controlled by the ECU, opening and closing rapidly to deliver precise fuel pulses. The atomisation quality of the fuel is critical for efficient combustion, and the Keihin injectors are engineered to produce a fine mist, ensuring complete burning of the fuel.

3. Fuel Pump

The fuel pump is responsible for drawing fuel from the motorcycle's fuel tank and supplying it under pressure to the fuel injectors. Keihin Gen 2 kits typically include a compact, high-pressure electric fuel pump. This pump ensures a consistent and adequate supply of fuel to the system, even under high demand. The pump's reliability is paramount, as any interruption in fuel supply can lead to engine performance issues. The fuel pump is usually integrated into the fuel tank or supplied as an external unit that needs to be plumbed into the fuel line.

4. Fuel Pressure Regulator

Maintaining a stable fuel pressure is vital for the proper functioning of an EFI system. The fuel pressure regulator ensures that the fuel supplied to the injectors is kept at a consistent pressure, regardless of engine load or fuel pump output fluctuations. This component is crucial for maintaining accurate air-fuel ratios. It typically works by allowing excess fuel to return to the fuel tank, thereby regulating the pressure within the fuel rail.

5. Wiring Harness

A comprehensive wiring harness is a critical, though often overlooked, component. This harness connects all the electronic parts of the EFI system – the ECU, fuel injectors, sensors, and the fuel pump – to each other and to the motorcycle's existing electrical system. The wiring harness is designed for durability and ease of installation, often featuring plug-and-play connectors that match the motorcycle's original wiring loom where possible. High-quality connectors and robust wiring are essential to prevent electrical issues and ensure the longevity of the system.

6. Sensors

Several sensors are integral to the Keihin Gen 2 EFI system, providing the ECU with real-time data about the engine's operating conditions. Common sensors included are:

• Throttle Position Sensor (TPS): This sensor tells the ECU how far open the throttle is, allowing for precise fuel adjustments based on the rider's throttle input.
• Manifold Absolute Pressure (MAP) Sensor: This sensor measures the pressure in the intake manifold, which is a key indicator of engine load.
• Engine Coolant Temperature (ECT) Sensor: This sensor monitors the engine's temperature, allowing the ECU to adjust fuel delivery for optimal performance in both cold and hot conditions.
• Intake Air Temperature (IAT) Sensor: Measures the temperature of the air entering the engine, which affects air density and therefore the required fuel amount.
• Oxygen (O2) Sensor (Lambda Sensor): This sensor measures the amount of unburned oxygen in the exhaust gases, allowing the ECU to fine-tune the air-fuel ratio for optimal combustion and emissions control. Some kits may include a wideband O2 sensor for more precise tuning.

7. Fuel Rail and Fuel Lines

The fuel rail is a manifold that distributes pressurised fuel from the pump to the injectors. The kit will typically include a fuel rail designed to fit the specific intake manifold of the motorcycle. High-quality fuel lines and fittings are also provided to connect the fuel pump, fuel rail, and regulator, ensuring a leak-free and reliable fuel delivery system.

8. Mounting Hardware and Gaskets

The kit will also include all the necessary nuts, bolts, brackets, and gaskets required for a proper installation. These small but crucial items ensure that all components are securely mounted and that there are no air or fuel leaks.

Optional or Application-Specific Components

Depending on the specific Keihin Gen 2 EFI kit and the motorcycle it's designed for, there might be additional components:

• Ignition Module: Some advanced EFI kits might integrate ignition timing control, requiring a dedicated ignition module.
• Data Logging and Tuning Software: While not a physical component of the engine itself, many kits come with software that allows for monitoring engine data and customising fuel maps.
• Air Filter Adapter: To accommodate a different air filter setup for better airflow.

Table: Core Component Functions

Frequently Asked Questions

Q1: Do I need a new fuel tank for the Keihin Gen 2 EFI kit?
A1: Typically, no. The kit is designed to integrate with your motorcycle's existing fuel tank. The fuel pump may be an in-tank unit or a small external unit that connects to your fuel lines.

Q2: Is the Keihin Gen 2 EFI kit difficult to install?
A2: Installation requires a good understanding of motorcycle mechanics and basic electrical wiring. While the wiring harnesses are often plug-and-play, some modifications might be necessary. Professional installation is recommended if you are not experienced.

Q3: Can I tune the Keihin Gen 2 EFI kit myself?
A3: Yes, many kits allow for custom tuning via software, enabling you to optimise performance for aftermarket modifications. However, this requires specific knowledge and tools.

Q4: What kind of performance gains can I expect?
A4: Performance gains vary greatly depending on the motorcycle, other modifications, and the quality of the tune. However, riders often report improved throttle response, smoother power delivery, and increased horsepower and torque.

Conclusion

The Keihin Gen 2 EFI kit is a comprehensive package designed to elevate your motorcycle's performance through advanced fuel management. By understanding the function of each component – from the central ECU and high-flow injectors to the vital sensors and reliable fuel pump – you can better appreciate the engineering involved and the potential benefits for your ride. Whether you're a seasoned mechanic or a rider looking to optimise their machine, knowing the contents of the kit is the first step towards unlocking its full potential and experiencing a more responsive, efficient, and powerful motorcycle.
