Zhejiang Kayo Motor Disassembly Guide

Embarking on the task of disassembling a Zhejiang Kayo motor can seem daunting, but with the right approach and a systematic method, it becomes a manageable and even rewarding process. Whether you're a seasoned mechanic looking to get to grips with a specific engine or a hobbyist keen to understand the inner workings of your off-road vehicle, this guide will walk you through the essential steps. We'll cover the necessary preparation, the gradual process of taking the motor apart, and crucial considerations for safety and organisation. Remember, precision and patience are key when working with intricate engine components.

Preparing for the Strip-Down

Before you even think about reaching for your spanners, thorough preparation is paramount. This stage ensures your safety, protects your workspace, and makes the disassembly process significantly smoother. Firstly, ensure you have a suitable workspace. This should be well-lit, well-ventilated, and spacious enough to lay out all the components without them becoming cluttered. A sturdy workbench is ideal.

Essential Tools and Equipment

Having the correct tools at your disposal will not only make the job easier but also prevent damage to the motor's parts. Here's a list of commonly required tools:

• Socket set (metric sizes are essential for Kayo motors)
• Wrench set (combination wrenches)
• Screwdrivers (Phillips and flathead, various sizes)
• Pliers (needle-nose, standard, and locking)
• Torque wrench (for reassembly, but good to have on hand)
• Allen keys (metric)
• Gasket scraper
• Drain pan for fluids
• Degreaser and cleaning rags
• Container or labelled bags for storing parts
• Service manual specific to your Kayo model (highly recommended)

Safety First!

As with any mechanical task, safety should be your top priority. Kayo off-road vehicles, like all such machines, can be hazardous if not handled correctly. Always wear appropriate personal protective equipment (PPE), including safety glasses to protect your eyes from flying debris or fluids, and gloves to protect your hands. Ensure the motor is completely cool before you begin working on it. If you're working on a complete vehicle, disconnect the battery and secure the vehicle to prevent it from rolling. Remember, Kayo off-road vehicles are not intended for on-road use, and operating them requires caution. Always wear helmets, eye protection, and protective clothing when riding, and never engage in stunt riding or excessive speeds.

The Disassembly Process: Step-by-Step

Disassembling a motor typically follows a logical sequence, working from the external components inwards. The exact order might vary slightly depending on the specific Kayo model, but the general principles remain the same. Always refer to your service manual if you have one for precise instructions.

1. Draining Fluids

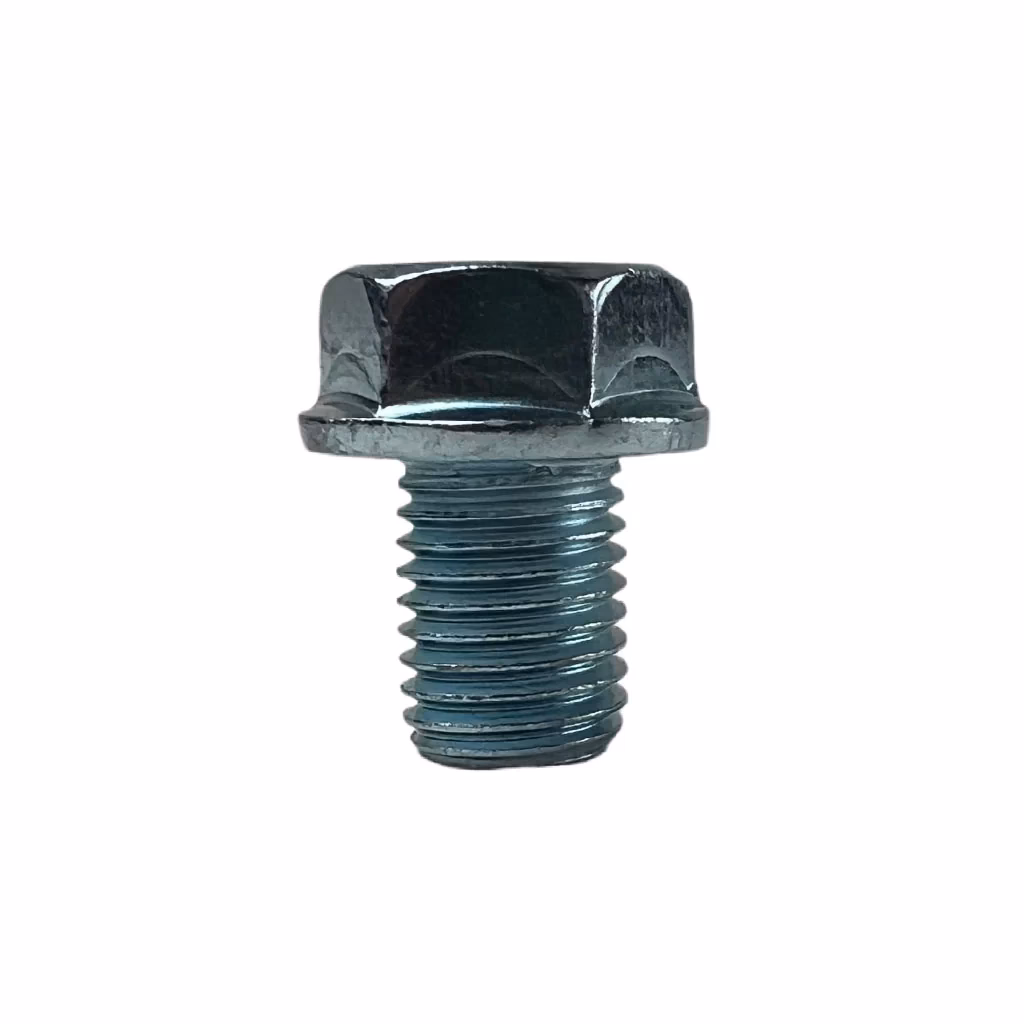

The first crucial step is to drain all the fluids from the motor. This typically includes engine oil and potentially coolant, depending on whether it's a liquid-cooled engine. Locate the oil drain plug, usually at the bottom of the engine casing. Place a suitable drain pan underneath and carefully remove the plug. Allow all the oil to drain completely. Once drained, replace the drain plug, but do not overtighten it at this stage.

2. Removing External Components

With the fluids drained, you can begin removing the external ancillaries. This might include:

• Carburettor/Fuel Injection System: Disconnect fuel lines and any electrical connectors. Carefully unbolt and remove the carburettor or throttle body.
• Exhaust System: Loosen and remove the exhaust pipe and muffler. You may need to support the exhaust to prevent it from falling.
• Airbox and Intake: Disconnect the air intake hose and remove the airbox.
• Ignition System: Remove the spark plug and the ignition coil/HT lead.
• Clutch and Gear Lever Linkages: Disconnect any cables or rods connected to the clutch and gear shifter.
• Starter Motor (if applicable): Disconnect the wiring and unbolt the starter motor.

3. Accessing the Cylinder Head and Piston

This is where you start to get into the core of the engine. The order here is critical:

• Valve Cover/Cylinder Head Cover: Remove the bolts securing the valve cover. Gently pry it off if it's stuck due to old gasket material.
• Camshaft and Valves: Depending on the engine design, you may need to remove the camshaft(s) to gain access to the valves or other components. Follow your manual's specific instructions for camshaft removal to avoid damaging the valve train.
• Cylinder Head Bolts: These are typically tightened in a specific sequence and must be loosened in the reverse sequence to prevent warping the cylinder head. Loosen them gradually in stages.
• Cylinder Head: Once the bolts are removed, the cylinder head can be lifted off. It might be stuck due to the head gasket. Gently tap it with a rubber mallet or use a gasket scraper carefully to break the seal. Do not force it.
• Piston and Connecting Rod: With the cylinder head removed, the piston is now accessible. You'll need to remove the circlips holding the piston pin in place. Once the pin is out, the piston can be separated from the connecting rod. Note the orientation of the piston and connecting rod.

4. Splitting the Crankcase

This is often the most involved part of the disassembly. The crankcase houses the crankshaft, gearbox, and other vital components.

• Remove Crankcase Bolts: Carefully identify and remove all bolts securing the crankcase halves together. There might be different lengths, so keep them organised.
• Separate Crankcase Halves: Similar to the cylinder head, the crankcase halves might be sealed with a gasket and can be difficult to separate. Gently tap around the edges with a rubber mallet. A specialized crankcase splitting tool might be necessary for some engines. Work slowly and evenly to avoid damaging the mating surfaces.
• Accessing Crankshaft and Gearbox: Once the cases are split, you'll have access to the crankshaft, gears, bearings, and potentially the clutch assembly.

5. Gearbox and Clutch Components

Depending on your goal, you might need to disassemble the gearbox and clutch further. This can involve removing:

• Gear selector drum and forks
• Input and output shafts
• Clutch basket and plates
• Primary drive gears

Each of these components has its own specific removal procedure, often involving circlips, retaining nuts, and bearings. Again, your service manual is your best friend here.

Organising Your Parts

As you disassemble the motor, it's crucial to keep all the parts organised. This will save you immense frustration during reassembly. Use a combination of methods:

• Labelled Bags: Place bolts, nuts, and small components in resealable plastic bags and label them clearly with the component they belong to (e.g., "Cylinder Head Bolts", "Crankcase Bolts").
• Parts Trays: Use compartmentalised parts trays to keep larger components separated and prevent them from rolling away.
• Diagrams: If you're feeling particularly meticulous, you can draw a simple diagram of the engine and mark where each bolt or component came from.
• Photographs: Taking photos as you go can be an invaluable reference, especially for complex assemblies.

Common Pitfalls and How to Avoid Them

Even with careful planning, there are common mistakes people make during engine disassembly. Being aware of these can help you avoid them:

• Forcing Parts: If a part is stuck, don't force it. There's usually a reason it's tight, such as a hidden bolt, a stuck gasket, or corrosion. Gentle persuasion with a rubber mallet or the correct solvent is usually the answer.
• Mixing Parts: As mentioned, keeping parts organised is vital. Mixing bolts of different lengths, for instance, can lead to stripped threads or damage to internal components.
• Damaging Gaskets and Seals: Be careful when removing old gaskets and seals to avoid scratching the mating surfaces of the engine cases or cylinder head.
• Ignoring the Manual: While this guide provides a general overview, your specific Kayo motor will have unique features. Always consult the official service manual for your model.
• Working When Tired: Fatigue leads to mistakes. If you're feeling tired, take a break. It's better to stop and resume later than to make an error that could be costly to fix.

Frequently Asked Questions

Q1: Do I need a special Kayo service manual?

A1: While general mechanical principles apply, a specific service manual for your Kayo model is highly recommended. It will provide exact torque specifications, sequences, and model-specific details that are crucial for correct disassembly and reassembly.

Q2: How do I know if I'm disassembling in the correct order?

A2: Generally, you work from the outside in, removing ancillaries first, then moving to the cylinder head, and finally splitting the crankcases. Always refer to your service manual for the recommended order for your specific Kayo engine.

Q3: What should I do with the old oil and coolant?

A3: Used engine oil and coolant are hazardous waste and must be disposed of responsibly. Contact your local council or a recycling centre for information on how to dispose of them correctly.

Q4: Is it safe to disassemble the motor myself?

A4: Yes, with the right tools, a methodical approach, and a strong emphasis on safety, it is safe to disassemble a Kayo motor. However, if you are unsure at any point, it is always best to seek assistance from a qualified mechanic.

Disassembling a Zhejiang Kayo motor is a process that requires attention to detail and a respect for the mechanical engineering involved. By following these steps, preparing adequately, and prioritising safety, you can successfully break down your motor, gain valuable insight into its operation, and lay the groundwork for any necessary repairs or modifications. Remember, knowledge is power, and understanding your motor is the first step to keeping it running smoothly.
