K2F Magneto: Potential Engine Damage & Fitment

The K2F magneto, a stalwart of ignition systems for many classic motorcycles, particularly those in the BSA A Group, is renowned for its robust design. However, like any mechanical component, it can present challenges and potential pitfalls if not properly maintained or understood. This article delves into crucial aspects of the K2F magneto, focusing on its potential to cause engine damage, its compatibility with various K Series models, and the correct procedures for its disassembly and heating, ensuring you can keep your classic machine running smoothly and safely.

Can a K2F Magneto Damage Your Engine?

The short answer is yes, a faulty K2F magneto can indeed lead to significant engine damage. The primary culprit lies in incorrect ignition timing. We have observed instances where a K2F magneto, due to internal issues, can exhibit a considerable difference in timing between cylinders. Specifically, if one cylinder is timed correctly before top dead centre (BTDC), the other cylinder can be retarded by as much as 8 degrees. This discrepancy is extremely detrimental to an engine. Incorrect timing, especially a retarded spark, can lead to:

• Detonation or Pinking: The fuel-air mixture ignites prematurely or unevenly, creating shockwaves within the cylinder that can damage pistons, connecting rods, and crankshafts.
• Overheating: Retarded timing causes the combustion process to continue further into the power stroke, generating excessive heat that can lead to valve damage, piston seizure, and gasket failure.
• Loss of Power and Inefficiency: The engine will not run optimally, leading to poor performance and increased fuel consumption.
• Backfiring: In severe cases, the incorrect timing can cause the fuel-air mixture to ignite in the exhaust system or intake manifold.

It is imperative to understand that all magnetos sent to us for servicing are meticulously checked for these critical timing faults. Proactive checks and servicing are key to preventing such damage.

K2F Magneto Fitment on K Series Engines

The K2F magneto is primarily associated with the BSA K Series motorcycles, particularly the 'A' Group models. Understanding its fitment and the variations over the years is essential for correct application.

Model Variations and Key Dates:

The K Series Magneto, specifically the flange-mounted version, was fitted to all A Group models. The specific features varied depending on whether the motorcycle was a sports model or a standard model:

• Sports Models: Typically featured a manual advance/retard mechanism, allowing the rider to adjust ignition timing on the fly for optimal performance.
• Standard Models: Utilised an automatic advance and retard unit, which adjusted timing based on engine speed.
• Drive Direction: All K2F magnetos for these models were designed with an anti-clockwise drive.

Component Changes Over Time:

Several components of the K2F magneto underwent changes throughout its production run, affecting interchangeability and maintenance:

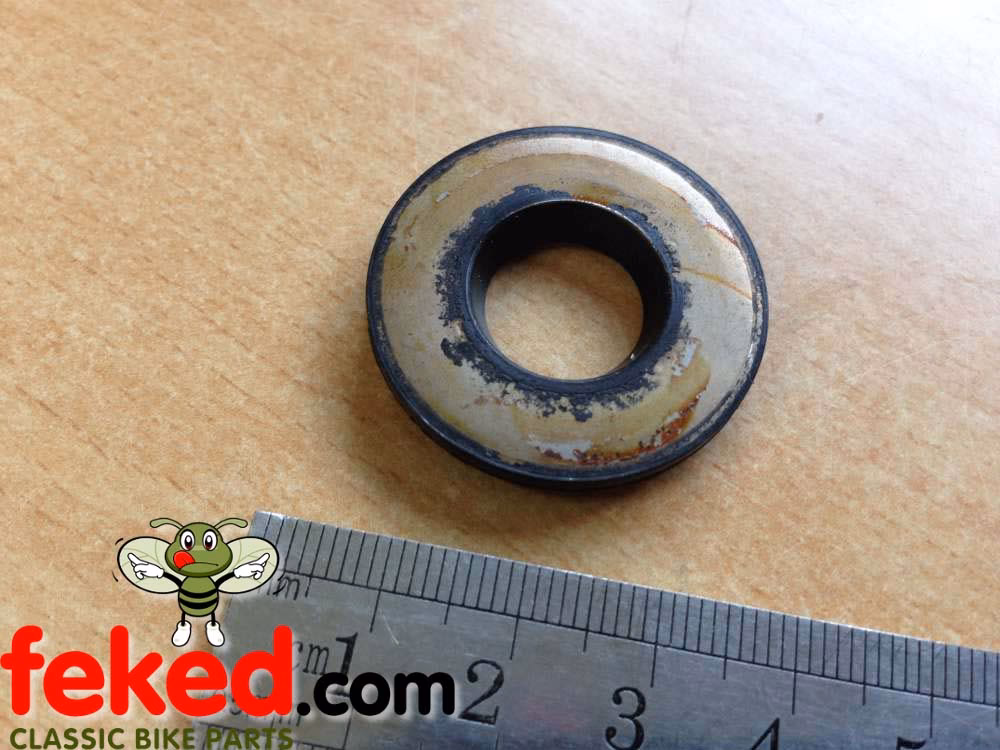

• Drive End Bearing: In 1954, the size of the drive end bearing was increased to a 40mm outside diameter. This change coincided with an update to the oil seal used.
• Pick-ups: The pick-ups, which are crucial for generating the spark signal, were changed in 1950. While generally interchangeable, sports models began using different pick-ups from other models around this time.

Contact Breaker Cover and Cut-Out:

The cover protecting the contact breakers also saw evolutionary changes:

• Early Models (Pre-1951): Featured an aluminium casting for the cover, with a central push-button acting as a simple cut-out mechanism. This was secured by two screws.
• 1951 Onwards: The cover was changed to a plastic material, retained by a spring clip. A separate lead was introduced to connect to a handlebar-mounted cut-out switch.
• 1959 Onwards: The final significant alteration involved a threaded cover that screwed directly onto the end casting. This design still incorporated the cut-out wire and switch.

Contact Breaker Assembly Upgrade:

A notable improvement was made to the contact breaker assembly itself. It was re-designed to be more cost-effective to produce and, crucially, much easier to adjust. This upgraded assembly can be fitted to earlier magnetos, offering a significant advantage for maintenance and tuning.

How to Heat a K2F Magneto for Disassembly

Disassembling a K2F magneto, particularly when components are seized, often requires the application of heat. It is vital to follow the correct procedure to avoid damaging the unit.

Essential Safety and Preparation Steps:

Before commencing the heating process, ensure the magneto is fully disassembled, and the armature has been carefully removed. This is a critical step. Do not forget to remove the safety gap screws. These are typically hex-shaped screws located at the bottom of the K2F magneto. Failure to remove these screws before attempting to remove the armature will almost certainly result in damage to the slip ring, a costly mistake to rectify.

The Heating Process:

Once the armature is safely removed and the safety gap screws are out, the magneto body can be heated. The recommended method involves heating the entire magneto body until the temperature reaches the point where water will audibly boil upon contact with its surface. This indicates a sufficient and safe working temperature. After heating, the open end of the magneto should be tapped sharply against a suitable piece of wood. This gentle but firm tapping action, combined with the heat-induced expansion, should help to loosen and release any seized components, allowing for further disassembly.

Important Considerations:

• Always use appropriate heat-resistant gloves.
• Ensure the heating is even across the magneto body.
• Avoid using excessive force, which can cause irreparable damage.
• If components remain seized after heating, further investigation may be required, potentially involving specialised tools or professional assistance.

Common K2F Magneto Faults and Checks

Beyond timing issues, K2F magnetos can suffer from other common faults:

Table of Common Faults:

Frequently Asked Questions

Q1: Can I fit a later K2F magneto assembly to an earlier BSA A Group model?

Generally, yes. The re-designed contact breaker assembly, which is easier to adjust, can be fitted to earlier magnetos. However, always verify compatibility of specific components, especially if dealing with non-standard modifications or very early models.

Q2: What is the significance of the safety gap screws?

The safety gap screws provide a path for the high voltage current to earth if the spark plug lead becomes disconnected or if there's a fault with the plug itself. This prevents the voltage from arcing across the magneto's internal components, potentially causing damage. They must be removed before taking out the armature.

Q3: How often should a K2F magneto be serviced?

A regular service every 3,000-5,000 miles, or annually, is recommended. This should include checking and adjusting the contact breaker points, checking the condenser, inspecting for oil leaks, and verifying the timing. More frequent checks may be necessary if the motorcycle is used in harsh conditions.

Q4: My K2F magneto feels stiff. What could be the cause?

Stiffness can be caused by worn or seized bearings, dried-up lubrication, or internal components binding. Ensure the unit is correctly disassembled and inspected for damage or wear. Proper lubrication during reassembly is crucial.

In conclusion, the K2F magneto is a vital component for many classic motorcycles. Understanding its potential for causing engine damage due to timing issues, its specific fitment characteristics, and the correct procedures for maintenance and disassembly is paramount. By addressing these aspects proactively, you can ensure the longevity and optimal performance of your classic BSA.
