Setting Fuel Injection Pump Timing: A Deep Dive

The timing of your fuel injection pump is a critical element in the efficient and powerful operation of your diesel engine. Incorrect timing can lead to a host of problems, from poor starting and reduced power to increased fuel consumption, rough idling, and even catastrophic engine damage. While manufacturers typically set this timing at the factory using precise timing marks on gears, many DIY mechanics and professionals find themselves needing to reset or adjust this crucial setting, often after components like the injection pump or timing gears have been removed or replaced. This guide will explore various methods for setting fuel injection pump timing, addressing common challenges and providing practical advice.

Why is Injection Pump Timing So Important?

The primary role of the fuel injection pump is to deliver fuel to the engine's cylinders at precisely the right moment and in the correct quantity. This timing is intricately linked to the engine's crankshaft and camshaft rotation. When the injection pump is timed correctly, it ensures that the fuel is injected into the cylinder just as the piston reaches the top of its compression stroke, and the valves are closed. This precise injection event allows for optimal combustion, maximising power output and fuel efficiency.

Consequences of incorrect timing include:

• Advanced Timing: Fuel is injected too early. This can lead to excessive cylinder pressures, knocking or 'detonation' (often mistaken for pre-ignition), overheating, and potential damage to pistons, cylinder heads, and valves.
• Retarded Timing: Fuel is injected too late. This results in incomplete combustion, leading to reduced power, poor fuel economy, excessive smoke (black smoke usually indicates unburnt fuel), and higher exhaust gas temperatures, which can damage turbochargers and exhaust components.

Method 1: The Factory Timing Mark Approach

This is the most straightforward and accurate method, but it relies on the presence and accessibility of specific timing marks. These marks are typically found on the injection pump's drive gear, the crankshaft pulley or gear, and the camshaft gear. The process generally involves:

1. Positioning the Engine: Rotate the crankshaft to a specific reference point, usually Top Dead Center (TDC) on the compression stroke for cylinder number 1. This is often indicated by marks on the flywheel and the engine block or flywheel housing.

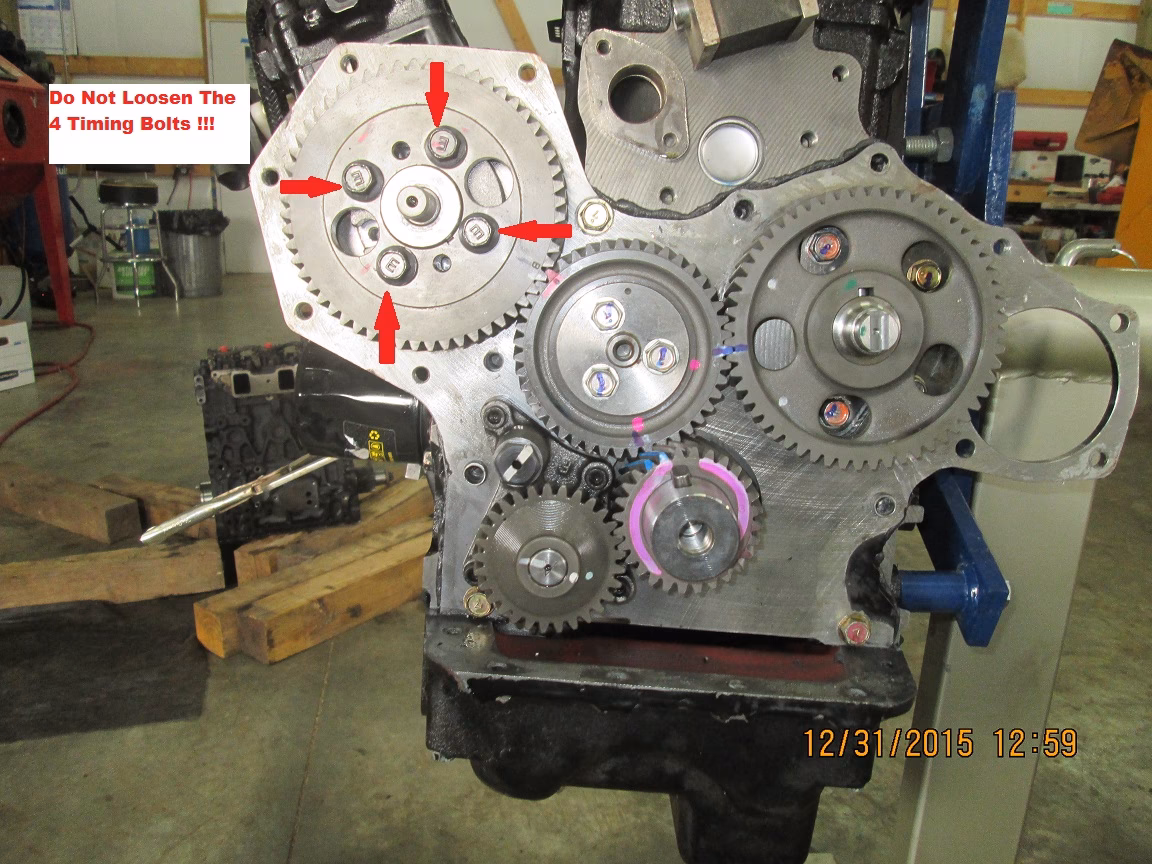

2. Aligning the Marks: Once the engine is at the correct reference point, you then align the timing marks on the injection pump's drive gear with the corresponding marks on the crankshaft or camshaft gear. The exact procedure varies by manufacturer, but often involves a specific mark on the pump gear aligning with a mark on its drive hub or a stationary pointer.
3. Securing the Pump: Once aligned, the injection pump is secured in place, often by tightening mounting bolts or a locking mechanism.

Important Considerations:

• Flywheel TDC Marks: Always ensure you are aligning with the TDC mark for the *compression* stroke, not the exhaust stroke. This can be confirmed by removing the glow plugs or injectors and feeling for air being expelled as the piston rises.
• Multiple Marks: Some engines may have multiple sets of marks. Consult your vehicle's service manual to identify the correct ones for injection pump timing.

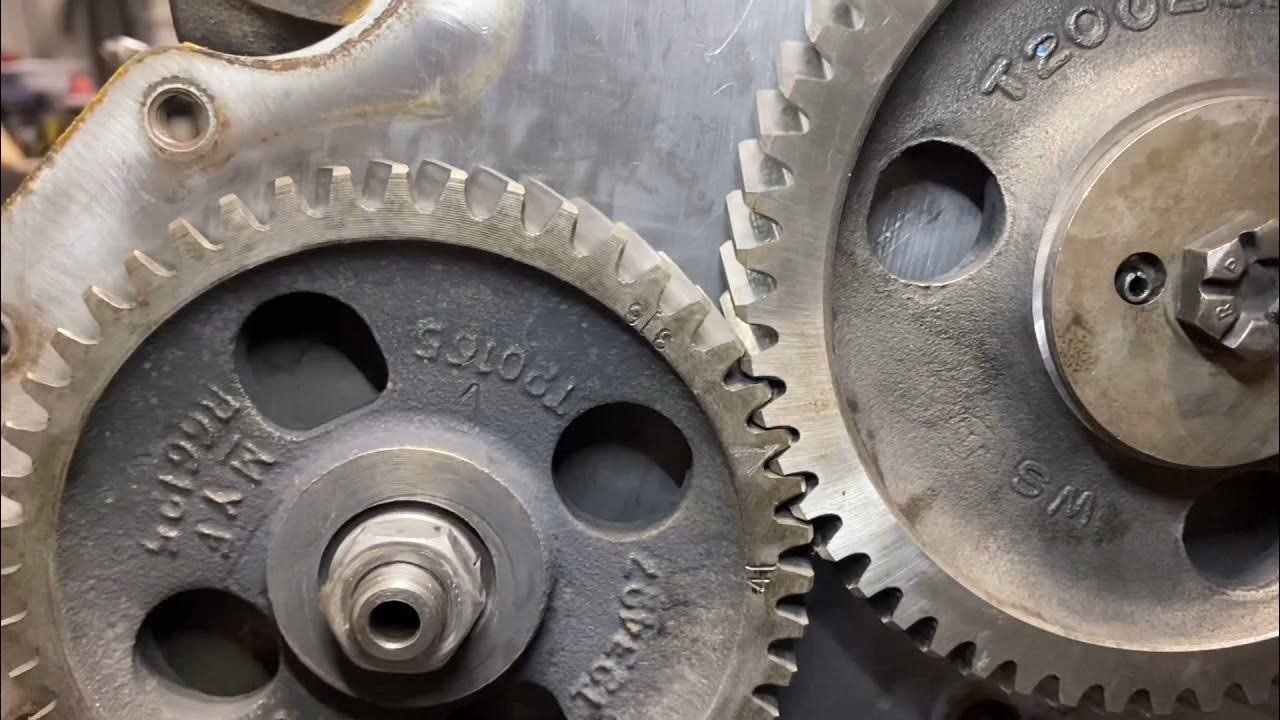

• Gear Alignment: When reassembling gears, ensure they mesh correctly. Sometimes, there's a specific tooth that should engage with another, or a painted mark on the teeth themselves.

Method 2: The "No Marks" Scenario - A Practical Approach

When factory timing marks are obscured, damaged, or absent, alternative methods are necessary. One user developed a technique for a JD 855 with a Yanmar engine, which offers valuable insights for similar situations:

The user's experience highlights a common issue: the factory marks might not always align perfectly with TDC due to the gear ratios and tooth counts. For instance, a mark on an idler pulley might only indicate TDC every few revolutions, not every single one.

The developed method involved:

1. Identifying the Correct TDC: Rotate the crankshaft until the relevant mark on the flywheel aligns with the housing mark, confirming it's TDC on the compression stroke for the correct cylinder (Note: some engines use TDC for cylinder #3, not #1).
2. Marking the Mesh Point: With the engine at the correct TDC, carefully mark the exact point where the injection pump's drive gear meshes with its driving gear on the crankshaft or camshaft.
3. Temporary Disengagement: Loosen the injection pump's drive gear enough so that it can rotate independently of the crankshaft/camshaft.
4. Rotating to the Mark: Slowly rotate the crankshaft until the previously made mesh marks align again. This effectively transfers the engine's TDC position to the injection pump's drive gear.
5. Re-engaging and Securing: With the marks aligned, re-secure the injection pump's drive gear.

This method, while requiring careful execution, provides a reliable way to set the pump timing when factory marks are unreliable or unavailable. It’s crucial to remember that this is specific to certain engine models and may require adaptation.

Method 3: The Fuel Spill Method (and its limitations)

Some manuals suggest a "fuel spill" method. This typically involves loosening the fuel lines at the injectors and observing the fuel flow as the injection pump rotates. The idea is to inject fuel just as a specific piston reaches TDC on its compression stroke. However, as one user noted, this method can be "far too crude" for settings requiring precision within a degree.

Why it's often less accurate:

• Subjectivity: Determining the exact moment of the fuel "spill" or first injection pulse can be difficult and subjective.
• Mechanical Slack: There can be play or "lash" in the pump's internal components and drive gears, making precise timing challenging.
• Environmental Factors: Air in the fuel system can also affect the observation of fuel flow.

While it might get an engine running, it's generally not recommended for achieving optimal performance or for engines where precise timing is paramount.

Method 4: Using Timing Pins

Many manufacturers provide specific timing pins that engage with holes in the flywheel and the injection pump housing. This is a common and reliable method:

1. Engine Position: Rotate the engine crankshaft until the number one cylinder is at TDC on its compression stroke. This is usually confirmed by inserting a timing pin through a hole in the flywheel housing and into a corresponding hole in the flywheel.
2. Pump Pin Insertion: Remove a plug from the top of the fuel injection pump. Insert the specific injection pump timing pin into this hole, ensuring it engages with a slot or mark within the pump's drive mechanism.
3. Alignment: Once both pins are in place, the engine and injection pump are correctly timed relative to each other. The pump is then secured in this position.

Key Points for Timing Pins:

• Correct Pins: Always use the specific timing pins recommended by the manufacturer for your engine model. Using the wrong size or type can lead to incorrect timing or damage.
• Cleanliness: Ensure the timing pin holes and the pins themselves are clean to allow for proper engagement.
• Manual Reference: Always refer to the vehicle's service manual for the exact location of the timing pin holes and the correct procedure.

Troubleshooting Common Timing Issues (Case Study: JD 4020)

A discussion thread regarding a John Deere 4020 highlights several complexities that can arise:

Scenario: A rebuilt engine (404) with new critical driveline components (crank, cam, oil pump, injection pump) wouldn't start correctly, idled roughly, and exhibited knocking under throttle, despite having good power once running.

The Problem: The injection pump timing mark was significantly off from the pump window mark when the flywheel was at TDC on compression.

Potential Causes Discussed:

• Incorrect Camshaft Installation: The indexing of the oil pump drive gear on the camshaft is crucial. If the camshaft itself was manufactured with an improperly indexed gear (a known issue with some aftermarket suppliers), it would throw off the timing of everything driven by it, including the oil pump and injection pump. This could lead to the pump timing mark appearing off, even if the cam-to-crank timing marks were aligned.
• Oil Pump Timing: The oil pump has its own timing relative to the camshaft. If the oil pump drive gear was installed one tooth off, it could affect the overall timing chain and consequently the injection pump timing. Some users reported success by repositioning the oil pump drive gear one tooth off.
• Injection Pump Drive Shaft: Different injection pump shaft designs exist. Using the wrong shaft for the pump can lead to timing discrepancies that cannot be corrected by simply rotating the pump housing.
• Incorrect TDC Reference: While less common, ensuring the engine is at TDC on the *compression* stroke is vital.

Diagnostic Steps Taken:

• Checking cam-to-crank timing marks.
• Inspecting the oil pump drive gear slot position (a common reference point for indexing).
• Comparing the injection pump shaft with a known good one.
• Consulting the pump supplier about potential issues with the rebuilt pump.
• Investigating the camshaft source for potential manufacturing defects.

Key Takeaway: When factory marks are off, suspecting multiple components is necessary. The indexing of gears on the camshaft, especially for driven components like the oil pump, is a frequent culprit for timing issues when new or rebuilt parts are involved.

Tips for Success

1. Use the Service Manual: This cannot be stressed enough. Every engine is different. Your specific service manual is the ultimate authority on timing procedures, marks, and specifications.

2. Cleanliness is Key: Ensure all timing marks, gear teeth, and pin holes are clean and free of debris or rust for accurate alignment.

3. Double-Check Everything: Before final tightening, re-verify all timing marks and engine position. If possible, rotate the engine a couple of full revolutions by hand to ensure there are no valve-to-piston or gear-to-gear interferences and that the marks still align as expected.

4. Document Your Work: If you're developing your own method or working without clear marks, take photos and make detailed notes of your process. This is invaluable for reassembly or future troubleshooting.

5. Consider Specialized Tools: For critical applications or frequent work, investing in a dial indicator and appropriate adapters can provide a highly accurate way to measure injection pump timing based on plunger lift, rather than relying solely on visual marks.

Frequently Asked Questions

Q1: Can I just rotate the injection pump to adjust the timing?

A1: Yes, in many cases, the injection pump housing can be rotated slightly (usually within slotted mounting holes) to fine-tune the timing. However, this adjustment range is limited, and if the mark is significantly off, the root cause needs to be addressed (e.g., incorrect gear installation).

Q2: How much adjustment is typically allowed by the pump mounting slots?

A2: This varies greatly by engine. Some slots allow for only a degree or two of adjustment, while others might offer up to 5-10 degrees. Always check your manual for specifications.

Q3: What happens if the injection pump drive gear is installed one tooth off?

A3: If the drive gear is installed one tooth off, the timing will be significantly incorrect, usually by a substantial amount (e.g., 10-20 degrees or more, depending on the gear ratio). This will likely result in poor running, hard starting, and potentially damage if the engine is run for extended periods.

Q4: Is it possible to time the injection pump without removing any components?

A4: If the factory timing marks are visible and accessible, yes. If not, or if you suspect an underlying timing issue due to component replacement, then some disassembly is usually required to access the gears or use timing pins.

Q5: My engine runs okay, but knocks under acceleration. Could it be injection timing?

A5: Knocking or detonation under acceleration is often a symptom of advanced injection timing. The fuel is being injected too early in the combustion cycle, causing a rapid pressure rise that the engine interprets as a knock. Correcting the timing is a primary step in diagnosing this issue.

Setting the fuel injection pump timing correctly is a task that demands precision and a thorough understanding of your engine's mechanics. By employing the right methods, utilising service manuals, and paying close attention to detail, you can ensure your diesel engine performs at its best.
