The Future of Wheel Alignment is Mobile: Understanding the John Bean® Prism System
In the world of automotive maintenance, achieving precise wheel alignment is paramount for a vehicle's performance, tyre longevity, and overall safety. Traditionally, wheel alignment has been a stationary process, requiring vehicles to be brought into specialised bays. However, the automotive landscape is constantly evolving, and with it, the tools and technologies used for vehicle servicing. Enter the John Bean® Prism mobile wheel alignment system, a groundbreaking innovation that is set to redefine how we approach this critical aspect of vehicle care. This article delves into what the John Bean® Prism system is, how it works, and the significant advantages it offers to both workshops and vehicle owners.

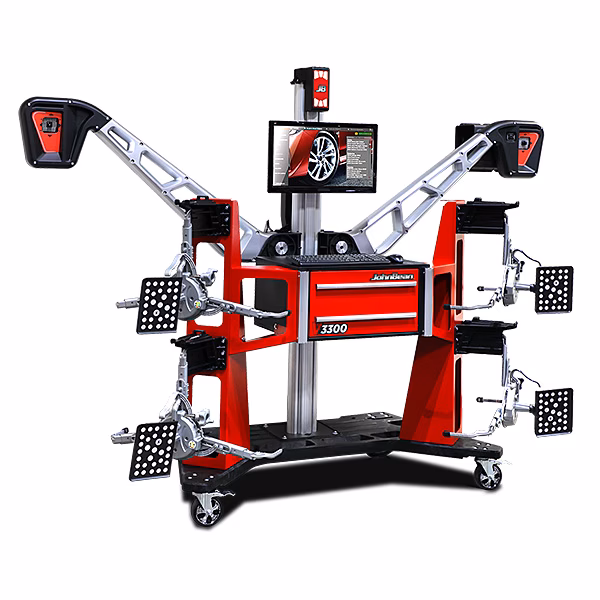

What is the John Bean® Prism Mobile Wheel Alignment System?
The John Bean® Prism mobile wheel alignment system represents a significant leap forward in alignment technology. It is a cutting-edge, portable solution that allows for accurate and efficient wheel alignment measurements and adjustments to be performed virtually anywhere. Unlike traditional systems that are fixed to a specific bay, the Prism system is designed for flexibility and mobility. This means that alignment checks and corrections can be carried out on a variety of surfaces, including workshop floors, vehicle lifts, or even in mobile service vans. At its core, the Prism system utilises advanced imaging technology and sophisticated software to provide precise measurements of wheel angles, ensuring that your vehicle's wheels are pointing in the correct direction for optimal driving characteristics.
How Does the John Bean® Prism System Work?
The ingenuity of the John Bean® Prism system lies in its innovative approach to measurement. It moves away from the conventional use of cumbersome targets and physical sensor heads that are typically mounted on each wheel. Instead, the Prism system employs a unique combination of high-definition cameras and specially designed reflective prisms. Here's a breakdown of the process:
- Camera Technology: The system features high-resolution cameras that are mounted on a mobile beam. These cameras are strategically positioned to view the reflective prisms attached to each wheel.
- Reflective Prisms: Instead of complex electronic sensors, the Prism system utilises passive reflective prisms. These prisms are lightweight, durable, and require no batteries or calibration themselves. They are designed to reflect light emitted by the system's cameras in a precise manner.
- 3D Imaging and Software: The cameras capture multiple images of the prisms from various angles. This 3D imaging data is then processed by advanced software. The software, powered by sophisticated algorithms, analyses the position and orientation of the prisms to calculate all relevant wheel alignment angles, including camber, caster, toe, and KPI (Kingpin Inclination).
- Mobile Beam and Console: The cameras are mounted on a mobile beam that can be easily moved around the vehicle. The system is controlled via a user-friendly console, often a tablet or computer, which displays the measurements in real-time and guides the technician through the adjustment process.
- On-Lift or On-Ground Measurement: A key advantage of the Prism system is its ability to perform accurate measurements whether the vehicle is on a lift or on the ground. This adaptability makes it incredibly versatile for different workshop setups and service scenarios.
The entire process is designed to be quick, intuitive, and highly accurate, providing technicians with the data they need to perform flawless alignments.
Key Components of the John Bean® Prism System
To better understand the Prism system, let's look at its primary components:
| Component | Description |
|---|---|
| High-Definition Cameras | Capture detailed 3D images of the reflective prisms. These are the eyes of the system. |
| Mobile Beam | Houses the cameras and allows for easy positioning around the vehicle. Its mobility is crucial for the system's flexibility. |
| Reflective Prisms | Attached to each wheel, these passive targets reflect light, enabling precise measurement without electronic sensors. They are the core of the optical measurement. |
| Control Console (Tablet/PC) | The user interface for operating the system, displaying measurements, and guiding the technician. It provides a clear and intuitive user experience. |
| Software with Vehicle Database | Processes the imaging data, performs calculations, and compares measurements against a comprehensive database of vehicle specifications. This ensures accuracy and compliance. |
Advantages of the John Bean® Prism Mobile Wheel Alignment System
The adoption of the John Bean® Prism system brings a multitude of benefits to automotive workshops and their customers:
1. Unparalleled Mobility and Flexibility
The most significant advantage is its portability. Workshops are no longer confined to dedicated alignment bays. The Prism system can be easily transported and set up in different areas, maximising workshop space utilisation. This is particularly beneficial for mobile mechanics or workshops with limited bay availability. The ability to perform alignments on lifts or directly on the ground further enhances its versatility.
2. Speed and Efficiency
The setup and measurement process for the Prism system is significantly faster than many traditional systems. The simple attachment of passive prisms and the rapid data acquisition reduce the time taken for each alignment. This increased efficiency means more vehicles can be serviced in a shorter period, boosting productivity and profitability for the workshop.
3. Enhanced Accuracy and Precision
John Bean® is renowned for its commitment to precision. The Prism system, with its high-definition cameras and advanced imaging software, delivers extremely accurate measurements. By eliminating the need for complex electronic sensors that can be prone to damage or require frequent calibration, the Prism system relies on robust optical principles for consistent and reliable results. This precision is vital for achieving optimal tyre wear and vehicle handling.
4. Reduced Maintenance and Calibration Costs
Traditional alignment systems with electronic sensors can be expensive to maintain and calibrate. The passive nature of the Prism system's reflective targets means there are fewer electronic components to fail or require recalibration. This translates into lower ongoing operational costs and less downtime for the equipment.
5. Intuitive User Interface
The system's software is designed with the technician in mind. It features a clear, graphical interface that displays measurements and provides step-by-step guidance, making it easy to learn and operate. This user-friendly design minimises the learning curve and ensures that technicians can perform alignments confidently.
6. Improved Workshop Workflow
The mobility of the Prism system allows for a more fluid workflow. Technicians can conduct alignment checks during other service procedures, such as tyre fitting or brake inspections, without needing to move the vehicle to a dedicated bay. This integrated approach streamlines the service process.
7. Durability and Reliability
The components of the Prism system, particularly the reflective prisms, are designed to be robust and withstand the demanding environment of an automotive workshop. Their passive nature makes them less susceptible to damage compared to electronic sensor heads.
Applications and Use Cases
The John Bean® Prism mobile wheel alignment system is suitable for a wide range of applications:
- Independent Garages and Workshops: Offering advanced alignment services without the need for a dedicated bay.
- Tyre Retailers: Providing quick and accurate alignment checks as part of tyre sales or service packages.
- Mobile Mechanics: Performing on-site alignments for customers, offering ultimate convenience.
- Fleet Maintenance: Ensuring all vehicles in a fleet maintain optimal alignment for safety and efficiency.
- Dealerships: Enhancing their service offerings with cutting-edge alignment technology.
Frequently Asked Questions (FAQs)
Q1: Is the John Bean® Prism system accurate enough for all types of vehicles?
Yes, the system is designed to provide high levels of accuracy for a wide range of passenger cars, light commercial vehicles, and SUVs, adhering to manufacturer specifications.
Q2: Does the Prism system require special alignment racks?
No, the beauty of the Prism system is its flexibility. It can perform accurate measurements on most standard vehicle lifts or even on a level workshop floor.
Q3: How are the prisms attached to the wheels?
The prisms are typically attached using quick-grip clamps that are designed to be secure and not damage the wheels.
Q4: What is the expected lifespan of the reflective prisms?
The reflective prisms are very durable. With proper care and handling, they can last for many years, as they have no electronic components to wear out.
Q5: Is the software updated regularly?
Yes, John Bean® provides software updates that include new vehicle models and improvements to the system's functionality, ensuring the system remains current and effective.
Conclusion
The John Bean® Prism mobile wheel alignment system is more than just a new piece of equipment; it's a paradigm shift in how automotive workshops approach wheel alignment. Its combination of mobility, speed, accuracy, and cost-effectiveness makes it an invaluable tool for any modern garage. By embracing this technology, workshops can enhance their service offerings, improve customer satisfaction, and gain a competitive edge in the increasingly demanding automotive service market. The future of wheel alignment is indeed mobile, precise, and readily available, thanks to innovations like the John Bean® Prism system.
