Decoding Your Hunter Alignment Report

In the intricate world of vehicle maintenance, few procedures are as critical yet as misunderstood as wheel alignment. For decades, drivers relied on rudimentary 'tracking' methods, a relic from an era when cars offered minimal adjustability. Today, however, with increasingly sophisticated vehicle engineering, precise alignment is paramount. This is where advanced systems, particularly the renowned Hunter Alignment, come into their own, providing a level of accuracy and detail unheard of in the past. But what exactly is a Hunter Alignment report, and why is understanding it crucial for every car owner?

Gone are the days when a simple 'tracking' of the front wheels sufficed. Such two-wheel alignment, often performed with basic hang-on gauges, only addressed the 'Toe' angle on the front axle, completely ignoring the direction of the rear wheels. This meant that even if your front wheels appeared straight, a misaligned rear axle could still cause your car to pull or lead to uneven tyre wear. Furthermore, these older systems often lacked run-out compensation, failing to account for any imperfections in the wheel rim itself, rendering the measurements, at best, approximate.

The Evolution from Tracking to Precision Four-Wheel Alignment

The journey from basic tracking to comprehensive four-wheel alignment represents a significant leap in automotive care. Modern vehicles demand precision, and four-wheel alignment delivers exactly that. Unlike its predecessor, four-wheel alignment measures a minimum of 12 critical angles across all four wheels, meticulously comparing them to the vehicle manufacturer's precise specifications. Crucially, it incorporates wheel rim run-out compensation, which eliminates measurement errors caused by bent rims or mounting imperfections, ensuring exceptionally accurate and repeatable readings.

This enhanced accuracy allows for precise adjustments to individual wheels, ensuring not only that the steering wheel is perfectly straight but also that the vehicle tracks true. Beyond just toe, four-wheel alignment allows for adjustments to camber, caster, and other vital angles where applicable. This comprehensive approach is essential for achieving optimum vehicle performance, maximising tyre life, improving fuel efficiency, and enhancing overall driving safety. On modern cars, relying solely on old-fashioned tracking is simply insufficient to achieve complete alignment or, more importantly, complete customer satisfaction.

Introducing Hunter Alignment Systems: The Gold Standard

When it comes to advanced wheel alignment technology, Hunter Engineering stands as a global leader. Their systems, particularly the sophisticated 3D imaging aligners, are considered the industry standard for precision and reliability. A Hunter Alignment isn't just a generic four-wheel alignment; it's a process performed with state-of-the-art equipment that provides unparalleled diagnostic capabilities and adjustment precision. These systems use high-resolution cameras and reflective targets mounted on each wheel to create a highly accurate 3D model of your vehicle's suspension geometry.

This advanced technology allows technicians to pinpoint even the slightest deviations from the manufacturer's specifications, often to within a fraction of a millimetre or a hundredth of a degree. It's this level of detail and accuracy that makes Hunter Alignment the preferred choice for workshops and dealerships seeking to provide the best possible service for their customers.

What is a Hunter Alignment Report/Printout?

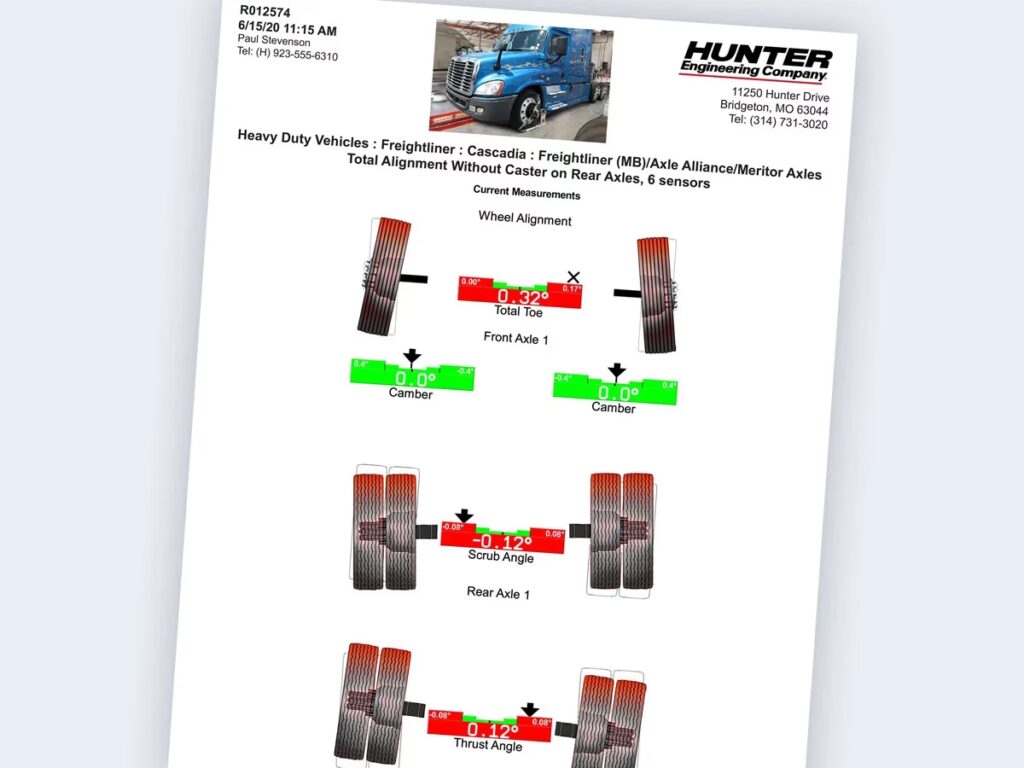

The Hunter Alignment report, also commonly referred to as a printout, is a detailed, multi-page document that serves as a comprehensive record of your vehicle's alignment status, both before and after adjustments. It's more than just a receipt; it's a diagnostic tool, a proof of work, and an educational resource for you, the vehicle owner. Designed to be clear and intuitive, even for those without a technical background, it typically features a mix of text, diagrams, and colour-coded indicators.

Here’s a breakdown of the key sections you'll typically find on a Hunter Alignment report:

1. Customer and Vehicle Information: Basic details such as your name, vehicle make, model, year, registration number, and mileage.
2. Manufacturer Specifications: This section lists the precise alignment angles recommended by your vehicle's manufacturer for your specific make and model. These are the target values the technician aims to achieve.
3. Before & After Readings: This is arguably the most crucial part of the report. It clearly displays the measured alignment angles of your vehicle before any adjustments were made, and then the angles after the alignment procedure is completed. The comparison visually demonstrates the improvements made.
4. Colour-Coded Indicators: Hunter reports famously use a traffic-light system for easy interpretation.
• Green: Indicates that the angle is within the manufacturer's specified range.
• Red: Indicates that the angle is outside the specified range and requires adjustment.
• Yellow/Amber: Sometimes used to indicate an angle that is close to the limit but still within tolerance, or in some cases, a non-adjustable angle that is out of spec, suggesting a worn component.
5. Key Alignment Angles Explained: The report will detail readings for several critical angles. Understanding these helps you grasp the report's significance:
• Toe: This refers to how much the front or rear of the tyres point inward or outward when viewed from above. Correct Toe ensures minimal tyre scrub and straight-line stability. The report shows individual wheel toe and total toe.
• Camber: This is the inward or outward tilt of the tyre when viewed from the front. Incorrect Camber can lead to uneven tyre wear (inner or outer edge) and affect handling.
• Caster: This refers to the angle of the steering pivot axis when viewed from the side. While not adjustable on all vehicles, Caster significantly influences steering stability, effort, and the wheel's ability to self-centre after a turn.
• Thrust Angle: This angle indicates the direction the rear wheels are pointing relative to the vehicle's centreline. An incorrect thrust angle means the rear wheels are pushing the vehicle slightly sideways, leading to a 'dog-walking' effect and requiring the driver to constantly steer to keep the car straight.
• Steering Axis Inclination (SAI) & Included Angle (IA): These are diagnostic angles that, while usually non-adjustable, can indicate bent suspension components if they are out of specification. They contribute to steering feel and stability.
6. Graphical Representations: Many reports include visual diagrams showing the vehicle's wheels and how they are aligned (or misaligned) in an easy-to-understand format.
7. Technician Notes/Recommendations: The technician performing the alignment may add notes about specific issues, parts that need replacement, or future recommendations.

Why is the Hunter Alignment Report Important for You?

Receiving and understanding your Hunter Alignment report offers several significant benefits:

• Transparency and Trust: The report provides undeniable proof of the work performed. You can clearly see the 'before' state of your alignment and verify that it has been corrected to within manufacturer specifications. This fosters trust between you and the service centre.
• Diagnostic Insight: If certain angles are consistently out of specification despite adjustments, or if non-adjustable angles (like SAI) are incorrect, the report serves as a diagnostic tool, indicating potential worn or damaged suspension components that may require further attention.
• Proof of Service: It acts as a detailed record of maintenance, which can be valuable for warranty claims, insurance purposes, or when selling your vehicle.
• Educational Tool: For the curious car owner, the report is an excellent way to learn about your vehicle's suspension geometry and understand why proper alignment is so crucial.
• Peace of Mind: Knowing that your vehicle's alignment has been precisely set by a leading system like Hunter gives you confidence in your car's safety, handling, and tyre longevity.

Interpreting Your Report: What to Look For

When you receive your Hunter report, focus primarily on the 'Before' and 'After' columns. Ideally, all 'After' readings should be within the green zone, indicating they meet manufacturer specifications. If any 'After' readings remain in red or yellow, ask your technician for an explanation. It might be due to non-adjustable components, worn parts that need replacing, or limitations of your specific vehicle's suspension design.

Pay particular attention to the 'Total Toe' on both front and rear axles, as this has the most direct impact on tyre wear and straight-line stability. Significant differences between left and right camber or caster can also indicate issues. Remember, the goal is not just to get the numbers 'green' but to ensure the vehicle drives as intended, with a straight steering wheel and no pulling.

Benefits of Proper Four-Wheel Alignment (Reinforced by Hunter Precision)

Investing in a precise four-wheel alignment, especially one performed with a Hunter system, yields numerous benefits that extend far beyond simply keeping your steering wheel straight:

When Should You Get a Hunter Alignment?

While there's no strict mileage interval for alignment, several situations warrant an immediate check:

• After hitting a significant pothole or kerb: Even a minor impact can knock your alignment out.
• When installing new tyres: This is a prime opportunity to ensure your new tyres wear evenly from the start.
• After any suspension or steering component replacement: Work involving tie rods, control arms, or shock absorbers will almost certainly alter alignment.
• If you notice steering issues: Your car pulls to one side, the steering wheel isn't straight when driving straight, or you feel vibrations through the steering.
• Uneven tyre wear: If you observe unusual wear patterns on your tyres (e.g., excessive wear on the inner or outer edge).
• Regular maintenance: Many manufacturers recommend checking alignment every 12,000-15,000 miles or annually as part of routine maintenance.

Frequently Asked Questions About Hunter Alignment Reports

Here are some common questions drivers have regarding their alignment and the Hunter report:

Q: How long does a Hunter Alignment typically take?
A: The measurement process itself is very quick, often just a few minutes. The adjustment time varies depending on how far out of alignment the vehicle is and the accessibility of adjustment points. Generally, a full four-wheel alignment can take anywhere from 45 minutes to 2 hours, sometimes longer if seized components need freeing or replacement.

Q: Is a Hunter Alignment worth the extra cost compared to basic tracking?
A: Absolutely. While a Hunter alignment might cost slightly more upfront, the precision it offers leads to significant savings in the long run through extended tyre life, improved fuel efficiency, and reduced wear on suspension components. It's an investment in your vehicle's performance and safety.

Q: My report shows a red reading for a non-adjustable angle. What does this mean?
A: If a non-adjustable angle (like SAI or certain camber/caster readings) is in red, it typically indicates a worn or bent suspension component (e.g., a bent strut, control arm, or spindle). The alignment technician should be able to advise you on which part needs inspection or replacement to bring the vehicle back within specification.

Q: Can I perform a wheel alignment myself?
A: No. Wheel alignment requires specialised, precise equipment like the Hunter system and the expertise of a trained technician. DIY alignment attempts are highly likely to result in incorrect settings, leading to the very problems you're trying to avoid.

Q: What's the fundamental difference between 'tracking' and 'four-wheel alignment'?
A: As discussed, 'tracking' typically refers to a basic, often less accurate, adjustment of only the front wheels' toe angle, without considering the rear wheels or compensation for wheel run-out. 'Four-wheel alignment', especially with advanced systems like Hunter, is a comprehensive measurement and adjustment of all four wheels and multiple angles (toe, camber, caster, thrust angle) with high precision, ensuring the entire vehicle tracks true.

Q: How often should I get my alignment checked?
A: Even if you don't experience obvious symptoms, it's a good practice to have your alignment checked annually or every 12,000-15,000 miles as part of your routine vehicle maintenance. Small misalignments can develop over time due to normal driving conditions, road imperfections, and component wear, and catching them early can save you money and headaches.

Conclusion

The Hunter Alignment report is far more than just a piece of paper; it's a window into the precise mechanical health of your vehicle's suspension. By understanding the data presented, you empower yourself to make informed decisions about your car's maintenance, ensuring it remains safe, efficient, and a pleasure to drive on UK roads. Next time you visit your local garage for an alignment, don't just glance at the printout – take the time to understand it. It's a testament to modern automotive engineering and a key tool in maximising your vehicle's performance and longevity.
