1989 Jeep 4.0L Renix Fuel Injection: A Deep Dive

For owners of the rugged 1989 Jeep Cherokee, Wagoneer, or Comanche, the heart of their vehicle is often the venerable 4.0-litre inline-six engine. What many might not realise, however, is the distinctive fuel injection system that powers these machines: the Renix Multi-Point Fuel Injection (MPI) system. Used from 1987 to 1990, this system, a collaboration between Renault and Bendix, marked a significant leap forward from carburettors, offering improved fuel efficiency, reduced emissions, and better driveability. Understanding the nuances of the Renix system is paramount for any owner looking to maintain, troubleshoot, or simply appreciate their classic Jeep.

While later Jeep 4.0L engines transitioned to more conventional Chrysler-developed MPI systems, the Renix era stands out. It's known for its robust nature when properly maintained, but also for its unique diagnostic characteristics and a reliance on specific sensor inputs. Unlike modern OBD-II systems, or even the later OBD-I systems found in Jeeps, Renix operates on a simpler, yet effective, principle that requires a different approach to diagnostics and repair. This article will delve into the intricacies of the 1989 Jeep's fuel injection, offering insights into its operation, key components, common issues, and essential maintenance practices.

Understanding the Renix System: The Brains Behind the Brawn

The Renix system was a pivotal development for Jeep, moving away from the less precise fuel delivery of carburettors. It's a true electronic fuel injection system, meaning it uses an Engine Control Unit (ECU) to precisely meter fuel based on various engine parameters. This allowed for more efficient combustion, better cold starts, and smoother power delivery across the RPM range. The Renix system operates primarily as a speed-density system, calculating engine load based on manifold pressure and engine speed, rather than relying on a mass airflow (MAF) sensor.

One of the defining characteristics of the Renix ECU is its adaptive learning capability. Over time, it learns the engine's characteristics and adjusts fuel trim accordingly. However, unlike modern systems, it doesn't store a plethora of diagnostic codes that can be easily read with a scanner. Instead, troubleshooting often involves manual testing of sensors and components, a process that can be both challenging and rewarding for the determined DIY mechanic.

Core Components of the 4.0L Multi-Point Fuel Injection System

To truly grasp the Renix system, it's essential to understand its individual components and their roles in the overall operation. Each part plays a crucial role in ensuring optimal fuel delivery and engine performance.

The Engine Control Unit (ECU)

Often referred to as the 'brain' of the system, the Renix ECU processes information from various sensors to calculate the precise amount of fuel to inject and the optimal ignition timing. It's a robust unit, but like any electronic component, it can fail. Symptoms of a faulty ECU can range from intermittent stalling to a complete no-start condition.

Fuel Delivery System

• Fuel Pump: Located in the fuel tank, this electric pump delivers fuel under pressure to the fuel rail. A weak or failing fuel pump can lead to poor performance, hard starts, or even a no-start condition.
• Fuel Filter: Positioned in the fuel line, typically near the fuel tank or along the frame rail, this filter prevents contaminants from reaching the injectors. Regular replacement is crucial for system longevity.
• Fuel Pressure Regulator: Mounted on the fuel rail, this component maintains a consistent fuel pressure for the injectors, returning excess fuel to the tank.

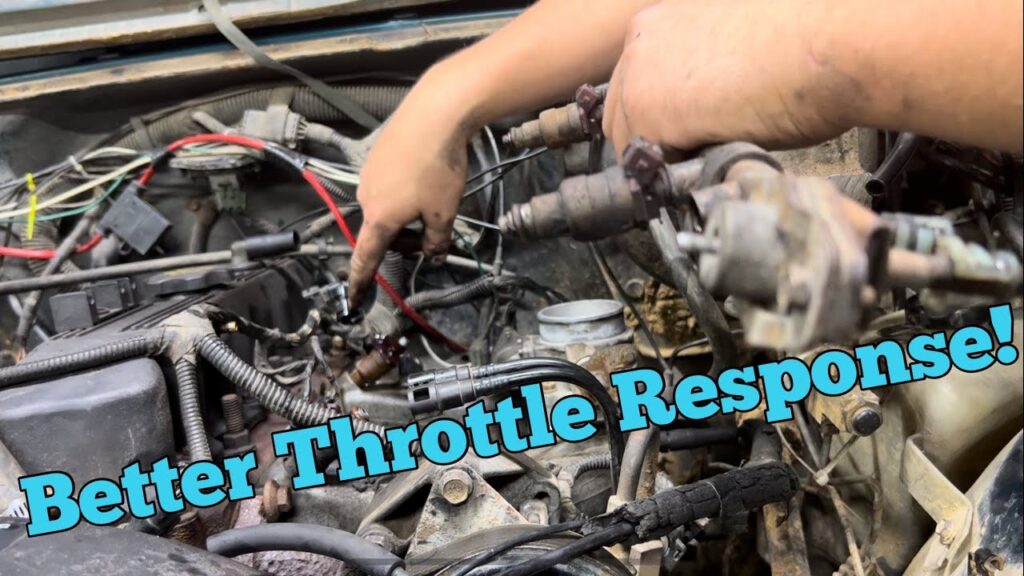

• Fuel Injectors: Six electronically controlled injectors, one for each cylinder, spray a fine mist of fuel into the intake manifold directly upstream of the intake valves. Clogged or faulty injectors can cause misfires, rough idle, and reduced fuel economy.

Key Sensors: The Eyes and Ears of the System

The Renix ECU relies heavily on accurate data from a network of sensors. Understanding their function and common failure symptoms is vital for diagnosis.

• Manifold Absolute Pressure (MAP) Sensor: Located on the firewall or intake manifold, this sensor measures the pressure inside the intake manifold, which is directly related to engine load. A faulty MAP sensor can cause rich or lean conditions, poor fuel economy, and stalling.
• Throttle Position Sensor (TPS): Mounted on the throttle body, the TPS reports the throttle plate's angle to the ECU. Incorrect readings can lead to erratic idle, hesitation during acceleration, or even an inability to shift gears properly in automatic transmissions.
• Oxygen (O2) Sensor: Located in the exhaust system (usually before the catalytic converter), the O2 sensor measures the oxygen content in the exhaust gases. This data allows the ECU to fine-tune the air/fuel mixture for optimal combustion and emissions. A failing O2 sensor often results in poor fuel economy and increased emissions.
• Coolant Temperature Sensor (CTS): Found on the engine block or thermostat housing, the CTS informs the ECU about the engine's operating temperature. This is crucial for cold start enrichment and idle speed control. A bad CTS can cause hard starting, rich running, or poor fuel economy.
• Crankshaft Position Sensor (CPS): Arguably one of the most critical sensors in the Renix system, the CPS is typically located on the bell housing, near the rear of the engine. It tells the ECU the engine's RPM and piston position, which is vital for both fuel injection and ignition timing. A faulty CPS is a common cause of intermittent stalling, long crank times, or a complete no-start condition.
• Intake Air Temperature (IAT) Sensor: Located in the intake manifold, this sensor measures the temperature of the incoming air. This data helps the ECU calculate air density for accurate fuel metering.

Common Renix System Issues and Troubleshooting

While robust, the Renix system is not immune to problems. Many issues can be traced back to a failing sensor or a simple electrical connection. Here's a look at common symptoms and potential culprits:

Stalling or Rough Idle

• Suspects: TPS, O2 sensor, MAP sensor, vacuum leaks, dirty throttle body.
• Troubleshooting: Check TPS voltage sweep with a multimeter. Inspect all vacuum lines for cracks. Clean the throttle body thoroughly.

Hard Starts or No Start

• Suspects: CPS, fuel pump, ballast resistor (if equipped), faulty ground wires.
• Troubleshooting: Test for fuel pressure. Check for spark at the plugs. Verify CPS signal. Ensure good ground connections, especially on the engine block and chassis.

Poor Fuel Economy or Rich/Lean Condition

• Suspects: O2 sensor, MAP sensor, leaky injectors, faulty CTS.
• Troubleshooting: Test O2 sensor output. Check fuel pressure. Inspect injectors for leaks.

Hesitation or Lack of Power

• Suspects: Fuel pressure, clogged fuel filter, TPS, MAP sensor, partially clogged injectors.
• Troubleshooting: Conduct a fuel pressure test. Replace fuel filter. Test TPS and MAP sensor.

A common theme in Renix troubleshooting is the importance of good electrical grounds. The system is highly sensitive to poor ground connections, which can manifest in a myriad of confusing symptoms. Always check and clean all engine and chassis ground points as a first step in any electrical diagnosis.

Maintaining Your Renix System for Longevity

Proactive maintenance is key to keeping your 1989 Jeep's Renix system running smoothly. While some components have a finite lifespan, regular checks and replacements can significantly extend the system's reliability.

• Fuel Filter Replacement: Replace the fuel filter every 20,000-30,000 miles (32,000-48,000 km) or as recommended in your owner's manual. A clogged filter restricts fuel flow, straining the fuel pump.
• Injector Cleaning: Consider periodic fuel injector cleaning, either by adding a quality fuel system cleaner to your tank or by having them professionally cleaned.
• Sensor Inspection: Periodically inspect wiring and connectors for all sensors for corrosion or damage. Ensure they are securely plugged in.
• Ground Wire Integrity: This cannot be stressed enough. Regularly inspect and clean all engine-to-chassis and battery ground connections. A common issue is the ground strap from the engine block to the firewall.
• Vacuum Line Check: Inspect all vacuum lines for cracks, hardening, or disconnections. Vacuum leaks can cause rough idle and poor performance.
• Throttle Body Cleaning: Over time, carbon deposits can build up in the throttle body, affecting idle quality. Clean it regularly with a throttle body cleaner.

Renix vs. Later Mopar MPI Systems: A Brief Comparison

While the focus here is on the Multi-Point Fuel Injection Renix system, it's helpful to understand how it differs from the later Chrysler/Mopar MPI systems found in Jeeps from 1991 onwards. This provides context for its unique characteristics.

The Mopar system generally offered more user-friendly diagnostics and slightly more refined control, but the Renix system, when understood and maintained, is a perfectly capable and reliable performer.

Frequently Asked Questions (FAQs)

Q: Can I upgrade my Renix system to a newer MPI system?

A: Yes, it is possible to convert a Renix 4.0L to a later Mopar MPI system. This is a common modification for owners seeking easier diagnostics, better parts availability, or perceived performance benefits. However, it's a significant undertaking, requiring a new ECU, wiring harness, sensors, and potentially other components. It's not a simple bolt-on job and requires considerable mechanical and electrical knowledge.

Q: Are Renix parts still available?

A: Many common Renix parts are still available, particularly sensors like the CPS, TPS, and O2 sensor. However, some specific components, especially internal ECU parts or less common sensors, can be harder to source and may require searching specialist suppliers or salvage yards. Aftermarket alternatives are often available for critical components.

Q: What's the most common Renix failure?

A: The Crankshaft Position Sensor (CPS) is arguably the most common failure point, often leading to intermittent stalling or a no-start condition. Poor electrical grounds are also a very frequent culprit for a wide range of seemingly unrelated issues within the Renix system.

Q: How do I read Renix diagnostic codes?

A: Unlike later systems, Renix doesn't have a simple check engine light flash code procedure in the same way. Diagnostics often involve using a multimeter to test sensor outputs and checking for power and ground at various components. Some advanced enthusiasts use custom diagnostic tools or procedures documented in service manuals to access limited stored information, but it's far less straightforward than OBD-I or OBD-II.

Q: Is it worth maintaining a Renix system, or should I convert it?

A: For many owners, maintaining the original Renix system is a rewarding experience. It's a robust system when properly cared for, and understanding its quirks can be satisfying. If you enjoy troubleshooting and have access to the necessary information (like the 1989 Jeep FI Manual mentioned in the source), there's no compelling reason to convert unless you're seeking specific performance gains or modern diagnostic capabilities. A well-maintained Renix system will provide years of reliable service.

Conclusion

The 1989 Jeep 4.0L Renix Multi-Point Fuel Injection system is a testament to the engineering of its era. While it may lack the plug-and-play diagnostics of modern vehicles, its straightforward design and reliance on fundamental electrical and mechanical principles make it a fascinating system to understand and maintain. By familiarising yourself with its components, common issues, and diligent maintenance practices, you can ensure your classic Jeep continues to deliver reliable performance, whether you're navigating urban jungles or conquering the toughest trails. Embrace the unique character of your Renix-powered Jeep, and you'll be rewarded with a truly capable and enduring vehicle.
