The Jeep Wrangler, a true icon of rugged capability, is built to conquer any terrain. However, even the most robust vehicles rely on a critical system for safety and performance: the brakes. Given the demanding conditions Wranglers often face, from challenging off-road trails to stop-and-go city traffic, their braking components endure significant stress. Regular maintenance and timely replacement of worn parts are paramount to ensuring your Wrangler’s stopping power remains consistent and reliable. This comprehensive guide will walk you through the process of replacing your Jeep Wrangler’s brake pads, rotors, and even calipers, empowering you to tackle this essential maintenance task yourself and keep your legendary vehicle performing at its peak.
Why Brake Maintenance is Crucial for Your Wrangler
Your Jeep Wrangler’s braking system is arguably its hardest-working safety feature. The constant friction required to bring several tonnes of metal to a halt generates immense heat and causes gradual wear. For Wrangler owners, this wear can be accelerated by several factors:
- Off-Roading Demands: Steep descents, muddy trails, and sudden obstacles often require aggressive braking, putting extra strain on pads and rotors.
- Heavy Loads: If you frequently tow or carry heavy gear, the increased weight translates to more work for your brakes.
- Stop-and-Go Traffic: Urban driving, with its frequent acceleration and deceleration cycles, can be just as taxing as off-roading.
Ignoring worn brakes isn't just a performance issue; it's a significant safety hazard. As brake pads wear down, they become less effective, increasing stopping distances. This can also lead to premature wear on your brake rotors, turning a simple pad replacement into a more costly rotor replacement. Furthermore, neglecting your brakes can lead to issues with calipers, which are designed to last much longer but can fail if overworked or exposed to excessive heat from worn pads. Understanding the signs of wear and addressing them promptly is key to maintaining your Wrangler's integrity and your safety on the road or trail.
Signs Your Wrangler's Brakes Need Attention
Your Wrangler will often tell you when its brakes are crying out for attention. Being aware of these common indicators can save you from more extensive repairs down the line:
- Squealing or Squeaking Noises: Often the first sign, this high-pitched sound typically indicates that your brake pads are reaching their wear limits. Many pads have a small metal tab that scrapes against the rotor when they are thin, producing this warning sound.
- Grinding Sounds: A much more serious sound, grinding usually means your brake pads are completely worn down, and the metal backing plate of the pad is now rubbing directly against the rotor. This causes rapid damage to the rotor and can be very dangerous.
- Reduced Braking Performance: If your Wrangler feels like it's taking longer to stop, or if you have to press the brake pedal harder than usual to achieve the same braking effect, your pads are likely worn.
- Vibrations or Pulsations: A pulsating sensation through the brake pedal or steering wheel when braking often points to warped brake rotors. This can happen due to excessive heat or uneven wear.
- Pulling to One Side: If your Wrangler pulls to the left or right when you apply the brakes, it could indicate an issue with a caliper (it might be sticking) or uneven pad wear on one side.
- Brake Warning Light: Some modern Wranglers have dashboard warning lights that illuminate when brake fluid levels are low or when there’s a significant issue with the braking system.
Do not ignore these warning signs. Prompt action is crucial for your safety and to prevent further damage to your braking system.
Essential Tools and Materials for the Job
Before you begin, gather all the necessary tools and replacement parts. Having everything to hand will make the process much smoother and more efficient. For this job, you will need:
- A reliable jack and sturdy jack stands
- A tire iron (or a socket wrench with the correct lug nut socket)
- A set of sockets (commonly 18mm and 21mm for caliper bolts, but check your specific model's requirements)
- A wrench (ratchet wrench is ideal)
- A small length of clear hose and an empty bottle (for brake bleeding)
- A large C-clamp or a brake piston compression tool
- A rubber mallet (for stubborn rotors)
- New brake pads (ensure they are specific to your Wrangler model and year)
- New brake rotors (optional, but often recommended if pads are significantly worn or rotors are warped)
- New brake calipers (only if faulty and requiring replacement)
- Fresh brake fluid (check your owner's manual for the correct DOT rating, e.g., DOT3 or DOT4)
- Safety gloves and eye protection
Before You Begin: Safety First
Working on your vehicle's braking system requires strict adherence to safety protocols. A failure in this system can have catastrophic consequences. Always ensure you are working on a flat, level surface, and never rely solely on a jack to support the vehicle. Jack stands are non-negotiable for safety.
Step-by-Step Guide to Replacing Your Wrangler's Brake Components
1. Preparation: Lifting Your Wrangler Safely
Begin by parking your Wrangler on a firm, level surface. Engage the parking brake. If you are only working on the front or rear, consider chocking the wheels on the opposite axle. Loosen the lug nuts on the wheel(s) you intend to work on while the vehicle is still on the ground – this prevents the wheel from spinning when you apply torque. Once the lug nuts are loose, carefully jack up your Wrangler using the designated jack points, typically on the axle itself, as close to the wheel as possible. Once raised, immediately place sturdy jack stands beneath the axle to safely support the vehicle. Finally, remove the loosened lug nuts completely and take off the wheel, exposing the braking assembly.
2. Replacing Brake Pads
With the wheel removed, you’ll see the brake caliper covering the pads and rotor. To access the pads, you need to remove the caliper. Locate the two bolts at the back of the caliper (usually 18mm or 21mm). Using your socket wrench, loosen and remove these bolts. Once the bolts are out, gently pull the caliper assembly away from the rotor. If you are only replacing the brake pads and not the caliper, do not let the caliper hang by its brake line; this can damage the line. Instead, support it on a nearby suspension component or use a bungee cord to hang it from the coil spring.
Now, carefully slide out the old brake pads from the caliper bracket. Note their orientation. Before installing the new, thicker brake pads, you will need to compress the caliper’s piston. This is where your C-clamp or brake piston compression tool comes in. Place one side of the clamp against the piston and the other against the back of the caliper body (or an old pad if it fits). Slowly and steadily tighten the clamp until the piston is fully retracted into the caliper body. This step is crucial to make space for the new, thicker pads. Once compressed, insert the new brake pads into the caliper bracket, ensuring they are correctly seated. Carefully slide the caliper back over the rotor and align the bolt holes. Reinstall and securely tighten the two caliper bolts at the back. Ensure they are torqued to your vehicle's specifications if you have a torque wrench.
3. Replacing Brake Rotors (Optional but Recommended)
If your brake pads were severely worn, or if you've experienced pulsating during braking, your rotors likely need replacement. With the brake caliper removed and safely supported, the rotor is now exposed. Jeep Wrangler rotors are typically held in place by friction and sometimes a small retaining screw (often a T30 Torx bit). If there's a screw, remove it. The rotor might be seized onto the hub due to rust or dirt. If it doesn't pull straight off easily, use your rubber mallet to tap firmly around the hub and the outer edge of the rotor. Work your way around the rotor, tapping evenly, until it wiggles loose. Once it’s free, pull the old rotor straight off the hub.
Before installing the new rotor, it's good practice to clean the hub surface with a wire brush to remove any rust or debris. This ensures the new rotor sits perfectly flush. Slide the new rotor onto the wheel studs, ensuring it seats properly against the hub. If there was a retaining screw, reinstall it. Now, you can reinstall the caliper assembly over the new rotor as described in the previous step, making sure the pads are correctly positioned.
4. Replacing Brake Calipers (If Faulty)
Replacing a brake caliper is typically only necessary if it’s seized, leaking, or otherwise faulty. If you are replacing a caliper, you’ll first need to disconnect the main brake line that feeds fluid into the old caliper. Be prepared for some brake fluid to leak out – have a drip pan ready. Use a flare nut wrench (if available, to prevent rounding the fitting) to loosen and remove the brake line from the old caliper. Quickly transfer the brake line to the new caliper and hand-tighten it to prevent excessive fluid loss and air entry. Then, fully secure the brake line connection. Place the new brake pads into the new caliper (new calipers usually come with their pistons already fully compressed). Carefully position the new caliper over the rotor and reattach the two mounting bolts, tightening them securely.
Important: Whenever you disconnect a brake line or replace a caliper, you will introduce air into the hydraulic braking system. This air must be removed through a process called "bleeding the brakes."
The Critical Step: Bleeding Your Brakes
Brake fluid is incompressible, which is why hydraulic brakes work. Air, however, is compressible. If there's air in your brake lines, your brake pedal will feel spongy, and your braking performance will be severely compromised. Bleeding the brakes removes this trapped air.
You will need a helper for this step. The general rule for bleeding the entire system is to start with the caliper furthest from the master cylinder and work your way closer. For most Wranglers, this sequence is:
- Passenger's Rear wheel
- Driver's Rear wheel
- Passenger's Front wheel
- Driver's Front wheel
If you only replaced a caliper on one wheel, you only need to bleed that specific caliper, though a full system bleed is always good practice.
Bleeding Process (Per Caliper):
- Locate the bleeder screw on the back of the caliper. It's a small nipple with a hex head.
- Attach one end of your clear hose securely to the bleeder screw. Place the other end into your clear bottle, ensuring the end of the hose is submerged in a small amount of fresh brake fluid at the bottom of the bottle. This prevents air from being sucked back in.
- Ask your helper to get into the driver's seat and pump the brake pedal slowly and firmly a few times (e.g., 3-5 times).
- After pumping, instruct your helper to keep the brake pedal pressed down firmly.
- While your helper holds the pedal down, quickly loosen the bleeder screw (usually a quarter to half a turn) with a wrench. You will see fluid and potentially air bubbles flow through the hose into the bottle.
- Watch for bubbles. As soon as the fluid stream appears clear and free of bubbles, quickly tighten the bleeder screw.
- Only after you have tightened the screw, instruct your helper to release the brake pedal.
- Repeat this process (pump, hold, open valve, close valve, release pedal) until no more air bubbles appear in the fluid flowing into the bottle. It may take several repetitions.
- Crucial: Throughout the bleeding process, frequently check the brake fluid reservoir under the bonnet. Ensure it never drops below the "MIN" line. If it gets too low, air will be drawn into the master cylinder, and you'll have to start the entire bleeding process from scratch. Top it up with fresh brake fluid as needed.
Once you've bled all necessary calipers, replace the reservoir cap and pump the brake pedal a few times to build pressure. The pedal should feel firm. If it still feels spongy, there might be air trapped elsewhere, and you'll need to re-bleed.
Choosing the Right Brake Components for Your Wrangler
The aftermarket offers a wide range of brake pads and rotors, each with different characteristics. Understanding these can help you make an informed choice based on your driving style and budget.
Brake Pad Types:
- Semi-Metallic Pads: These are very common and offer excellent stopping power and heat dissipation. They are durable but can be noisier and produce more brake dust. Good for heavy-duty use and off-roading.
- Ceramic Pads: Known for being quieter, producing less dust, and lasting longer. They offer consistent performance across a wide temperature range but might not have the initial bite of semi-metallic pads in extreme conditions. Ideal for daily driving and light off-roading.
- Organic (Non-Asbestos Organic - NAO) Pads: Quieter and produce less dust than semi-metallic, but generally offer less stopping power and wear faster. Not typically recommended for a heavy vehicle like a Wrangler, especially if used off-road.
Brake Rotor Types:
- Smooth (Standard) Rotors: The most common type, offering good performance for most driving conditions. Affordable and effective.
- Drilled Rotors: Feature holes drilled into the rotor surface. Designed to dissipate heat and vent gasses more efficiently, reducing fade. However, they can be prone to cracking under extreme stress (e.g., heavy off-roading or track use).
- Slotted Rotors: Have slots cut into the rotor surface. These slots help to wipe away gasses and debris from the pad surface, improving bite and performance in wet conditions. Less prone to cracking than drilled rotors.

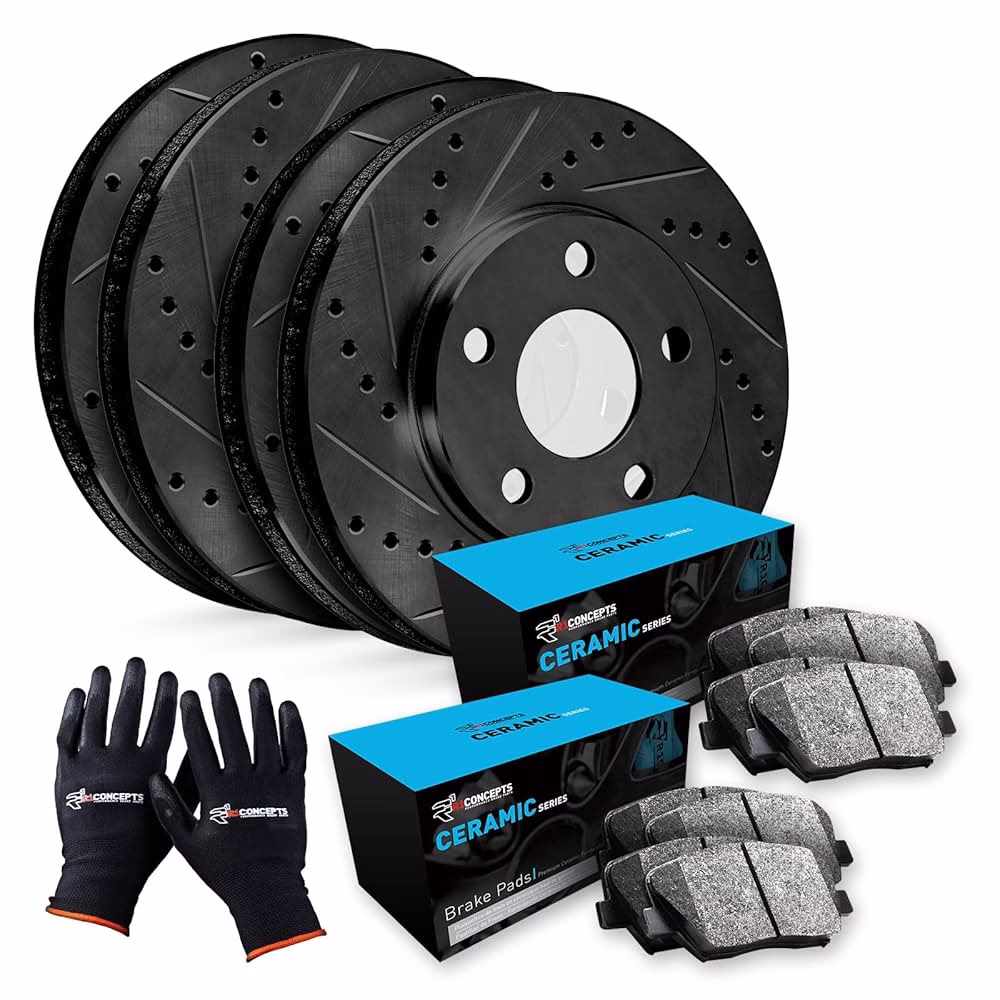

- Drilled and Slotted Rotors: Combine features of both, aiming for improved cooling and debris removal. A popular choice for performance-oriented drivers.
Comparative Overview of Brake Pad Types
| Pad Type | Pros | Cons | Best Use for Wrangler |
|---|---|---|---|
| Semi-Metallic | Excellent stopping power, good heat dissipation, durable | Can be noisy, more brake dust, harder on rotors | Heavy-duty, frequent towing, aggressive off-roading |
| Ceramic | Quiet, low dust, long life, consistent performance | Less initial bite in extreme cold, potentially higher cost | Daily driving, light to moderate off-roading |
| Organic (NAO) | Very quiet, low cost | Lower stopping power, shorter lifespan, not for heavy use | Not generally recommended for Wranglers |
Frequently Asked Questions (FAQs)
Q: How often should I replace my Wrangler's brake pads?
A: It varies greatly depending on your driving habits, terrain, and brake pad material. For a Wrangler, pads can last anywhere from 30,000 to 70,000 miles. Always check your pads during tyre rotations or if you notice any of the warning signs discussed earlier. Off-roading will generally shorten their lifespan.
Q: Should I replace both brake pads and rotors at the same time?
A: It's highly recommended, especially if your rotors show signs of wear (grooves, warping, discolouration) or if your pads were severely worn. New pads need a perfectly flat surface to bed in properly for optimal performance and longevity. Replacing both ensures the best braking performance and prevents premature wear on the new pads.
Q: What's the difference between front and rear brake replacement on a Wrangler JL?
A: The fundamental process is very similar for both front and rear axles. However, the size of components (pads, rotors, calipers) may differ, and the torque specifications for bolts might vary. Always consult your Wrangler JL's service manual for exact specifications. Front brakes typically wear faster than rear brakes due to more braking force being applied to the front axle.
Q: My brake pedal feels soft or spongy after replacing components. What's wrong?
A: This is almost certainly due to air trapped in the brake lines. You need to re-bleed the brakes thoroughly until the pedal feels firm. Ensure the brake fluid reservoir never runs dry during the bleeding process.
Q: Do I need to "bed in" new brake pads?
A: Yes, bed in new pads and rotors is crucial for optimal performance and longevity. It involves a series of moderate and firm stops from varying speeds to transfer a thin, even layer of friction material from the pads onto the rotors. Follow the specific bedding-in procedure recommended by the brake pad manufacturer.
Conclusion
Replacing the brake components on your Jeep Wrangler might seem like a daunting task, but as this guide demonstrates, it's a manageable DIY project for the mechanically inclined. By taking the time to understand the process and investing in the right tools, you can save a significant amount on garage labour costs, which can easily run into hundreds of pounds for a full brake job. More importantly, performing this crucial maintenance yourself gives you direct control over the quality of parts and the meticulousness of the installation, ensuring your Wrangler's braking system is in top condition.
Remember, your brakes are your primary safety feature. If you ever feel uncertain during any step of this process, or if the pedal still feels spongy after bleeding, do not hesitate to consult a professional mechanic. Drive safely, enjoy your Wrangler, and keep those brakes in peak working order!
