Taking the reins of your Jeep's maintenance, particularly something as fundamental as an oil change, is a tremendously rewarding endeavour. Not only does it offer significant savings compared to garage visits, but it also provides a unique opportunity to get intimately acquainted with your vehicle. This hands-on approach allows you to conduct crucial visual inspections, spotting potential issues before they escalate, and ensuring the job is done precisely to your standards, using the exact fluids and parts you prefer. For many Jeep owners, especially those with lifted suspensions, this task can even be accomplished without the need for jacks or ramps, making it incredibly accessible. Even with a stock suspension, some models allow for this job without raising the vehicle. While we'll illustrate the process using a lift for photographic clarity, rest assured, all you truly need are a few basic hand tools and a bit of determination.
Before you even think about getting your hands oily, safety must be your absolute priority. Always park your Jeep on a level, stable surface. Engage the 'Park' gear and firmly set the parking brake. For an added layer of security, especially when you'll be working underneath the vehicle, it's always an excellent practice to chock the wheels. This simple step can prevent any unexpected movement and keep you safe.
Preparing for a Smooth Oil Change
A successful oil change begins with proper preparation. One crucial step is to run your engine for a few minutes before draining the old oil. This warms the engine oil, making it less viscous and allowing it to flow out more easily and quickly. This ensures a more complete drain, removing more contaminants along with the old oil.
When it comes to selecting the right oil for your Jeep, consulting your owner's manual is paramount. For the 4.7L and 4.7L High Output engines, the manual typically recommends 5W-30 motor oil. This grade is generally best suited for environmental operating temperatures below 100ºF (approximately 38ºC). However, if you reside in an area where outside temperatures consistently exceed 100ºF, then switching to 10W-30 is advisable to provide adequate lubrication and protection under more extreme heat conditions. Always use a high-quality oil that meets or exceeds your manufacturer's specifications.
Beyond the oil itself, gather your tools and materials before you begin. You'll need:
- A suitable oil drain pan (large enough to hold 6 quarts/litres of oil)
- A 13mm socket and ratchet
- An oil filter wrench
- A funnel
- Plenty of clean paper towels or rags
- Your new oil filter (Mopar or equivalent quality)
- 6 quarts (approximately 5.7 litres) of the correct motor oil
- (Optional) A torque wrench for the drain bolt
- (Optional) Wheel chocks
Step-by-Step Jeep Oil Change Procedure
Follow these steps carefully to ensure a clean and efficient oil change:

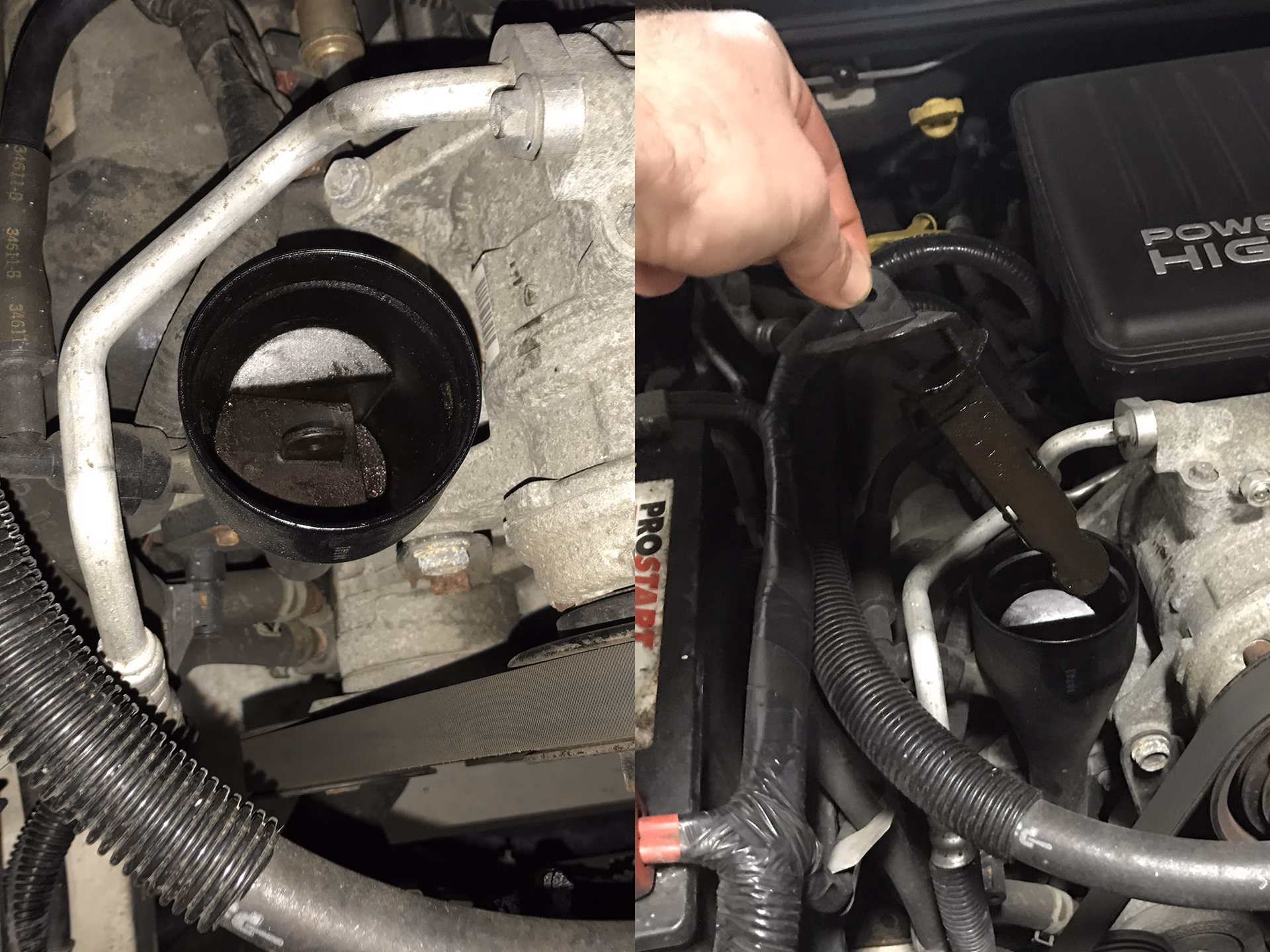

- Remove the Oil Filler Cap: Begin by opening your bonnet and locating the engine's oil filler cap. Remove this cap. This simple action helps to create a vacuum break, allowing the oil to drain more freely and completely from the engine.
- Remove the Oil Filler Baffle: Inside the oil filler neck, you may find an oil filler baffle. This component helps to prevent oil from splashing out during filling. Carefully remove it from the neck. Keeping it clean and setting it aside in a safe place will prepare it for reinstallation later.
- Locate and Remove the Drain Bolt: Position your oil drain pan directly beneath the oil pan at the bottom of the engine. Using your 13mm socket and ratchet, carefully loosen and then remove the drain bolt. Be prepared for the oil to start flowing immediately once the bolt is free.
- Drain the Old Oil and Replace Bolt: Allow the old engine oil to drain completely into your pan. This can take several minutes, so be patient. Keep those paper towels close by to quickly clean up any spills or drips, and to wipe off any oil that might splash onto your exhaust components. Once the oil flow has reduced to a slow drip, clean the drain bolt and the sealing surface around the drain hole. Replace the drain bolt, ensuring it's snug. If you have a torque wrench, tighten it to 25 ft-lbs. If you don't have one, hand tightening, followed by a slight turn with the ratchet until it feels secure but not excessively tight, works perfectly fine. Over-tightening can strip the threads, while under-tightening can lead to leaks.
- Remove the Old Oil Filter: Now, locate the oil filter. It's usually a cylindrical canister. Place your drain pan underneath it, as some residual oil will likely escape when you remove it. Using your oil filter wrench, loosen the old oil filter. Once loose, unscrew it by hand. Be careful as it will be full of oil.
- Clean and Inspect the Sealing Surface: With the old filter removed, thoroughly clean the oil filter sealing surface on the engine block. Inspect it for any old gasket residue, corrosion, or debris that could compromise the seal of the new filter. A clean surface is crucial for preventing leaks.
- Lubricate the New Oil Filter Seal: Take your new oil filter. Apply a few drops of clean motor oil around the rubber gasket or seal on the top of the new filter. This lubrication helps create a better seal when the filter is installed and makes it easier to remove during your next oil change.
- Install the New Oil Filter: Carefully thread the new oil filter onto the engine block by hand. Turn it clockwise until the gasket just makes contact with the engine block.
- Tighten the Oil Filter: Once the filter is hand-tight, use your oil filter wrench to tighten it an additional 1 revolution past hand tight. Avoid over-tightening, as this can damage the filter or its seal, making future removal difficult and potentially causing leaks.
- Refill the Engine with New Oil: Place your funnel into the oil filler neck. Slowly begin to pour in the new motor oil. The 4.7L engine typically requires 6 Quarts of oil. If you're using 5-quart jugs, remember to add one additional quart. Pour slowly to avoid glugging and spilling.
- Re-install the Oil Filler Baffle: Once the oil has been added, clean off the oil filler baffle you removed earlier and carefully re-install it into the oil filler neck.
- Clean and Lubricate the Oil Cap: Clean any old oil residue from your oil cap. Apply a few drops of clean motor oil to the oil seal on the cap. This will help ensure a good seal and make removing your oil cap during your next oil change much easier. Replace the oil cap securely.
After completing these steps, start your engine and let it run for a few minutes. Check for any leaks around the drain bolt and the new oil filter. Turn off the engine, wait a few minutes for the oil to settle, and then check the oil level using the dipstick. Top up if necessary. Your Jeep is now ready for the road with fresh oil!
Understanding Your Jeep's Engine: 4.7L vs. 4.0L
The Jeep 4.7L engine is a significantly different beast compared to the venerable, older technology 4.0L inline-six engine. While both have powered countless Jeeps, their design philosophies and internal workings are quite distinct. Understanding these differences is key to appreciating why certain maintenance procedures or oil specifications might vary.
Here's a breakdown of the key distinctions:
| Feature | Jeep 4.7L Engine | Jeep 4.0L Engine |
|---|---|---|
| Configuration | V8 (non-inline configuration) | Inline-6 |
| Valvetrain | Overhead Cam (OHC) | Overhead Valve (OHV) / Pushrod |
| Internal Clearances | Tighter internal clearances | More generous clearances |
| Bearings | Generally smaller bearings | Larger, more robust bearings |
| Technology Era | More modern design, refined | Older, simpler, highly durable design |
| Oil Grade (Typical) | 5W-30 or 10W-30 | 10W-30 or 5W-30 (often less sensitive) |
The 4.7L, with its overhead cams and tighter internal clearances, is a more sophisticated engine requiring precise lubrication and adherence to specified oil grades. It's not your average 4.0L, meaning what works perfectly for one may not be suitable for the other. Always defer to your owner's manual or consult a Jeep dealer for the factory-recommended specifications for your specific engine.
The Importance of Service Interval Resets
After performing an oil change, one of the most common follow-up actions is resetting the service interval indicator on your dashboard. This light serves as a helpful reminder for scheduled maintenance, and if not reset, it will continue to illuminate, potentially causing unnecessary concern or obscuring other important warnings. Resetting it ensures your vehicle's computer is accurately tracking your next service due date.
Please note: The specific procedure for resetting your Jeep's service interval light was not provided in the original information. This process often varies significantly between models, model years, and even trim levels. It is highly recommended to consult your vehicle's owner's manual for the precise steps applicable to your specific Jeep model. Alternatively, a quick online search for 'Jeep [Your Model Year] [Your Model] service interval reset' usually yields accurate, step-by-step instructions from other owners or official sources.
Common methods for resetting service lights can include sequences of ignition key turns, specific pedal presses (like the accelerator or brake), or navigating through menus on the dashboard display using steering wheel controls. However, attempting a generic reset procedure without knowing the exact steps for your model could be ineffective or, in rare cases, could potentially interfere with other vehicle settings. Always verify the correct procedure for your Jeep.
Benefits of Regular Maintenance and DIY
Regular oil changes are arguably the most critical maintenance task for the longevity and performance of your Jeep's engine. Fresh oil lubricates moving parts, reduces friction, helps cool the engine, and cleans away harmful contaminants. Neglecting oil changes can lead to increased wear, reduced fuel efficiency, and ultimately, costly engine damage.
Performing this job yourself offers tangible benefits:
- Cost Savings: You save on labour charges and often on parts mark-ups that garages apply.
- Quality Control: You choose the exact brand and type of oil and filter, ensuring you're using products you trust.
- Visual Inspection: Being under the vehicle gives you a unique opportunity to inspect other components – steering, suspension, exhaust, and fluid leaks – that might otherwise go unnoticed. This proactive approach can save you from bigger problems down the road.
- Empowerment: There's a genuine sense of accomplishment and pride that comes from maintaining your own vehicle. It builds confidence and a deeper understanding of your Jeep.
Frequently Asked Questions (FAQs)
Q: How often should I change my Jeep's oil?
A: The recommended oil change interval varies by model, engine type, and driving conditions. For many modern Jeeps, intervals can range from 5,000 to 10,000 miles (approximately 8,000 to 16,000 kilometres) or once a year, whichever comes first. Always refer to your owner's manual for the precise recommended interval for your specific Jeep. If you frequently drive in harsh conditions (e.g., extreme temperatures, heavy towing, off-roading, dusty environments), more frequent oil changes may be necessary.
Q: What oil should I use for my Jeep 4.7L?
A: As mentioned in the article, for the 4.7L engine, 5W-30 is generally preferred for temperatures below 100ºF (38ºC). If temperatures consistently exceed 100ºF, 10W-30 is recommended. Always check your specific owner's manual for the most accurate and up-to-date oil specifications, as formulations and recommendations can sometimes evolve.
Q: Can I use synthetic oil in my Jeep 4.7L?
A: Yes, you can generally use synthetic oil in your Jeep 4.7L engine, provided it meets the recommended viscosity grade (e.g., 5W-30 or 10W-30) and API service classification specified in your owner's manual. Synthetic oils often offer superior protection, especially in extreme temperatures, and can sometimes allow for longer oil change intervals, though you should still adhere to your vehicle's recommended schedule. Many modern engines are designed with synthetic oil in mind.
Q: What happens if I don't reset the service light after an oil change?
A: If you don't reset the service light, it will typically remain illuminated on your dashboard, constantly reminding you of a service that has already been performed. While it won't directly harm your vehicle's operation, it can be annoying and might lead you to ignore other, more critical warning lights that could appear. It also means your vehicle's internal service tracking system won't be accurate for your next maintenance reminder.
Q: Do I need a torque wrench for the drain bolt?
A: While a torque wrench provides the most accurate way to tighten the drain bolt to the manufacturer's specification (25 ft-lbs for the 4.7L), it is not strictly essential for every DIYer. Hand tightening the bolt until it feels snug, followed by a small additional turn with a ratchet, is often sufficient for experienced individuals. The key is to avoid both over-tightening (which can strip threads) and under-tightening (which can cause leaks). If you're unsure, or if it's your first time, using a torque wrench is highly recommended for peace of mind.
Q: How do I dispose of old engine oil?
A: Never pour used engine oil down drains or onto the ground, as it is highly toxic and harmful to the environment. Most automotive parts stores, service stations, and local council recycling centres have facilities for recycling used motor oil. Collect the old oil in a sealed container (like the original new oil jug or a dedicated waste oil container) and take it to an approved recycling point. This ensures proper and environmentally responsible disposal.
