Jeep 2.8 CRD Auto Gearbox Woes

It's a scenario many Jeep owners dread: the dreaded call from the mechanic stating the automatic gearbox has given up the ghost. For those behind the wheel of a Jeep 2.8 CRD, this news can be particularly disheartening, especially when faced with substantial repair quotes. We've heard reports of these transmissions failing, with replacement costs in the region of R28,500 plus VAT, bringing the total to around R32,000. This can quickly escalate repair bills, pushing the total cost of ownership significantly higher, particularly if other major components have also required attention within a short timeframe. The mention of 'nasty' four-wheel drive selection further suggests a broader issue, potentially linked to the transmission or its associated systems.

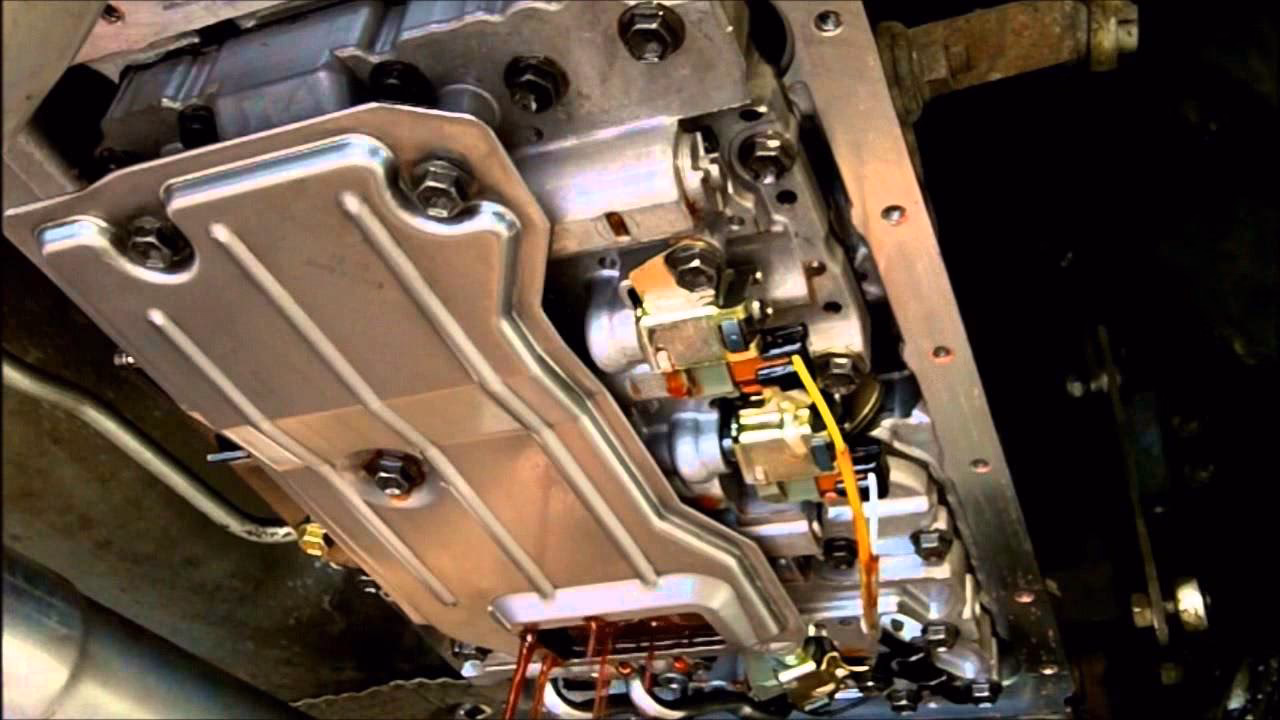

Understanding the Jeep 2.8 CRD Automatic Gearbox

The Jeep 2.8 CRD, often found in models like the Cherokee (KJ) and Wrangler (JK), is powered by a robust diesel engine. However, like any complex mechanical system, its automatic transmission is susceptible to wear and tear, and in some cases, premature failure. The automatic gearbox is a marvel of engineering, designed to seamlessly shift gears without driver intervention. It relies on a sophisticated interplay of hydraulic pressure, electronic solenoids, and mechanical components like clutch packs and torque converters. When any of these elements falter, the result can be anything from rough shifting to complete transmission failure.

Common Causes of Automatic Gearbox Failure in the 2.8 CRD

Several factors can contribute to the demise of an automatic gearbox. Understanding these can help owners take preventative measures:

• Low or Contaminated Transmission Fluid: This is arguably the most common culprit. Transmission fluid acts as a lubricant, coolant, and hydraulic medium. If the fluid level is low, or if it becomes contaminated with debris from worn internal parts, it can lead to overheating, increased friction, and eventual component damage. Regular fluid and filter changes are crucial.
• Overheating: Automatic transmissions generate a significant amount of heat, especially under heavy load, during towing, or in stop-start traffic. If the cooling system (radiator or transmission cooler) is not functioning optimally, the transmission fluid can overheat, breaking down its lubricating properties and causing damage to seals, clutches, and other internal components.
• Torque Converter Issues: The torque converter is a fluid coupling that transmits power from the engine to the transmission. Problems with the torque converter, such as internal seal leaks or issues with the lock-up clutch, can lead to poor performance, shuddering, and ultimately, transmission failure.
• Electronic Control Unit (ECU) Malfunctions: Modern automatic transmissions are controlled by sophisticated ECUs. A faulty sensor, a wiring issue, or a glitch in the ECU itself can cause incorrect shifting, engagement problems, and in severe cases, prevent the transmission from operating altogether.
• Wear and Tear: With mileage, internal components like clutch packs, bands, and seals will naturally wear out. If maintenance is neglected, this wear can accelerate, leading to slippage, harsh shifting, and eventual failure.
• Hard Driving and Towing: While the 2.8 CRD is a capable engine, consistently pushing the vehicle to its limits, especially with heavy towing without proper transmission cooling, can put excessive strain on the gearbox, leading to premature wear.

The 'Nasty' Four-Wheel Drive Selection

The reported issue with the four-wheel drive selection is a significant clue. In many 4x4 systems, the engagement of the four-wheel drive is managed through a transfer case, which is often integrated with or directly driven by the main transmission. Problems with the 4WD selection could indicate:

• Transfer Case Issues: The transfer case itself might be experiencing mechanical problems, such as worn gears, damaged linkages, or a faulty actuator.
• Low Transfer Case Fluid: Similar to the main transmission, low or contaminated fluid in the transfer case can lead to operational problems.
• Electronic Actuator Failure: Many modern 4WD systems use electronic actuators to shift between 2WD and 4WD. A malfunctioning actuator or its control module could be the cause.
• Interdependence with the Automatic Gearbox: It's also possible that the issues with the 4WD selection are a symptom of a more significant problem within the main automatic transmission, perhaps related to the output shaft or internal drive components.

Decoding the Repair Quote: R28,500+ (R32,000 with VAT)

A repair quote of this magnitude for an automatic gearbox replacement is substantial but not entirely unexpected, especially for a specialized vehicle like a Jeep. Let's break down what this might entail:

The R28,500 figure likely covers a good quality, remanufactured gearbox, the labour to swap it, and potentially a new torque converter and associated fluids and filters. The VAT brings it up to the R32,000 mark. This quote assumes the underlying engine and other vehicle systems are sound.

What Does This Mean for Your Jeep's Value and Future?

Facing such a significant repair bill can be a tough pill to swallow, especially if it pushes the total repair costs for the year over R100,000. This raises questions about the long-term viability of keeping the vehicle. Consider these points:

• Resale Value: A vehicle with a recently replaced major component like the transmission can actually have a higher resale value, provided the work is done by a reputable specialist and comes with a warranty. However, the overall accumulated repair costs can still deter potential buyers.
• Future Reliability: While a new or reconditioned gearbox should theoretically restore reliable operation, the fact that other major issues have arisen suggests potential underlying problems with the vehicle's maintenance history or design. It's important to ensure the root cause of the failure has been addressed.
• Cost-Benefit Analysis: Weigh the cost of the repair against the current market value of the Jeep and your personal need for the vehicle. If the Jeep is otherwise in good condition and meets your needs, the repair might be justified. If it's a project vehicle or you're considering upgrading, it might be time to cut your losses.

Preventative Maintenance: The Key to Longevity

The best way to avoid such costly repairs is through diligent preventative maintenance. For your Jeep 2.8 CRD's automatic gearbox, this includes:

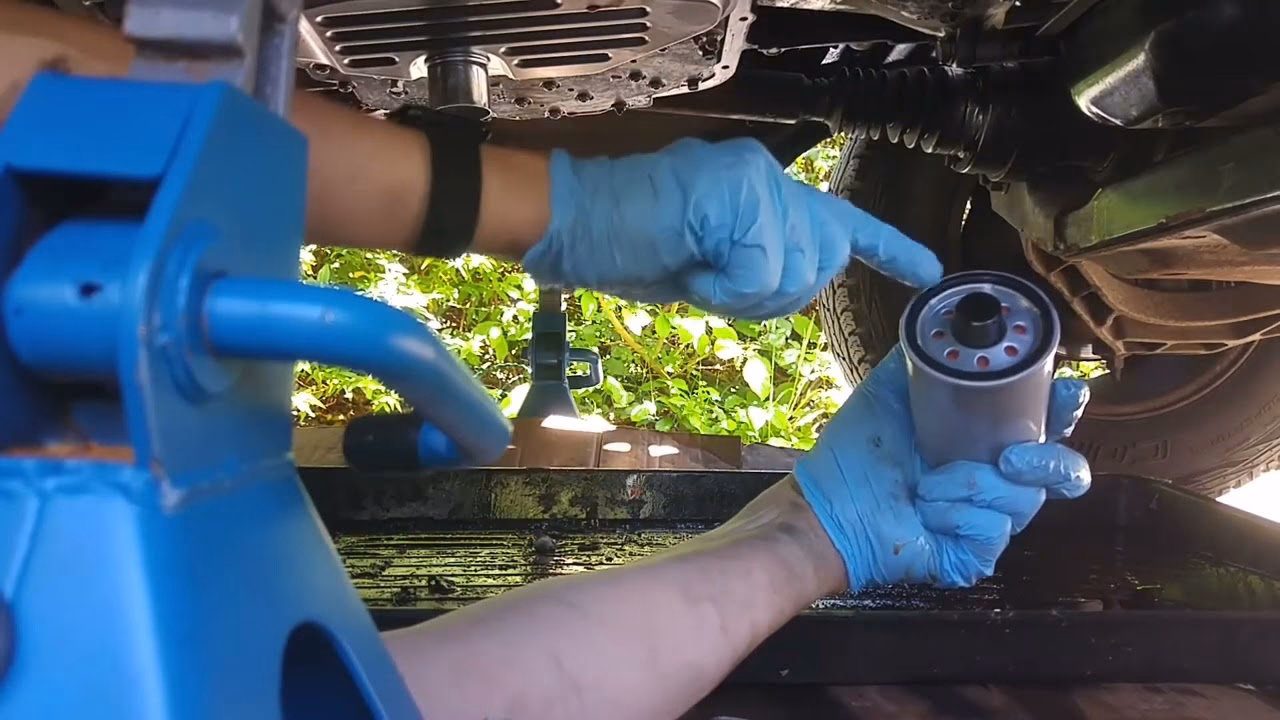

• Regular Transmission Fluid and Filter Changes: Follow the manufacturer's recommended service intervals, or even change them more frequently if you frequently tow or drive in demanding conditions. Use the correct type of transmission fluid specified for your Jeep.
• Monitor Transmission Fluid Level and Condition: Periodically check the transmission fluid level and its colour and smell. It should be bright red and have a slightly sweet smell. If it's dark, burnt-smelling, or has particles in it, it's time for a service.
• Address Overheating Issues Promptly: Ensure your engine's cooling system and any auxiliary transmission coolers are functioning correctly. If you notice the temperature gauge creeping up, investigate immediately.
• Avoid Aggressive Driving: Smooth acceleration and braking will put less stress on the transmission.
• Proper Towing Practices: If you tow, ensure your vehicle is rated for the load, use a transmission cooler if necessary, and avoid prolonged high-speed towing in hot weather.

Frequently Asked Questions (FAQs)

Q1: Is R32,000 a fair price to replace the automatic gearbox in a Jeep 2.8 CRD?
Yes, this price is within the expected range for a professional replacement of a reconditioned or remanufactured automatic gearbox for this type of vehicle, especially when including labour and associated parts in the UK or similar markets. Prices can vary depending on the workshop and the specific quality of the replacement unit.

Q2: Can the 4x4 selection issue be fixed separately?
It's possible, but often the issues are interconnected. If the main gearbox is failing, it can impact the transfer case and its operation. A thorough diagnostic by a specialist is needed to determine if it's a separate fault or a symptom of the gearbox problem.

Q3: What is the typical lifespan of a Jeep 2.8 CRD automatic gearbox?
With proper maintenance, these gearboxes can last well over 150,000 miles. However, factors like driving style, maintenance history, and operating conditions can significantly influence their longevity.

Q4: Should I consider a used gearbox instead of a reconditioned one?
A used gearbox can be cheaper upfront, but it carries a higher risk. You don't know its history or condition. A reconditioned or remanufactured unit typically comes with a warranty, offering greater peace of mind.

Q5: What are the symptoms of a failing automatic gearbox?
Common symptoms include slipping gears, harsh or delayed shifting, strange noises (whining, clunking), a burning smell, difficulty engaging gears, and transmission warning lights on the dashboard.

In conclusion, a failing automatic gearbox in a Jeep 2.8 CRD is a significant mechanical issue that demands attention and a substantial financial commitment. While the repair costs are high, understanding the potential causes, the components involved, and the importance of preventative maintenance can empower owners to make informed decisions about their vehicle's future.
