Mastering XJ Alignment: Tyre Wear & Pulling Fixes

Few things are as frustrating for a Jaguar XJ owner as watching a new set of expensive tyres wear unevenly, or experiencing an unsettling pull to one side, especially when braking. These aren't just minor annoyances; they compromise safety, ruin tyre longevity, and detract significantly from the luxurious driving experience an XJ is renowned for. While a routine wheel alignment might seem like the obvious first step, many owners find that even multiple attempts at professional alignment fail to resolve these persistent issues. The truth is, the sophisticated suspension design of the XJ often hides deeper mechanical problems that standard garage equipment simply can't detect, leading to a cycle of wasted money on new tyres and repeated, ineffective adjustments.

Understanding the root causes of uneven tyre wear is crucial for any XJ owner. When your tyres show wear predominantly on the inner or outer edge, or display a feathered pattern across the tread, it's a clear indicator that something is amiss with your vehicle's alignment geometry. This isn't merely a cosmetic issue; it significantly reduces the lifespan of your tyres, forcing premature replacement. For owners investing in premium rubber, like the Michelin Crossclimate 2, this can be a particularly bitter pill to swallow. Beyond the visible wear, a steering wheel that sits at a slight angle when driving straight is another tell-tale sign that your alignment is compromised, even if a recent garage visit suggested otherwise.

Why Your XJ Might Pull When Braking

A vehicle that pulls to one side, particularly under braking, is not only irritating but also a serious safety concern. While many immediately suspect brake callipers or discs, a persistent pull often points back to the suspension components and their geometric relationship. When components are worn, loose, or incorrectly adjusted, the forces exerted during braking can cause the wheels to steer themselves slightly, leading to an unwanted deviation from a straight line. This phenomenon is frequently linked to issues that also cause uneven tyre wear, highlighting the interconnectedness of a car's handling dynamics. It's a symptom that demands a thorough investigation beyond a simple alignment check.

The Intricacies of XJ Suspension Diagnostics

Modern alignment machines in most garages are designed to measure and adjust the readily accessible parameters of camber, caster, and toe. However, they assume that all underlying suspension components are in perfect working order. This assumption is often flawed, especially in older vehicles like the XJ, where years of road use can introduce wear, corrosion, and fatigue into various parts. A sophisticated alignment rig can tell you what the angles currently are, but it can't tell you *why* they're out of spec, nor can it detect subtle play in bushes, ball joints, or pivot points. A truly effective diagnosis requires a hands-on, meticulous inspection of every component within the suspension system, identifying any part that could contribute to unwanted movement or incorrect geometry under load.

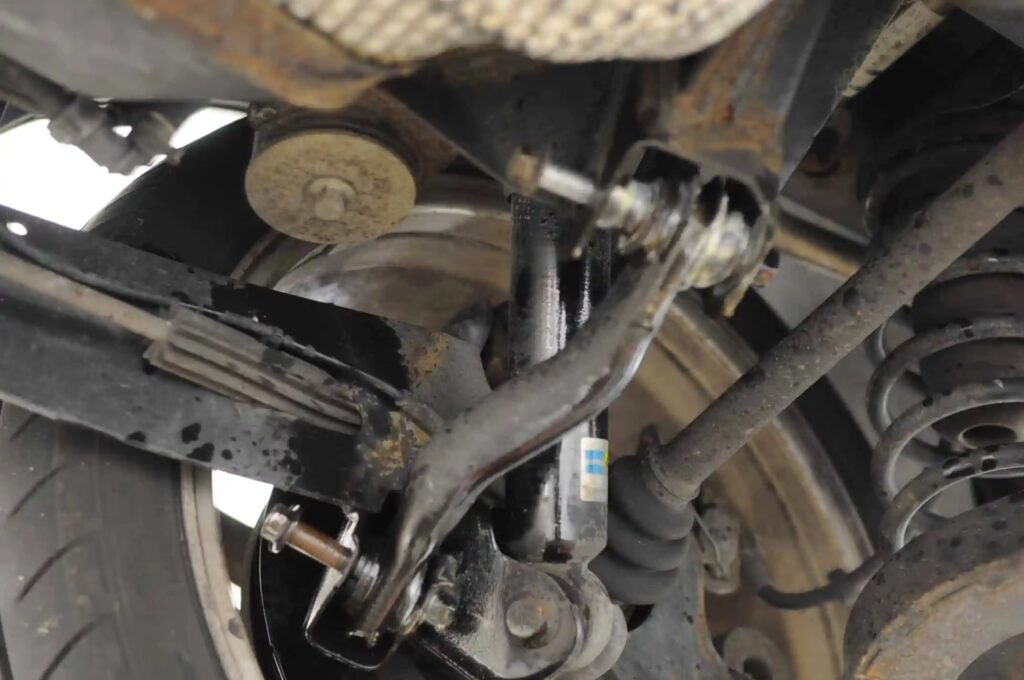

Common Culprits in the Rear Suspension

The rear suspension of the XJ, particularly the complex independent setup, is a frequent source of alignment woes. Issues here can manifest as both uneven rear tyre wear and contribute to overall vehicle instability or pulling.

• Wishbone Fulcrums and Shims: The wishbone fulcrums are critical pivot points. If these become loose or their adjusting shims are worn or broken, it introduces unwanted play, directly affecting the rear wheel alignment. This play allows the wheel to move out of its intended plane, leading to rapid and irregular tyre wear. Fabricating new, precise shims and ensuring proper tension is vital for restoring stability.
• Outer Pivots and Hub Carriers: Similar to the fulcrums, loose outer pivots or play within the hub carriers can compromise the wheel's position. Even slight movement here can translate into significant changes in camber or toe under dynamic conditions, leading to poor handling and tyre degradation.
• Bearings and Lubrication: While often overlooked, slightly dry or improperly greased bearings, especially within pivot points, can create resistance or introduce subtle play. Furthermore, blocked grease vents prevent fresh lubricant from reaching critical areas, accelerating wear. Proper lubrication and ensuring grease can reach all moving parts is a simple yet crucial maintenance step.
• Rear Camber Issues:Camber refers to the inward or outward tilt of the wheel when viewed from the front. Incorrect rear camber, such as excessive negative camber (top of the wheel tilts inwards), will cause accelerated wear on the inner edge of the tyre. Conversely, positive camber will wear the outer edge. Precise adjustment, often involving adding or removing shims, is necessary to bring camber back within specifications, typically aiming for a slight negative camber for optimal handling and tyre contact patch.
• Rear Toe Issues:Toe describes whether the front of the wheels are closer together (toe-in) or further apart (toe-out) than the rear. Incorrect rear toe can cause the tyres to scrub across the road surface rather than roll cleanly, leading to a feathered wear pattern and reduced tyre life. Even a slight bend in a wishbone, as one owner discovered, can drastically affect toe settings and require significant force to correct.

For the dedicated DIY enthusiast, or for those whose garages lack the specific tools or expertise for classic Jaguars, fabricating tools for accurate ride height and camber measurement can be invaluable. This allows for precise, repeatable measurements and adjustments that standard garage equipment might not facilitate, especially for right-hand drive (RHD) models where specific data might be scarce in certain regions like Germany.

Addressing the Front End Challenges

The front suspension is arguably even more critical for steering precision and overall vehicle stability. Wear here directly impacts steering feel, directional stability, and front tyre wear.

• Lower Ball Joints: Significant play in the lower ball joints is a common issue and a major contributor to vague steering, pulling, and uneven front tyre wear. These components are under immense stress and their condition directly influences the wheel's ability to maintain its intended position. Replacement with quality new parts is often the only effective solution.
• Caster Settings:Caster refers to the forward or backward tilt of the steering axis. It's crucial for steering stability, self-centring of the steering wheel, and high-speed stability. Incorrect caster, or uneven caster between the left and right sides, can cause the car to pull to one side and make the steering feel "wandering." The XJ's caster is adjusted using shims, and it's vital that these are distributed correctly – typically evenly – to achieve the desired angle. Incorrect adjustments, such as using camber shims to alter caster, indicate a misunderstanding of the system and need to be rectified.
• Upper Wishbone Bushes and Washers: The bushes in the upper wishbones, along with their associated washers, play a role in maintaining proper alignment and smooth suspension movement. Dry bushes can lead to stiffness and noise, while bent washers can throw off alignment settings. Greasing these bushes and straightening any deformed washers are important steps in restoring proper function.
• Steering Rack Centring: Before any final front wheel alignment is performed, the steering rack must be precisely centred. Failure to do so means that even if the wheels are aligned to straight ahead, the steering wheel itself will be off-centre, and the full range of steering lock might not be available equally in both directions. This seemingly minor detail is fundamental for achieving a perfectly straight-tracking vehicle with a dead-centre steering wheel.

The "Aristides Method" – A Case Study in Precision Alignment

One owner's meticulous journey to resolve persistent tyre wear and pulling issues on their XJ serves as an excellent case study in thorough diagnosis and precise adjustment. Faced with excessive front tyre wear and a pull when braking, a systematic approach was adopted that went far beyond typical garage procedures.

The process began with a comprehensive inspection of all suspension components, both front and rear. In the rear, loose wishbone fulcrums with worn shims and play in the outer pivots/hub carriers were identified. Bearings were slightly dry, and grease vents were found to be blocked. The owner meticulously greased and tightened outer pivot bearings, fabricated new shims for the fulcrums, and fitted new safety wires.

For alignment, custom tools were fabricated: a ride height adjusting tool and a camber measuring tool capable of 0.25° accuracy. With rear springs removed and the car levelled, initial rear camber readings were significantly off (Left -0.3°, Right -1.4°). By carefully removing shims from the left and adding to the right, camber was brought to an optimal -0.8° on both sides, well within specifications.

Rear toe was then addressed using the precise string method. Initial readings showed Left -2 mm (toe-out) and Right 0.8 mm (toe-in). A bent left wishbone was identified as the culprit for the toe-out. Remarkably, a 2-ton hydraulic floor jack was used to carefully force the wishbone straight until both sides measured approximately 0.8 mm toe-in.

The front end received equally rigorous attention. Lower ball joints with considerable play were replaced. Caster was a significant mess; shims were unevenly distributed (Right: three fore, one aft; Left: all four aft), and someone had incorrectly used camber shims for caster adjustment. The big washers at the upper wishbone bushes were bent, and the bushes themselves were dry. The owner greased the upper bushes, straightened the washers, and fitted new lower ball joints. Caster washers were then correctly distributed (two fore, two aft) to achieve a measured 3° caster.

To ensure a perfectly level car for accurate alignment, ceramic floor tiles were placed under the wheels, with salt in between to aid suspension settling. The steering rack was precisely centred, and front wheels were adjusted to straight ahead. Camber was set to -0.75°, and total toe-in was readjusted to 2 mm using the string method.

The results were transformative: the car drove perfectly straight, with no pulling and the steering wheel dead centre. Hard cornering and braking improved drastically, offering a much tighter, more confident feel. Crucially, after 2,000 km, there were no reported tyre wear issues, a testament to the comprehensive and precise approach.

The Importance of RHD Specifics

For owners of right-hand drive (RHD) XJ models, particularly in regions where RHD vehicles are less common, obtaining the exact alignment specifications can be a challenge. Garages may not have readily available data for RHD variants, or their equipment might be calibrated primarily for left-hand drive (LHD) vehicles. It's important to seek out specialists who have experience with RHD Jaguars or consult dedicated owner forums and technical resources for precise specifications. Slight differences in steering rack positioning or suspension component configurations between LHD and RHD models can necessitate unique alignment values for optimal performance and tyre longevity.

Preventative Measures and Ongoing Maintenance

To avoid a repeat of these frustrating issues, proactive maintenance is key. Regularly inspect your XJ's suspension components for any signs of wear, looseness, or damage. Pay particular attention to ball joints, bushes, and pivot points. Any detected play should be addressed promptly, as even minor looseness can quickly escalate into significant alignment problems and accelerated tyre wear. Ensure that all lubrication points are greased as per the service schedule. Finally, choose high-quality tyres that match your driving style and the vehicle's requirements; while they are an investment, they are also your primary contact with the road and can greatly influence handling and ride comfort.

Frequently Asked Questions (FAQs)

Q: How often should I get my XJ alignment checked?
A: Ideally, your XJ's alignment should be checked annually or every 10,000 to 12,000 miles, whichever comes first. It's also crucial to have it checked after replacing any suspension components, hitting a large pothole, or if you notice any unusual tyre wear or handling characteristics.

Q: Can worn bushes affect alignment?
A: Absolutely. Worn or deteriorated suspension bushes introduce play into the system, allowing components to move out of their intended positions. This directly affects camber, caster, and toe settings, leading to uneven tyre wear and compromised handling. They must be in good condition for accurate alignment.

Q: What's the difference between camber and toe?
A: Camber is the inward or outward tilt of the wheel when viewed from the front, affecting how evenly the tyre sits on the road. Toe is the angle of the wheels when viewed from above, indicating whether they point slightly inward (toe-in) or outward (toe-out), affecting tyre scrubbing and directional stability.

Q: Why is my steering wheel off-centre after alignment?
A: An off-centre steering wheel after an alignment often indicates that the steering rack was not properly centred before the front wheels were adjusted. While the wheels might be correctly aligned to straight ahead, the rack's position dictates the steering wheel's orientation. A re-adjustment focusing on rack centring is required.

Q: Are DIY alignment tools accurate enough?
A: While professional laser alignment systems offer unparalleled precision, experienced DIYers can achieve surprisingly accurate results using methods like the string method for toe and fabricated gauges for camber and ride height. The key is meticulous attention to detail, a level surface, and understanding the principles. For complex issues or final verification, however, a professional check is always recommended.

Bringing your XJ back to its former glory regarding handling and tyre longevity requires a thorough, patient approach. It's clear that simply taking your car for a standard alignment often isn't enough when underlying mechanical issues are present. By understanding the intricate nature of the XJ's suspension and meticulously inspecting and rectifying worn suspension components, you can achieve a truly precise alignment. This dedication not only saves you money on premature tyre replacements but also restores the smooth, stable, and utterly enjoyable driving experience that makes owning a Jaguar XJ so rewarding.
