Jaguar Harnesses: Restoration, Replacement & EFI Clarity

The intricate web of wiring within any Jaguar is the very nervous system of the vehicle, transmitting vital signals that enable everything from ignition to infotainment. For owners of classic models, or those tackling ambitious restoration projects like rebuilding an Electronic Fuel Injection (EFI) harness, understanding these electrical arteries is paramount. This guide aims to demystify some of the common challenges and questions surrounding Jaguar wiring harnesses, from the feasibility of repurposing to the specifics of EFI injector polarity.

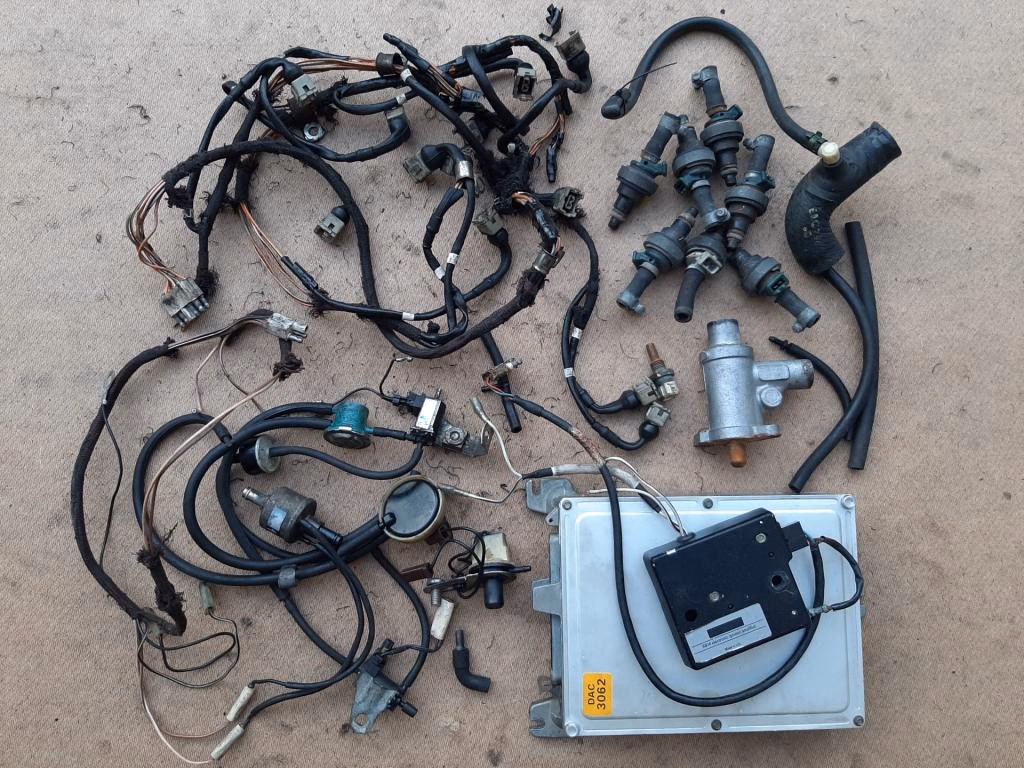

Can a Jaguar Harness Be Repurposed? The Practicalities

The idea of repurposing an existing Jaguar wiring harness from one model to another, or even for a different application, often arises from a desire for efficiency or cost-saving. However, in most scenarios, this endeavour is fraught with significant challenges and is generally not recommended for a reliable, safe, and functional outcome.

Wiring harnesses are bespoke components, meticulously designed and manufactured to meet the exact specifications of a particular vehicle model, year, and even specific trim level. This customisation extends to:

• Length and Routing: Every wire is precisely cut to length, ensuring it reaches its designated component without excess slack or undue tension, following specific pathways through the chassis, bulkhead, and engine bay.
• Connectors: The types and configurations of connectors are unique to the various sensors, actuators, control units (ECUs), and other electrical components present in a specific model. These rarely align perfectly between different Jaguar generations or even significant model revisions.
• Wire Gauge and Type: The gauge (thickness) of each wire is carefully selected based on the current it needs to carry. Using an incorrect gauge can lead to overheating, voltage drops, or even fire hazards. Different wire types (e.g., shielded wires for sensitive signals) are also chosen for specific functions.
• Circuitry and Logic: The internal wiring architecture, including relay logic, fuse assignments, and ECU pinouts, is entirely model-specific. Modern ECUs are highly sophisticated and expect very precise input and output signals.
• Component Integration: A harness integrates numerous systems – engine management, transmission control, lighting, instrumentation, climate control, safety systems – all of which vary significantly between models.

Attempting to adapt a harness would necessitate extensive modification, including re-pinning connectors, splicing wires, and potentially re-gauging sections. This process introduces numerous points of failure, compromises electrical integrity, and can be incredibly time-consuming, often exceeding the effort of building a new custom harness or sourcing the correct replacement. While some individual wires or connectors might be salvaged, the harness as a whole is almost always too specific for successful repurposing.

Sourcing a Harness for a 1957 Jaguar Mk VIII: A Journey into Authenticity

For classic Jaguar owners, particularly those with a venerable 1957 Mk VIII, finding a replacement wiring harness is less about modern adaptability and more about historical accuracy and preserving originality. These vehicles predate many modern automotive electrical standards, and their harnesses reflect the technology and manufacturing practices of their era.

Your primary avenues for sourcing a harness for such a distinguished classic include:

1. Specialist Classic Jaguar Parts Suppliers: Several reputable companies worldwide specialise exclusively in parts for vintage Jaguars. These suppliers often commission or produce high-quality reproduction harnesses that are faithful to the original specifications, including correct wire colours, gauges, and period-accurate connectors. Expect these to be meticulously crafted, often using modern, durable insulation materials that still look authentic.
2. Custom Harness Builders: For ultimate authenticity or if a reproduction isn't available, a custom harness builder can be an excellent option. These specialists can fabricate a harness from scratch, often using your old harness as a template (if it's still largely intact) or working from original wiring diagrams. This ensures a perfect fit and function, though it can be a more costly and time-consuming route.
3. Classic Car Restoration Forums and Clubs: Engaging with the Jaguar Owners Club or specific Mk VIII forums can yield invaluable leads. Fellow enthusiasts might know of obscure suppliers, have spare parts, or offer advice based on their own restoration experiences.
4. Salvage Yards (for reference only): While finding a functional, intact 1957 Mk VIII harness in a salvage yard is highly improbable, an old, damaged one could serve as a valuable reference for wire routing, connector types, and colour coding if you're undertaking a custom build.

When purchasing, always verify the supplier's reputation and the accuracy of their reproduction. A correctly wired and insulated harness is not just about functionality; it's a critical safety component. Ensure it comes with a detailed wiring diagram if you're installing it yourself.

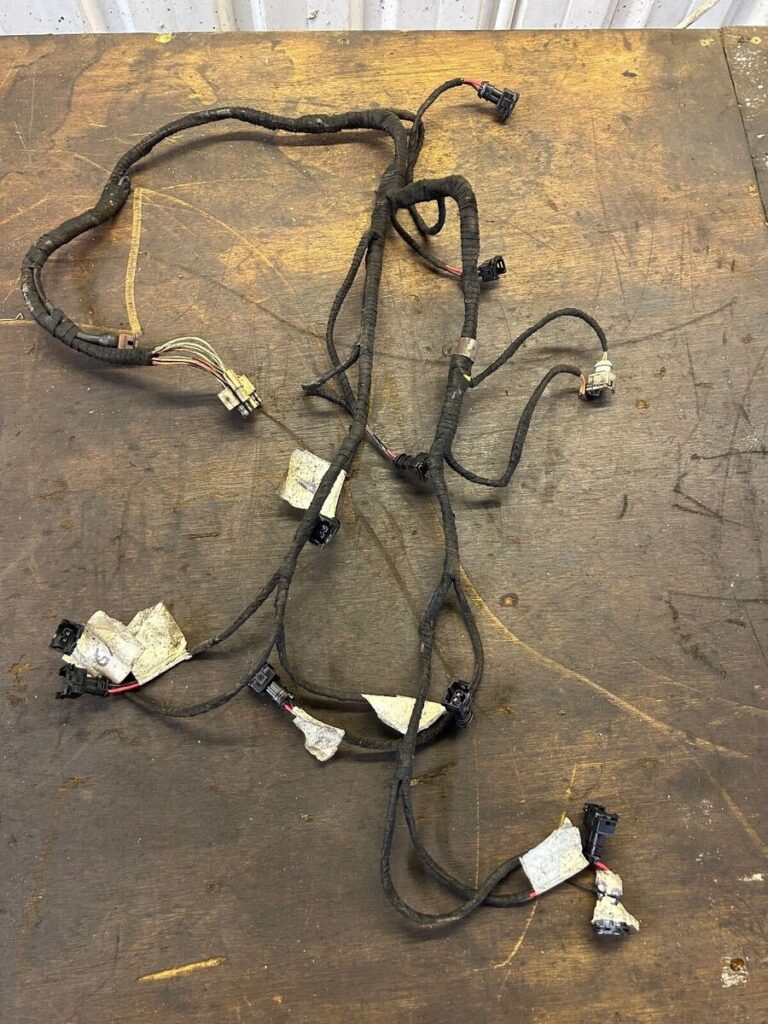

Demystifying 1989 XJS V12 EFI Harness Rebuild: Injector Polarity Explained

Rebuilding an EFI harness, especially for a complex system like the Lucas setup in a 1989 XJS V12, requires precision and a clear understanding of the electrical principles involved. Your detailed observations about injector wiring and polarity are excellent, and it's common for these details to cause confusion.

Understanding Fuel Injector Operation

A fuel injector is essentially an electromagnetic solenoid. When an electrical current flows through its coil, it creates a magnetic field that lifts a pintle (a small needle valve), allowing fuel to spray into the engine. For a solenoid to operate, it needs a complete circuit. Unlike some sensitive electronic components, the injector coil itself does not inherently have a '+' or '-' terminal that dictates *which* wire must go to *which* side for it to function electromagnetically. The key is how it's integrated into the vehicle's control circuit.

Common EFI Wiring Practice: Switched Ground

In most Electronic Fuel Injection systems, particularly those from the late 1980s and early 1990s like your Lucas setup, the ECU (Engine Control Unit) controls the injectors by switching the ground connection. This means:

1. One side of the injector coil receives a constant 12-volt (V) supply when the ignition is on. This 12V supply typically comes from a main relay (e.g., the fuel pump relay or a dedicated EFI relay) and is distributed to all injectors in a bank or across the engine.
2. The other side of the injector coil is connected to a driver circuit within the ECU. The ECU then completes the circuit to ground (or provides a pulsed ground) to fire the injector for the precise duration required.

Therefore, the "polarity" in this context refers to which wire provides the constant 12V and which wire is the switched ground from the ECU. It's not about the injector itself having an intrinsic positive or negative terminal that must be strictly adhered to for its internal operation.

Addressing Your Specific Observations (1989 XJS V12, Lucas EFI)

Based on typical Lucas EFI systems of that era:

• Constant 12V Supply: The coloured wires (e.g., Brown/Red, Brown/Green, etc., varying per bank/injector) are highly likely to be the constant 12V supply to the injectors when the ignition is on. These wires usually originate from a main relay.
• Switched Ground from ECU: The pink/black wires are almost certainly the switched ground connections coming directly from the Lucas ECU. The ECU pulses these grounds to activate each injector individually or in groups.

So, to answer your first question directly: Yes, the pink/black wires are typically the switched ground (-) from the ECU, and the coloured ones are the constant 12V (+). Historical posts suggesting the opposite might be referring to different systems or a misunderstanding of how the circuit works. Always refer to the specific 1989 XJS V12 Lucas EFI wiring diagram for definitive confirmation.

Regarding your second question – how to tell the polarity of the injector itself – as explained, the injector itself doesn't have a specific '+' or '-' terminal in a way that would be visibly marked. What matters is that the constant 12V supply wire connects to one terminal of the injector, and the switched ground wire from the ECU connects to the other. If the car ran fine with the old harness, then the wiring you observed was functionally correct for your system.

The Inconsistent Pattern: What Does It Mean?

Your observation of an inconsistent pattern (e.g., 1B - +, 2B - +, 6B + -) when looking at the connector face-on is interesting. If the car ran fine, this implies that electrically, the correct wires were going to the correct points. The perceived inconsistency could be due to several factors:

1. Physical Connector Orientation: The physical orientation of the connector and how the wires are inserted into the plastic housing might vary, even if the underlying electrical connection to the injector coil is consistent. For example, one bank's connectors might have been assembled with the wires inserted one way, and the other bank slightly differently, leading to a mirrored appearance when viewed.
2. Internal Harness Routing: Within the loom, wires might cross over or loop to achieve the necessary routing and connection points, making the external appearance of the connector pins seem inconsistent.
3. Wiring Diagram Interpretation: Sometimes wiring diagrams depict component pinouts from a specific perspective (e.g., component side, wire side), and misinterpreting this can lead to perceived discrepancies.

The crucial takeaway is that the car operated correctly with the old harness. Therefore, your continuity test on the old harness, which identified which side of the connector was pink/black and which was coloured, provides the definitive blueprint for your rebuild. Replicate that wiring precisely.

Practical Steps for Rebuilding and Verification:

• Obtain the Official Wiring Diagram: This is your bible. For your 1989 XJS V12 with Lucas EFI, find the factory service manual or a dedicated wiring diagram specific to that year and engine. This will confirm wire colours, pinouts, and voltage paths.
• Test for Constant 12V: With the ignition on (but engine not running), use a multimeter to test for 12V at the coloured wires leading to the injector connectors. You should see a steady 12V.
• Test for Switched Ground: This is harder to test statically. You'd ideally need an oscilloscope to see the pulse. However, if you've confirmed the constant 12V side, the other side *must* be the ECU-switched ground.
• Ensure Good Connections: When rebuilding, use high-quality connectors, proper crimping tools, and heat-shrink tubing to protect all splices and connections from moisture and vibration.
• Label Everything: As you rebuild, label each wire and connector clearly to avoid confusion.

General Harness Maintenance and Longevity

Regardless of your Jaguar's vintage, the wiring harness is subject to wear and tear. Heat, vibration, moisture, and chemical exposure can degrade insulation, corrode terminals, and lead to intermittent faults or complete failures. Regular inspection is key.

• Visual Inspection: Look for cracked or brittle insulation, frayed wires, signs of rodent damage, and corroded terminals.
• Secure Routing: Ensure harnesses are properly secured with clips and ties, preventing chafing against sharp edges or contact with hot engine components.
• Clean Connections: Periodically disconnect and clean critical electrical connectors with a suitable electrical contact cleaner. Apply dielectric grease to protect against moisture.
• Component Compatibility: When replacing sensors or other electrical components, ensure they are fully compatible with your vehicle's electrical system to avoid overloading or incorrect signalling.

Choosing a Replacement Harness: A Comparative Look

When faced with a failing harness, you generally have a few options. Here's a comparison to help you decide:

Frequently Asked Questions

Q: How long do Jaguar wiring harnesses typically last?

A: The lifespan of a wiring harness varies greatly. In classic Jaguars, original harnesses can last 30-50 years, but insulation often becomes brittle and connections corrode. Newer harnesses, with better materials, can last the lifetime of the vehicle, though age and environmental factors eventually take their toll.

Q: Can I use modern automotive wiring for repairs on a classic Jaguar?

A: Yes, it's generally recommended to use modern automotive-grade wiring (e.g., thin-wall PVC insulated copper cable) for repairs. It offers superior insulation, flexibility, and resistance to heat and chemicals compared to older materials, while still being visually discreet if carefully installed. Ensure correct wire gauges are maintained.

Q: What are the common signs of a failing wiring harness?

A: Common signs include intermittent electrical faults, flickering lights, gauges behaving erratically, engine misfires, difficulty starting, warning lights illuminated, or a burning smell. Visual inspection might reveal cracked insulation or corroded connectors.

Q: Is it safe to splice wires in a harness?

A: Splicing should be done correctly and sparingly. Use high-quality crimp connectors (e.g., uninsulated butt connectors with heat shrink tubing) or soldered connections, ensuring they are properly insulated and sealed from moisture. Poor splices are common points of failure and can lead to electrical shorts or resistance issues.

Q: What tools are essential for working on wiring harnesses?

A: A good quality multimeter, wire strippers, crimping tools, soldering iron (for some repairs), heat gun (for heat shrink), electrical tape, various wire connectors, and a comprehensive set of wiring diagrams are indispensable. A test light can also be very useful for quick voltage checks.

Working with Jaguar wiring harnesses demands patience, precision, and an understanding of electrical principles. Whether you're resurrecting a vintage beauty or fine-tuning a more modern classic, a well-maintained or expertly replaced harness is fundamental to the reliable and enjoyable operation of your esteemed vehicle. Always consult specific diagrams and, when in doubt, seek professional advice.
