Jaguar V12: A Deep Dive into Fuel Injection

Understanding the Jaguar V12 Fuel Injection System

The Jaguar V12 engine, a powerplant renowned for its smooth operation and considerable displacement, has undergone significant evolution throughout its production life. A key aspect of this evolution has been the adoption and refinement of electronic fuel injection (EFI) systems. While early V12s utilized carburettors, later models transitioned to sophisticated injection systems, most notably the Bosch D-Jetronic and its successors. This article delves into the workings, common issues, and maintenance of the fuel injection systems found in Jaguar V12 engines, particularly as fitted to the iconic XJS model.

The Genesis: Bosch D-Jetronic on the V12

The journey of fuel injection on the Jaguar V12 began with the adoption of the Bosch D-Jetronic system. Initially, Jaguar had intended to implement an AE Brico electronic injection system, but this was discontinued, leading to a hurried introduction of the V12 with a quadruple carburettor setup. While this provided adequate performance, it suffered from poor cold-start characteristics, high fuel consumption, and problematic exhaust emissions. The D-Jetronic system, a descendant of earlier Bendix designs, offered a more controlled and efficient fuel delivery method. Bosch had also introduced the more advanced L-Jetronic system, which Jaguar, through Lucas, adapted for their V12 engines. This adaptation was influenced by the D-Jetronic's similarity to the earlier Brico system and its established reliability.

The core principle of the D-Jetronic system involves a recirculating fuel system. Fuel is pumped from the tank at a constant pressure (around 2 Bar or 30 p.s.i.) to the injectors. An excess fuel regulator returns any surplus fuel to the tank, ensuring a consistent supply. The injectors themselves are solenoid-operated valves that open for a precise duration – the injector pulse width – controlled by an Electronic Control Unit (ECU). The ECU calculates this pulse width based on various sensor inputs, including engine speed, load (measured by manifold pressure), coolant temperature, air temperature, and throttle position.

For the V12 engine, the original D-Jetronic ECU's inability to directly drive twelve injectors was overcome by incorporating an amplifier. This amplifier, often mounted near the radiator, divided the injectors into four groups of three. The firing order was arranged to optimise smooth operation. While this system was an improvement, later HE (High Efficiency) V12 engines, with their more refined combustion chambers, proved more sensitive to the precise fuel delivery, necessitating further calibration and refinement.

Key Components and Their Functions

The D-Jetronic system, and its subsequent iterations, rely on a network of sensors and components to accurately deliver fuel:

• Manifold Pressure Sensor: Measures the vacuum in the intake manifold, providing a direct indication of engine load.
• Coolant Temperature Sensor: Crucial for cold starts and warm-up, this sensor signals the ECU to enrich the fuel mixture when the engine is cold.
• Air Temperature Sensor: Provides a minor trim adjustment to the fuel delivery based on ambient air temperature.
• Throttle Switch: Detects closed throttle (for idle and over-run cut-off) and rapid throttle openings (for acceleration enrichment).
• Injectors: Electromechanical valves that spray atomised fuel into the intake ports.
• Fuel Pump: Delivers fuel from the tank to the fuel rail.
• Fuel Pressure Regulator: Maintains a constant fuel pressure at the injectors.
• Injector Amplifier (on early V12s): Expands the ECU's output to drive all twelve injectors.
• Trigger Board/Sensors: Located in the distributor (or on the crankshaft pulley in later systems), these signal the ECU when to fire the injectors. Early systems used reed switches triggered by a magnet on the rotor arm, while later ones employed Hall effect sensors.

Cold Start Injectors

While the main injectors provide a fine mist of fuel, early D-Jetronic systems also incorporated cold start injectors. These additional injectors, typically one per cylinder bank or even one per cylinder in some applications, delivered a richer fuel charge specifically during cold cranking. Control was often managed by a 'thermotime' switch, which activated the injectors for a limited duration, determined by engine temperature. As engine technology advanced, the need for separate cold start injectors diminished, with the main injection system becoming sophisticated enough to manage cold starts effectively.

Fuel Injector Operation and Firing Frequency

The operation of a fuel injector is demanding. In a Jaguar V12, each injector fires multiple times per engine cycle. For the V12 HE, it's noted that an injector fires twice per engine cycle. At 2,000 RPM, this translates to an astonishing 33.3 times per second per injector. Over a year of driving 12,000 miles, each injector can cycle approximately 18 million times annually. This high duty cycle underscores the importance of injector health and proper maintenance.

Common Problems and Maintenance Advice

Like any complex system, the Jaguar V12 fuel injection system is susceptible to issues, often stemming from age, heat, and a lack of preventative maintenance:

1. Fuel Handling and Pressure Issues:

• Fuel Pump Noise: Can be due to mounting or a worn pump unable to sustain pressure under load.
• Pressure Loss: Rapid pressure drop after engine shut-off indicates leaks in regulators, injectors, or non-return valves, leading to hot start problems (vaporisation).
• Vapor Lock: A common issue with D-Jetronic due to relatively low fuel pressure, exacerbated in hot weather. Increasing fuel pressure slightly and recalibrating the ECU can help.
• Filters: The high-quality fuel filter is crucial. Its capacity is limited, and it must be changed at recommended intervals to prevent debris from reaching the injectors.
• Hoses: Fuel-resistant hoses must be used for replacements, and existing ones should be checked for deterioration.

2. Injector Failures:

• Clogging: Unburned fuel additives and debris can bake onto the injector pintle and orifice, altering flow and spray pattern. Water contamination is particularly damaging.
• Mechanical/Electrical Failures: Injector windings can fail, or the pintle can seize due to corrosion or overheating.
• Leaks: A pintle not seating properly or a leak in the injector body can lead to overfuelling and potential fire hazards.
• Spray Pattern: Even minor deviations in the spray pattern, caused by clogging or incorrect installation, can significantly impact atomisation, vaporization, and combustion efficiency.
• Testing: Injector resistance should be around 2.5 ohms. Listening for the characteristic 'click' with a stethoscope or checking the engine's response when disconnecting individual injector connectors can aid diagnosis.

3. Electrical and Electronic Issues:

• Injector Harness Cracking: Heat in the engine bay can cause injector harness wires to crack and short, leading to flooded cylinders.
• Lucas Ignition Variants: Poor connections between the Lucas amplifier and ECU, or deterioration of the wiring exiting the amplifier, can cause issues.
• Marelli Ignition Variants: Wiring issues to the distributor and failing engine speed sensors are common.

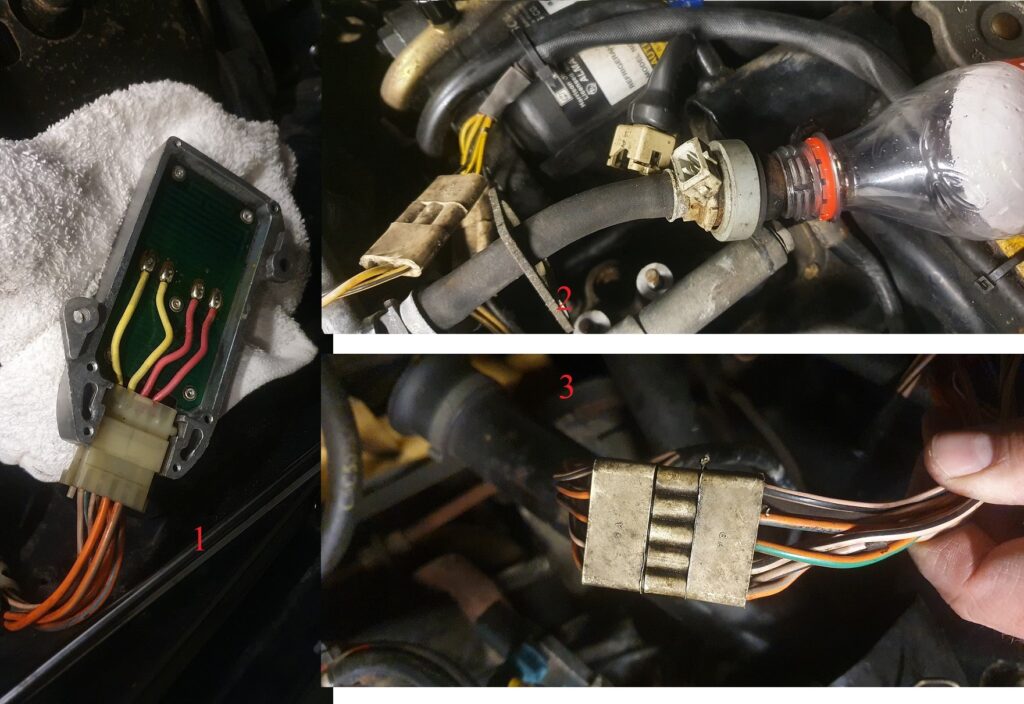

• Power Resistor: The power resistor, essential for injector operation, can develop corrosion on its multi-pin connector, hindering fuel delivery. Regular cleaning of this connector is highly recommended. Only the correct Lucas PR2 power resistor (Lucas number 73196B, Jaguar part number DAC 2044) is suitable for the HE V12.
• Trigger Board: Failure of the trigger switches is a common cause of breakdown. A failed 'open' switch stops the system, while a 'closed' failure can leave half the cylinders inactive.
• Temperature Sensors: While generally reliable, an open-circuit coolant sensor can cause the engine to run extremely rich.
• Pressure Sensor: Breakdowns in the sensor's windings or wiring will immobilise the system. Fractured diaphragms in European versions can lead to incorrect fuelling.
• Throttle Switch: While sometimes blamed, issues here often relate to worn tracks or contacts. Proper adjustment of the idle switch is also critical.

4. Throttle Linkage and Air Systems:

• Throttle Linkage Adjustment: Incorrectly adjusted throttle linkages are a major cause of V12 problems. Ensuring both throttles open simultaneously and in unison is vital for correct fuelling, especially with the pressure sensor averaging readings between banks. Adjustments should be made with the engine warm.
• Auxiliary Air Valve: This controls cold idle speed. A sticking or faulty valve can lead to erratic idling. Adjustments to idle speed should be made at the auxiliary air valve screw.
• Over-run Valves: These limit vacuum during deceleration. Loss of spring tension can cause high or unstable idle speeds.

Modifications for Performance

While the D-Jetronic system's fuelling laws were originally mapped to the engine through extensive testing and component selection, modifications are possible. Experienced tuners can recalibrate the ECU for performance enhancements, often by changing internal components. Adjusting fuel pressure upwards and recalibrating the ECU is a common approach to support higher engine speeds and improved breathing. While not as sophisticated as modern programmable ECUs, the D-Jetronic system, when properly understood and maintained, can provide reliable and efficient operation for the classic Jaguar V12.

In conclusion, the fuel injection system in the Jaguar V12, particularly in its D-Jetronic and subsequent iterations, represents a significant technological advancement over carburettors. Understanding its principles, common failure points, and the importance of regular, diligent maintenance is key to ensuring the continued smooth and powerful operation of this legendary engine.
