When you see the acronym AFS pop up on your Volkswagen Touareg's dashboard or hear it mentioned in discussions about its advanced features, it refers to the Adaptive Front-lighting System. This sophisticated technology is a key component of modern vehicle safety and convenience, especially for drivers who frequently navigate winding roads or drive at night. Unlike traditional fixed headlights, AFS is designed to dynamically adjust the headlight beam pattern in response to steering input, vehicle speed, and sometimes even road conditions, illuminating the path ahead more effectively and significantly enhancing visibility.
For Touareg owners, particularly those with the Bi-Xenon headlight option, AFS is a standard or available feature that elevates the driving experience. It’s not just about brighter lights; it's about smarter lighting. This system helps to reduce the 'dark spots' that occur when turning a corner with conventional headlights, giving you more time to react to potential hazards and making night driving a far more relaxed and secure endeavour. Understanding how AFS works, its benefits, and how to troubleshoot common issues can be invaluable for maintaining your Touareg's optimal performance and safety standards.
The Core of AFS: Adaptive Front-lighting System Explained
At its heart, the Adaptive Front-lighting System is an intelligent lighting solution that goes beyond simply illuminating the road directly in front of your vehicle. Imagine driving around a bend at night; with standard headlights, your lights continue to point straight ahead until the car has fully turned, leaving the area into which you're turning shrouded in darkness. AFS eradicates this problem by swivelling the headlight beams in the direction of travel, effectively 'looking' around the corner before you even get there. This anticipatory lighting provides crucial extra seconds of visibility, allowing you to spot obstacles, pedestrians, or road markings much earlier.
The system comprises several key components that work in harmony: sophisticated sensors, a dedicated control unit, and motorised headlight assemblies. The sensors continuously monitor various vehicle parameters such as steering angle, vehicle speed, and sometimes even yaw rate and pitch. This data is fed to the AFS control unit, which then processes the information and sends commands to small electric motors within the headlight units. These motors precisely adjust the horizontal and, in some systems, even the vertical aim of the headlight beams. The result is a dynamic illumination pattern that adapts seamlessly to your driving situation, offering unparalleled clarity and safety.
How Your Touareg's AFS System Works in Detail
The Touareg's AFS system is a marvel of engineering, integrating various inputs to provide optimal lighting. The primary sensors involved are the steering angle sensor, which detects how much you're turning the steering wheel, and the vehicle speed sensor. As you turn the wheel, the AFS control unit receives this information and calculates the appropriate angle for the headlight beams to swivel. The faster you're travelling, the more pronounced the swivel can be, as the system anticipates a greater need for illumination around a bend at higher speeds.
Beyond just swivelling, some advanced AFS systems, common in premium vehicles like the Touareg, also incorporate a 'static' or 'cornering' light function. This often involves a separate, smaller light source (like an H7 bulb, as mentioned in the original query) within the headlight assembly that illuminates the side of the vehicle when turning at low speeds or when the indicator is activated. This is particularly useful for manoeuvring in car parks or tight urban environments. Furthermore, some Touareg models might feature adaptive high beam assist, which automatically dips the high beams for oncoming traffic or vehicles ahead, integrating another layer of intelligence into the lighting system. This comprehensive approach ensures that the Touareg's lighting system is always working to provide the best possible visibility, adapting to every nuance of your journey.
Why AFS Matters: Benefits for Safety and Visibility
The advantages of having an Adaptive Front-lighting System are significant and directly impact driver and passenger safety. The most obvious benefit is enhanced safety. By illuminating curves and corners, AFS drastically reduces the risk of accidents caused by limited visibility. You can spot hazards like debris, potholes, or wildlife much earlier, giving you more time to react and avoid potential collisions. This is particularly crucial on unlit country roads or during adverse weather conditions where visibility is already compromised.
Beyond immediate hazard detection, AFS also contributes to reduced driver fatigue. When driving at night, especially on twisty roads, the constant strain of trying to see into dark corners can be exhausting. AFS alleviates this by providing a more natural and comprehensive view of the road ahead, reducing the need for the driver's eyes to constantly adjust to changing light conditions. This can lead to a more relaxed and focused driving experience, which in itself is a safety benefit. For a vehicle like the Touareg, often used for long journeys or varied terrains, the comfort and security offered by AFS are invaluable. It transforms night driving from a potentially stressful task into a more confident and controlled experience.
Recognising AFS Issues: Warning Lights and Symptoms

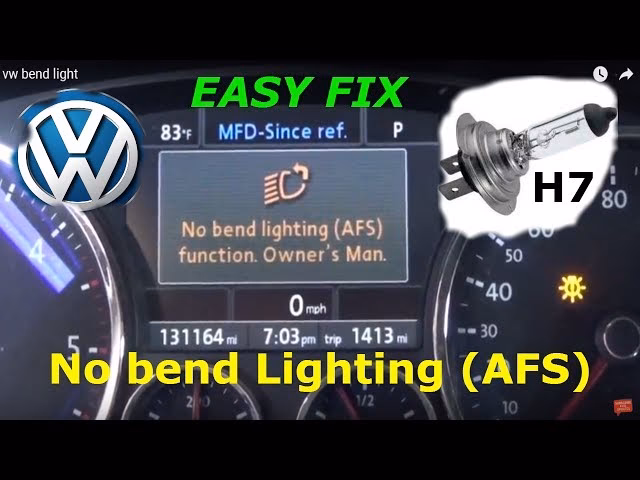

Like any complex electronic system in a modern vehicle, the AFS on your Touareg can sometimes develop faults. The most common indicator of an issue is a warning light appearing on your dashboard. This light typically depicts a headlight symbol with an arrow or "AFS" text. If this light illuminates, it means the system has detected a malfunction and may have reverted to a fixed headlight setting for safety, disabling the adaptive function.
Other symptoms of AFS problems might include:
- Headlights not swivelling: The most direct sign is that your headlights remain static when you turn the steering wheel.
- Dim or flickering lights: If one or both headlights appear unusually dim, flicker, or don't light up brightly, it could indicate a voltage issue or a dying bulb, which might trigger an AFS fault if it affects the system's ability to operate correctly.
- Specific cornering lights not working: If the dedicated H7 turning light bulb fails, it can also cause an AFS error message, even if the main Bi-Xenon lights are functioning.
- Unusual noises from headlight units: While rare, a grinding or whirring noise from the headlight assembly when the car is switched on or when turning could indicate a problem with the internal motors or gears.
Ignoring an AFS warning light is not recommended. While the car is usually still safe to drive as the main lights will function, you lose the crucial adaptive lighting capability, which can compromise safety, especially at night.
Troubleshooting Common AFS Problems
When faced with an AFS warning or symptoms, a methodical approach to troubleshooting can help pinpoint the issue. Here’s a detailed guide, incorporating common scenarios experienced by Touareg owners:
Initial Checks: Bulbs and Fuses
Start with the simplest potential culprits. Even though AFS is complex, sometimes the fault lies with a basic component. The first step should always be to check the bulbs themselves. For the specific 'turning light' function often associated with AFS, this is typically a standard H7 bulb. A quick visual inspection can reveal if the filament is broken. If in doubt, replacing the H7 bulb is a quick and inexpensive first step, as a faulty bulb can indeed trigger an AFS error message.
Also, consult your Touareg's owner's manual for the fuse box diagram. Check any fuses related to the headlight system or AFS. A blown fuse will cut power to the component it protects, leading to a malfunction.
Voltage Verification: The Importance of Proper Power Supply
Power supply issues are a surprisingly common cause of electrical faults in vehicles. If your headlights are dim or not lighting up, measuring the voltage at the bulb's contact points is crucial. Using a multimeter, carefully measure the voltage when the lights are switched on. If you're getting a reading as low as 9V, as some Touareg owners have reported, this is a clear sign of an underlying power issue. Ideally, you should see voltage in the 11-13V range, especially when the engine is running and the alternator is charging the battery.
A low voltage reading (e.g., 9V) can stem from several sources: a weak or failing car battery, corroded terminals, or an issue with the wiring leading to the headlight unit. It's advisable to measure the battery voltage directly at the terminals with the engine off and then with the engine running. If the battery is weak, it can cause various electrical gremlins, including AFS faults. Comparing the voltage reading on the affected side with the working side (if applicable) can also help isolate the problem. If the other side measures normal voltage (e.g., 12V+), it points more strongly to an issue specific to the faulty headlight circuit rather than a general battery problem.
Inspecting the Wiring Harness: A Common Culprit
One of the most frequently reported issues for Touareg AFS problems, particularly with Bi-Xenon headlights, is damage to the internal wiring harness within the headlight unit itself. Over time, due to heat, vibration, or environmental factors, the insulation on these wires can become brittle, crack, or even melt, leading to shorts or breaks in the circuit. Corrosion on connectors is also common, especially if moisture has entered the headlight assembly.
To inspect this, you'll need to open the dust caps on the rear of the headlight unit. Carefully examine the visible cabling and connectors. Look for any signs of:
- Burned or melted insulation: This is a strong indicator of an electrical short or overheating.
- Frayed or broken wires: Wires can break due to stress or age.
- Green or white powdery residue: This signifies corrosion, which impedes electrical flow.
- Loose connections: Ensure all plugs are securely seated.
If you find damaged wiring, it often requires careful repair, such as soldering in new sections of wire or replacing specific connectors. This can be a delicate job and may require professional assistance if you're not comfortable with auto electrical work.
Advanced Diagnostics: When a VAG-COM is Indispensable
If basic checks and visual inspections don't reveal the problem, or if the warning light persists, then you will almost certainly need to use a diagnostic tool. For Volkswagen vehicles, a VAG-COM (now officially known as Ross-Tech VCDS) scan tool is the gold standard. This specialized software allows you to communicate directly with the Touareg's various control modules, including the AFS control unit.
A VAG-COM scan will provide specific error codes (DTCs - Diagnostic Trouble Codes) that precisely indicate where the system has detected a fault. These codes are invaluable for narrowing down the problem, as they can point to a faulty sensor, a specific module malfunction, a communication error, or even a particular headlight motor. Without these codes, diagnosing complex AFS issues can be like searching for a needle in a haystack. Many independent garages specializing in German cars will have a VAG-COM tool, or you might consider investing in one if you plan to do a lot of DIY maintenance on your Touareg.
It's important to note that sometimes, even after a repair, the AFS system may need to be recalibrated or have its fault codes cleared using a diagnostic tool for the warning light to extinguish and the system to resume normal operation.
Table: Common AFS Faults and Their Potential Causes
| Symptom/Fault Code Description | Potential Cause | Troubleshooting Step |
|---|---|---|
| AFS Warning Light On (No physical symptom) | Minor glitch, sensor reading out of range, or stored fault. | Check for obvious damage, then perform VAG-COM scan to identify specific DTC. |
| Headlights not swivelling/adapting | Faulty AFS control module, steering angle sensor, headlight motor, or wiring. | VAG-COM scan is essential to pinpoint the exact component failure. |
| Dim/Flickering Lights or 9V at bulb connector | Low battery voltage, corroded terminals, faulty wiring harness, or bad ground. | Check battery health, clean terminals, inspect wiring for damage/corrosion, test voltage at multiple points. |
| Cornering/H7 bulb not lighting up | Blown H7 bulb, faulty bulb holder, wiring issue to H7 bulb, or AFS module fault. | Replace H7 bulb, check voltage at bulb connector, inspect wiring within headlight unit. |
| Headlight unit makes grinding/whirring noise | Damaged internal headlight motor/gears, or obstruction. | Physical inspection (if accessible), likely requires headlight unit repair/replacement. |
| Persistent AFS warning after repair | Fault codes not cleared, system requires basic setting/recalibration. | Use VAG-COM to clear codes and perform basic setting/adaptation if required. |
Frequently Asked Questions About Touareg AFS
Is AFS essential for my Touareg?
While not strictly essential for the basic operation of your vehicle (your main headlights will still work), AFS significantly enhances safety and comfort during night driving, especially on winding roads. It provides superior visibility compared to conventional headlights, making it a highly desirable feature.
Can I drive with an AFS warning light on?
Yes, you can typically drive your Touareg with an AFS warning light illuminated. The main headlights will usually revert to a fixed, straight-ahead position. However, you will lose the adaptive lighting functionality, which can compromise safety in low-light conditions or on twisty roads. It's advisable to have the issue diagnosed and repaired as soon as possible.
How much does AFS repair cost?
The cost of AFS repair can vary widely depending on the nature of the fault. A simple bulb replacement might cost very little, while diagnosing and repairing a wiring harness issue within the headlight unit could be moderately expensive due to labour. If a major component like the AFS control module or an entire headlight assembly needs replacement, costs can be substantial, often running into hundreds or even over a thousand pounds, given the complexity and cost of original parts.
Can I disable AFS on my Touareg?
While the AFS system can revert to a static mode if a fault is detected, there isn't typically a user-accessible switch or setting to permanently disable the AFS functionality while keeping the headlights on. If you wish to disable it due to persistent issues, it usually involves coding changes via a diagnostic tool like VAG-COM, which is not recommended as it bypasses a safety feature.
What's the difference between AFS and dynamic cornering lights?
AFS (Adaptive Front-lighting System) is the overarching term for a system that adapts headlight beams based on steering, speed, and other factors. Dynamic cornering lights are a specific function within an AFS system where the main headlight beam swivels horizontally with the steering wheel. Some AFS systems also include 'static' or 'auxiliary' cornering lights, which are separate bulbs (like the H7) that illuminate the side of the car at low speeds or when indicating. So, dynamic cornering lights are a component of a comprehensive AFS.
Conclusion
The Adaptive Front-lighting System on your VW Touareg is a testament to modern automotive engineering, providing a substantial boost to both safety and driving comfort. Understanding what AFS means and how it functions empowers you to better appreciate this feature and to effectively troubleshoot issues should they arise. While some AFS problems can be resolved with basic checks like bulb replacement or voltage testing, others, particularly those involving internal wiring or control modules, often necessitate a more in-depth diagnosis using specialized tools like VAG-COM. Prioritising the timely repair of any AFS fault ensures that your Touareg continues to offer the safest possible driving experience, especially when the sun goes down.
