Car Dashboard Illumination Issues

It can be incredibly frustrating when the vital illumination of your car's dashboard and climate controls suddenly goes dark. Whether you've been tinkering with your vehicle's components or simply encountered an unexpected fault, a lack of interior lighting can render your car difficult and even unsafe to operate, especially during nighttime driving. This article delves into the common reasons why your dashboard lights and climate control illumination might cease to function, with a particular focus on the role of the dimmer switch and potential issues arising from cluster removal.

Understanding Your Car's Illumination System

Modern vehicles feature a complex network of wiring and components to control interior lighting. The dashboard cluster, which houses your speedometer, rev counter, fuel gauge, and various warning lights, is a critical element. The illumination for these gauges, as well as for the climate control panel, is typically managed through a central circuit. A key component in this system is the dimmer switch, often integrated into the dashboard itself. This switch allows the driver to adjust the brightness of the interior lights, enhancing comfort and reducing glare at night.

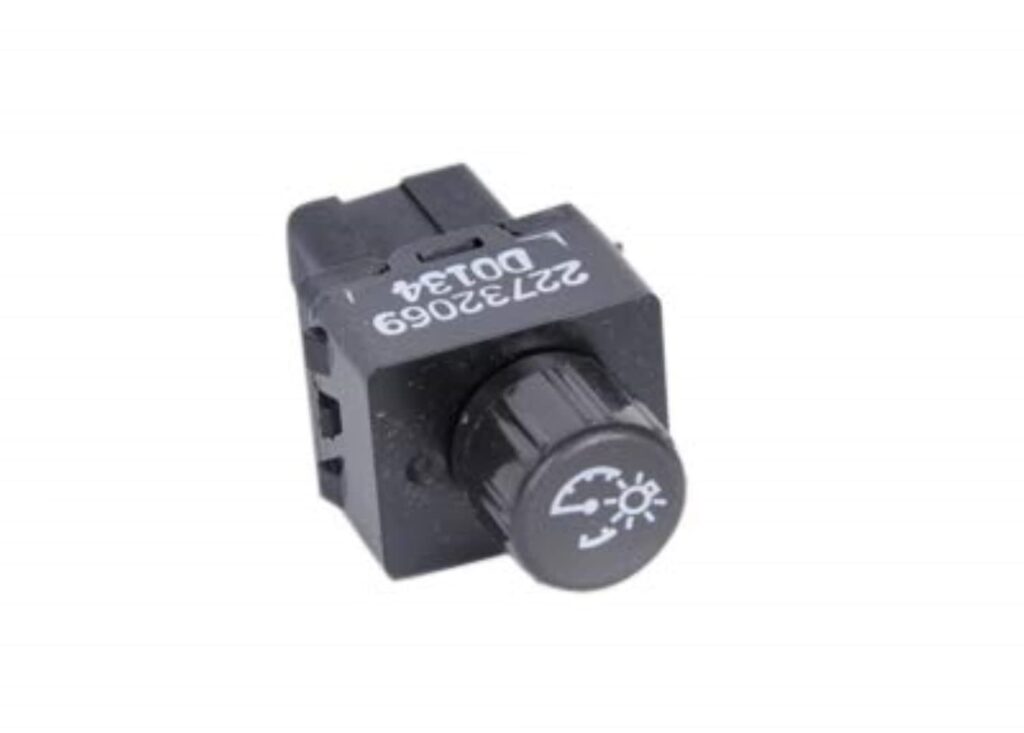

The Dimmer Switch: Function and Common Failures

The dimmer switch is essentially a variable resistor. By turning the knob or sliding the control, you alter the resistance in the circuit, which in turn controls the voltage supplied to the illumination bulbs. When functioning correctly, it provides a smooth transition from fully lit to a subtle glow. However, like any electrical component, dimmer switches can fail.

Common Dimmer Switch Problems:

• Worn-out Potentiometer: The internal resistance element can wear down over time, leading to intermittent operation, flickering lights, or complete failure.
• Loose Connections: The electrical connections to and from the dimmer switch can become loose due to vibrations, causing a loss of power.
• Internal Breakage: The switch mechanism itself can break internally, preventing it from making proper contact.
• Blown Fuse (Less Common for Dimmer Function): While a blown fuse will affect all lights on that circuit, a faulty dimmer itself usually won't blow a fuse, but a short circuit involving the dimmer could.

Troubleshooting No Dashboard Lights After Cluster Removal

The scenario described, where dashboard and climate control lights disappear after removing the instrument cluster, is a common point of concern for many car enthusiasts, particularly those new to working on their vehicles. The removal of the cluster, while often a straightforward process, can inadvertently lead to electrical issues if not handled with care.

Potential Causes for Loss of Illumination:

• Dislodged Connectors: The most frequent culprit is that the electrical connectors that plug into the back of the instrument cluster may not have been reconnected securely after the cluster was reinstalled. These connectors supply power to the cluster's illumination bulbs and the climate control panel.
• Damaged Wiring: During the removal or reinstallation process, wires connected to the cluster or leading to the climate controls could have been accidentally snagged, pulled, or damaged, causing a break in the circuit.
• Incorrect Reassembly: If the cluster was not reassembled correctly, it might not be making proper contact with its electrical connectors.
• Fuse Issues (Re-check): Although you've checked the fuses, it's always worth a second look. Sometimes, a fuse might appear intact but have a hairline crack in the metal element, or the fuse holder itself might have a poor connection. Consult your car's owner's manual for the specific fuse(s) that control interior illumination and warning lights.
• Dimmer Switch Interaction: While the dimmer switch primarily controls the brightness of gauge lights, in some vehicle designs, its circuit may be linked to the power supply for the climate control illumination. If the dimmer switch has developed a fault or its connections were disturbed during cluster work, it could affect other related lighting.

Does a Dimmer Switch Affect Warning Lights?

Generally, the primary function of a dimmer switch is to control the intensity of the instrument cluster's backlighting – the lights that illuminate your speedometer, tachometer, and other gauge faces. Warning lights, such as the oil pressure warning, battery warning, or ABS light, are typically designed to illuminate at full brightness regardless of the dimmer setting. They are critical safety indicators and need to be clearly visible at all times. Therefore, if your warning lights are also dim or not working, the issue is likely beyond just the dimmer switch and points to a more general electrical fault or a problem with the bulbs or the circuits powering those specific warning lamps.

Step-by-Step Troubleshooting Guide

If your dashboard and climate control lights are out, here’s a methodical approach to diagnose and fix the problem:

Step 1: Inspect Fuses

As mentioned, re-verify all fuses related to interior lighting, instrument cluster, and HVAC (Heating, Ventilation, and Air Conditioning) systems. Use a fuse tester or a multimeter to confirm continuity. Even if they look good, swap a suspect fuse with a known good one of the same amperage.

Step 2: Revisit the Instrument Cluster Reinstallation

This is the most probable area for the fault if it occurred after cluster removal. Carefully remove the instrument cluster again. Inspect the electrical connectors on the back of the cluster and the corresponding sockets on the wiring harness. Ensure they are clean, free from corrosion, and securely plugged in. Listen for a distinct 'click' that indicates a proper connection. Also, check the wiring harness leading to the cluster for any signs of damage or pinched wires.

Step 3: Test the Dimmer Switch

If the cluster connectors are secure and fuses are good, the dimmer switch itself might be the issue. You can test this with a multimeter set to measure resistance (Ohms). Disconnect the dimmer switch and measure the resistance across its terminals as you turn the knob. The resistance should change smoothly. If it's erratic, jumps around, or reads as an open circuit (infinite resistance) at certain positions, the switch is likely faulty. You can also test for voltage at the dimmer switch's input and output terminals.

Step 4: Check Climate Control Illumination Connections

The climate control panel often receives power through a separate connector, but its illumination circuit might be tied to the same fuse or loom as the instrument cluster. Inspect the connectors for the climate control unit for security and damage. Sometimes, the bulbs within the climate control panel itself can fail, though this wouldn't explain the dashboard lights also being out unless it's a shared circuit issue.

Step 5: Examine Bulb Holders and Sockets

Bulb holders within the instrument cluster and climate control panel can corrode or become loose. Ensure the bulbs are seated correctly in their holders and that the holders are making good contact with the circuit board or socket.

Advanced Diagnostics and Potential Repairs

If the basic checks don't reveal the problem, more advanced diagnostics might be necessary:

Wiring Harness Inspection

A thorough inspection of the entire wiring harness that feeds the instrument cluster and climate controls is crucial. Look for any signs of chafing, melting, or breaks. Use a wiring diagram for your specific vehicle model to trace the circuits and identify potential points of failure.

Testing Individual Components

If you suspect a specific component like the dimmer switch or a particular bulb, you might need to test or replace it. For dimmer switches, replacements are often available from automotive parts suppliers or specialist dealerships. For bulbs, ensure you are using the correct type and wattage specified for your vehicle.

Professional Assistance

If you're uncomfortable performing these electrical diagnostics or if the problem persists, it's best to seek assistance from a qualified automotive electrician or mechanic. They have the specialized tools and expertise to pinpoint and resolve complex electrical faults.

Tips for Enhancing Interior Lighting

While troubleshooting, some owners opt to upgrade their interior lighting for better visibility or aesthetics. As noted in one user's experience, replacing standard bulbs with slightly more powerful ones (within the specified voltage limits) or using colored bulbs can alter the look and feel of the dashboard. For instance, fitting orange or blue bulbs can provide a more pleasant ambiance and reduce glare, as one owner found when fitting orange bulbs to match their car's interior trim.

Considerations for Upgrades:

• Bulb Type: Always use the correct base type and voltage for your vehicle.
• Wattage: Do not exceed the original wattage, as this can overheat the wiring, damage the circuit board, or melt the plastic housings.
• LEDs: Modern LED replacements can offer brighter light and longer life, but ensure they are compatible with your vehicle's electrical system, as some older cars may have issues with LED voltage regulation or can bus systems.

Frequently Asked Questions

Q1: My dashboard lights flicker. What could be the cause?

Flickering lights are often a sign of a loose connection at the dimmer switch, the instrument cluster connectors, or a failing dimmer switch itself. It can also indicate a poor ground connection for the illumination circuit.

Q2: Can I bypass the dimmer switch if it's broken?

In some cases, yes, but it's not generally recommended as it bypasses a functional feature and might overload the circuit if not done correctly. If you need a temporary fix, you'd need to identify the wires leading to and from the dimmer switch and connect them to provide constant power, resulting in full brightness illumination.

Q3: What's the difference between gauge lights and warning lights?

Gauge lights are for illumination (speedometer, tachometer, etc.) and are usually controlled by the dimmer. Warning lights (oil, battery, ABS, etc.) are indicator lights designed to alert you to a specific condition and should operate at full brightness independently of the dimmer.

Q4: I replaced the bulbs, but the lights are still out. What next?

If you've replaced the bulbs and the lights remain out, the issue lies elsewhere. Check fuses, ensure the bulbs are seated correctly in their holders, inspect the wiring harness for damage, and verify the electrical connectors to the cluster and climate controls are secure.

Q5: My car is older, and the plastic covers for the warning lights seem opaque. What can I do?

Over time, plastic lenses can become cloudy or discoloured. Replacing the plastic covers for the instrument cluster can significantly improve the brightness and clarity of the illuminated indicators. As one user found, even with new units and brighter bulbs, the visibility of tell-tale lights was poor, highlighting the importance of clean lenses and unobstructed light paths.

Dealing with a complete loss of dashboard and climate control illumination can be a daunting task, especially for newcomers to car maintenance. By systematically checking fuses, ensuring secure electrical connections, and understanding the role of components like the dimmer switch, many common issues can be resolved. Remember to always consult your vehicle's specific repair manual for detailed diagrams and procedures.
