Indian Challenger: Your Ultimate Service Guide

Keeping Your Indian Challenger in Peak Condition: A Comprehensive Service Guide

The Indian Challenger, a formidable machine that has graced our roads since 2020, represents a significant evolution in American cruiser design. Powered by the robust 1768 cc (108 c.i.) liquid-cooled PowerPlus V-twin engine, this motorcycle is engineered for performance and longevity. Whether you own the standard Challenger, the stylish Dark Horse, or the refined Limited variant, understanding its maintenance schedule is paramount to ensuring optimal performance, reliability, and a thrilling riding experience. This guide will delve into the intricacies of servicing your Indian Challenger, from routine checks to more involved procedures, equipping you with the knowledge to keep this magnificent machine purring.

Indian has equipped the Challenger with a potent PowerPlus engine, a 60-degree V-twin that boasts an 11.0:1 compression ratio. It delivers an impressive 128 ft-lb (174 Nm) of torque at a mere 3800 rpm and a substantial 122 bhp (91 kW) at its 6500 rpm rev limit. The inclusion of liquid cooling, a feature not always common in the cruiser segment, contributes to the engine's high-revving nature and consistent performance. Furthermore, the engine features single overhead chain-driven cams, four valves per cylinder, and hydraulic valve lash adjustment, which ingeniously means you'll never need to perform a valve clearance service – a significant convenience for owners.

Understanding Your Challenger's Service Intervals

Adhering to a regular maintenance schedule is the cornerstone of preserving your Indian Challenger's performance and preventing costly repairs down the line. Indian has laid out a clear, albeit detailed, service plan for all Challenger models. The fundamental service interval for your Challenger is every 5,000 miles (8,000 km). During these routine check-ups, Indian recommends an oil and filter change, along with a comprehensive multi-point inspection. This forms the backbone of your bike's upkeep.

Beyond the basic service, certain components require less frequent attention. Indian suggests inspecting and cleaning the air filter every two services, with a full replacement recommended every 10,000 miles (16,000 km). Spark plugs, while robust, are recommended for inspection every two services as well, but replacement is only advised at the 30,000-mile (48,000 km) mark. Given the liquid-cooled nature of the PowerPlus engine, regular coolant changes are essential. Indian specifies a coolant replacement every five years or 50,000 miles (80,000 km), whichever comes first. You'll also need to pay attention to the fork fluid, which Indian recommends changing every two years, and even the rear shock absorber has a specified replacement interval, highlighting Indian's commitment to thorough long-term maintenance.

Essential Tools and Supplies for Challenger Service

While many routine tasks can be performed with standard motorcycle maintenance tools, servicing the Indian Challenger may require a few specialised items. This is partly due to the bike's substantial size and partly due to Indian's specific procedures, which sometimes necessitate the motorcycle being upright with the rear wheel elevated. Here's a breakdown of what you might need:

• Front Wheel Chock: Crucial for keeping the front wheel stable and locked when you need to lift the rear of the bike.
• Rear Paddock Stand: Essential for safely elevating the rear wheel, which is necessary for tasks like checking and adjusting the drive belt tension.
• Belt Tension Tool: A specialised tool required for accurately measuring the drive belt tension on belt-driven motorcycles like the Challenger.
• Engine Compression Test Tool: Indian recommends periodic checks of engine compression, making this a valuable diagnostic tool.

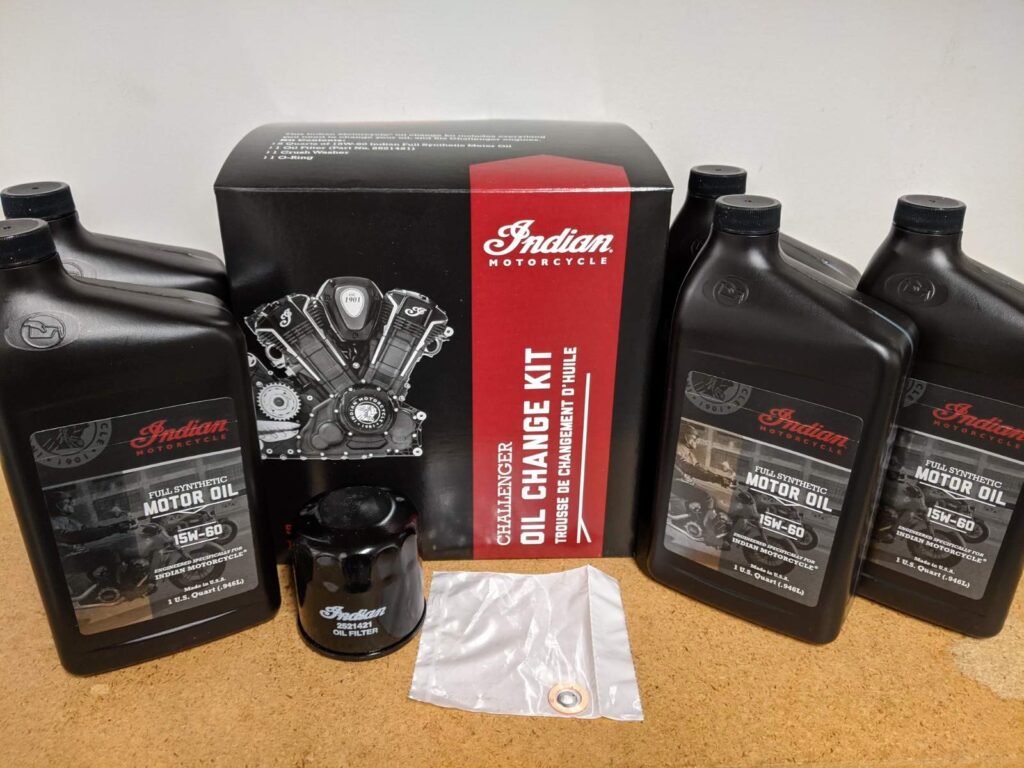

In addition to these, you'll need quality fluids, filters, and consumables. Indian offers specific oil change kits that include the correct engine oil and filter. Always ensure you are using fluids that meet Indian's specifications, such as the recommended 15W-60 Full Synthetic engine oil and Castrol DOT 4 brake fluid.

The Indian Challenger Maintenance Schedule: A Detailed Breakdown

To make understanding the service requirements easier, we've simplified Indian's detailed manual into a more digestible format. Essentially, there are three tiers of service:

• Standard Service: This is your go-to service, involving an oil and filter change and a thorough multi-point inspection, performed every 5,000 miles (8,000 km).
• Scheduled Service: These are tasks performed at less frequent intervals as outlined in the schedule below.
• Infrequent Service: These are major service items typically due at the 50,000-mile (80,000 km) mark.

Standard Service Checklist (Every 5,000 Miles / 8,000 km):

During each standard service, perform the following checks and actions:

Scheduled Service Intervals:

This table outlines tasks performed at specific mileage or time intervals:

Long-Term Service Intervals:

These are critical maintenance tasks for the longevity of your Challenger:

Checking and Adjusting the Drive Belt

The drive belt is a vital component of your Indian Challenger, and its condition and tension must be regularly checked. At every service interval, inspect the belt for any signs of wear, such as cracked or broken teeth. If you notice any damage, it's time for a replacement.

Checking the belt deflection is a more precise task. You'll need the aforementioned belt tension tool and a tape measure. The procedure involves ensuring the motorcycle is upright with the front wheel clamped, the rear wheel elevated, and the bike in neutral. Measure the belt's deflection by applying a specific force (10 lb) with the tension tool. The specified deflection is 0.6" (15 mm) for a new belt and 0.79" (20 mm) for a belt with over 1,000 miles. Perform this check at a few points along the belt's length.

Drive Belt Tension Adjustment Procedure:

1. Ensure the motorcycle is upright with the front wheel clamped.
2. Remove the saddlebags.
3. Raise the rear of the motorcycle so the rear tyre can rotate freely.
4. Loosen the axle nut.
5. Adjust the belt tension using the right-side adjuster. Refer to the deflection specifications based on belt age.
6. Use the left-side adjuster to correct belt alignment. Rotate the wheel backward until the belt is centred on the sprocket, ensuring it doesn't ride on the inside flange. The belt should track to the centre of the sprocket surface.
7. Rotate the wheel forward and confirm the belt remains centred. Alignment markers can be used as a guide, but the belt's actual position is the definitive indicator.
8. Continue adjusting as needed to achieve proper alignment.
9. Tighten the axle nut to the specified torque of 65 ft-lb (88 Nm).

Important Torque Specifications:

When performing maintenance, especially when reassembling components, adhering to correct torque specifications is crucial for safety and preventing damage. Here are some key torque values for the Indian Challenger:

A Glimpse at the Indian Challenger's Innovation

The Indian Challenger stands out as Indian Motorcycle's pioneering big liquid-cooled cruiser. Since Polaris acquired Indian in 2011, the brand has undergone a significant transformation, producing motorcycles distinct from their predecessors while carefully preserving the iconic Indian aesthetic. The Challenger, in particular, represents a bold departure, aiming to carve its own niche in a market often dominated by Harley-Davidson.

While it sports the classic bagger look with ample chrome (or stealthy black on the Dark Horse), the Challenger is underpinned by an advanced PowerPlus engine. This 1768 cc liquid-cooled V-twin, with its 11.0:1 compression ratio and SOHC 4-valve per cylinder design, is a testament to Indian's engineering prowess. The inclusion of hydraulic valve adjusters means no manual valve adjustments are ever required, a considerable advantage for owners.

The Challenger's performance is further enhanced by its high-specification components. The front features an inverted fork, while the rear is managed by an adjustable Fox shock. The braking system is equally impressive, with twin 3320mm discs and 4-piston Brembo monoblock calipers, typically found on sportbikes. For enhanced safety and control, the Limited and Dark Horse models are equipped with cornering ABS and traction control, managed by a Bosch IMU – a sophisticated setup for a cruiser.

This combination of power, advanced technology, and performance components has cemented the Indian Challenger's reputation, notably its success in the demanding King of the Baggers racing series. The modern "Ride Command" infotainment system, standard on the Challenger, further enhances the riding experience, with navigation features available on higher-spec models. Since 2022, this platform has also served as the basis for the full-dress touring Indian Pursuit, showcasing the versatility of the PowerPlus engine.

Frequently Asked Questions (FAQs)

Q1: How often should I change the engine oil on my Indian Challenger?

A1: Indian recommends changing the engine oil and filter every 5,000 miles (8,000 km) as part of the standard service.

Q2: Do I need to adjust the valves on my Indian Challenger?

A2: No, the PowerPlus engine features hydraulic valve lash adjusters, meaning valve clearance adjustments are not required.

Q3: What is the recommended interval for replacing the drive belt?

A3: The drive belt should be inspected at every service interval. While there isn't a specific mileage for replacement listed in the provided text, it should be replaced if any signs of damage like cracked or broken teeth are observed. Regular tension checks are also critical.

Q4: When should the coolant be replaced?

A4: The coolant should be replaced every five years or 50,000 miles (80,000 km), whichever comes first.

Q5: What are the key differences in maintenance between the Challenger variants (Dark Horse, Limited)?

A5: The core maintenance schedule remains the same across all Challenger variants. Differences in features like advanced electronics (cornering ABS, traction control) do not alter the fundamental service intervals for the engine, drivetrain, and chassis components.

By diligently following this comprehensive service guide, you can ensure your Indian Challenger remains a reliable and exhilarating machine for years to come. Regular maintenance is not just about preventing breakdowns; it's about maximising the performance and enjoyment of your ride.
