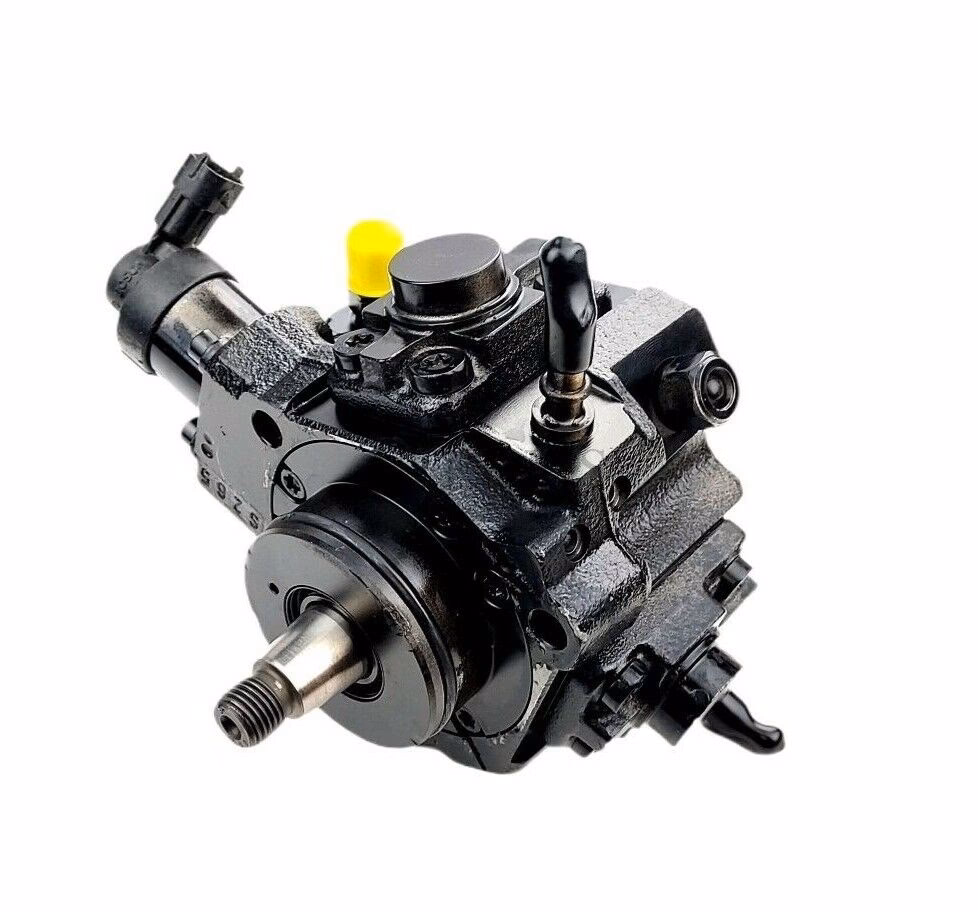

The Fuel Injection Pump Delivery Valve Explained

In the intricate world of automotive mechanics, particularly concerning diesel engines, precision is paramount. Every component plays a crucial role in ensuring the engine runs efficiently, cleanly, and reliably. Among these vital parts, often overlooked but incredibly significant, is the fuel injection pump delivery valve. This small yet sophisticated valve is a cornerstone of any high-pressure fuel injection system, meticulously controlling the flow of fuel to the injectors and directly impacting your vehicle's performance, fuel economy, and emissions. Understanding its function is key to appreciating the engineering marvel that powers many vehicles on UK roads.

The fuel injection pump delivery valve is not merely a simple one-way valve; it's a precisely engineered component designed to perform several critical tasks within the fuel injection pump. Its primary location is within the high-pressure element of the fuel injection pump, typically situated at the outlet of each pumping element, just before the high-pressure fuel line that leads to the injector. Its purpose is multifaceted: to allow fuel to be delivered to the injector at high pressure, to abruptly cut off fuel supply at the end of the injection cycle, and crucially, to maintain a specific residual pressure in the high-pressure line between injections. This delicate balance ensures that the fuel injectors are ready for the next injection event without dribbling or causing secondary injections, both of which would severely compromise combustion efficiency.

What Exactly is a Fuel Injection Pump Delivery Valve?

At its core, a fuel injection pump delivery valve is a non-return valve, but with enhanced functionality tailored for the demanding environment of a diesel fuel system. It consists of a valve body, a cylindrical plunger (sometimes referred to as the valve stem), and a spring. The valve plunger is typically conical or seat-shaped at one end, designed to seal perfectly against a mating seat in the valve body. The spring holds the plunger against its seat, ensuring it remains closed until a sufficient pressure is built up by the pumping element.

When the fuel injection pump's plunger (the main pumping element) begins its upward stroke, it compresses the fuel within the pump chamber. As this pressure rises, it eventually overcomes the force exerted by the delivery valve spring. The valve plunger lifts off its seat, allowing the highly pressurised fuel to flow past it and into the high-pressure fuel line, en route to the fuel injector. This is the moment fuel delivery begins for that particular cylinder's injection event.

How Does the Delivery Valve Operate?

The operation of the delivery valve is a dance between pressure and precision, executed thousands of times per minute in a running engine. Let's break down its cycle:

• Opening Phase: As the fuel pump's plunger moves up, fuel pressure builds rapidly. Once this pressure exceeds the delivery valve spring tension and the residual pressure in the fuel line, the delivery valve plunger lifts from its seat. Fuel then flows into the high-pressure line towards the injector.
• Fuel Delivery: Fuel continues to flow as long as the pump plunger is displacing fuel and the pressure is sufficient to keep the delivery valve open.
• Closing Phase (Pressure Relief and Anti-Dribble): This is where the delivery valve's sophisticated design truly shines. As the main pump plunger reaches the end of its effective stroke (often dictated by a helix or control sleeve that bypasses fuel), the pressure within the pump chamber drops sharply. The delivery valve spring, along with the pressure in the high-pressure line, forces the valve plunger back onto its seat, abruptly cutting off fuel flow. However, many delivery valves feature a small, cylindrical 'unloading' or 'retraction' collar below the conical seat. As the valve closes, this collar enters the valve body, temporarily increasing the volume in the high-pressure line. This slight increase in volume causes a momentary, controlled drop in pressure within the high-pressure line, between the delivery valve and the injector. This rapid pressure drop is crucial; it causes the injector needle valve to snap shut cleanly and quickly, preventing any 'dribbling' of fuel into the combustion chamber after the main injection event. Dribbling leads to incomplete combustion, increased emissions (soot), and reduced fuel economy.
• Maintaining Residual Pressure: After closing, the delivery valve maintains a specific residual pressure in the high-pressure line. This pre-pressurisation ensures that the line is already primed for the next injection cycle, reducing the time required for pressure build-up and contributing to consistent injection timing and volume.

Types of Delivery Valves

While the basic principle remains the same, delivery valves can vary slightly in design depending on the specific fuel injection system and its requirements. The two most common types are:

1. Constant Volume Delivery Valve: This is the more traditional type, where the valve lifts and allows fuel flow, then closes. Its primary function is to simply stop fuel flow and maintain a residual pressure. The 'unloading' feature is present to prevent dribble.
2. Pressure-Reducing Delivery Valve: More common in some modern systems, this type actively reduces the pressure in the high-pressure line to a lower, predetermined level after injection. This can provide even better control over secondary injection and reduce stress on the high-pressure lines.

Comparative Overview of Delivery Valve Types

Understanding the subtle differences can help in appreciating the engineering behind these components:

Why is the Delivery Valve So Critically Important?

The seemingly simple action of opening and closing this valve has profound implications for the entire engine's operation:

• Precise Fuel Metering: The clean cut-off ensures that only the intended amount of fuel is injected into the cylinder. Any lingering fuel (dribbling) would lead to uncontrolled combustion, affecting engine power and efficiency.
• Prevention of Secondary Injection: Without the delivery valve's quick closure and pressure relief, residual pressure in the fuel line could cause the injector to open again after the main injection event, leading to a 'secondary injection'. This is highly detrimental, causing poor combustion, increased exhaust smoke, and potential damage to engine components.
• Optimising Combustion: By ensuring sharp, precise fuel cut-off and preventing dribble, the delivery valve contributes directly to complete and efficient combustion within the cylinder. This translates to better fuel economy and reduced harmful emissions.
• Engine Smoothness and Performance: Consistent and accurate fuel delivery to each cylinder is vital for smooth engine operation. A faulty delivery valve can lead to uneven power delivery, rough idling, and a noticeable loss of power.
• Protection of Injectors: By maintaining a controlled residual pressure, the delivery valve ensures that the injectors are always ready for the next injection cycle, preventing excessive wear and tear that could result from constantly having to build pressure from scratch.

Common Issues and Symptoms of a Faulty Delivery Valve

Given its critical role, a malfunctioning delivery valve can cause a range of noticeable problems. Recognising these symptoms early can save you from more extensive damage or costly repairs down the line:

• Hard Starting: If the delivery valve isn't maintaining adequate residual pressure, the fuel system might struggle to build up enough pressure quickly when cranking the engine, leading to prolonged starting times, especially when cold.
• Rough Idling: Inconsistent fuel delivery due to a sticking or worn valve can cause the engine to idle roughly, as some cylinders may receive more or less fuel than others.
• Loss of Power and Acceleration: If the valve isn't opening fully or is slow to respond, the engine won't receive the correct amount of fuel under load, leading to a noticeable reduction in power and sluggish acceleration.
• Excessive Exhaust Smoke: If the valve is not sealing correctly or is allowing dribbling, unburnt fuel can enter the exhaust, leading to black smoke (rich mixture) or sometimes even white smoke (unburnt diesel, especially cold).
• Increased Fuel Consumption: Inaccurate fuel metering, whether due to dribbling or incorrect delivery, will inevitably lead to your vehicle consuming more fuel than usual.
• Engine Noise: A faulty delivery valve can sometimes lead to unusual knocking or rattling sounds from the engine, particularly if it's causing uncontrolled or delayed combustion events.
• Fuel Leaks: While less common for the valve itself, issues with the valve's seating or the surrounding components can sometimes lead to external fuel leaks from the injection pump area.

Diagnosis and Longevity

Diagnosing a faulty delivery valve typically involves checking fuel pressures, observing engine behaviour, and sometimes involves specialised diagnostic equipment that can measure injection timing and fuel quantities. It's often part of a broader fuel system diagnosis. Due to the precision required and the high pressures involved, replacing or servicing a delivery valve is generally a job for a qualified diesel specialist or mechanic with the correct tools and expertise.

The longevity of a delivery valve is largely dependent on the cleanliness of the fuel it processes. Contaminants in the fuel, such as dirt, water, or abrasive particles, can cause wear on the valve plunger and its seat, leading to leakage or sticking. Therefore, regular maintenance, particularly adhering to the manufacturer's recommendations for fuel filter replacement, is paramount. Using high-quality fuel also significantly contributes to the lifespan of all fuel system components, including the delivery valve.

Frequently Asked Questions About the Delivery Valve

Here are some common questions vehicle owners often have about this vital component:

Can I replace the delivery valve myself?

While physically possible to remove, the delivery valve is a precision component integral to the fuel injection pump. Its replacement often requires specific tools for removal and installation, and more importantly, the fuel injection pump may need calibration or testing on a test bench after component replacement to ensure correct fuel delivery and timing. For these reasons, it is strongly recommended that replacement or servicing be carried out by a qualified diesel technician.

Is the delivery valve different for petrol (gasoline) vs. diesel engines?

The concept of a delivery valve is primarily associated with high-pressure diesel fuel injection pumps (like inline or rotary pumps). Modern petrol direct injection (GDI) systems also operate at high pressures and have sophisticated fuel control mechanisms, but the specific component referred to as a 'delivery valve' in the context of a plunger-type pump is characteristic of diesel systems. Petrol systems use different pump designs and injector types.

What causes a delivery valve to fail?

The most common causes of failure include wear due to abrasive contaminants in the fuel, corrosion from water in the fuel, and fatigue of the spring over time. Poor fuel quality and neglected fuel filter changes are significant contributors to premature wear.

How does a faulty delivery valve affect fuel economy?

A faulty delivery valve can significantly worsen fuel economy. If it allows fuel to dribble, or if it doesn't cut off fuel precisely, excess fuel will be injected into the cylinders, leading to incomplete combustion and wasted fuel. Conversely, if it restricts flow, the engine may compensate by demanding more fuel, or simply operate inefficiently.

Is the delivery valve part of the fuel injector?

No, the delivery valve is a component of the fuel injection pump, not the fuel injector. It controls the flow of high-pressure fuel *from* the pump *to* the injector. The injector then sprays this fuel into the combustion chamber.

Conclusion

The fuel injection pump delivery valve, though small, is a testament to the intricate engineering required for modern internal combustion engines. Its precise operation ensures that fuel is delivered exactly when and how it's needed, playing a direct role in your vehicle's performance, fuel efficiency, and environmental impact. Understanding its function and recognising the symptoms of its failure can empower you as a vehicle owner or enthusiast. Always remember, for issues concerning such high-precision components, professional diagnosis and repair are the safest and most effective approaches to keeping your diesel vehicle running optimally on the roads of the UK.
