Hyundai i30 Clutch Replacement: A Comprehensive Guide

The Hyundai i30, a popular choice for families since its introduction in 2007, shares its platform with the Kia Cee’d. With a significant number of these vehicles on the road, clutch replacements are a common task encountered by independent workshops. This guide will walk you through the process, highlighting key steps and considerations for a successful clutch replacement on your Hyundai i30.

While no highly specialised tools are strictly necessary for this repair, having a transmission jack, an engine support cradle, and a long axle stand will significantly ease the process. The procedure described here was performed using a two-post ramp. If your vehicle is fitted with alloy wheels, be aware that it might have anti-theft wheel bolts. Ensure you have the correct key for these before commencing work.

Initial Preparations and Component Removal

Begin by opening the bonnet and disconnecting both battery terminals. Next, undo the battery clamp and remove the cold air intake by undoing the two bolts located at the front. Once the cold air intake is out of the way, remove the battery. Subsequently, undo the bolts securing the battery tray and remove it (as illustrated in Fig 1).

Proceed to undo the bolts securing the air filter housing and disconnect the AFM (Air Flow Meter) Multiplug. Carefully unclip the cable from the AFM. Following this, disconnect the ECU (Engine Control Unit) and remove the air filter box and ECU as a single unit (see Fig 2).

Detach any remaining cables connected to the battery tray and remove the tray itself. Unclip the gear linkage clips (Fig 3), unbolt the associated bracket, and secure it safely to one side. Exercise caution if you need to remove the "C" clip retaining the cable to the bracket (Fig 4).

Unbolt the slave cylinder and its pipe support bracket, then stow them away safely. Now, it’s time to fit the engine support cradle. To do this, unbolt the steering column universal joint from within the car. Then, undo and remove the earth strap situated under the bonnet. With these steps completed, you can now fit the engine support cradle and proceed to unbolt the upper bell housing bolts. Undo the gearbox mount and its bracket to the gearbox. Disconnect the speedo multiplug before unbolting and removing the flywheel sensor.

Dismantling for Gearbox Removal

Remove the N/S/F (Near Side Front) inner wheel arch panel. Raise the vehicle to a comfortable working height and remove the undertray. After this, proceed to remove both front wheels. Undo the N/S and O/S (Off Side) lower ball joints and track rod ends, then release them. Remove the N/S and O/S driveshaft nuts, pull both hubs back (as shown in Fig 5), and then release both driveshafts.

Undo the N/S and O/S anti-roll bar link rods at the bottom. Subsequently, remove the centre bolts from the front and rear torque reaction mounts (Fig 6).

Remove the bumper steady brackets. Take out the exhaust rubber from the subframe and undo the subframe support brackets. While supporting the subframe, undo the four bolts and carefully remove it. As you lower the subframe, it will be necessary to gently tease the universal joint free of the steering rack (Fig 7).

Gearbox and Clutch Removal

Drain the gearbox oil, remembering to replace the drain plug afterwards. Remove the driveshafts and then the starter motor, which is typically held in place by bell housing bolts; support it safely. Unbolt the intercooler pipe from underneath the gearbox, disconnect the hose at the front, and allow it to hang clear of the working area. At the bottom of the bell housing, you'll find a cover with a hidden bolt beneath it; remove this cover and the bolt (Fig 8).

With the gearbox adequately supported, remove the remaining bell housing bolts. Carefully lower the gearbox to the ground. Once the gearbox is removed, inspect the bell housing for any debris, oil leaks, or contamination. It's also crucial to check the flywheel for any signs of heat stress or cracks. Address any issues you discover before proceeding with the new clutch installation.

Clutch Component Inspection and Preparation

When inspecting the removed clutch components, pay close attention to the driven plate. Clean the first motion shaft splines and check them thoroughly for wear. Apply a small amount of high melting point grease – avoid copper-based products – to the first motion shaft splines. Ensure that the new driven plate slides freely back and forth on these splines. This process not only helps to spread the grease evenly but also serves as a vital check to confirm you have the correct clutch kit.

After greasing, wipe off any excess grease from both the shaft and the driven plate hub. Using a universal alignment tool, and ensuring the driven plate is fitted the correct way around (note that "Getriebe Seite" is German for "Gearbox Side"), you can then bolt the new clutch to the flywheel. Tighten these bolts evenly and in a sequential pattern to ensure proper seating.

The release lever mechanism on the i30 is typically a ball pivot type. Inspect this lever for any signs of wear. Clean it thoroughly and lubricate it using only high melting point grease. Never use a copper-based anti-seize compound on this component. When installing the new release bearing, there's no need to lubricate the inner bore, as it usually features a plastic housing designed to run on a metal sleeve.

Refitting the Gearbox and Final Checks

Before you attempt to refit the gearbox, double-check that the locating dowels are correctly in place and are not damaged. If any dowels have become dislodged, refit them securely. Once the dowels are in order, you can proceed with refitting the gearbox. Ensure that the gearbox bell housing bolts are properly secured before you lower the transmission jack.

The refitting process is essentially the reverse of the removal procedure. Crucially, do not forget to refill the gearbox with the correct grade and quantity of oil as specified by the manufacturer. Always refer to your vehicle's service manual for the exact specifications.

Common Clutch Issues and Diagnosis

Several symptoms can indicate a failing clutch. These may include:

• Slipping Clutch: The engine revs increase, but the vehicle speed does not, especially under load. This is often due to a worn friction material on the clutch plate.
• Difficulty Changing Gears: Grinding noises or resistance when trying to engage a gear can point to issues with the hydraulic system, release bearing, or clutch plate not disengaging fully.
• Foul Smell: A burning smell, often described as acrid, can be a sign of the clutch plate overheating and slipping excessively.

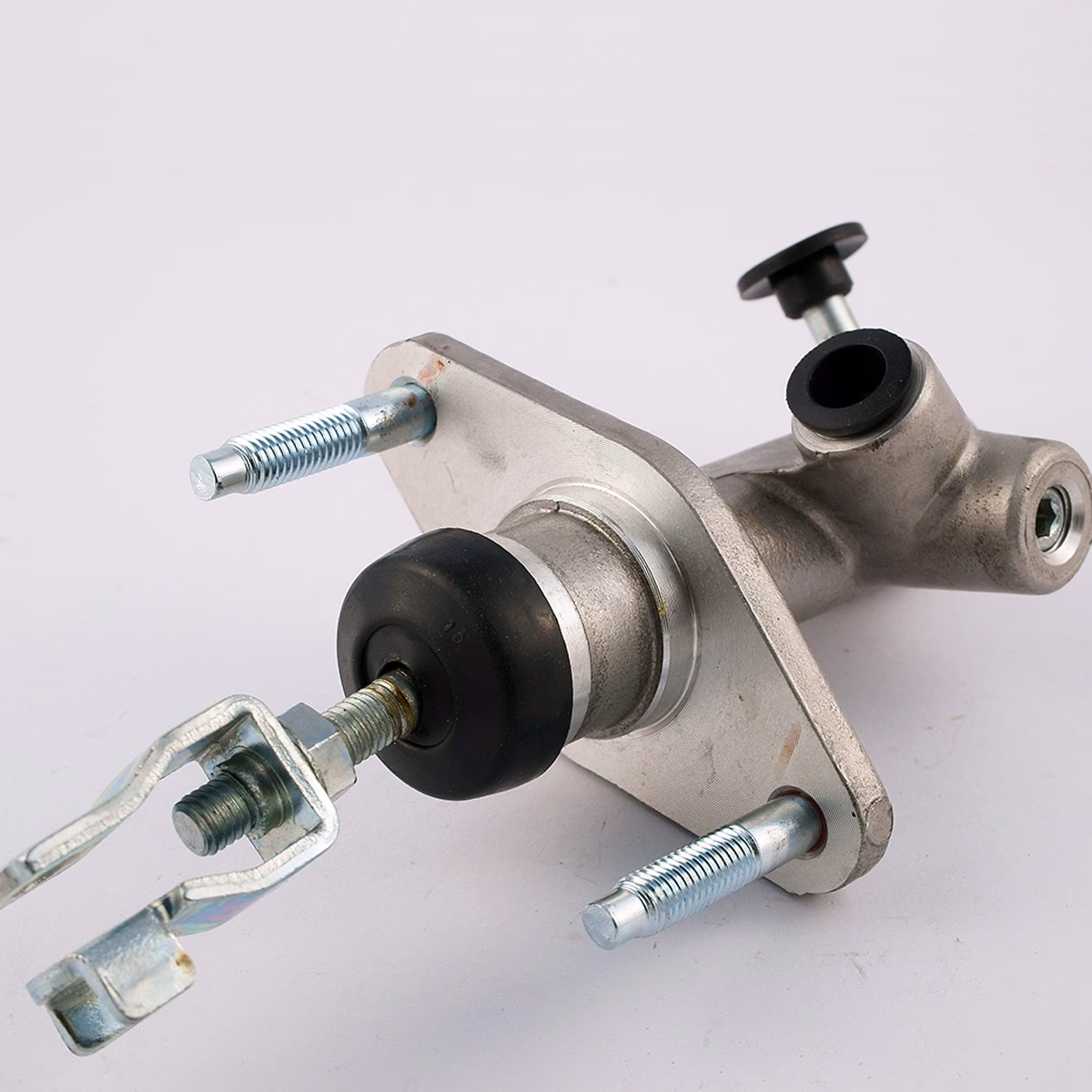

• Spongy or Low Clutch Pedal: This usually indicates a problem within the clutch hydraulic system, such as air in the lines or a leak in the master or slave cylinder.
• Clutch Judder: A vibration or shudder felt through the pedal or chassis when engaging the clutch can be caused by warped clutch plates, contaminated friction surfaces, or issues with the flywheel.

Tools and Parts Checklist

For a successful Hyundai i30 clutch replacement, ensure you have the following:

Frequently Asked Questions (FAQs)

Q1: How long does a clutch replacement typically take on a Hyundai i30?
On average, a clutch replacement can take between 4 to 8 hours, depending on the technician's experience and any unforeseen complications. Using a lift and the correct tools significantly speeds up the process.

Q2: Can I replace the clutch myself?
While it's possible for a skilled DIY mechanic with the right tools and a comprehensive service manual, it is a complex and physically demanding job. Incorrect installation can lead to premature failure or damage to other components. It's often recommended to have this work carried out by a professional mechanic.

Q3: What is the average lifespan of an i30 clutch?
The lifespan of a clutch can vary greatly depending on driving style and conditions. However, a typical clutch on a Hyundai i30 can last anywhere from 50,000 to 100,000 miles.

Q4: Do I need to replace the flywheel when replacing the clutch?
It's advisable to inspect the flywheel for signs of wear, heat scoring, or warping. If the flywheel is damaged or shows significant wear, it should be replaced or machined to ensure proper clutch operation and longevity.

Q5: What type of grease should I use for the splines and release lever?
Always use a high melting point grease specifically designed for clutch applications. Avoid copper-based anti-seize compounds, as they can cause issues with the clutch's operation and longevity.

By following this detailed guide, you should be well-equipped to understand the process of replacing the clutch on a Hyundai i30. Remember to always prioritise safety and consult your vehicle's specific service manual for the most accurate information.
