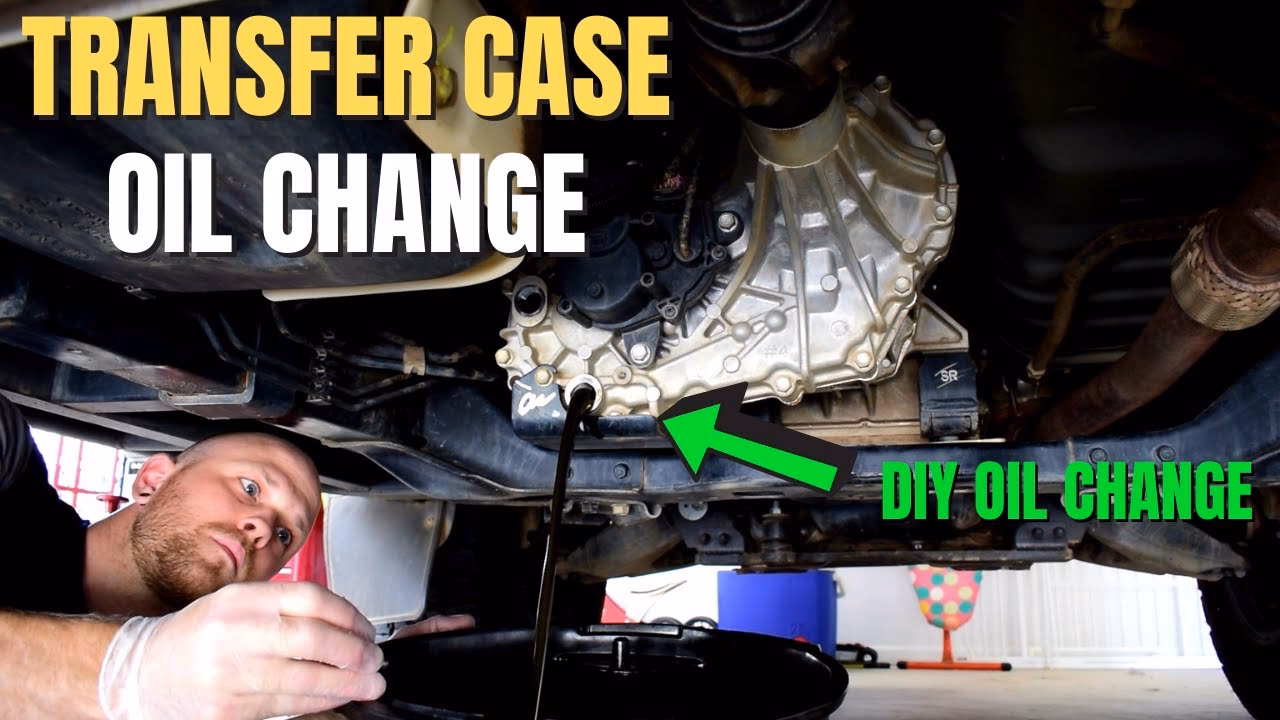

Transfer Case & Diff Fluid Guide

Navigating the world of automotive fluids can sometimes feel like deciphering an ancient script. With various components in your vehicle requiring specific lubricants, it's essential to get it right to ensure optimal performance and longevity. Today, we're diving deep into the often-overlooked, yet critically important, gear fluids for your transfer case and rear differential. You've located the drain and fill plugs, a significant first step, but the real question remains: which fluid is the correct one for these vital components? Let's break it down.

Understanding Your Vehicle's Drivetrain

Before we discuss fluids, it's important to understand the roles of the transfer case and rear differential. The transfer case, typically found in four-wheel-drive and all-wheel-drive vehicles, acts as a distribution box that directs engine power to the front and rear axles. The rear differential, on the other hand, allows the rear wheels to rotate at different speeds when turning, preventing tire scrub and improving handling. Both components are subjected to significant stress and require specialised lubrication to operate efficiently and prevent premature wear.

The Importance of Correct Gear Fluid

Using the wrong gear fluid can have detrimental effects on your drivetrain. Gear fluids are designed with specific additives to withstand the extreme pressures and temperatures experienced in these components. These additives include anti-wear agents, extreme pressure (EP) additives, and friction modifiers. The wrong fluid might not offer adequate protection, leading to increased wear, overheating, and potentially catastrophic failure. It's not just about viscosity; the chemical composition is paramount.

Choosing the Right Fluid: Transfer Case and Rear Differential

You've made an excellent choice with Valvoline SynPower Full Synthetic SAE 75W90 API GL-5 gear fluid for your transfer case and rear differential. This is a widely recognised and reputable synthetic gear oil that often meets the specifications required by many manufacturers, including Hyundai, as you've confirmed with your owner's manual. Let's look at why this is a good option and what the specifications mean:

SAE 75W90 Explained

The SAE (Society of Automotive Engineers) viscosity grade '75W90' tells us two key things:

• 75W: The 'W' stands for 'Winter'. This number indicates the fluid's viscosity at low temperatures. A lower number means the fluid is thinner and flows more easily in cold conditions, ensuring better lubrication during cold starts.
• 90: This number represents the fluid's viscosity at operating temperature (typically 100°C). A higher number indicates a thicker fluid, which provides a stronger lubricating film under high temperatures and heavy loads.

SAE 75W90 is a popular choice for many manual transmissions, transfer cases, and differentials because it offers a good balance of low-temperature flow and high-temperature protection.

API GL-5 Classification

The API (American Petroleum Institute) GL-5 classification is crucial for gear oils. It signifies that the fluid is formulated to handle the severe pressures and shock loads encountered in hypoid differentials, which are common in rear differentials. GL-5 fluids contain robust extreme pressure (EP) additives, typically sulphur-phosphorus compounds. These additives react with metal surfaces under high pressure, forming a protective film that prevents metal-to-metal contact and wear.

Why GL-5 is Important for Your Components

While your transfer case and rear differential might not be hypoid gears in the same way a rear axle is, the GL-5 specification generally provides superior protection for all gear sets under high load and shear. However, it's always wise to cross-reference your vehicle's owner's manual. Some manufacturers may specify GL-4 for certain components, particularly those with yellow metals (like brass or bronze synchronizers in manual transmissions), as certain EP additives in GL-5 can be corrosive to these materials. Given your confirmation that GL-5 is specified for your vehicle's transfer case and rear differential, you are on the right track.

Dry Double Clutch Transmission (DCT) Fluid: A Different Beast

Your mention of the DCT (Dual-Clutch Transmission) brings up an important distinction. DCTs, especially dry clutch types, often have very specific fluid requirements that differ significantly from traditional differentials and transfer cases. The service department's response, while unhelpful, highlights a common misconception. Many manufacturers do indeed market DCT fluid as 'lifetime' or 'service-free'. However, this is often a misnomer, and regular fluid changes can prevent premature wear and costly repairs.

Dry DCTs operate differently from wet DCTs (which use fluid for cooling and lubrication of the clutches). Dry clutches engage and disengage without being bathed in fluid. However, the gearbox components (gears, bearings, synchros) within the DCT still require lubrication, and the hydraulic systems that actuate the clutches and select gears need specific hydraulic fluids. These fluids are often not standard gear oils and may be a unique blend designed for the specific operating characteristics of the DCT.

Unfortunately, without knowing the specific make and model of your vehicle, it's impossible to recommend a precise DCT fluid. The information you're seeking might be found in a more detailed service manual or by consulting specialists who work specifically with your vehicle's transmission type. The resistance from the dealership service department is frustrating but not uncommon when dealing with less frequently serviced components or newer technologies.

Gathering the Necessary Parts

You're right to think about the associated parts. When performing a fluid change, it's good practice to replace the drain and fill plugs and their respective crush washers. These are typically made of softer metal and are designed to deform slightly to create a seal. Reusing old crush washers can lead to leaks. Your plan to visit the dealership parts department for these items is a sound one.

Key parts to check/replace:

• Transfer Case Drain Plug
• Transfer Case Fill Plug
• Rear Differential Drain Plug
• Rear Differential Fill Plug
• Crush washers for all plugs

Performing the Fluid Change: A Step-by-Step Overview

While this article focuses on fluid selection, a brief overview of the process is helpful:

1. Warm Up the Vehicle: Drive the vehicle for a short period to warm the fluids, making them easier to drain.
2. Safety First: Ensure the vehicle is securely supported on jack stands on a level surface. Never work under a vehicle supported only by a jack.
3. Locate Plugs: Identify the drain and fill plugs for both the transfer case and rear differential. The fill plug is usually higher than the drain plug.
4. Drain the Old Fluid: Place a suitable drain pan underneath the drain plug. Carefully remove the drain plug and allow the old fluid to drain completely.
5. Replace Drain Plug: Once drained, clean the drain plug and install a new crush washer. Reinstall the drain plug and tighten it to the manufacturer's specified torque.
6. Fill with New Fluid: Locate the fill plug. Using a fluid pump or a suitable funnel, fill the component with the correct type and amount of new gear fluid. The fluid level should typically be up to the bottom edge of the fill hole.
7. Replace Fill Plug: Install a new crush washer on the fill plug and reinstall it, tightening to the specified torque.
8. Clean Up: Wipe away any spilled fluid.
9. Check for Leaks: After a short drive, re-check the drain and fill plugs for any signs of leaks.

Common Pitfalls and Tips

• Overfilling: Overfilling can cause aeration of the fluid, leading to foaming and reduced lubrication, as well as potential seal damage.
• Underfilling: Insufficient fluid will lead to inadequate lubrication and overheating.
• Using the Wrong Fluid: As discussed, this is the most critical mistake. Always adhere to manufacturer specifications.
• Crush Washers: Don't forget to replace them!
• Torque Specifications: Over-tightening can strip threads, while under-tightening can lead to leaks. Consult a service manual for correct torque values.

Frequently Asked Questions

Q1: Can I use GL-4 fluid in my rear differential if GL-5 is specified?

A: Generally, no. While GL-4 fluids are suitable for some applications, GL-5 fluids offer enhanced protection against extreme pressure, which is often required for modern differentials. Using GL-4 where GL-5 is specified could lead to premature wear.

Q2: How often should I change the transfer case and rear differential fluid?

A: This depends heavily on your vehicle's make, model, and driving conditions. A good rule of thumb is to consult your owner's manual. For many vehicles, it's typically every 50,000 to 100,000 miles, or sooner if you frequently drive in harsh conditions (towing, off-roading, extreme temperatures).

Q3: Is synthetic gear oil better than conventional?

A: Yes, in most cases, synthetic gear oils like the Valvoline SynPower you've chosen offer superior performance. They provide better protection at extreme temperatures (both hot and cold), have a longer service life, and are more resistant to thermal breakdown.

Q4: What happens if I don't change my differential fluid?

A: Over time, gear oil breaks down, loses its lubricating properties, and can accumulate metal shavings and other contaminants. This leads to increased friction, heat, and wear on gears and bearings, eventually causing component failure.

Q5: Where can I find the exact fluid specification for my DCT?

A: The most reliable sources are your vehicle's owner's manual or a dedicated service manual. If the dealership is unhelpful, consider searching online forums specific to your car model or contacting a reputable independent specialist transmission shop.

Conclusion

Choosing the correct gear fluid is a critical aspect of maintaining your vehicle's drivetrain. Your selection of Valvoline SynPower Full Synthetic SAE 75W90 API GL-5 for your transfer case and rear differential appears to be an excellent choice, provided it aligns with your owner's manual specifications. Remember to always use new crush washers and torque components correctly. While the DCT fluid remains a separate and often more complex topic, understanding the basic requirements for your transfer case and rear differential is a significant step towards ensuring their longevity and your vehicle's reliable performance. Regular maintenance is key, and getting the fluids right is fundamental.
