When you're behind the wheel of your Hyundai i40, the braking system is arguably the most critical safety feature, quietly working to ensure you can stop reliably and safely in any situation. Far more complex than just a pedal and some friction, the i40's braking system integrates sophisticated hydraulic principles with advanced electronic aids to provide optimal stopping power and stability. Understanding how these intricate components work together isn't just for mechanics; it empowers you, the driver, to recognise potential issues, appreciate the technology, and ensure your vehicle remains in top condition for the road ahead.
The journey from pressing the brake pedal to your i40 coming to a complete halt involves a seamless orchestration of mechanical and electronic parts. This article will delve into the core mechanics, explore the vital electronic enhancements, discuss common issues you might encounter, and provide crucial maintenance advice to keep your i40's brakes performing at their peak, offering you peace of mind with every journey.
The Core of i40 Braking: Hydraulic Power
At the heart of any modern vehicle's braking system, including the Hyundai i40, lies a sophisticated hydraulic mechanism. This system efficiently converts the force from your foot on the brake pedal into immense pressure that can slow down or stop a moving car. It's a testament to the power of fluid dynamics.
The Master Cylinder: The Pressure Generator
When you depress the brake pedal, it pushes a rod that acts on the pistons inside the master cylinder. This component, typically mounted on the firewall in the engine bay, contains one or more reservoirs for brake fluid. As the pistons move, they force brake fluid under high pressure through a network of brake lines to each wheel. The master cylinder is designed with two separate circuits for safety – one for the front wheels and one for the rear – ensuring that if one circuit fails, you still have some braking capability.
Brake Fluid: The Unsung Hero
Brake fluid is a non-compressible hydraulic fluid that transmits the force from the master cylinder to the brake calipers and wheel cylinders. Its non-compressible nature is key to the system's efficiency. The i40 typically uses DOT 4 brake fluid, known for its high boiling point, which is crucial because braking generates significant heat. Over time, brake fluid can absorb moisture from the atmosphere, lowering its boiling point and potentially leading to a 'spongy' pedal feel, especially under heavy braking, as the water turns to vapour. Regular replacement is vital for maintaining braking performance and preventing internal corrosion.
Brake Lines and Hoses: The Pathways
From the master cylinder, rigid steel brake lines run along the chassis, leading to each wheel. Near the wheels, these rigid lines connect to flexible rubber hoses. These hoses are necessary because the wheels move up and down with the suspension, and a rigid line would quickly fracture. Despite their flexibility, these hoses are incredibly strong, designed to withstand the high pressures of the braking system. However, they can degrade over time due to exposure to road debris, heat, and chemicals, leading to cracks or bulging, which can compromise braking efficiency.
The Stopping Force: Discs, Pads, and Calipers
Once the hydraulic pressure reaches the wheels, it's converted into friction to slow the vehicle. This is where the brake discs, pads, and calipers come into play.
Brake Discs (Rotors): The Friction Surface
Mounted to the wheel hub, the brake discs (often called rotors in other regions) are large, circular metal plates that rotate with the wheel. When you apply the brakes, the brake pads clamp down on these discs, creating friction that slows the wheel's rotation. The i40 typically uses vented discs on the front axle, which have a channel between two disc surfaces to allow air circulation, aiding in heat dissipation. Solid discs are often used on the rear, as less braking force is generally applied there. Discs wear down over time and can warp if subjected to extreme heat or improper cooling, leading to a pulsating sensation through the brake pedal.
Brake Pads: The Friction Material

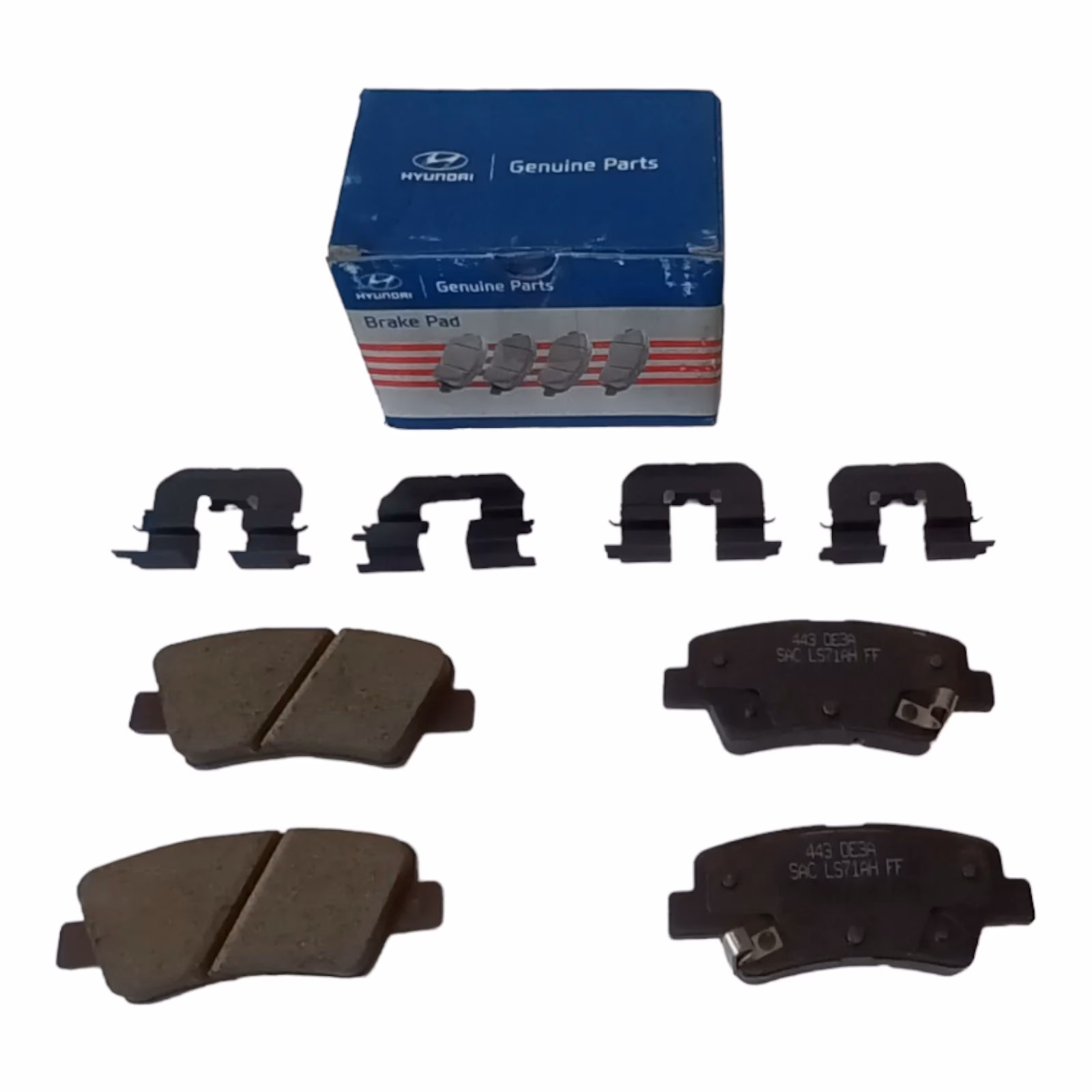

Brake pads are the sacrificial components designed to rub against the brake discs. They consist of a steel backing plate with a layer of friction material. The i40 uses disc brakes on all four wheels. There are various types of friction materials, including organic, semi-metallic, and ceramic. Each offers different characteristics regarding noise, dust, wear, and performance. Most modern pads incorporate a wear indicator, which is a small metal tab that squeals loudly when the pads are nearing the end of their lifespan, alerting the driver it's time for replacement. Ignoring this warning can lead to metal-on-metal contact, severely damaging the brake discs.
Brake Calipers: The Clamping Mechanism
The brake calipers are the assemblies that house the brake pads and the pistons that push them against the discs. When brake fluid pressure enters the caliper, it forces the piston(s) outwards, pressing the brake pads against the spinning disc. The i40 primarily uses 'floating' calipers, which slide on guide pins, allowing the pads to apply even pressure to both sides of the disc. Maintaining these guide pins, ensuring they are clean and well-lubricated, is crucial for smooth and even braking.
Advanced Braking Technologies for Enhanced Safety
Beyond the fundamental hydraulic and mechanical components, the Hyundai i40 incorporates several electronic systems that significantly enhance braking performance and vehicle stability, particularly in challenging driving conditions.
Anti-lock Braking System (ABS): Preventing Skids
The ABS is a groundbreaking safety feature that prevents the wheels from locking up during hard braking. If a wheel locks, the tyre loses traction and the vehicle can skid out of control. ABS works by rapidly pulsing the brake pressure to each wheel independently, allowing the wheel to continue rotating just enough to maintain traction. This is achieved through wheel speed sensors at each wheel, an ABS control module, and a hydraulic control unit. When ABS activates, you'll often feel a pulsating sensation through the brake pedal and hear a grinding noise – this is completely normal and indicates the system is working effectively.
Electronic Brake-force Distribution (EBD): Optimising Force
EBD works in conjunction with ABS to optimise the braking force applied to each wheel. It monitors wheel speeds and adjusts the braking pressure to each wheel individually, ensuring that the maximum braking force is applied without causing a lock-up. For example, during hard braking, weight shifts forward, meaning the front wheels can handle more braking force. EBD intelligently distributes more pressure to the front and less to the rear, preventing the rear wheels from locking prematurely, especially under varying load conditions or during cornering.
Brake Assist System (BAS): Emergency Response
The BAS is designed to help drivers achieve maximum braking power in emergency situations. Studies have shown that many drivers do not apply full braking force during a panic stop. BAS detects rapid brake pedal application and, if it senses an emergency braking scenario, it automatically applies the full braking force available, even if the driver's pedal pressure isn't sufficient. This can significantly reduce stopping distances and is a critical feature for collision avoidance.
Electronic Stability Control (ESC) / Vehicle Stability Management (VSM)
While not purely a braking system, ESC (also known as VSM in Hyundai vehicles) heavily relies on the braking system. It monitors steering angle, wheel speed, and vehicle yaw to detect if the car is losing control (e.g., skidding or oversteering/understeering). If instability is detected, ESC selectively applies individual brakes and/or reduces engine power to help bring the vehicle back under control. This proactive intervention often utilises the same hydraulic control unit as ABS and EBD.
Parking Brake: Securing the Vehicle
The Hyundai i40 typically features an electronic parking brake (EPB). Instead of a traditional cable-operated lever, a button activates electric motors at the rear calipers to apply the brakes. This system often incorporates an 'auto-hold' function, which can automatically engage the parking brake when the vehicle comes to a stop and release it when you accelerate, making stop-start traffic easier.
Understanding Common Hyundai i40 Brake Issues
Even with advanced systems, brake components are subject to wear and tear. Recognising common symptoms can help you address issues promptly and prevent more serious problems.
- Squealing/Grinding Noises: A high-pitched squeal often indicates worn brake pads, as the wear indicator tab is rubbing against the disc. A grinding noise, however, is far more serious, suggesting metal-on-metal contact due to completely worn pads, which can rapidly damage the brake discs and calipers.
- Vibration/Pulsation: If you feel a pulsation or vibration through the brake pedal, especially under moderate braking, it's a strong indicator of warped brake discs. Uneven heating and cooling can cause discs to deform, leading to an inconsistent braking surface.
- Soft/Spongy Pedal: A brake pedal that feels soft, goes almost to the floor, or requires excessive pumping to build pressure often points to air in the brake lines, a low brake fluid level, or a failing master cylinder. This is a critical safety concern and requires immediate attention.
- Pulling to One Side: If your i40 pulls to one side when braking, it usually means uneven braking force. This could be due to a stuck caliper (where one caliper isn't releasing or applying properly), unevenly worn pads on one side, or a blockage in a brake line preventing fluid flow to a specific wheel.
- Brake Warning Light: The illuminated brake warning light on your dashboard can indicate a variety of issues, including low brake fluid, a fault with the ABS system, or issues with the parking brake. Never ignore this light; it signals a potential compromise to your vehicle's braking capability.
Essential Maintenance for Your i40's Brakes
Regular maintenance is paramount to ensuring your Hyundai i40's braking system operates reliably and efficiently. Proactive care can save you money in the long run and, more importantly, ensure your safety.
- Regular Inspections: Have your brakes inspected at every service interval, or at least once a year. A qualified technician will check brake pad thickness, disc condition, brake fluid level and condition, and inspect brake lines and hoses for any signs of wear or damage.
- Brake Fluid Replacement: Hyundai recommends replacing brake fluid every two years or 30,000 miles, whichever comes first. This prevents moisture contamination and maintains the fluid's high boiling point, ensuring consistent pedal feel and preventing internal corrosion of components like the ABS pump.
- Brake Pad and Disc Replacement: Replace brake pads when they reach their minimum thickness (typically around 3mm-4mm, but check your owner's manual for exact specifications). It's often recommended to replace brake discs at the same time as pads, especially if the discs are worn close to their minimum thickness or show signs of warping. Always replace pads and discs in pairs on the same axle (e.g., both front wheels).
- Caliper Maintenance: During pad and disc replacement, ensure the caliper guide pins are cleaned and re-lubricated. This allows the caliper to float freely and apply even pressure, preventing uneven pad wear and sticking.
Comparative Table: Brake Pad Material Types
| Pad Type | Pros | Cons | Typical Use |
|---|---|---|---|
| Organic (NAO) | Quiet, less harsh on discs, good initial bite. | Higher dust, shorter lifespan, lower high-temp performance. | Standard daily driving, less aggressive use. |
| Semi-Metallic | Good stopping power, durable, effective at higher temps. | Can be noisier, more brake dust, harder on discs. | Everyday driving, some performance applications. |
| Ceramic | Very low dust, quiet, long-lasting, excellent high-temp stability. | More expensive, can be less effective when cold. | Premium vehicles, drivers seeking cleanliness and quiet. |
Frequently Asked Questions (FAQs)
- How often should I replace brake pads on my Hyundai i40?
- Brake pad lifespan varies greatly depending on driving style and conditions. On average, front pads might last 20,000-40,000 miles, while rear pads can last longer, often 40,000-60,000 miles. Always refer to your vehicle's service schedule and have them inspected regularly.
- Can I replace just brake pads, or do I need new discs too?
- While you can sometimes replace just the pads, it's often recommended to replace discs at the same time, especially if they are close to their minimum thickness or show signs of warping. New pads on worn or warped discs will not perform optimally and may wear out prematurely.
- What type of brake fluid should I use for my i40?
- Your Hyundai i40 typically requires DOT 4 brake fluid. Always check your owner's manual or the cap on the master cylinder reservoir to confirm the correct specification. Mixing different types of brake fluid is generally not recommended.
- Is it safe to drive with the brake warning light on?
- No, it is not safe. The brake warning light indicates a serious issue with your braking system, such as critically low fluid level, a fault in the ABS system, or a parking brake issue. You should have your vehicle inspected by a qualified mechanic immediately.
- What's the difference between ABS and EBD?
- ABS (Anti-lock Braking System) prevents wheels from locking up during hard braking, allowing you to maintain steering control. EBD (Electronic Brake-force Distribution) works with ABS to intelligently distribute braking force to each wheel, optimising stopping power and stability, especially during uneven load distribution or hard braking.
The braking system on your Hyundai i40 is a complex yet highly reliable network of components designed with one primary goal: to ensure your safety and the safety of others on the road. From the fundamental hydraulic principles that generate the stopping force to the sophisticated electronic systems that enhance control and stability, every part plays a crucial role. Understanding these elements, coupled with diligent maintenance, is key to preserving your i40's performance and, most importantly, your peace of mind behind the wheel. Always prioritise brake health; it's an investment in your safety that pays dividends every time you drive.
