The ability of your vehicle to stop safely and effectively is paramount to your safety and the safety of others on the road. At the heart of this critical function are two components that work in tandem: the brake pads and the brake discs (also known as rotors). Understanding what these parts are, how they operate, and why their maintenance is so vital can empower you to make informed decisions about your car's upkeep. This guide will delve into the intricacies of brake pads and discs, explaining their purpose, the science behind their operation, common issues, and essential maintenance practices.

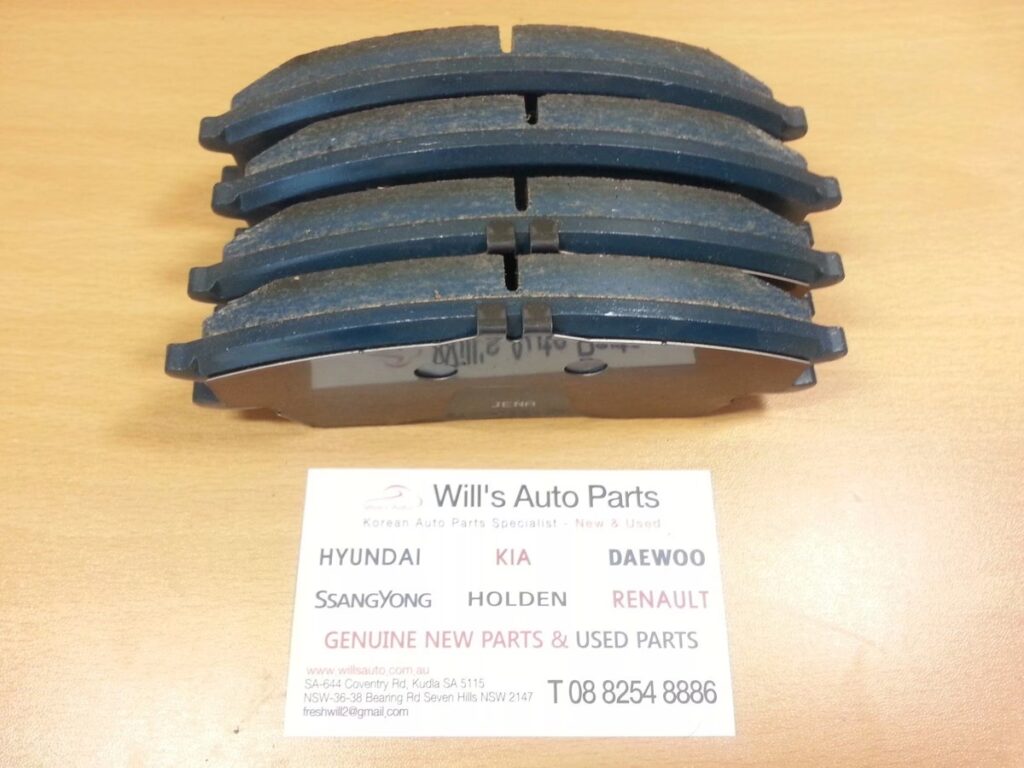

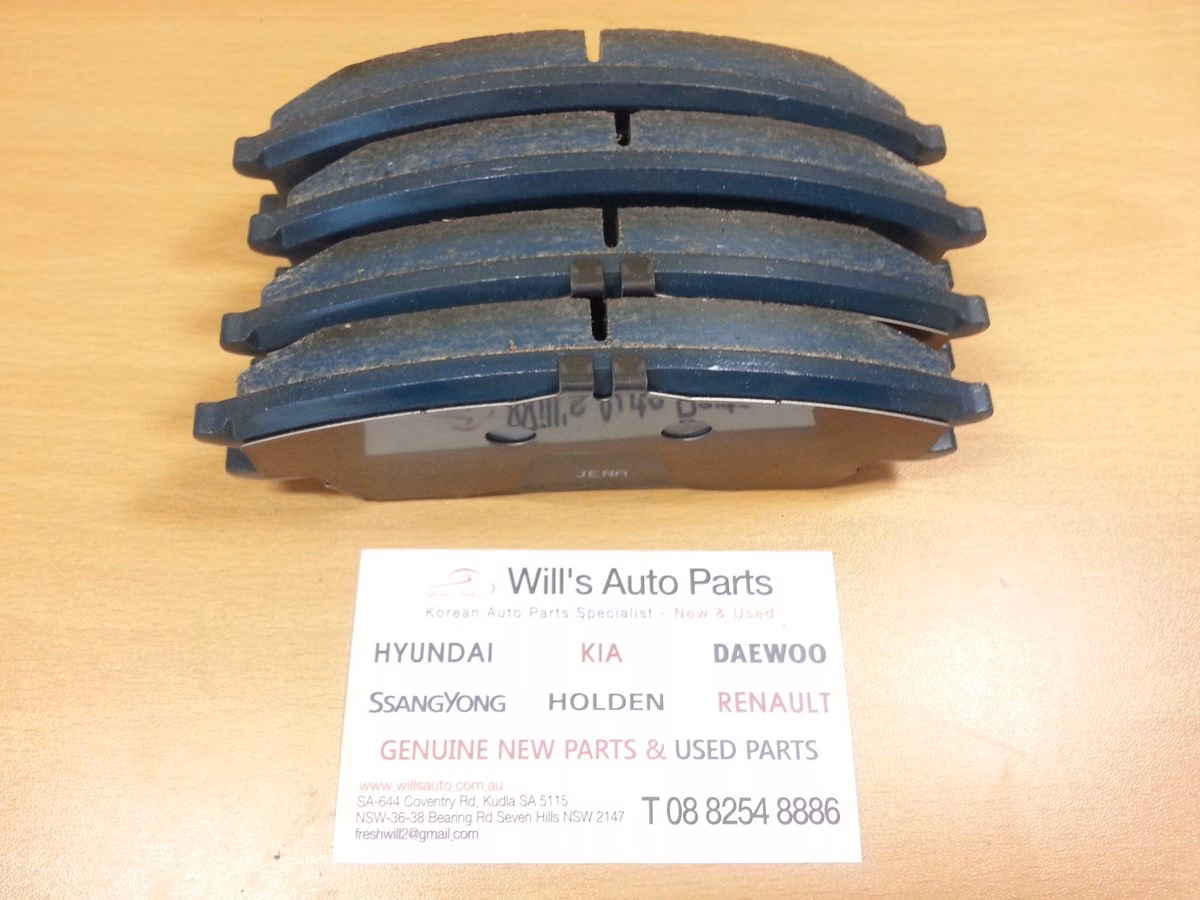

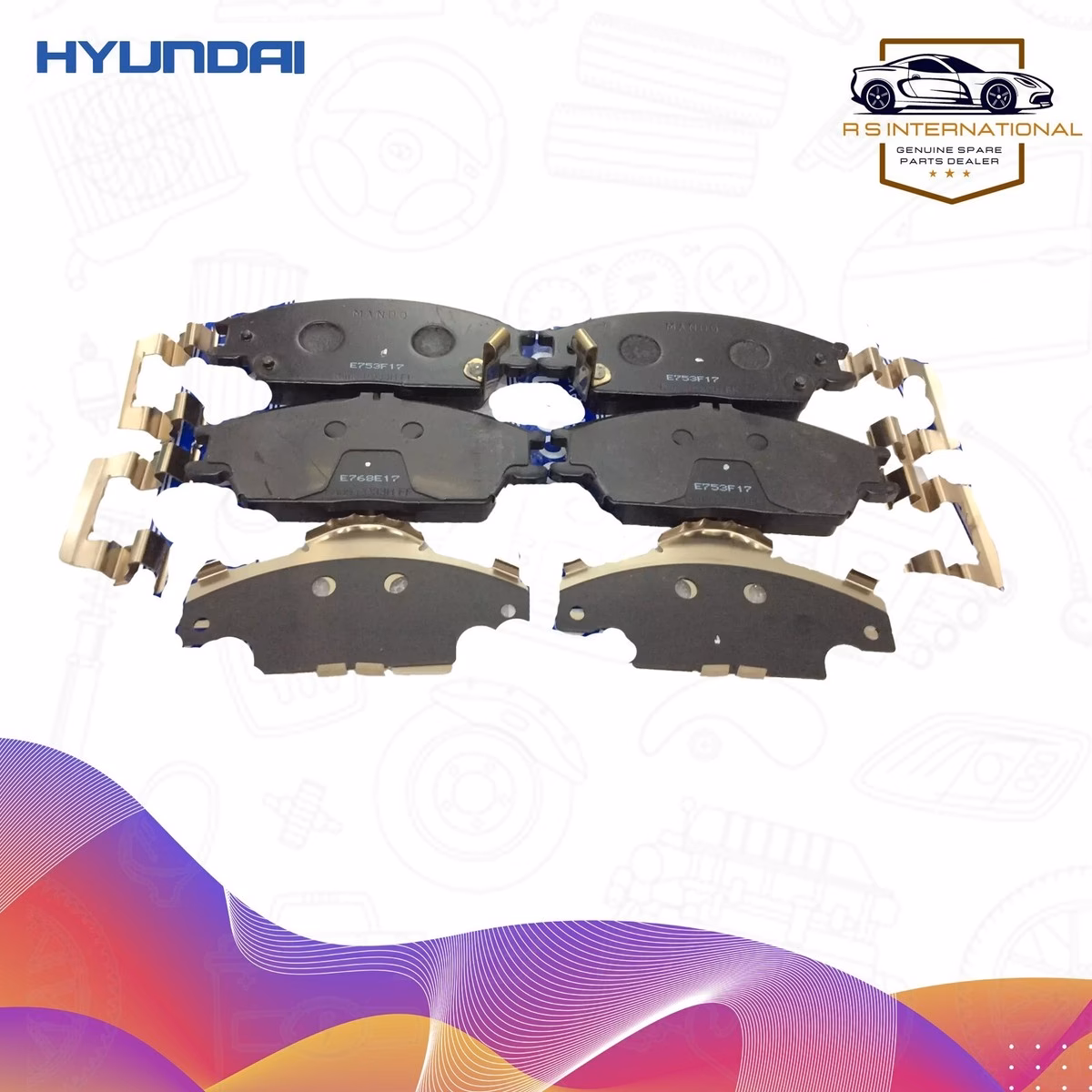

What Exactly Are Brake Pads?
Brake pads are essentially the friction material that makes contact with the brake disc. They are typically composed of a steel backing plate and a friction material bonded to one side. This friction material is a carefully engineered compound, often a blend of metallic fibres, organic compounds, and ceramic materials. The specific composition varies depending on the intended use of the vehicle and the desired performance characteristics, such as stopping power, noise reduction, and dust generation. When you press the brake pedal, hydraulic pressure forces the brake caliper to squeeze the pads against the spinning brake disc, creating the friction needed to slow down or stop the vehicle.
The Role of Brake Discs (Rotors)
Brake discs, or rotors, are the circular metal plates that rotate with the wheel. They are usually made from cast iron or, in high-performance vehicles, from more advanced materials like carbon-ceramic composites. The disc is the surface against which the brake pads press. The heat generated by the friction between the pads and the disc is dissipated through the metal of the disc, helping to prevent overheating and brake fade. Most modern vehicles use vented discs, which have internal vanes to improve airflow and enhance cooling. The condition of the brake disc is as crucial as the condition of the pads; a worn or damaged disc can significantly impair braking performance and even lead to dangerous situations.
How Do They Work Together?
The braking system operates on a simple yet effective principle of friction. Here's a step-by-step breakdown:
- Pedal Application: When you press the brake pedal, you activate the master cylinder, which converts your foot pressure into hydraulic pressure.
- Hydraulic Force: This hydraulic pressure is transmitted through brake fluid in the brake lines to the brake calipers.
- Caliper Action: The brake caliper houses one or more pistons. The hydraulic pressure forces these pistons to extend.
- Pad Engagement: As the pistons extend, they push the brake pads against the surfaces of the rotating brake discs.
- Friction and Heat: The intense friction generated between the pads and the discs converts the kinetic energy of the moving vehicle into heat energy, slowing the rotation of the wheels and thus the vehicle.
- Heat Dissipation: The heat generated is then dissipated into the surrounding air, often aided by the design of the brake discs (e.g., vented rotors).
This entire process happens in milliseconds, providing you with the immediate stopping power you rely on every day. It's a testament to the ingenious engineering that goes into even the most common automotive components.
When Should You Replace Brake Pads and Discs?
Brake pads and discs are wear items, meaning they gradually degrade with use. Knowing the signs of wear and the recommended replacement intervals is crucial for maintaining optimal braking performance and safety. Here are the key indicators:
Signs of Worn Brake Pads:
- Squealing or Grinding Noises: Most brake pads have a small metal indicator tab that makes a high-pitched squealing sound when the pad material is worn down to a critical level. A grinding noise often indicates that the pad material has completely worn away, and the metal backing plate is grinding against the disc – this is serious and requires immediate attention to prevent severe damage to the discs.
- Reduced Braking Performance: If you notice that your car takes longer to stop, or the brake pedal feels softer or travels further to the floor, it could be due to worn pads.
- Brake Warning Light: Many modern vehicles have sensors that detect when brake pads are worn and will illuminate a warning light on the dashboard.
- Vibrations: While vibrations can be caused by other issues, severely worn or unevenly worn brake pads can sometimes contribute to pulsing sensations in the brake pedal during application.
Signs of Worn Brake Discs:
- Grooves or Scoring: Inspect the surface of the brake disc. If you see visible grooves, scoring, or an uneven surface, the disc may need replacing.
- Thinning: Brake discs have a minimum thickness specification. If the disc appears very thin or has reached its minimum thickness, it must be replaced. This can be checked by a mechanic.
- Cracks: Any visible cracks on the surface of the brake disc are a serious safety hazard and necessitate immediate replacement.
- Blueing or Discolouration: Overheating can cause the brake discs to turn blue or show discoloured patches, indicating that they have been subjected to excessive heat and may have lost their structural integrity.
- Pulsating Brake Pedal: A pulsating brake pedal, especially when applying the brakes, is often a sign of a warped brake disc, usually caused by excessive heat.
Replacement Intervals:
There isn't a universal mileage for replacing brake pads and discs, as it depends heavily on driving style, vehicle weight, and environmental conditions. However, as a general guideline:
- Brake Pads: Typically need replacing every 20,000 to 50,000 miles (30,000 to 80,000 km).
- Brake Discs: Often replaced along with the brake pads, or sometimes after two sets of pads, depending on their condition and wear rate. They can last anywhere from 50,000 to 100,000 miles (80,000 to 160,000 km), provided they are properly maintained and not subjected to excessive abuse.
It is always best to have your brakes inspected regularly by a qualified mechanic. They can assess the condition of both the pads and discs and advise on the appropriate time for replacement.
Brake Pad and Disc Materials: A Comparison
The material composition of brake pads significantly impacts their performance. Here's a look at the most common types:
| Material Type | Characteristics | Pros | Cons |
|---|---|---|---|
| Organic (Non-Asbestos Organic - NAO) | Made from a blend of natural fibres like rubber, glass, and Kevlar, bonded with resins. | Quiet operation, comfortable pedal feel, less aggressive wear on discs, generally affordable. | Shorter lifespan, can produce more dust, less effective in high-performance or extreme braking situations, can fade under heavy use. |
| Semi-Metallic | Contain 30-65% metallic components (e.g., steel wool, copper, iron) mixed with fillers and binders. | Good heat dissipation, durable, better stopping power than organic, good all-round performance. | Can be noisier than organic, produce more brake dust (often metallic), can wear discs faster than organic pads. |
| Metallic (High-Metallic) | Primarily composed of metals, often with less than 30% organic material. | Excellent heat dissipation and stopping power, very durable, perform well under heavy loads and high temperatures. | Can be very noisy, produce significant dark brake dust, aggressive wear on discs, can be less comfortable in terms of pedal feel. |
| Ceramic | Made from ceramic fibres, non-ferrous fillers (like copper fibres), and bonding agents. | Very quiet operation, minimal brake dust (often lighter in colour), consistent performance across a wide temperature range, gentle on discs, long lifespan. | Can be more expensive, may offer slightly less initial bite compared to some metallic pads, performance can vary with specific formulations. |
The choice of brake pad material depends on your driving needs. For everyday commuting, organic or ceramic pads are often ideal. For those who drive more aggressively, tow heavy loads, or frequently encounter demanding driving conditions, semi-metallic or high-metallic pads might be a better choice, albeit with potential trade-offs in noise and dust.
Maintenance and Care
Proper maintenance of your brake pads and discs is essential for longevity and safety. Here are some key practices:
- Regular Inspections: Have your brakes inspected by a professional at every service interval, or at least once a year. This allows for early detection of wear or damage.
- Keep Them Clean: While you can't directly clean brake components without disassembling the wheel, avoiding driving through deep puddles or excessive mud can help prevent premature wear and corrosion.
- Avoid Harsh Braking When Cold: If possible, avoid sudden, hard braking immediately after starting a journey, especially in cold weather. Allow the brakes to warm up gently.
- Don't Ignore Warning Signs: As mentioned earlier, any unusual noises, vibrations, or changes in braking performance should be investigated immediately.
- Use Quality Replacement Parts: When it's time for replacement, opt for high-quality brake pads and discs from reputable manufacturers. Cheap, unbranded parts may compromise safety and performance.
- Replace in Pairs: Always replace brake pads and discs on the same axle (both front or both rear) to ensure even braking distribution. If you replace just one pad or disc, it can lead to uneven braking and potential instability.
Common Issues and Troubleshooting
Even with regular maintenance, brake systems can encounter problems. Here are some common issues:
- Brake Fade: This is a temporary loss of braking power, usually caused by overheating. It's common during prolonged downhill braking or aggressive driving. Ensuring your discs are in good condition and using appropriate pad materials can help mitigate this.
- Brake Judder: A pulsating sensation felt in the brake pedal and steering wheel when braking. This is often caused by uneven wear or warping of the brake discs.
- Sticking Caliper: If a brake caliper sticks, it can cause the brake pad to remain in contact with the disc, leading to excessive heat, premature wear, and a pulling sensation when driving.
- Leaking Brake Fluid: Brake fluid leaks can compromise the entire hydraulic system, leading to a spongy pedal and significantly reduced braking ability. This requires immediate professional attention.
Frequently Asked Questions (FAQs)
Q1: Can I just replace the brake pads and not the discs?
A1: It depends on the condition of the discs. If the discs are still within their minimum thickness specification, have a smooth surface, and are not warped or grooved, you may be able to replace just the pads. However, new pads on worn discs may not perform optimally and can wear out the new pads faster. It's generally recommended to replace pads and discs together if the discs show significant wear.
Q2: How long do brake pads typically last?
A2: Brake pad lifespan varies greatly, but a common range is between 20,000 and 50,000 miles. Driving habits (aggressive vs. gentle braking), the type of pads used, and vehicle weight all play a significant role.
Q3: What does it mean if my brake pedal feels soft or spongy?
A3: A soft or spongy brake pedal often indicates that there is air in the brake fluid lines or a leak in the hydraulic system. This needs to be checked by a qualified mechanic immediately as it severely compromises your braking ability.
Q4: Is it safe to drive with worn brake pads?
A4: No, it is not safe to drive with significantly worn brake pads. It will reduce your vehicle's stopping power, increase stopping distances, and can lead to more expensive damage to the brake discs and other components.
Q5: Why do my brakes squeal?
A5: Squealing can be caused by several factors: worn pads (due to the wear indicator), glazed pads or discs, loose components, or simply due to the material composition of the pads, especially when cold.
In conclusion, your brake pads and discs are fundamental to your vehicle's safety. Regular inspections, understanding the signs of wear, and using quality replacement parts are key to ensuring your braking system functions at its best. Never compromise on brake maintenance; your life and the lives of others depend on it. If in doubt, always consult a professional mechanic.
