Hyundai's Smartstream Engine Innovations

Hyundai's Smartstream Engine Innovations: A Deep Dive

In the pursuit of automotive excellence, Hyundai Motor Group has consistently demonstrated a commitment to pushing the boundaries of powertrain development. Their "Smartstream" brand signifies a forward-thinking approach, encompassing a suite of advanced technologies designed to elevate vehicle performance, fuel efficiency, and environmental responsibility. This article delves into the core components of the Smartstream lineup, exploring innovations like Continuously Variable Valve Duration (CVVD), advanced intercooling, and sophisticated fuel injection systems, all aimed at delivering a superior driving experience.

The Evolution of Powertrain Design

Historically, automotive performance was primarily judged by speed and power. However, modern drivers demand a more holistic approach, valuing not only a car's ability to perform but also its eco-friendliness, fuel economy, and overall comfort. Hyundai's Smartstream initiative is a direct response to these evolving expectations. Recognising that internal combustion engine (ICE) technology, while mature, still holds significant potential for refinement, Hyundai embarked on a journey to re-evaluate and optimise every facet of engine design, from the smallest components upwards. This philosophy of "many small improvements leading to large changes" underpins the Smartstream philosophy.

Smartstream: A Next-Generation Powertrain

Smartstream represents Hyundai's vision for the future of mobility, preparing for an era where Hybrid-Electric Vehicles (HEVs) and Plug-in Hybrid Electric Vehicles (PHEVs) will become mainstream. Crucially, it acknowledges that these advancements will still rely on traditional internal combustion engines. Therefore, Smartstream R&D encompasses continuous improvement of existing ICE technologies. The "Smart" aspect refers to the technological objectives – saving fuel, enhancing performance, and reducing emissions – while "Stream" refers to the critical flow of air and fuel into the engine, culminating in the power delivered to the wheels.

Continuously Variable Valve Duration (CVVD): Precision Airflow Control

The core of any gasoline engine's power generation lies in controlling the air intake. The precise mixing of air and fuel dictates the combustion process. While fuel injection is vital, the amount of air dictates how much fuel can be efficiently burned. The four-stroke cycle (intake, compression, combustion, exhaust) relies heavily on the precise timing and duration of valve openings and closings. Historically, valve timing has been a critical factor. Early advancements like Porsche's Variocam and the widely adopted Continuously Variable Valve Timing (CVVT) have allowed for adjustments to when valves open and close. However, CVVT has limitations; it can alter the timing but not the duration for which a valve remains open, as this is dictated by the fixed shape of the camshaft. This often leads to a compromise in engine design, prioritising either performance or economy.

Hyundai's CVVD (Continuously Variable Valve Duration) technology offers a breakthrough solution. Instead of altering the camshaft's shape, CVVD adjusts the speed at which the camshaft passes the valve. A slower cam keeps the valve open longer, while a faster cam closes it sooner. This allows for independent control over valve opening and closing times, as well as the duration. When combined with CVVT, CVVD offers unparalleled flexibility. For instance, during normal driving, the intake valve can remain open longer into the compression stroke, reducing pumping losses. During acceleration, the intake valve can close sooner to maximise air intake, boosting power output. This technology has demonstrated tangible benefits, with a reported 4% increase in power and a 5% improvement in fuel economy, alongside a reduction in gas emissions exceeding 12% due to earlier catalyst activation.

Key Benefits of CVVD:

Models featuring CVVD include the Smartstream G1.6 T-GDi and G1.0 T-GDi.

Water-Cooled Intercooler: Efficient Air Cooling

Turbochargers significantly enhance engine performance by forcing more air into the cylinders. However, this compression process increases air temperature, which in turn reduces air density and engine efficiency. Intercoolers are used to cool this compressed air. While air-cooled intercoolers are common, they often involve routing the air through a lengthy path to a front-mounted fan, leading to "turbo lag" – a delay in acceleration. Furthermore, air cooling has inherent limitations in effectiveness.

Hyundai's water-cooled intercooler offers a more efficient solution. By placing the intercooler closer to the engine, it drastically reduces the distance compressed air travels, minimising turbo lag and improving throttle response. The use of water for cooling provides superior heat dissipation compared to air, ensuring more stable acceleration even under demanding conditions like high ambient temperatures or thin air at high altitudes. This direct and effective cooling contributes to maintaining optimal air density for combustion.

Models equipped with water-cooled intercoolers include the Smartstream G2.5 FR T-GDi and G3.5 FR T-GDi.

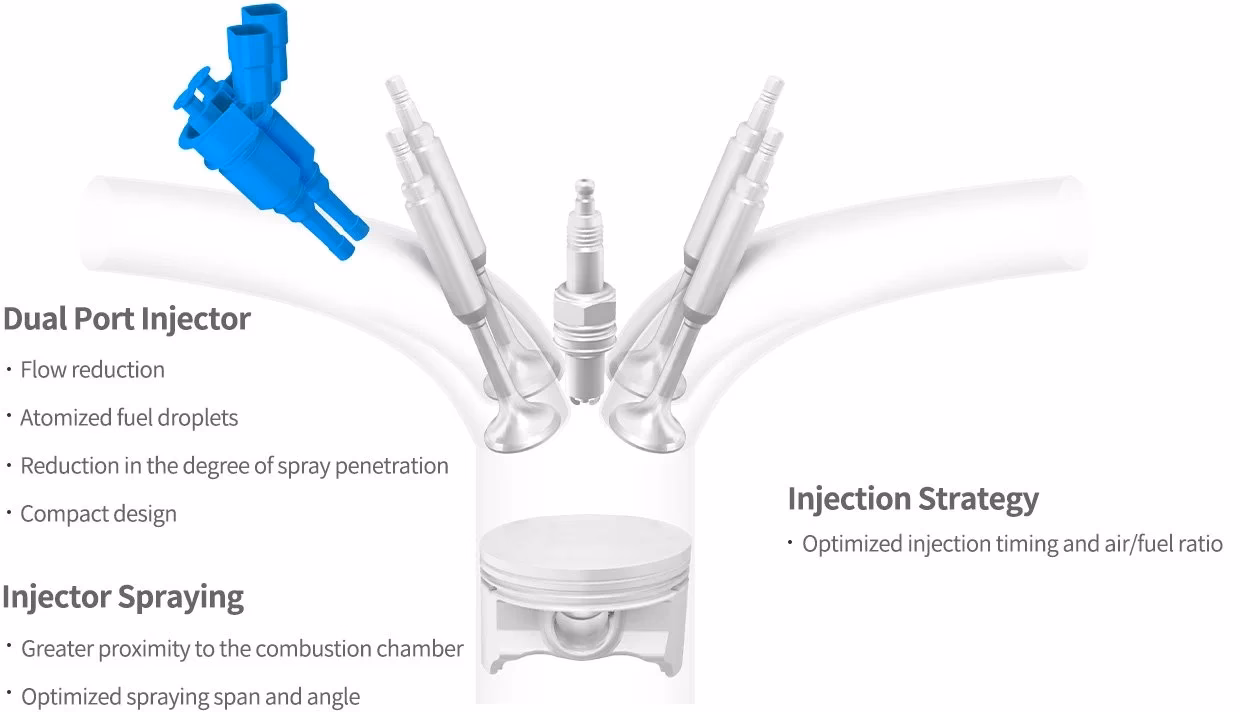

Dual-Port Fuel Injection (DPFI): Optimised Air-Fuel Mixture

Effective fuel injection is paramount for achieving optimal combustion, fuel economy, and reduced emissions. DPFI is an innovative approach that uses two injectors per intake port. This dual-injector setup ensures a more stable air-fuel ratio within the intake manifold. The benefits are twofold: improved fuel economy and a better Exhaust Gas Recirculation (EGR) ratio. Additionally, the finer atomisation of fuel droplets provided by DPFI reduces fuel spray evaporation, leading to a significant reduction in harmful particulate matter (PM) emissions.

Models featuring DPFI include the Smartstream G1.0, G1.2, and 1.6.

Dual Fuel Injection + Center Injection: The Best of Both Worlds

Hyundai's Smartstream platform also incorporates advanced direct injection technologies, namely Gasoline Direct Injection (GDi) and Multi-Point Injection (MPi). GDi injects fuel directly into the cylinder, offering high power and fuel efficiency at low loads but can be prone to noise and higher PM emissions. MPi injects fuel into the intake port, resulting in a quieter operation but generally lower power and efficiency compared to GDi.

Hyundai's Dual Fuel Injection system ingeniously combines both GDi and MPi injectors for each cylinder. For everyday, low-to-mid speed driving, the MPi injector is utilised for its smooth operation and fuel economy. During high-speed driving, the GDi injector takes over to maximise power output. This adaptive approach optimises fuel delivery for various driving conditions, enhancing both performance and economy.

Further enhancing this system is Center Injection, where the GDi injector is positioned at the centre of the combustion chamber. This central placement allows for a more precise air-fuel mixture formation, especially when coupled with the spark plug. By injecting a small amount of fuel near the spark plug just before ignition, the system ensures rapid and efficient combustion, leading to improved performance and fuel economy. It also promotes more symmetrical injection patterns, reducing fuel wetting on the cylinder walls.

Models with Dual Fuel Injection include the Smartstream G2.5 GDi / T-GDi.

Models with Dual Fuel Injection + Center Injection include the Smartstream G3.5 GDi / T-GDi.

High Tumble Combustion System (HTCS): Enhancing Combustion Efficiency

Achieving fast and efficient combustion requires optimal mixing of air and fuel. The HTCS focuses on creating powerful swirling motions, or "tumbles," within the combustion chamber. By meticulously redesigning the intake ports and piston bowl, Hyundai has maximised these tumble ratios. This enhanced air-fuel mixing leads to more stable combustion and ensures that the power generated is effectively transferred to the pistons, ultimately improving engine efficiency and power delivery.

Models featuring HTCS include the Smartstream 1.6, 1.6 T-GDi, 2.0 GDi HEV, and 2.0 T-GDi.

Integrated Thermal Management System (ITMS): Optimising Engine Temperature

Engine efficiency is also significantly influenced by its operating temperature. ITMS is a sophisticated system that not only regulates engine coolant temperature but also integrates with the vehicle's heating and air conditioning. A strategically placed 3-way valve controls the flow of coolant to the radiator, transmission oil warmer, and heater core. This allows the system to rapidly warm up the engine upon starting, bringing it to its optimal operating temperature more quickly. This reduces friction from cold, viscous oil, thereby improving fuel economy. In high-load situations, ITMS can efficiently dissipate heat to prevent issues like engine knocking. Furthermore, it intelligently manages coolant flow to the cabin heater, enhancing comfort and efficiency.

All Smartstream models are equipped with ITMS.

Friction-Optimized Moving System (FOMS): Minimising Internal Resistance

Friction is an inherent enemy of engine efficiency, leading to energy loss, increased heat, noise, and vibration. FOMS is Hyundai's answer to minimising internal friction. By employing advanced lightweight materials and specialised low-friction coatings on moving engine parts, FOMS dramatically reduces the coefficient of friction. This reduction in friction translates directly into improved fuel economy and a smoother, quieter engine operation. Hyundai reports a significant 34% reduction in engine friction through the implementation of FOMS.

All Smartstream models are equipped with FOMS.

High-Ignition Energy EGR: Cleaner Emissions and Improved Efficiency

Exhaust Gas Recirculation (EGR) is a crucial technology for reducing Nitrogen Oxide (NOx) emissions, which are produced at high combustion temperatures. By recirculating a portion of exhaust gas back into the combustion chamber, EGR lowers the peak combustion temperature. Hyundai's High-Ignition Energy EGR (HIE-EGR) system enhances this process. It incorporates an external EGR cooler for more effective cooling of the recirculated gas and high-energy ignition coils. These coils provide a stronger spark, ensuring stable combustion even with a higher EGR ratio. This combination not only reduces NOx but also mitigates engine knocking and pumping losses, further boosting fuel economy. The expanded operating range for high EGR ratios, facilitated by the high-energy ignition, leads to notable fuel economy improvements of 2-5% depending on the driving mode.

HIE-EGR is adapted to various Smartstream engine types, with different versions of the system applied depending on the engine's characteristics.

Smartstream IVT: A Smarter Continuously Variable Transmission

Transmissions play a vital role in optimising engine performance by ensuring the engine operates within its most efficient RPM range. Continuously Variable Transmissions (CVTs) are known for their ability to provide seamless gear ratio changes, theoretically allowing for infinite adjustments to the engine speed. This can lead to significant improvements in fuel economy (20-30% over traditional automatics) and a smooth driving experience.

However, early CVTs often suffered from a lack of driver engagement, perceived as "sluggish" or lacking the satisfying "feel" of traditional gear changes. Durability issues with belts and slippage were also concerns. Hyundai's Smartstream IVT (Intelligent Variable Transmission) addresses these shortcomings. It simulates the shifting feel of conventional automatic transmissions through virtual shift patterns, providing a more engaging driving experience. Crucially, the IVT uses a chain belt instead of a traditional metal belt, offering superior durability and resistance to engine power. This chain belt design also eliminates slippage, preventing noise and maintaining fuel efficiency.

Smartstream Wet 8DCT: Dual-Clutch Performance and Efficiency

The Dual-Clutch Transmission (DCT) offers a compelling blend of manual transmission efficiency and automatic transmission convenience. DCTs are renowned for their rapid gear changes, delivering power efficiently. Hyundai's Wet 8DCT is a prime example of this technology, featuring eight forward gears and a wet-clutch system.

Unlike dry DCTs, which have limitations in cooling, wet DCTs utilise oil to cool the clutches, allowing them to handle higher torque loads and provide consistent performance. The Smartstream Wet 8DCT is equipped with a dual electric oil pump system (High-Flow Electric Oil Pump and High-Pressure Electric Oil Pump) for efficient lubrication and hydraulic pressure control. This sophisticated system ensures optimal clutch cooling, gear lubrication, and pressure management, leading to improved fuel economy and reliability. The Wet 8DCT is capable of handling high torque outputs, making it suitable for a wide range of applications, including performance-oriented vehicles and even some diesel engines. Its power transmission efficiency is remarkably high, contributing to better acceleration and overall performance.

Frequently Asked Questions

Does Hyundai have dual fuel injectors?

Yes, Hyundai offers engines with Dual-Port Fuel Injection (DPFI), which uses two injectors per intake port for improved air-fuel mixture stability. Additionally, some Smartstream engines feature Dual Fuel Injection systems that combine both GDi and MPi injectors for optimised performance across different driving conditions.

How does a Hyundai MPI engine work?

An MPI (Multi-Point Injection) engine injects fuel into the intake ports, just before the intake valve. The fuel mixes with the incoming air in the port before entering the combustion chamber. This method is generally known for its smoother operation and lower emissions of particulate matter compared to direct injection systems.

What is CVVD?

CVVD stands for Continuously Variable Valve Duration. It's a technology developed by Hyundai that allows for the duration of the valve opening to be continuously adjusted, independent of valve timing. This provides greater control over the air-fuel mixture and combustion process, leading to improved performance, fuel economy, and reduced emissions.

Conclusion

Hyundai's Smartstream powertrain family represents a significant leap forward in automotive engineering. By meticulously refining core engine technologies and introducing innovative solutions like CVVD, water-cooled intercoolers, and advanced fuel injection systems, Hyundai is delivering vehicles that are not only more powerful and responsive but also more fuel-efficient and environmentally conscious. The focus on optimising every aspect of the combustion process, from air intake and fuel delivery to thermal management and friction reduction, underscores Hyundai's commitment to providing drivers with a superior and sustainable automotive experience.
