Hyundai 2.4 GDI Engine: Rebuild & Common Issues

The Hyundai 2.4 GDI engine, a stalwart in many of the brand's popular models, is known for its blend of performance and efficiency. However, like any complex piece of machinery, it can encounter issues over time that necessitate attention. Understanding what a Hyundai 2.4 engine rebuild involves, how the GDI technology functions, and the common problems that can arise is crucial for any owner looking to maintain their vehicle's longevity and performance.

Understanding the Hyundai 2.4 GDI Engine

The 'GDI' in Hyundai 2.4 GDI stands for Gasoline Direct Injection. This advanced fuel delivery system injects fuel directly into each cylinder, rather than into the intake manifold as with traditional port injection. This precise fuel delivery allows for a more controlled combustion process, leading to improved fuel economy, increased power output, and reduced emissions. A key component of this system is the high-pressure fuel pump, typically located on top of the cylinder head, which is essential for achieving the necessary injection pressures.

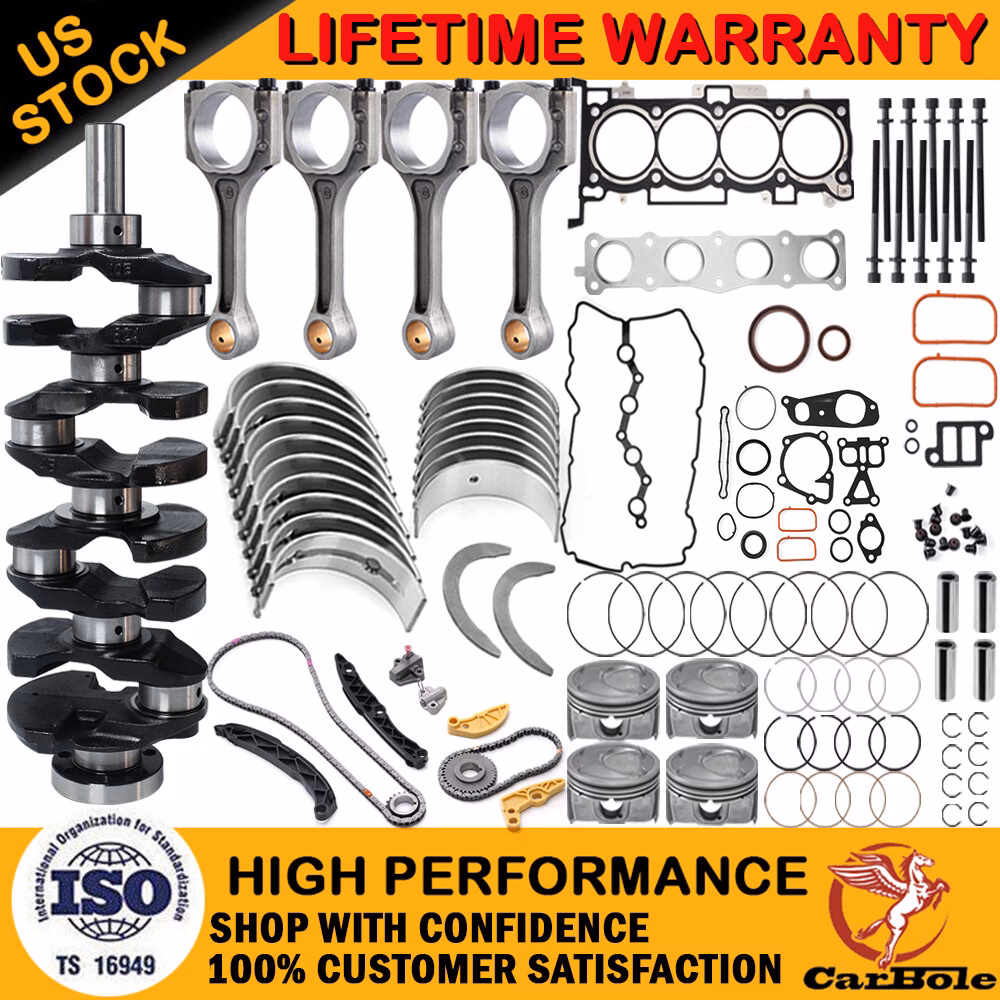

What is a Hyundai 2.4 Engine Rebuild?

A Hyundai 2.4 engine rebuild is a comprehensive process aimed at restoring an engine to its optimal working condition. This typically involves:

• Complete Disassembly: The engine is taken apart, piece by piece, down to its core components.
• Thorough Inspection: Each part is meticulously inspected for signs of wear, damage, or defects. This includes examining pistons, cylinders, crankshaft, camshafts, valves, bearings, and more.
• Component Replacement: Any parts found to be worn out or damaged are replaced. Common replacements during a rebuild include piston rings, valves, valve seals, bearings (main and connecting rod), gaskets, and often the oil pump.
• Cleaning and Machining: Engine components, particularly the cylinder block and head, may be cleaned and machined to ensure they meet precise specifications. This can involve honing the cylinder walls or resurfacing the cylinder head.
• Reassembly: The engine is carefully reassembled using the new and refurbished parts, ensuring all tolerances are met and components are correctly torqued.
• Testing and Evaluation: After reassembly, the engine is tested to ensure it runs smoothly, produces adequate power, and has no leaks. This may involve running it on a stand or in the vehicle, often with diagnostic equipment attached.

The goal of a rebuild is to address underlying issues that are causing poor performance, noise, or complete engine failure, effectively giving the engine a new lease on life.

Common Problems with the Hyundai 2.4 GDI Engine (Theta II)

The Hyundai 2.4 GDI engine, particularly the Theta II design, has been associated with several known issues, which can sometimes lead to the need for a rebuild. These include:

1. Engine Failures

One of the most serious concerns with certain Theta II engines, including some 2.4L variants, has been premature engine failure. This often stems from issues related to the connecting rod bearings. Debris introduced during the manufacturing process can restrict oil flow to these critical components, leading to accelerated wear. When a bearing wears down sufficiently, it can seize, causing catastrophic engine damage. This issue was particularly noted in engines produced at certain manufacturing plants and has led to recalls and extended warranties from Hyundai and Kia.

2. Excessive Oil Consumption

Several Hyundai engines, including the 2.4L Theta II, have a reputation for consuming more oil than expected. This can be due to worn piston rings, valve stem seals, or issues with the PCV (Positive Crankcase Ventilation) system. When oil bypasses the piston rings, it can enter the combustion chamber and be burned, leading to a noticeable drop in the oil level. If oil consumption exceeds roughly one quart per 1,000 miles, it's a strong indicator of an internal engine problem that may require attention.

3. Carbon Buildup

As a direct injection engine, the 2.4 GDI is susceptible to carbon buildup on the intake valves. Unlike port-injected engines where fuel washes over the intake valves, in GDI systems, fuel is injected directly into the cylinder. This means that oil vapours from the crankcase ventilation system can deposit on the intake valves without being cleaned by fuel, leading to gradual carbon accumulation. While not always a cause for immediate failure, significant carbon buildup can restrict airflow, leading to reduced performance, rough idling, and misfires.

4. Oil Leaks

Oil leaks can occur from various seals and gaskets within the engine. Common sources include the valve cover gasket, oil pan gasket, crankshaft seals, and camshaft seals. Leaks can be exacerbated by age, heat, and material degradation. If left unaddressed, oil leaks can lead to low oil levels, potential engine damage, and fire hazards if oil drips onto hot exhaust components.

Symptoms of Engine Problems

Recognising the symptoms of potential engine issues is key to preventing minor problems from becoming major ones. For the Hyundai 2.4 GDI engine, keep an eye out for:

• Engine Knocking or Pinging: This can indicate issues with rod bearings, detonation, or incorrect ignition timing.
• Excessive Smoke from the Exhaust: Blue smoke often signifies oil burning in the combustion chamber, while black smoke suggests a rich fuel mixture.
• Rough Idle or Misfires: These can be caused by carbon buildup, faulty spark plugs, ignition coils, or fuel injectors.
• Loss of Power: A general decrease in acceleration and performance can be a symptom of many issues, including fuel delivery problems, clogged catalytic converters, or internal engine wear.
• Visible Oil Leaks: Puddles of oil under the vehicle or oil residue on the engine block are clear signs of leaks.
• Unusual Noises: Ticking, knocking, or grinding sounds emanating from the engine compartment warrant immediate investigation.
• Warning Lights: The 'Check Engine' light on the dashboard is a crucial indicator that the vehicle's computer has detected a fault.

Addressing Hyundai 2.0T Engine Problems (Comparison)

While this article focuses on the 2.4 GDI, it's worth noting that the related Hyundai 2.0T engine (Theta II Turbo) shares some common issues, such as engine failure, carbon buildup, oil consumption, and oil leaks. The 2.0T's engine failures were also linked to connecting rod bearing issues, leading to recalls. The symptoms and potential fixes for these problems often overlap with those of the naturally aspirated 2.4L engine. Both engines benefit from regular maintenance and addressing issues promptly.

Maintenance and Prevention

Proactive maintenance is the best defence against costly engine repairs. For your Hyundai 2.4 GDI engine, consider the following:

• Regular Oil Changes: Adhere to the manufacturer's recommended oil change intervals using the specified oil type and viscosity. This is crucial for lubricating moving parts and preventing wear.
• Check Oil Levels Frequently: Monitor your oil level regularly between changes, especially if you suspect oil consumption.
• Use Quality Fuel: While GDI engines are designed for gasoline, using high-quality fuel can help minimize deposit formation.
• Address Warning Lights Promptly: Don't ignore the 'Check Engine' light. Have it diagnosed and repaired as soon as possible.
• Consider Intake Valve Cleaning: For GDI engines, having the intake valves cleaned (e.g., via walnut blasting) periodically, perhaps every 80,000-100,000 miles, can help maintain optimal airflow and performance.
• Stay Informed About Recalls: Check if your vehicle is subject to any recalls or service campaigns from Hyundai, as these often address known issues.

Hyundai 2.4 Engine Rebuild Cost and Reliability

The cost of a Hyundai 2.4 engine rebuild can vary significantly depending on the extent of the damage, the parts needed, and labour rates in your area. Generally, a partial rebuild might cost a few thousand pounds, while a full, comprehensive rebuild could range from £3,000 to £6,000 or more. It's essential to get detailed quotes from reputable mechanics.

Regarding reliability, the Theta II engine has had its challenges, particularly with the issues mentioned above. However, with proper maintenance and by addressing known problems, many owners have achieved good longevity from their engines. Hyundai and Kia have also offered extended warranties and recall programs to mitigate the impact of these issues for many owners.

Frequently Asked Questions

Q1: How often should I check my oil on a Hyundai 2.4 GDI?

It's recommended to check your oil level at least once a month, and more frequently if you notice any signs of oil consumption or if the vehicle is nearing its next scheduled oil change.

Q2: Can a Hyundai 2.4 GDI engine be repaired without a full rebuild?

Depending on the specific problem, some issues might be repairable without a full rebuild. For example, oil leaks can often be fixed by replacing specific seals or gaskets, and minor carbon buildup can sometimes be addressed with fuel system cleaners or professional cleaning services.

Q3: What are the signs that my Hyundai 2.4 GDI needs a rebuild?

Key signs include significant loss of power, excessive smoke from the exhaust, loud knocking noises, persistent misfires, and extremely high oil consumption.

Q4: Is walnut blasting necessary for a Hyundai 2.4 GDI engine?

While not strictly mandatory, walnut blasting is a highly effective method for cleaning carbon deposits from the intake valves of GDI engines like the 2.4 GDI. It can help restore performance and prevent issues caused by restricted airflow.

Q5: How long does a rebuilt Hyundai 2.4 engine typically last?

A properly rebuilt engine, using quality parts and assembled by experienced technicians, can last for many tens of thousands of miles, often comparable to the lifespan of a new or remanufactured engine, provided it receives regular and proper maintenance.
