Fixing a Leaking Hydraulic Door Closer

Troubleshooting and Replacing a Leaking Hydraulic Door Closer

A well-functioning hydraulic door closer is essential for the smooth operation and safety of any door. It ensures that the door closes gently and securely, preventing it from slamming shut. However, over time, these mechanisms can develop issues, with a common problem being oil leakage. An oil leak not only indicates a fault in the system but can also lead to the door losing its controlled closing action, potentially causing damage to the door or frame and posing a safety risk. This comprehensive guide will walk you through the process of identifying if your hydraulic door closer needs attention, whether it's a simple adjustment or a full replacement due to oil leakage. We'll cover the necessary tools, safety precautions, and step-by-step instructions to get your door operating correctly again.

When to Suspect a Leaking Door Closer

Several signs can indicate that your hydraulic door closer is leaking oil or is otherwise malfunctioning. The most obvious is the presence of oil residue around the closer unit itself, often visible on the door, frame, or floor directly beneath it. You might also notice a greasy or slippery feel to the closer's body. Beyond the visual cues of an oil leak, functional changes are critical indicators. If the door is closing too quickly, slamming shut, or failing to latch properly, these are strong signs that the hydraulic fluid level or pressure has been compromised. Conversely, if the door closes very slowly or seems to get stuck, this could also point to a fluid issue, perhaps due to a significant loss of hydraulic oil. It's important to address these symptoms promptly to prevent further damage and maintain the door's intended functionality.

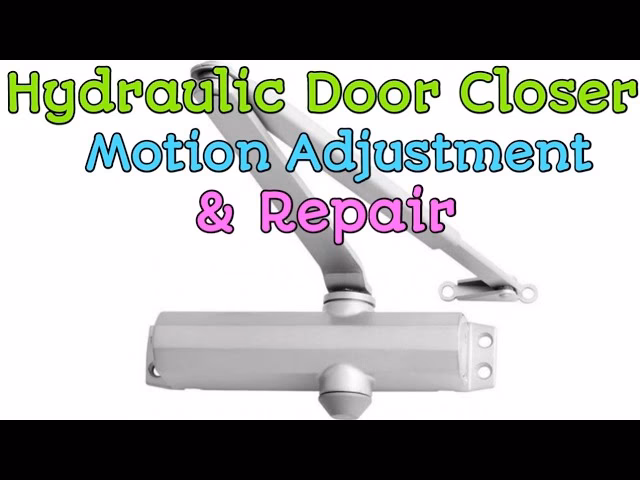

Understanding the Components of a Hydraulic Door Closer

Before diving into the replacement process, it's helpful to understand the basic components of a hydraulic door closer. Most closers consist of a main body, which houses the hydraulic fluid and the internal mechanism. Attached to this body is a spring-loaded arm that connects to the door and frame. The hydraulic fluid within the closer controls the speed and force of the door's closing action. Adjustments are typically made via small screws, often referred to as adjustment valves or ports, which regulate the flow of this fluid. When oil leaks from the unit, it generally means that a seal within the closer has failed, allowing the fluid to escape. This loss of fluid directly impacts the closer's ability to regulate the door's movement.

Tools You'll Need

Fortunately, replacing or adjusting a hydraulic door closer doesn't require highly specialised tools. For most common residential and commercial door closers, you'll likely need:

• Screwdriver Set: Both Phillips head and flathead screwdrivers will be useful for removing mounting screws and potentially for making minor adjustments.
• Allen Wrench Set: These hexagonal wrenches are crucial for adjusting the speed and sweep of the door closer via the designated adjustment screws.
• Adjustable Wrench or Pliers: May be needed for certain models to hold nuts or bolts in place while making adjustments or during installation.
• Rag or Shop Towels: Essential for cleaning up any spilled hydraulic fluid.
• Replacement Door Closer: Ensure you have a compatible replacement unit if the current one is beyond repair. It's important to match the size, weight capacity, and mounting pattern of the original closer.
• Safety Glasses: Always recommended when working with tools and potential fluid leaks.
• Ladder (if necessary): For higher doors, a stable ladder might be required. Ensure it's placed on a level surface and used safely.

Safety First!

Working on doors, especially those with heavy closers, carries inherent risks. Always prioritise safety:

• Pinching Hazard: Be extremely cautious of the door's movement. Ensure the door is secured in an open position and is not free to swing unexpectedly. Keep your fingers and hands clear of the door and frame as you work.
• Falling Objects: If you are using a ladder, ensure it is stable and correctly positioned. Avoid overreaching.
• Fluid Contact: While hydraulic fluid is generally not acutely toxic, it's best to avoid prolonged skin contact. Wear gloves if possible and clean up any spills immediately.

Identifying the Cause of the Leak

When you discover oil around your door closer, the first step is to try and pinpoint the source of the leak. Often, the leak will be evident from the main body of the closer, indicating a failure in the internal seals. In some cases, the leak might be originating from the adjustment screws themselves. These screws control the flow of hydraulic fluid, and if they are not fully seated or their seals are damaged, they can be a source of leakage.

Table: Common Leak Sources and Solutions

Adjusting a Door Closer (Before Replacement)

Before you decide to replace the entire unit, it’s worth checking if a simple adjustment can resolve the issue, especially if the leak is minor or if the primary problem is the door's closing speed rather than a significant fluid loss. Most hydraulic door closers have two primary adjustment screws:

• Sweep Adjustment: Controls the speed of the door during the final few degrees of its closing cycle (the sweep).
• Latch Adjustment: Controls the speed of the door during the last 10-15 degrees of the closing cycle, ensuring it latches securely.

These adjustments are typically made using an Allen wrench. Turning the sweep adjustment screw clockwise usually slows the door, while turning it counter-clockwise speeds it up. The latch adjustment screw works similarly. If you find a slight leak from one of these screws, try gently tightening it a quarter-turn at a time. If tightening it stops the leak and resolves any closing issues, you might have dodged a full replacement. However, if the leak persists or is significant, replacement is likely the only viable option.

Replacing a Hydraulic Door Closer: Step-by-Step

If adjustment doesn't solve the problem, or if there's a clear and significant oil leak, it's time for a replacement. Follow these steps carefully:

Step 1: Identify and Purchase a Replacement Closer

This is a critical step. You need to ensure your new closer is compatible with your door. Look for markings on your existing closer for the manufacturer and model number. If these are not visible, measure the distance between the mounting holes on both the door and the frame. Note the door's weight and width, as closers are rated for specific capacities. It's often best to buy an equivalent replacement to avoid complications with mounting. If you can't find an exact match, consult with a hardware store professional or the closer manufacturer for recommendations.

Step 2: Secure the Door

Before you start unscrewing anything, ensure the door cannot move. You can wedge it open securely with a block of wood or use clamps to hold it firmly against a wall or frame. This prevents accidental movement and potential injury or damage.

Step 3: Remove the Old Closer Arm

Most door closers have a two-part arm assembly. One part attaches to the door, and the other to the frame, connected by a bracket. You’ll typically need to loosen a set screw on the arm that connects to the closer body. Use an Allen wrench for this. Once the set screw is loose, the arm can usually be slid off the closer's spindle. Some arms may have a retaining clip or nut that needs to be removed first.

Step 4: Detach the Closer Body

The main body of the closer is usually attached to the door or frame with screws. These are often located in mounting brackets. Use your screwdriver to carefully remove these screws. Have a hand or a helper ready to support the weight of the closer as you remove the last screw, as it can be quite heavy, especially after losing some fluid.

Step 5: Clean the Mounting Area

With the old closer removed, take the opportunity to clean the door and frame where the closer was mounted. Use a rag to wipe away any accumulated dirt, grime, or residual hydraulic fluid. This ensures a clean surface for the new mounting brackets.

Step 6: Mount the New Closer Body

Position the new door closer in its correct location. This will likely be the same place the old one was mounted. Align the mounting holes on the closer body with the pre-drilled holes on the door or frame. Insert the mounting screws and tighten them securely with your screwdriver. Do not overtighten, as this could strip the threads or damage the mounting surface.

Step 7: Attach the New Arm

Connect the arm of the new closer to the door and frame according to the manufacturer's instructions. This usually involves attaching one part of the arm to the closer's spindle and the other to the corresponding bracket on the door or frame. Ensure all screws and brackets are properly aligned and tightened. For the arm that attaches to the closer spindle, slide it on and secure it with the provided set screw using an Allen wrench. Make sure the arm is positioned correctly when the door is fully open.

Step 8: Initial Adjustments

Once the new closer is installed, you'll need to make some initial adjustments to get the closing speed and latching action right. Refer to the adjustment screws (sweep and latch) as described earlier. Make small, incremental adjustments (a quarter-turn at a time) and test the door's closing action after each adjustment. You want the door to close smoothly and consistently, with enough force to latch, but without slamming.

Adjustment Tips:

• Slow Closing: If the door closes too slowly, you might need to slightly open the sweep or latch adjustment screws (counter-clockwise).
• Fast Closing/Slamming: If the door closes too quickly or slams, tighten the sweep or latch adjustment screws (clockwise).
• Latching: Ensure the door has enough power to securely latch. If not, adjust the latch speed screw.

Step 9: Test and Fine-Tune

Open and close the door several times to test its operation. Pay attention to the entire closing cycle, from fully open to completely shut. Make further minor adjustments as needed until the door operates to your satisfaction. A properly adjusted door closer should close the door within a few seconds and latch securely without excessive force.

Frequently Asked Questions (FAQs)

Q1: How long do hydraulic door closers typically last?
A1: The lifespan of a hydraulic door closer can vary greatly depending on the quality of the unit, the frequency of use, and environmental conditions. High-quality closers in moderate-use environments can last for many years, often exceeding 10-15 years. However, units exposed to extreme temperatures, heavy usage, or improper installation may fail much sooner.

Q2: Can I refill the hydraulic fluid instead of replacing the closer?
A2: For most residential and commercial door closers, refilling the hydraulic fluid is not a practical or recommended solution. The internal seals that prevent fluid loss are typically not designed to be user-serviceable. Attempting to refill the fluid without addressing the underlying seal failure will likely result in continued leakage. It is generally more cost-effective and reliable to replace the entire unit.

Q3: My door closer is leaking, but the door still closes fine. Should I worry?
A3: Yes, you should address a leaking door closer even if the door's operation seems normal. The oil leak indicates a compromise in the sealing system. As more fluid is lost, the door's closing speed and control will degrade, potentially leading to slamming or failure to latch. Addressing the leak early can prevent further damage to the closer and the door itself.

Q4: What is the difference between the sweep and latch adjustments?
A4: The sweep adjustment controls the main closing speed of the door from its fully open position until the last 10-15 degrees. The latch adjustment specifically controls the speed of the door during those final few degrees, ensuring it moves with enough momentum to engage the latch mechanism in the door frame. Both are crucial for proper door operation.

Q5: Can I install a door closer myself?
A5: Yes, replacing or installing a standard hydraulic door closer is a manageable DIY project for most homeowners, provided you have the correct tools and follow the instructions carefully. If you are unsure about any step or the door is particularly heavy or complex, it may be advisable to seek professional assistance.

Conclusion

A leaking hydraulic door closer is a common issue that, if left unaddressed, can lead to functional problems and potential damage. By understanding the components, identifying the signs of leakage, and following the detailed steps for adjustment or replacement, you can effectively restore your door's smooth and controlled operation. Remember to always prioritise safety during the process and ensure you have the correct replacement parts. With a little effort and the right guidance, you can keep your doors closing perfectly.
