In the complex world of automotive maintenance, few procedures are as critical yet often overlooked as wheel alignment. It's not just about keeping your steering wheel straight; it profoundly impacts your vehicle's safety, performance, tyre longevity, and even fuel economy. Amongst the various systems available, the Hunter Wheel Alignment system stands out as a global leader, renowned for its unparalleled precision and advanced technology. But how exactly does this sophisticated system work to achieve such accurate results?
At its core, the Hunter Wheel Alignment system, particularly the widely adopted HawkEye Elite model, operates on the principle of three-dimensional (3D) imaging. Unlike older, less precise methods that might rely on laser lines or mechanical measurements, Hunter employs a combination of high-resolution cameras and proprietary targets to create a highly accurate digital model of your vehicle's wheel and suspension geometry. This innovative approach allows for measurements that are not only incredibly precise but also remarkably fast and repeatable.
The Ingenious Mechanics of Hunter Alignment

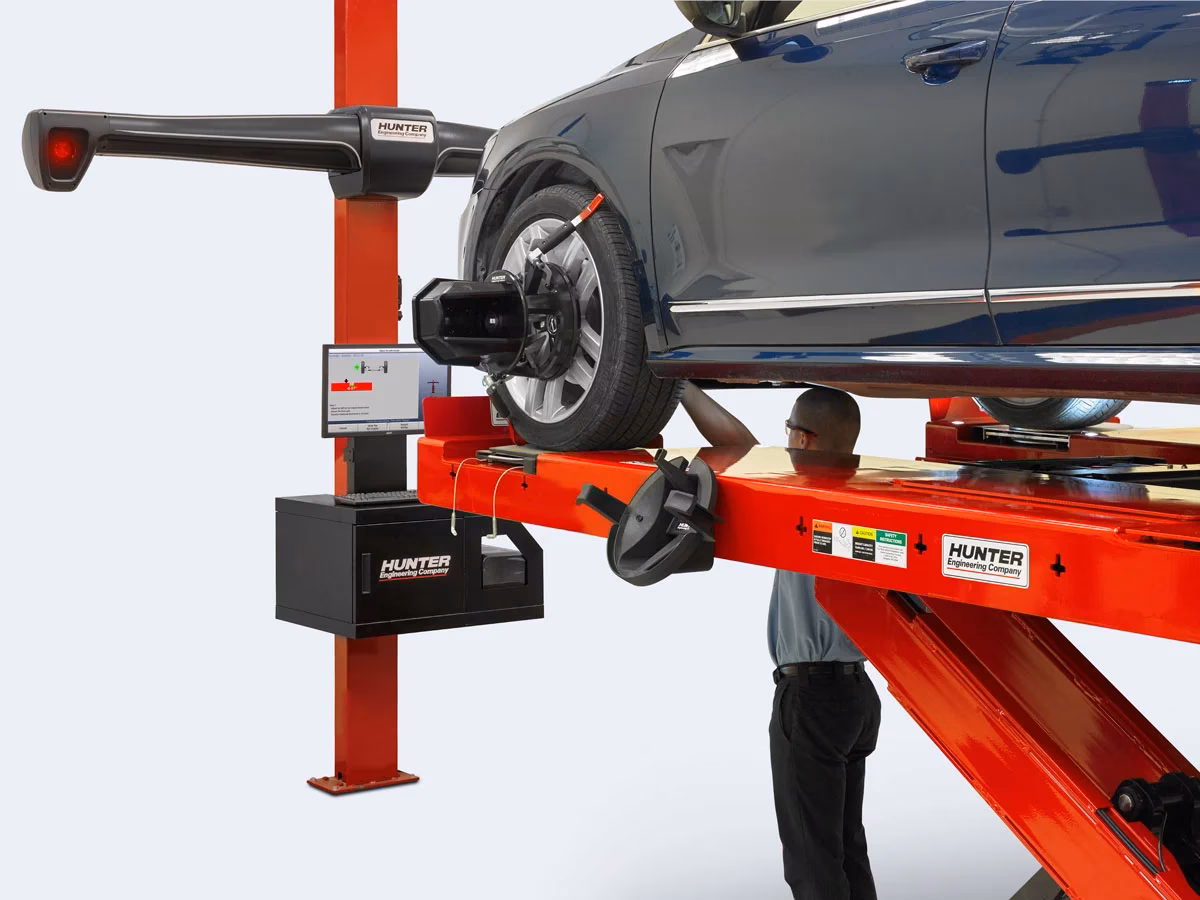

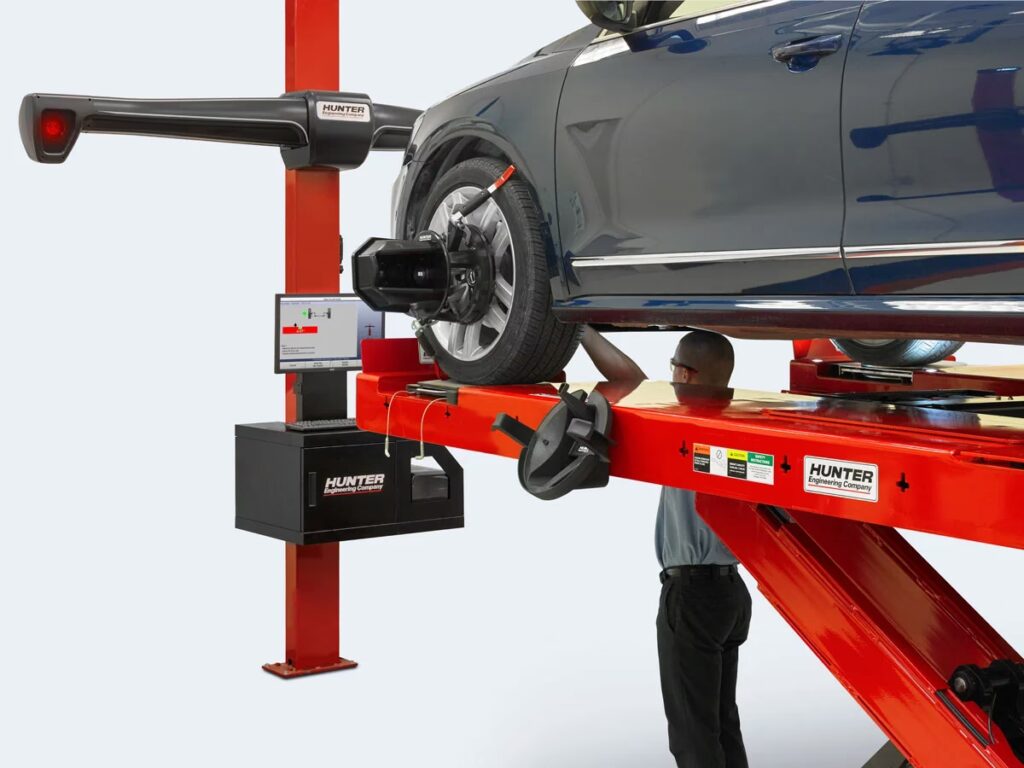

The process begins by attaching lightweight, non-contact targets to each wheel. These targets are not electronic; they are simple, passive reflectors. The real magic happens with the system's camera sensors, typically mounted on a cross-beam positioned in front of the vehicle. These cameras continuously 'read' the positions of the targets as the vehicle is moved slightly, even just a few inches forwards or backwards, a process known as 'rolling compensation'. This rolling compensation is crucial because it eliminates errors caused by potential run-out in the wheel or adaptor, ensuring that the measurements taken truly reflect the vehicle's alignment specifications, not just how the wheel is sitting on the hub.
As the cameras capture multiple images of the targets from various angles, the system's powerful WinAlign software processes this visual data to construct a precise 3D model. It calculates critical alignment angles such as camber, caster, and toe with astonishing accuracy, often to fractions of a degree or millimetre. This 3D modelling capability means the system understands the exact spatial relationship of each wheel to the vehicle's chassis, providing a comprehensive picture of its alignment status.
Once the initial measurements are taken, the WinAlign software compares them against an extensive database of manufacturer specifications for virtually every make and model of vehicle. This database is constantly updated, ensuring that your vehicle is aligned precisely to its original factory settings. The software then provides the mechanic with clear, step-by-step instructions and real-time feedback as adjustments are made. This live data feed allows the mechanic to see the alignment angles change as they work, ensuring that the corrections are made accurately and efficiently. The system even incorporates features like 'Live Ride Height' measurement, which accounts for the vehicle's actual ride height during the alignment process, further enhancing precision.
Key Components of the Hunter System
Understanding the individual components helps appreciate the system's overall efficacy:
- HawkEye Elite Sensors: These are the high-resolution digital cameras that capture the images of the targets. They are designed for speed and accuracy, providing instant feedback.
- QuickGrip Adaptors: These revolutionary adaptors grip the tyre, not the rim, eliminating metal-to-metal contact. This prevents potential rim damage and ensures that run-out compensation is performed accurately and quickly.
- WinAlign Software: The brain of the operation. This proprietary software processes the camera data, accesses manufacturer specifications, guides the technician through the adjustment process, and generates comprehensive reports. It features a vast array of tools and diagnostic programmes.
- Alignment Rack and Turntables: The vehicle is positioned on a specially designed alignment rack equipped with integrated turntables and slip plates, which allow the wheels to move freely during measurement and adjustment, facilitating precise readings.
Why Hunter Stands Apart: Benefits of Precision Alignment
The technological sophistication of the Hunter system translates into tangible benefits for vehicle owners. Opting for a Hunter alignment means investing in the longevity and performance of your vehicle:
- Unparalleled Accuracy: The 3D imaging and rolling compensation virtually eliminate measurement errors, leading to the most precise alignment possible. This means your vehicle will drive exactly as the manufacturer intended.
- Enhanced Tyre Life: Incorrect alignment is a leading cause of premature and uneven tyre wear. A precise Hunter alignment ensures that your tyres make optimal contact with the road, significantly extending their tyre life and saving you money on replacements.
- Improved Fuel Economy: When wheels are misaligned, they drag instead of rolling freely, increasing rolling resistance. This forces your engine to work harder, consuming more fuel. A correct alignment reduces this resistance, leading to better fuel economy.
- Superior Driving Safety: A properly aligned vehicle is more stable, predictable, and easier to control. It reduces steering pull and improves responsiveness, contributing significantly to overall driving safety, especially at higher speeds or during emergency manoeuvres.
- Better Handling and Comfort: You'll notice an immediate improvement in how your vehicle handles. Steering will feel more precise, the vehicle will track straight, and vibrations will be reduced, leading to a more comfortable and enjoyable driving experience and improved handling.
- Reduced Component Wear: Misalignment places undue stress on various suspension and steering components. Correct alignment reduces this strain, prolonging the life of expensive parts and reducing future repair costs, thus reducing component wear.
These benefits highlight why a precise alignment isn't just a luxury but a fundamental aspect of responsible vehicle ownership and maintenance.
Hunter vs. Traditional Alignment Methods
| Feature | Hunter Wheel Alignment (3D Imaging) | Traditional Alignment (e.g., Laser/Mechanical) |
|---|---|---|
| Technology | Advanced 3D cameras, passive targets, rolling compensation. | Laser emitters/sensors, mechanical gauges, cords. |
| Accuracy | Extremely high, measures to fractions of a degree/mm. Eliminates run-out errors. | Variable, can be less precise due to reliance on perfect rim mounting and lack of run-out compensation. |
| Speed | Very fast measurement process, quick setup. | Can be slower due to more involved setup and manual adjustments. |
| Rim Contact | Non-contact (QuickGrip on tyre), prevents rim damage. | Clamps directly onto the rim, potential for scratching or bending. |
| Data & Feedback | Comprehensive digital reports, real-time graphical feedback for adjustments. | Often relies on simpler readouts, less intuitive. |
| Repeatability | Highly repeatable and consistent results. | Can be less consistent between measurements. |
| Cost | Generally higher initial investment for equipment, potentially higher service cost due to technology. | Lower equipment cost, potentially lower service cost. |
When Should You Get a Hunter Wheel Alignment?
While there's no strict mileage interval for alignment, several indicators suggest it's time for a check:
- After Hitting a Pothole or Curb: Even a minor impact can knock your alignment out.
- Uneven Tyre Wear: If you notice one side of your tyre wearing faster than the other, or unusual wear patterns (e.g., feathering, cupping).
- Vehicle Pulling to One Side: If your car consistently drifts left or right when driving on a straight, level road.
- Steering Wheel Off-Centre: If your steering wheel isn't straight when you're driving in a straight line.
- After Suspension or Steering Component Replacement: Any work on these systems (e.g., new tie rods, control arms, shock absorbers) necessitates an alignment.
- When Installing New Tyres: To ensure your new tyres wear evenly from the start and you get the most out of them.
- General Check-up: It's a good idea to have your alignment checked annually or every 12,000-15,000 miles as part of your routine maintenance.
Frequently Asked Questions About Hunter Alignment
How long does a Hunter wheel alignment typically take?
The actual measurement process with a Hunter HawkEye Elite system is incredibly fast, often taking just a few minutes. The total time for an alignment, including any necessary adjustments, usually ranges from 30 minutes to an hour, depending on the vehicle and the extent of the adjustments required. The speed is a significant advantage over older systems.
Is a Hunter alignment worth the extra cost compared to cheaper options?
Absolutely. While the initial cost might be slightly higher, the precision and benefits offered by a Hunter alignment far outweigh it. The extended tyre life, improved fuel economy, enhanced safety, and reduced wear on suspension components translate into significant long-term savings and a much better driving experience. It's an investment that pays for itself.
Can I perform a wheel alignment myself at home?
No, wheel alignment requires specialised, precise equipment like the Hunter system, along with trained technicians. Attempting to do it yourself with basic tools will likely result in an inaccurate alignment, leading to more problems and costs down the line.
What are 'camber', 'caster', and 'toe' in wheel alignment?
- Camber: This is the inward or outward tilt of the tyre when viewed from the front of the vehicle. Incorrect camber can cause uneven tyre wear.
- Caster: This refers to the angle of the steering pivot when viewed from the side. It affects steering stability, effort, and cornering.
- Toe: This is the extent to which your tyres turn inward or outward when viewed from above. It's crucial for tyre wear and steering response.
All three angles need to be precisely within manufacturer specifications for optimal vehicle performance.
Does a four-wheel alignment mean all four wheels are adjustable?
Not necessarily. A four-wheel alignment means that all four wheels are measured, even if only the front wheels have adjustable components. Measuring the rear wheels is crucial because their alignment (thrust angle) directly impacts how the front wheels need to be set to ensure the vehicle drives perfectly straight. Many modern vehicles, however, do have adjustable rear suspension components.
In conclusion, the Hunter Wheel Alignment system represents the pinnacle of automotive alignment technology. Its use of advanced 3D imaging, non-contact measurements, and sophisticated software ensures a level of precision that traditional methods simply cannot match. For vehicle owners, this translates into tangible benefits: significantly longer tyre life, improved fuel economy, enhanced driving safety, and a more comfortable, predictable driving experience. Choosing a Hunter alignment is a proactive step towards maintaining your vehicle's optimal performance and safeguarding your investment on the road.
