Your Essential Guide to Car Diagnostic Tools

In the modern age, our vehicles are more than just modes of transport; they are intricate marvels of engineering, packed with advanced electronics and sophisticated computer systems. Gone are the days when a simple wrench and a keen ear were enough to diagnose most car troubles. Today, when that ominous 'Check Engine' light illuminates your dashboard, or your car simply isn't performing as it should, you need a precise tool to pinpoint the problem. Enter the automotive diagnostic tool – an indispensable device for both seasoned mechanics and eager DIY enthusiasts.

Understanding how to use these powerful little computers can save you a significant amount of money on costly garage visits and empower you to address minor issues before they escalate into major, expensive repairs. This comprehensive guide will walk you through everything you need to know, from connecting the device to your vehicle to interpreting the cryptic codes it reveals, ensuring you're well-equipped to keep your car running smoothly.

What Exactly is an Automotive Diagnostic Tool?

At its core, an automotive diagnostic tool is a device designed to communicate with your vehicle’s onboard computer system. This system, known as Onboard Diagnostics (OBD), is a self-diagnostic mechanism built into modern vehicles. It constantly monitors various components and systems, ensuring they are operating within specified parameters. If a fault is detected, the OBD system stores a specific code, known as a Diagnostic Trouble Code (DTC), in the vehicle's memory and often illuminates a warning light on your dashboard, such as the 'Check Engine' light.

For vehicles manufactured from 1996 onwards and marketed in the UK (and globally, following similar standards), the system in place is OBD-II (or OBD2). This standardised system ensures that any compatible diagnostic tool can communicate with virtually any modern vehicle. This standardisation was a game-changer, making vehicle diagnostics accessible and consistent across different manufacturers.

The diagnostic tool acts as an interpreter, plugging into a dedicated port on your vehicle to retrieve these stored DTCs and often provide real-time data from various sensors. This invaluable information helps you or a mechanic understand exactly what's going wrong, turning a vague symptom into a precise problem statement.

Types of OBD2 Diagnostic Tools

The world of car diagnostic tools is vast, with options available for every budget and skill level. Generally, they can be categorised into three main types:

Basic Diagnostic Tools (Code Readers)

These are the simplest and most affordable options. Typically small, handheld devices with a modest screen, they primarily serve one function: reading and clearing Diagnostic Trouble Codes (DTCs). While they won't offer in-depth analysis or live data, they are perfect for quickly identifying why your 'Check Engine' light is on, allowing you to research the code online or in a manual. They are ideal for beginners who want to perform basic troubleshooting before deciding whether to visit a professional garage.

DIY Diagnostic Tools (Mid-Range Scanners)

Stepping up from basic code readers, DIY diagnostic tools offer more advanced features. These are popular among car enthusiasts and home mechanics. In addition to reading and clearing DTCs, many DIY tools provide the meaning of the codes, potential causes, and sometimes even suggested fixes. Crucially, many also offer Live Data streaming, allowing you to monitor various sensor readings in real-time (e.g., coolant temperature, engine RPM, fuel pressure). Some models come with Bluetooth connectivity, enabling you to link the device to your smartphone or tablet via a dedicated app, offering a more user-friendly interface and often more detailed information.

Professional Diagnostic Tools

These are the top-tier diagnostic machines, typically found in certified auto repair shops. They are significantly more expensive and complex than DIY tools, offering unparalleled depth of analysis. Professional tools can access and diagnose virtually every system in a vehicle – not just the engine, but also the transmission, ABS, airbags, climate control, and more. They provide extensive Live Data, can perform bidirectional control (e.g., activating components for testing), conduct specific system tests, and often have manufacturer-specific software for in-depth diagnostics. Unless you run a professional garage, these tools are generally an unnecessary expense for the average car owner.

How to Use an OBD2 Scanner Step-by-Step

Using an OBD2 scanner is a straightforward process, but following the correct steps ensures accurate readings and prevents potential issues. Here’s a simplified guide:

Step 1: Locate the OBD2 Port

Every vehicle built for the UK market from 1996 onwards will have an OBD2 port, also known as the Diagnostic Link Connector (DLC). This 16-pin trapezoidal connector is typically located beneath the steering wheel on the driver’s side dashboard. It might be hidden behind a small flap or cover, so you may need to feel around or look closely. Once found, note its position for easy access.

Step 2: Connect the Diagnostic Tool

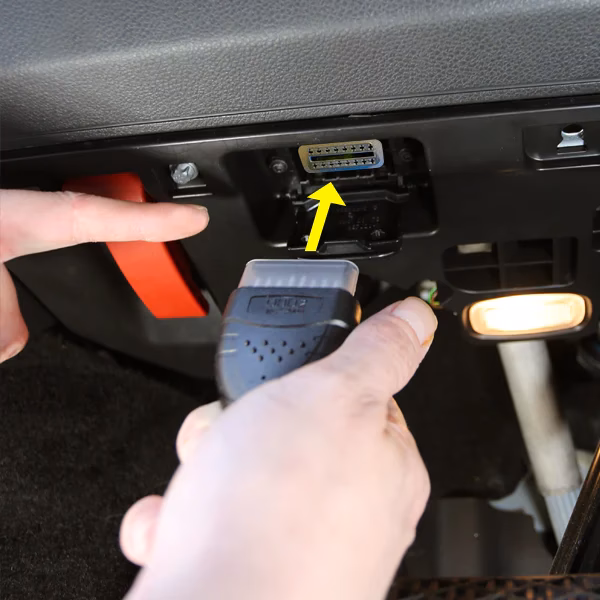

Before connecting, ensure your vehicle’s ignition is switched OFF. This is a crucial safety measure. Once the ignition is off, firmly plug the diagnostic tool’s connector into the OBD2 port. It should fit snugly. If your tool is a Bluetooth-enabled device, ensure you have the corresponding app installed on your smartphone or tablet ready to go.

Step 3: Power On the Vehicle and Tool

After the tool is securely connected, turn your vehicle's ignition to the 'ON' position. Do not start the engine unless your specific diagnostic tool's instructions explicitly state otherwise. Most tools draw power directly from the vehicle’s OBD2 port. If your tool has a power button, switch it on now. For Bluetooth devices, ensure Bluetooth is enabled on your smartphone/tablet and select the diagnostic tool from the app.

Step 4: Input Vehicle Information (If Required)

Some more advanced diagnostic tools will require you to input specific vehicle information to ensure accurate communication. This might include the Vehicle Identification Number (VIN), which is usually found on a sticker at the bottom of the windscreen on the driver’s side, or on the driver's side door jamb. You may also be prompted to enter the vehicle's make, model, year, and engine type. Follow the on-screen prompts of your specific tool to enter this data.

Step 5: Read the Logged Fault Codes

Once the tool has successfully connected and initialised, it will typically present you with a menu. Look for an option like 'Read Codes', 'Scan', 'DTCs', or 'Diagnostic Menu'. Select this option, and the scanner will begin communicating with your vehicle's computer, retrieving any stored Diagnostic Trouble Codes. The tool will then display these codes, often accompanied by a brief description of the potential fault.

Step 6: Understand and Interpret the Fault Codes

This is where the real diagnostic work begins. A DTC is typically a five-character alphanumeric code. Understanding its structure is key to interpreting what it means:

• First Character (Letter): This indicates the system where the fault occurred:
  • P (Powertrain): Relates to the engine, transmission, and associated systems (fuel, ignition, emissions). These are the most common codes.
  • B (Body): Relates to features inside the passenger compartment, such as airbags, central locking, power windows, and seatbelts.
  • C (Chassis): Relates to systems like the ABS (Anti-lock Braking System), traction control, steering, and suspension.
  • U (Network Communication): Indicates a fault in the communication between different vehicle modules or computers.
• First Number (After the Letter): Indicates whether the code is generic or manufacturer-specific:
  • 0: Generic (SAE standard) code, meaning it's common across all manufacturers.
  • 1: Manufacturer-specific code, meaning it relates to a particular manufacturer's system.
• Second Number: Points to a specific sub-system within the main category:
  • P0xxx: Fuel and Air Metering
  • P1xxx: Manufacturer-Controlled Fuel and Air Metering
  • P2xxx: Fuel and Air Metering (specific to manufacturer)
  • P3xxx: Ignition System or Miscellaneous
• Third and Fourth Numbers: These two digits are the fault designator, providing the specific details of the problem. For example, P0301 indicates a misfire in Cylinder 1 (P=Powertrain, 0=Generic, 3=Ignition System, 01=Cylinder 1 Misfire).

Write down the codes you retrieve. While the scanner might give a brief description, a quick online search for the specific code (e.g., "P0420 meaning UK") will often yield more detailed information, common causes, and potential solutions.

Step 7: Assess and Plan the Repair

With the fault codes in hand, you need to decide on the next course of action. Some codes indicate minor issues that a competent DIYer might be able to fix (e.g., a loose fuel cap triggering an emissions code). Others, however, might point to more complex problems requiring specialised tools, extensive knowledge, or simply a professional mechanic's expertise. Don't attempt repairs beyond your skill level, as this could lead to further damage or safety risks. If in doubt, consult a certified auto mechanic.

Step 8: Clear the Fault Codes (After Repair)

Once you've identified and rectified the underlying problem, you can use the diagnostic tool to clear the fault codes from the vehicle's computer memory. This will also turn off the 'Check Engine' light if it was illuminated. Most scanners have an option like 'Clear Codes' or 'Erase DTCs'. It’s advisable to test drive the vehicle for 30-45 minutes after clearing the codes to ensure the problem doesn't reoccur. If the code reappears, it means the issue hasn't been fully resolved, or there's another underlying problem that needs attention.

Beyond Basic Code Reading: Live Data and Freeze Frame

While reading and interpreting Diagnostic Trouble Codes is fundamental, more advanced DIY and professional tools offer features like Live Data and Freeze Frame data, which are incredibly useful for pinpointing intermittent problems or understanding the conditions under which a fault occurred.

• Live Data: This feature allows you to view real-time sensor readings and operational parameters from various components of your vehicle. You can monitor things like engine RPM, coolant temperature, vehicle speed, oxygen sensor readings, fuel trim, and manifold absolute pressure. By observing these values as the car runs, you can spot anomalies that might not trigger a DTC but indicate a developing problem. For example, an erratic oxygen sensor reading might suggest it's failing even if it hasn't yet thrown a specific code.
• Freeze Frame Data: When a DTC is set, the vehicle's computer takes a 'snapshot' of various sensor readings and operational conditions at that exact moment. This 'Freeze Frame' data provides crucial context for the fault code. It can tell you the engine speed, coolant temperature, vehicle speed, and fuel system status when the fault occurred, which is invaluable for replicating the conditions and diagnosing the root cause.

Important Tips for Effective Diagnosis

• Don't Just Clear Codes: Never simply clear a code without investigating and fixing the underlying problem. The code will almost certainly return, and you'll have gained nothing. Clearing codes without addressing the fault is like turning off a fire alarm without extinguishing the fire.
• Check Simple Things First: Before diving into complex diagnostics, always check the simplest potential causes. A loose fuel cap is a common culprit for 'Check Engine' light illumination. Check for obvious signs of damage, loose connections, or frayed wires.
• Consult Repair Manuals: Once you have a DTC, consult your vehicle's service manual or reliable online resources. These often provide specific diagnostic procedures for particular codes, helping you narrow down the issue more effectively.
• Understand Intermittent Faults: Some problems are intermittent, meaning they only occur under specific conditions (e.g., when the engine is hot, or during acceleration). Live Data and Freeze Frame data are particularly useful for diagnosing these elusive issues.
• When to Seek Professional Help: If you're unsure about the diagnosis, uncomfortable performing the repair, or if the problem is safety-critical (e.g., brakes, steering), always consult a qualified mechanic. Your safety and the safety of others on the road are paramount.

Frequently Asked Questions (FAQs)

Q: Does a car have to be running to use an OBD2 scanner?

Generally, you should turn the ignition to the 'ON' position (or the accessory position) without starting the engine. This powers up the vehicle's computer and the OBD2 port, allowing the scanner to communicate. However, some advanced diagnostic procedures or Live Data monitoring might require the engine to be running. Always refer to the specific instructions provided with your diagnostic tool for optimal guidance and to avoid misdiagnosis.

Q: Can you damage your car using an OBD2 scanner?

No, it is extremely unlikely that you can damage your car by simply plugging in and using an OBD2 scanner. The devices are designed to read data, not alter critical vehicle parameters without explicit command. It is also perfectly safe to drive with an OBD2 scanner plugged in. However, always ensure your scanner's cable and connector are in good condition, as a frayed or damaged wire could potentially cause issues with the car's electrical system, though this is rare.

Q: Does an OBD2 scanner drain the car battery?

Most OBD2 scanners draw a minimal amount of power directly from the car's battery once connected, even when the car is off. While the power draw is usually negligible for short periods, a poorly designed or constantly connected Bluetooth scanner (which needs to maintain a wireless connection) could potentially drain your battery over an extended period (e.g., several days or weeks) if left plugged in. For this reason, it's generally best practice to unplug the scanner once you've finished your diagnostic work, especially if you plan to leave your car parked for an extended time.

Q: Do all OBD2 scanners erase codes?

The vast majority of OBD2 scanners, even the most basic code readers, have the functionality to clear Diagnostic Trouble Codes. This is a standard feature included in the OBD2 protocol. However, it's always wise to double-check the product specifications or user manual before purchasing if code clearing is a non-negotiable feature for you.

Q: Is my car OBD1 or OBD2?

In the UK and most parts of the world, cars manufactured for sale from 1996 onwards are generally OBD2 compliant. If your car was built before 1996, it likely uses an older OBD1 system, which is not standardised and requires manufacturer-specific tools. To be absolutely sure, you can often find a label under the bonnet or in the owner's manual stating if the vehicle is OBD2 certified.

Q: What data can you get from an OBD2 scanner?

An OBD2 scanner can provide a wealth of information, depending on its sophistication. Common data points include:

• Logged Fault Codes (DTCs): Specific codes indicating detected issues.
• Freeze Frame Data: A snapshot of engine conditions when a fault code was set.
• Live Data Streams: Real-time readings from various sensors (e.g., engine RPM, vehicle speed, coolant temperature, oxygen sensor voltages, fuel pressure).
• Emission Readiness Status: Indicates whether the vehicle's emission control systems have completed their self-tests.
• Vehicle Identification Number (VIN): Often accessible through the scanner.
• Number of Ignition Cycles: How many times the engine has been started.
• Status of Engine Warning Lights: Whether the 'Check Engine' light is on or off.
• O2 Sensor Test Results: Detailed results from the oxygen sensor monitors.

Final Words

The Onboard Diagnostics scanner is no longer a niche tool reserved for professional mechanics; it's an indispensable piece of kit for any modern car owner. From basic code readers that offer peace of mind to advanced DIY tools that empower you to perform more intricate troubleshooting, there's a diagnostic device to suit every need and budget. By familiarising yourself with how to use these tools and interpret their findings, you'll gain a deeper understanding of your vehicle's health, potentially saving significant money and preventing small issues from becoming major headaches. So, embrace the power of diagnostics, invest in a suitable tool, and take control of your car's maintenance journey.
