RC Nitro Engine: Tune, Maintain & Troubleshoot

When it comes to RC Car Nitro Engines, understanding the intricacies of maintenance, tuning, and troubleshooting can significantly elevate your hobbyist experience. Navigating the world of nitro engine tuning procedures, particularly the delicate balance required for the high-speed needle, or diagnosing issues with an incorrectly set up fuel mixture, can make all the difference in achieving that coveted peak performance. The precise control of fuel mixture and the identification of potential malfunctions within critical systems like the cooling or lubrication are vital elements for any aspiring RC racer. This comprehensive guide aims to equip you with the essential knowledge to confidently manage your RC nitro car, from initial setup to resolving persistent problems.

Tuning Your RC Car Nitro Engine: The Fundamentals

Getting the most out of your RC nitro engine involves a fine balance between fuel mixture, throttle response, and ultimately, top speed. Tuning is not merely an adjustment; it's a delicate process that demands patience, accuracy, and a solid familiarity with the motor's mechanical workings. A well-tuned engine will respond crisply to your commands, deliver consistent power, and maintain a stable idle, ensuring you have the competitive edge on the track.

The High-Speed Needle (HSN): Mastering Top-End Performance

The high-speed needle (HSN) is arguably the most critical adjustment for achieving optimal performance at higher RPMs. This component meticulously controls the fuel-air mixture when your RC car is running at full throttle or operating at its peak rotational speeds. An improperly adjusted HSN can lead to a variety of detrimental effects, ranging from engine overheating and potential damage to a noticeable drop in top-end speed and stuttering during acceleration. It’s about finding that elusive sweet spot where the engine breathes optimally, delivering maximum power without succumbing to the stresses of an overly lean or rich mixture.

Initial Setup and Adjustment Strategy:

• Reset to Factory Settings: If you've been experimenting with the HSN, the first crucial step is to reset it to the manufacturer's recommended settings. This provides a clean baseline for your tuning efforts.
• Gradual Incremental Adjustments: With the engine running, begin to gradually adjust the HSN. A common starting point is to turn it in (leaner) or out (richer) in small increments (e.g., 1/8th of a turn at a time).
• Listen and Observe: Pay close attention to the engine's sound and behaviour. You're looking for a smooth transition to higher RPMs without any sign of bogging, stuttering, or excessive heat. A slight puff of smoke from the exhaust is often a good indicator of a healthy, slightly rich mixture, which is generally safer for the engine.
• Test and Refine: After each adjustment, run the car for a short period, testing acceleration and top speed. Continue to make small adjustments until you achieve the best combination of power and engine stability.

Traxxas, a leading name in RC vehicles, offers excellent advice on achieving the ideal blend of velocity and engine safety. Consulting their resources can provide invaluable insights for mastering nitro engine tuning.

The Low-Speed Needle (LSN): Ensuring Smooth Idle and Transitions

Moving on to the low-speed needle (LSN), this component governs the fuel flow into the carburetor at lower RPMs, significantly influencing the engine's idle stability and its response when transitioning from idle to acceleration. An incorrectly set LSN can manifest as difficulty starting, an unstable or stalling idle, or a bogging sensation when you first apply throttle. A well-adjusted LSN ensures that your engine purrs at idle and smoothly transitions to higher speeds without hesitation.

Tuning the LSN for Optimal Response:

• Reset and Start: Similar to the HSN, begin by resetting the LSN to factory settings if it has been tampered with.
• Achieve a Stable Idle: Start the engine and adjust the LSN to achieve the lowest possible stable idle speed. The engine should not want to die when you blip the throttle.
• Test Throttle Response: Gradually apply throttle from idle. The engine should accelerate smoothly without bogging or sputtering. If it hesitates, the LSN might need to be opened slightly (richer). If it bogs down immediately, it may need to be closed slightly (leaner).
• Focus on Transitions: The goal is a seamless transition from idle to acceleration. Make incremental adjustments, testing the response each time until you achieve a crisp and consistent reaction to throttle input.

Proper maintenance, regular check-ups, and meticulous attention to correct tuning procedures are paramount. These practices will not only extend the lifespan of your RC car's engine but also significantly improve its overall functionality and performance on the track.

Key Takeaway: Tuning your RC car nitro engine is crucial for optimal performance. This involves carefully adjusting the high-speed needle (HSN) for top-end power and the low-speed needle (LSN) for smooth idle and acceleration. Finding the perfect balance ensures both speed and engine health, leading to a more enjoyable and competitive RC experience. Regular maintenance complements tuning for longevity and peak functionality.

Troubleshooting Common Issues in Nitro Engines

Understanding and being able to troubleshoot common issues is an essential skill for any RC nitro enthusiast. Many performance problems can be traced back to a few key areas within the engine and its supporting systems. By systematically diagnosing these components, you can often resolve persistent issues and get your car back on the track.

Identifying Malfunctions in the Radiator System

The radiator is the unsung hero of your nitro engine, playing a vital role in dissipating heat and preventing critical components from overheating. If you notice your engine running excessively hot, losing power at high RPMs, or exhibiting signs of distress, the radiator system should be your first port of call.

What to Check:

• Coolant Level and Condition: Ensure the radiator is filled with the correct type and amount of coolant. Check for any signs of leaks around the radiator core, hoses, or connections. Dirty or degraded coolant can also reduce efficiency.
• Radiator Fins: Inspect the radiator fins for any blockages from dirt, debris, or damage. Bent or clogged fins significantly impede airflow, reducing the radiator's ability to cool the engine effectively. Gently straighten bent fins and clean out any obstructions.
• Hose Integrity: Examine the coolant hoses for any cracks, swelling, or signs of wear. A compromised hose can lead to leaks or restricted coolant flow.

Checking Water Pump Functionality

The water pump is responsible for circulating coolant throughout the engine and radiator. A malfunctioning water pump can lead to inadequate cooling, causing temperatures to rise dramatically, potentially leading to severe internal engine damage.

How to Assess:

• Listen for Unusual Noises: Sometimes, a failing water pump will make grinding or whining noises.
• Observe Temperature Fluctuations: While difficult to measure precisely without an infrared thermometer, you can sometimes infer issues by observing significant, unexplained temperature rises during operation, especially when comparing full throttle to half throttle.
• Visual Inspection: Check for any leaks around the water pump housing.

Ensuring Proper Lubrication System Operation

A well-lubricated engine runs smoother, cooler, and lasts significantly longer. The fuel mixture contains oil, which is critical for lubricating moving parts. Insufficient lubrication, often due to incorrect fuel mixture or blockages in the fuel delivery system, can lead to increased friction, heat, and premature wear.

Key Areas to Inspect:

• Fuel/Oil Ratio: Always use the correct nitro fuel with the recommended oil content for your engine. Using too little oil is a direct path to engine damage.
• Fuel Filter: A clogged fuel filter can restrict fuel and oil flow to the engine. Regularly inspect and replace the fuel filter as per the manufacturer's recommendations.
• Fuel Lines: Check the fuel lines for any kinks, collapses, or blockages that could impede the flow of fuel and oil.
• Glow Plug: While not strictly part of the lubrication system, a fouled or worn-out glow plug can prevent proper combustion, leading to performance issues that might be mistaken for lubrication problems. Ensure your glow plug is clean and functioning correctly.

If you're experiencing difficulties achieving high RPMs despite correctly tuned high-speed needle settings, or if your engine is quitting unexpectedly, it could indicate an issue with oil distribution or fuel delivery. For persistent problems, such as those encountered with factory-frozen carburetors or specific engine types like the Evo .46 that struggle with transitions, seeking professional help might be the most efficient solution, as these complex matters often require specialised attention.

Key Takeaway: Troubleshooting common nitro engine issues often involves inspecting the radiator system for leaks or blockages, checking the water pump's functionality, and ensuring the lubrication system is delivering adequate oil. Addressing these areas systematically can resolve many performance problems. For complex or persistent issues, professional assistance is advisable.

Dealing with Starting Difficulties

The frustration of a nitro RC car that refuses to start can be a significant hurdle for hobbyists. Whether it's an incorrectly tuned high-speed needle, a clogged fuel line, or a faulty igniter, several factors can contribute to starting woes. Fortunately, with a methodical approach, most starting difficulties can be overcome.

The Importance of Fresh Nitro Fuel

Nitro fuel is a complex blend, and its components can degrade over time, especially when exposed to air and moisture. Using stale fuel is a common reason for starting problems and poor engine performance. The nitro-methane content, crucial for power, can dissipate, and the oil can separate.

When to Replace Fuel:

• Age: Nitro fuel generally has a shelf life of 6-12 months if stored correctly in an airtight container away from direct sunlight and heat.
• Appearance: If the fuel looks cloudy, has separated layers, or has a different smell than usual, it's time for a fresh batch.
• Performance Issues: If you suspect your fuel might be old, replacing it is a simple and effective troubleshooting step.

Cleaning Out Your Fuel Tank

A dirty fuel tank can introduce contaminants into your fuel system, leading to inconsistent performance and starting issues. Debris, water, or old fuel residue can clog fuel lines or the carburetor.

Steps for Cleaning:

• Drain Completely: Empty the fuel tank of all old fuel.
• Flush with Fresh Fuel: Add a small amount of fresh nitro fuel, swish it around, and drain again. Repeat this process until the fuel coming out is clean.
• Inspect Fuel Lines and Filter: While the tank is empty, take the opportunity to inspect and clean or replace the fuel filter and check fuel lines for any blockages.

Testing Glow Igniter Functionality

The glow plug is essential for igniting the fuel-air mixture in a nitro engine. It requires a glow igniter to heat up to the correct temperature. A faulty igniter or a depleted battery will prevent the glow plug from heating, making starting impossible.

How to Test:

• Visual Check: Ensure the igniter battery is fully charged. Check the igniter's tip for any signs of damage or corrosion.
• Test with a Known Good Plug: If possible, try using a known good glow plug with your igniter, or try your igniter on a different engine.
• Test a Different Igniter: The most definitive test is to try a different, known working glow igniter on your engine. If it starts with a different igniter, the issue lies with your original one.

For more complex starting problems, such as those related to incorrect factory settings or specific engine behaviours like quitting upon throttle application, a deeper dive into the engine's tuning and potentially professional intervention may be required. Remember, consistent maintenance and adherence to proper tuning procedures are key to reliable starting and optimal performance.

Addressing Inconsistent Performance Over Time

Experiencing a nitro engine that runs perfectly one week and then struggles the next can be incredibly frustrating. This inconsistency often stems from subtle changes in the carburetor's mixture settings or environmental factors that affect fuel-air ratios. Maintaining consistent performance requires diligent tuning and an understanding of how various elements interact.

Tuning Carburetor's Mixture Settings

The carburetor is the heart of fuel delivery. Adjusting its mixture settings, primarily through the HSN and LSN, is essential for consistent engine operation across different conditions.

Factors Affecting Performance:

• Fuel Mixture (HSN): An incorrectly tuned HSN can lead to erratic behaviour at higher RPMs. If the mixture is too lean, the engine can overheat and lose power. If it's too rich, it might bog down or struggle to reach its full potential.
• Air Intake (Carburetor Venturi): The size of the air intake (venturi) affects the air-fuel mixture. If not properly matched to the engine, it can lead to a rich mixture, causing stalling or sluggish response.
• Ideal Setting: A properly tuned engine should transition smoothly from idle to full throttle without any hesitation, stuttering, or stalling. Achieving this balance often involves trial and error, carefully adjusting both needles.

Choking Up and Stalling During Startup Phase

A common cause of inconsistent performance, particularly during startup or initial acceleration, is an overly lean setting on the low-speed needle (LSN). This results in insufficient fuel being delivered, causing the engine to choke up or stall when throttle is applied.

Diagnosing and Adjusting the LSN:

• Observe Throttle Response: After starting the engine, apply half throttle. If the car hesitates, sputters, or dies, the LSN is likely too lean.
• Adjust for Richer Mixture: To correct this, slightly open the LSN (turn it counter-clockwise) to increase fuel delivery. Make small adjustments and re-test the throttle response until it's smooth and crisp.
• Idle Speed Consideration: Ensure the idle speed is set correctly. Too low an idle can exacerbate stalling issues, while too high an idle can make it difficult to get a precise reading on the LSN's effect.

Ultimately, achieving consistent performance relies on diligent maintenance and regular tuning. External factors like temperature and humidity variations can influence engine behaviour, so be prepared to make minor adjustments as needed. Always consult your engine manufacturer's specific instructions, as each model has unique requirements for optimal operation.

Key Takeaway: Inconsistent performance in RC nitro engines is often linked to carburetor mixture settings. Fine-tuning the high-speed and low-speed needles is essential for smooth transitions and consistent power delivery. Addressing issues like choking during startup by adjusting the low-speed needle for a slightly richer mixture can dramatically improve reliability.

Accurate Tuning 4-Stroke Engines

Tuning a four-stroke nitro engine for an RC car requires a methodical approach and the right tools. While the principles are similar to two-stroke engines, the nuances of four-stroke operation demand precision for optimal performance.

Essential Tools and Techniques:

• Tachometer: A tachometer is indispensable. It provides real-time RPM data, allowing you to precisely gauge the engine's speed and make informed tuning adjustments. It's your engine's speedometer, crucial for achieving maximum efficiency.
• High-Speed Needle (HSN) Adjustment: With the engine running at full throttle, hold the RC car vertically, nose-up. This position ensures that fuel is efficiently delivered to all parts of the engine block. Adjust the HSN to achieve the optimal RPM range as specified by the manufacturer, listening for a smooth, consistent power output without signs of overheating or bogging.
• Fuel Line Integrity: Before and during tuning, check the fuel line for any kinks or obstructions. These can disrupt fuel flow, leading to inaccurate readings on your tachometer and inconsistent engine behaviour.
• Glow Plug Condition: A worn-out or fouled glow plug can severely hamper tuning. Ensure your glow plug is clean and properly heated by the igniter. If it shows signs of wear, replace it.
• Low-Speed Needle (LSN) Adjustment: Once the engine has reached its optimal running speed and the HSN is set, focus on the LSN. The goal here is to find the slowest possible idle speed at which the engine remains stable and does not stall when the throttle is blipped.
• Throttle Linkage Trim: Adjust the throttle linkage trim to ensure smooth and responsive transitions between different power levels. This guarantees that your RC car accelerates predictably and efficiently.

Caution: Be extremely careful when adjusting the HSN. An incorrectly tuned HSN can lead to reduced top speed and potentially catastrophic engine damage at higher RPM ranges.

Resolving Persistent Problems With Factory-Frozen Carburetors and Evo .46 Type Engines

RC racers often encounter frustrating issues with carburetors that seem "factory-frozen," refusing to reach high RPMs despite adjustments, or with specific engine types like the Evo .46 that exhibit poor throttle transitions. These problems can be rooted in manufacturing tolerances, assembly issues, or a lack of proper break-in and maintenance.

Dealing With Factory-Frozen Carburetors That Just Won't Reach High RPMs

A carburetor that fails to allow the engine to reach its intended high RPMs can be a significant performance bottleneck. This is often due to internal restrictions or incorrect assembly from the factory, compounded by a lack of meticulous maintenance.

Potential Causes and Solutions:

• Maintenance: Keep your fuel line and air filter meticulously clean. Dirt and debris entering the engine can cause internal wear and lead to carburetor issues. Regular cleaning is akin to giving your engine a vital spa treatment.
• Tuning Procedure: Ensure you are following the correct nitro engine tuning procedures. Randomly adjusting needles without understanding their function can worsen the problem. Proper adjustment of the high-speed needle is critical for achieving peak velocity; incorrect settings can lead to sluggish acceleration.
• Fuel Quality: The quality of your nitro fuel is paramount. Use high-grade nitro fuel specifically formulated for RC cars. Using inferior fuel can lead to inconsistent performance and internal engine problems.
• Carburetor Cleaning/Rebuild: In some cases, the carburetor itself may require a thorough cleaning or even a rebuild. This involves disassembling the carburetor and cleaning all internal passages with appropriate solvents.
• Professional Assistance: If you've exhausted all troubleshooting steps, it might be time to seek expert assistance from a professional RC mechanic.

Addressing issues with engines like the Evo .46, which may struggle with smooth throttle transitions, also requires a patient and systematic approach, often involving fine-tuning the LSN and ensuring the throttle linkage is correctly set up. Remember, every step towards proper maintenance and understanding your engine's behaviour contributes to a longer lifespan and more thrilling racing experiences.

Key Takeaway: Persistent carburetor problems and poor throttle response in RC engines can often be resolved through diligent maintenance, correct tuning practices, and the use of high-quality fuel. For stubborn issues, professional intervention may be necessary.

FAQs in Relation to RC Car Nitro Engines: Maintenance, Tuning, and Troubleshooting

How to Tune a Nitro Engine?

To tune a nitro engine, you'll primarily adjust the high-speed needle (HSN) for top-end performance and the low-speed needle (LSN) for fuel delivery at lower RPMs. Before making adjustments, it's generally advised to richen up the high-speed needle valve. Precise adjustments, often in small increments, are key to finding the optimal fuel-air mixture for smooth acceleration and stable idling.

How to Take Care of a Nitro RC Car?

Proper care involves several key aspects: regularly cleaning the vehicle and engine, using only fresh nitro fuel, ensuring the glow igniter is functional and the glow plug is in good condition (replacing it when necessary), and promptly addressing any radiator system malfunctions or cooling issues. Consistent checks and proactive maintenance are vital.

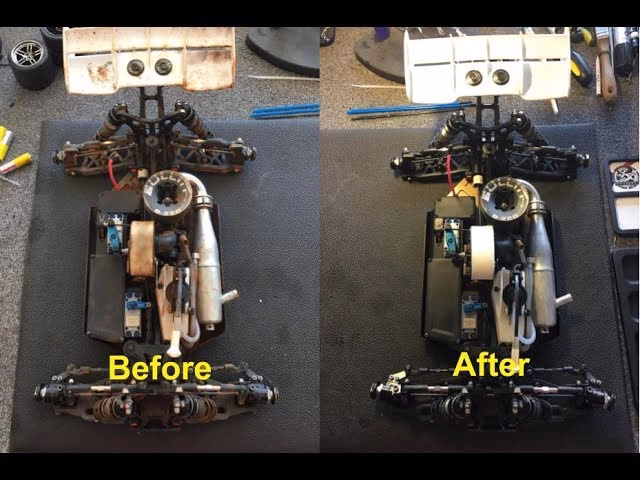

What's the Best Way to Clean a Nitro Engine?

The most effective method for cleaning a nitro engine typically involves careful disassembly, followed by a thorough brushing using an appropriate cleaning agent such as denatured alcohol or a specialised carburetor cleaner. Ensure all parts are dried completely before reassembly.

Conclusion

Mastering the art of maintaining, tuning, and troubleshooting RC Car Nitro Engines is an ongoing journey that rewards patience and attention to detail. By understanding the critical roles of the High-Speed Needle and Low-Speed Needle in controlling fuel mixture at different RPMs, you can tune your engine like a seasoned professional. Don't let radiator system malfunctions or lubrication issues derail your racing fun – addressing them promptly will keep you on track. If your engine is proving difficult to start, fresh fuel, a clean fuel tank, or a new glow plug might be the simple solutions you need. For those chasing consistent performance, investing in a tachometer and diligently working through troubleshooting steps will help you conquer even the most complex engine problems. Embrace the learning process, and your RC nitro car will reward you with exhilarating performance.
