Car Door Lock Cylinder: Repair & Replacement Costs

Understanding Your Car Door Lock Cylinder

The car door lock cylinder, often referred to as the lock barrel, is the critical component where you insert your vehicle's key to grant access or secure your car. For older vehicles, this is the primary method of locking and unlocking doors. In more modern cars equipped with electronic locking systems and keyless entry, the lock cylinder serves as an essential emergency backup. Its importance cannot be overstated, as it ensures you can always access your vehicle, even when electronic systems fail.

How Does a Car Door Lock Cylinder Work?

The fundamental operation of a car door lock cylinder relies on the interaction between your physical key and the internal mechanisms. When you insert the key into the keyway, its unique cuts align a series of small pins or tumblers within the cylinder. This precise alignment allows the cylinder's core, or plug, to rotate, thereby unlocking or locking the door. Typically, turning the key clockwise locks the door, while turning it anti-clockwise unlocks it. If any of these pins are misaligned, stuck, or worn, the key will not turn, preventing you from accessing your car.

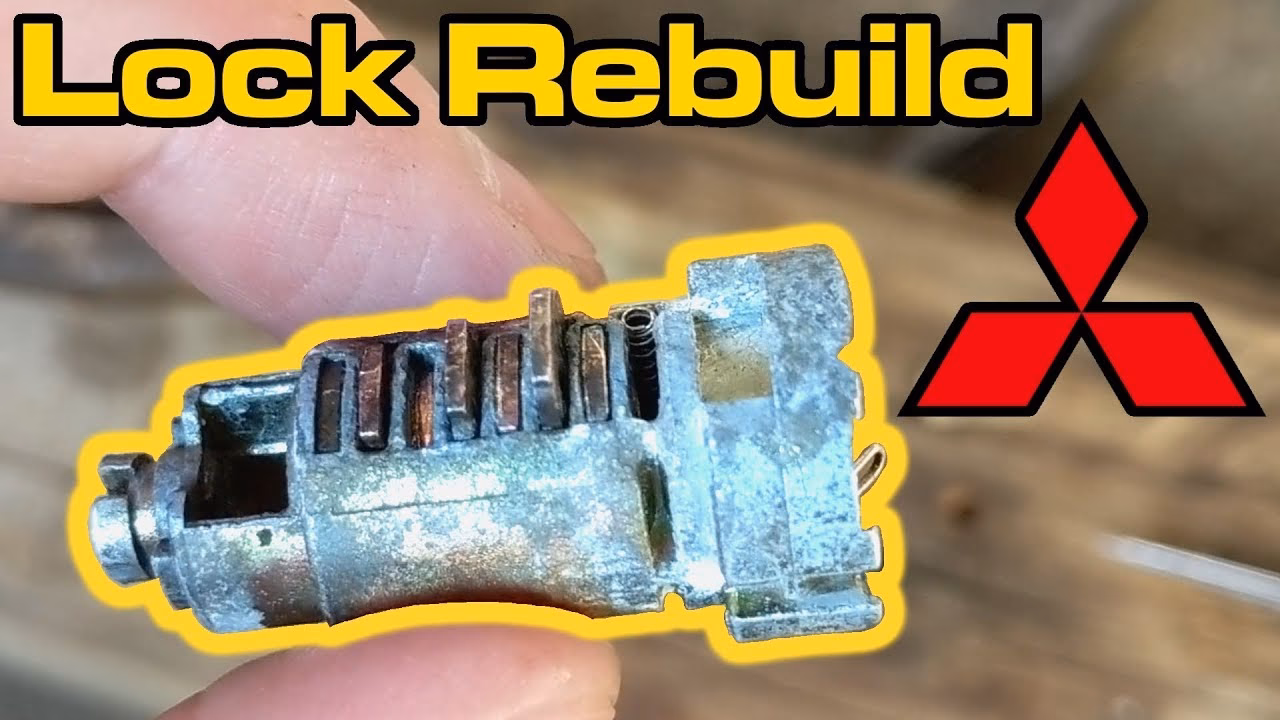

The Anatomy of a Car Door Lock Cylinder

Despite its compact size, a car door lock cylinder is a sophisticated piece of engineering comprising several vital parts:

• Keyway: This is the slot at the top of the cylinder where the car key is inserted. It's often protected by a dust cover to prevent debris and moisture from entering and causing damage.
• Cylinder Housing: The robust outer casing that securely holds all the internal components. It's usually constructed from durable metal for longevity.
• Plug: A cylindrical component situated within the main barrel, housing the majority of the internal mechanisms, most notably the tumblers or pins.
• Tumblers/Pins: These are typically small brass components that reside within the plug. Their specific cuts correspond to the cuts on your key. When the correct key is inserted, these pins align perfectly, allowing the plug to turn.
• Springs: Essential for resetting the tumblers after each use, ensuring they are ready for the next operation. There are small springs for the tumblers and a larger spring for the overall cylinder mechanism.

Location of the Lock Mechanism

The car door lock cylinder is generally found near the door handle, typically at the base of the window. It connects directly to the door's latch and handle mechanism, facilitating the unlocking and locking action when the key is turned. In some vehicles, the lock cylinder is visibly integrated with the door handle, while in others, it might be concealed behind a plastic trim piece. Most cars feature a lock cylinder on both the driver's and passenger's side doors for convenience and security. However, modern vehicles with advanced electronic locking systems may only have a lock cylinder on one door, serving as a backup for situations like a dead key fob battery or system malfunction.

Common Car Door Lock Cylinder Problems

The intricate moving parts within a lock cylinder are susceptible to wear and tear, as well as damage from dirt, corrosion, or even attempted break-ins. Here are some common issues you might encounter:

• Manual Lock Not Working: You may find that the key refuses to enter the cylinder, or it won't turn even when inserted correctly. This is often due to worn tumblers, springs, or other internal components. It's also worth checking if your key itself is worn; trying a spare key can help diagnose this.
• Car Cylinder Lock Stuck: The key may turn only partially or not at all, even with correct insertion. This is frequently caused by accumulated dirt, grime, or corrosion hindering the free movement of internal parts. In severe cases, the key might even get stuck or break if excessive force is applied.

Troubleshooting and Repair Options

A malfunctioning lock cylinder can be a significant inconvenience. Fortunately, there are a couple of common repair approaches:

Lubricating a Jammed Lock Cylinder

If the issue is due to dirt or minor corrosion, lubrication can often resolve the problem. This is a relatively simple DIY fix:

1. Clean the Cylinder: Use a penetrating lubricant or a brake cleaner designed for automotive use to spray directly into the keyway. This helps to dissolve rust and dislodge dirt.
2. Work the Key: After waiting a few minutes for the cleaner to work, insert the key and gently try to turn the cylinder back and forth.
3. Flush and Re-lubricate: Apply another burst of cleaner to flush out any loosened debris. Then, apply a silicone-based lubricant or a specialized lock lubricant. White grease is also a suitable option.
4. Cycle the Lock: Insert the key and turn it several times in both directions to distribute the lubricant throughout the mechanism.

Using a high-quality lubricant specifically designed for automotive locks is crucial for optimal performance and longevity.

Rekeying a Car Door Lock Cylinder

Rekeying involves replacing the internal pins or wafers to match a new key. This is a good solution if the lock mechanism is faulty, you've lost your original key, or you simply wish to enhance your car's security. The process typically requires dismantling the lock assembly and using a rekeying kit. While it can be a DIY project, it requires precision and specific tools. If you're not comfortable with intricate mechanical work, seeking professional help is advisable.

Replacing a Car Door Lock Cylinder

In many instances, a worn-out or damaged lock cylinder cannot be effectively repaired and requires complete replacement. This is the most reliable way to restore your car's security, as a new cylinder comes with a fresh set of perfectly matched pins.

DIY Replacement Steps

Replacing a car door lock cylinder yourself can save on labour costs. While the process can vary slightly depending on your vehicle's make and model, the general steps are as follows:

Tools You'll Need:

• New, compatible door lock cylinder assembly
• Ratchet and socket set
• Phillips and flat-head screwdrivers
• Trim removal tools
• Needle-nose pliers or a pick tool

Step-by-Step Guide:

1. Prepare Your Vehicle: Park on a level surface and engage the parking brake. For added safety, use wheel chocks.
2. Remove the Door Panel: The lock cylinder is usually hidden behind the interior door panel. You may need to remove trim pieces, window cranks, or peel back a moisture barrier. Consult your vehicle's service manual for specific instructions.
3. Access and Disconnect the Cylinder: Once the panel is off, locate the lock cylinder assembly. It's often secured by a C-clip, which can be removed with needle-nose pliers. Disconnect the lock rod connecting the cylinder to the door handle, usually by gently prying it with a flat-head screwdriver. In some cases, you might need to use a socket wrench to remove retaining bolts.
4. Install the New Cylinder: With the old cylinder removed, carefully install the new one, ensuring it's the correct part for your vehicle. Reconnect the lock rod and secure the cylinder with its retaining clip or bolts.
5. Reassemble the Door Panel: Reverse the removal process to put the door panel and any trim pieces back in place.
6. Test the Lock: Insert your key and test the new lock cylinder thoroughly to ensure it operates smoothly and securely.

Professional Replacement

If you're not confident performing the replacement yourself, a qualified mechanic or auto locksmith can handle the job efficiently. They have the expertise and tools to ensure the cylinder is installed correctly.

Cost of Replacing a Car Door Lock Cylinder

The total cost for replacing a car door lock cylinder can be broken down into parts and labour. Here's a general estimate:

Parts Cost:

The price of a replacement car door lock cylinder typically ranges from £30 to £100, depending on the vehicle's make, model, and the quality of the part. You can purchase these from auto parts stores or online retailers.

Labour Cost:

If you opt for professional installation, labour costs can add anywhere from £50 to £100 or more. This is generally based on the hourly rate of the mechanic or locksmith and the complexity of the replacement for your specific vehicle.

Total Estimated Cost:

Therefore, the overall cost to replace a car door lock cylinder can range from approximately £80 to £200. It's always advisable to get a quote from your chosen service provider before proceeding.

Tips for Purchasing a Replacement Cylinder:

• Compatibility is Key: Ensure the new cylinder is specifically designed for your car's make, model, and year.
• Shop Around: Compare prices from different auto parts suppliers, both online and in brick-and-mortar stores. Online retailers often offer competitive pricing, sometimes with discounts of up to 25%.

Frequently Asked Questions (FAQs)

Q1: Can I replace a car door lock cylinder myself?

A1: Yes, if you have basic mechanical knowledge and the right tools, you can replace a car door lock cylinder yourself. However, if you're unsure, it's best to seek professional assistance.

Q2: How long does it take to replace a car door lock cylinder?

A2: A DIY replacement can take anywhere from 1 to 3 hours, depending on your experience and the specific vehicle. Professional replacement typically takes about 1 to 2 hours.

Q3: What should I do if my car key is stuck in the lock cylinder?

A3: Do not force the key. Try gently wiggling it while applying slight turning pressure. Lubricating the keyway with a graphite lubricant or silicone spray can also help. If it remains stuck, it's best to consult a locksmith.

Q4: How often should I lubricate my car door locks?

A4: While not strictly necessary for all modern vehicles, lubricating your lock cylinders annually or if you notice any stiffness can help prevent future issues and prolong their lifespan.

Conclusion

The car door lock cylinder is a vital component for your vehicle's security and accessibility. Recognizing the signs of a failing cylinder and understanding your repair or replacement options is crucial. Whether you choose a DIY approach or professional service, addressing a faulty lock cylinder promptly will prevent you from being stranded and ensure the continued safety of your vehicle.
