Understanding PTO Slip Clutches

For anyone who owns a farm tractor, the word 'indispensable' likely springs to mind. These powerful machines are the backbone of many agricultural operations. However, they also come with a significant price tag, not just for purchase but also for maintenance and repairs. Unlike a car, where mechanics often bill by the hour, some tractor repair shops operate on a daily rate, which can lead to surprisingly high bills for seemingly straightforward fixes. While my recent experience involved brake issues on a John Deere 5105, many other components can suffer damage, especially when using Power Take-Off (PTO) driven implements. This is precisely why a PTO slip clutch should be considered a crucial addition to your farm equipment arsenal.

What Exactly is a PTO Slip Clutch?

You've likely encountered a PTO slip clutch before, even if you didn't know its name. It typically presents as a simple round disc and spring assembly, commonly found on PTO-driven rotary mowers. At its core, a PTO slip clutch is a torque-limiting device. Its primary function is to protect your tractor and implements from damage when an excessive amount of torque is applied. When the resistance from the implement (due to hitting an obstruction, for instance) exceeds the clutch's pre-set limit, the clutch 'slips'. This means the two sides of the PTO shaft spin at different speeds, effectively disconnecting the power flow momentarily. This mechanism prevents catastrophic failure in either the tractor's drivetrain or the implement itself. Slip clutches are frequently supplied with implements like bush hogs and rotary tillers, but their benefits extend to almost any PTO-driven equipment, including post hole augers, hay tedders, balers, cordwood saws, and more.

The Alternative: Shear Pins

Before slip clutches became widespread, and still used on less demanding or cheaper implements, the shear pin served as a torque-limiting mechanism. A shear pin is precisely what it sounds like: a pin or bolt designed to break, or 'shear', when a specific torque threshold is exceeded. If your post hole digger hits rocks, for example, the shear pin snaps. This action disconnects the PTO shaft, preventing power from reaching the stuck implement. While effective as a fail-safe, shear pins have significant drawbacks. To resume operation, you must first free the implement from the obstruction. Then, with the tractor turned off, you need to realign the holes where the pin was located and insert a new one. Imagine having to do this multiple times in a single afternoon while trying to complete a task; it quickly becomes incredibly tedious and time-consuming. Furthermore, some operators, in an attempt to avoid frequent pin breakages, resort to replacing the shear pin with a stronger bolt, such as a hardened grade 8 bolt. While this might prevent the pin from snapping, it merely transfers the stress to another component. When the bolt holds firm, the excessive torque can then damage gears within the implement's gearbox or, more worryingly, within the tractor's transmission or PTO shaft itself. These repairs are invariably far more expensive than replacing a shear pin or, ideally, using a slip clutch.

Why a Slip Clutch is a Superior Choice

The primary advantage of a PTO slip clutch is its role as a built-in safety feature. It acts as an intentional weak point, designed to fail gracefully when your PTO-driven implement encounters an unexpected jam. Whether your bush hog catches on a stubborn stump or your post hole digger becomes entangled in roots or rocks, the slip clutch is designed to absorb the shock. Even the most robust small farm tractor, operating at high RPMs, can experience severe damage if an implement suddenly stops. Without a slip clutch, the force has to go somewhere. It might damage the tractor's clutch, transmission, or PTO shaft, or it could destroy the implement's gearbox. A slip clutch effectively bypasses these costly repairs. Beyond the financial savings, it offers immense convenience. Instead of repeatedly stopping to replace shear pins, you simply need to free the implement from the obstruction. Once clear, the slip clutch will automatically resume transferring 100% of the torque, allowing you to get back to work with minimal interruption. This seamless operation is a significant benefit for any farmer.

Understanding the Mechanics of a Slip Clutch

Slip clutch assemblies are ingeniously simple in their design, making them relatively straightforward to understand and maintain. The key components typically include:

• Input/Tractor Side Clutch Flange: Connects to the tractor's PTO shaft.
• Output/Implement Side Clutch Flange: Connects to the implement's drive shaft.
• Friction Disks: These are the crucial elements that provide the friction needed to transfer torque. They are sandwiched between other plates.
• Pressure Plate/Baffle: Applies pressure to the friction disks.
• Springs: These provide the necessary clamping force to the friction disks, determining the torque limit.
• Bolts and Nuts: Hold the entire assembly together.

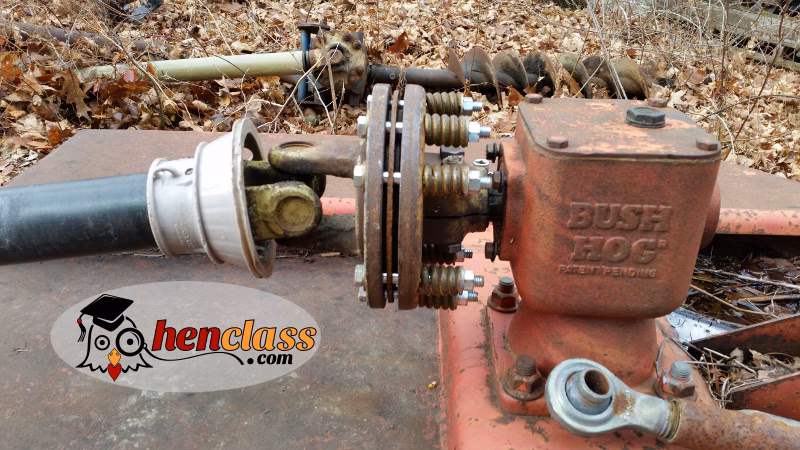

Over time, and with significant use or abuse, the friction disks can wear down or even disintegrate, much like what happened to my own brush hog's clutch. In my case, years of demanding work had thinned the disks considerably. A minor obstruction, combined with the clutch slipping, proved to be the final straw, causing the disks to break apart and rendering my brush hog inoperable. It's worth noting that if you're experiencing traction issues while mowing, adding fluid to your tractor tires can significantly improve grip.

Repairing and Maintaining Your Slip Clutch

Repairing a slip clutch assembly can be a manageable DIY task, though sourcing the correct parts can sometimes be challenging. I managed to find replacement clutch plates on Amazon, new springs from a specialist website, and standard bolts and nuts from a local hardware store for a complete rebuild. If you're in a similar situation and struggling to find specific part numbers or original owner's manuals, a good approach is to carefully measure the outer diameter (OD) and inner diameter (ID) of your worn friction disks in both inches and millimetres. The thickness of the disks is often more universal across brands, and since your old ones are worn, precise measurement isn't as critical. Many manufacturers offer universal friction disks that might be a suitable replacement. Alternatively, a knowledgeable agricultural equipment dealer can often help you source the correct rebuild kit for your specific assembly.

When to Consider Replacement

A PTO shaft slip clutch needs replacement when it begins to slip frequently under normal operating conditions or when it fails to engage properly. These symptoms indicate significant wear and tear on the friction components or potential damage to the springs or other parts. Regular inspection is key to catching these issues before they lead to more severe problems.

Safety First!

When working on any part of your tractor or implements, especially the PTO system, safety is paramount. Always ensure the engine is turned off and the parking brake is engaged before commencing any inspection or repair work. It's also advisable to wear appropriate personal protective equipment, such as gloves and eye protection. If you're unsure about any step in the repair or maintenance process, consulting a qualified mechanic is always the best course of action.

Comparison: Slip Clutch vs. Shear Pin

To further illustrate the benefits, here's a brief comparison:

Frequently Asked Questions

Q1: How often should I inspect my PTO slip clutch?
It's recommended to inspect your PTO slip clutch at least annually, or more frequently if you frequently use implements that are prone to overloading or if you notice any unusual noises or performance issues.

Q2: Can a worn slip clutch cause damage?
Yes, a worn slip clutch may not provide adequate protection, and in some cases, it might slip excessively even under normal loads, reducing efficiency and potentially leading to overheating or premature wear of the clutch components themselves.

Q3: What is the typical lifespan of a PTO slip clutch?
The lifespan varies greatly depending on usage, maintenance, and the quality of the clutch. With proper care and normal use, a slip clutch can last for many years. However, frequent severe overloads will shorten its life considerably.

Investing in a PTO slip clutch is a wise decision for any farm tractor owner. It's a proactive measure that protects your valuable machinery, saves you money on costly repairs, and keeps you operational with fewer interruptions. Don't wait for a breakdown to realise its importance!
