Brake Servo Failure: Understanding Your Car's Stopping Power

When you press your car's brake pedal, you expect a swift and confident response, bringing your vehicle to a safe halt. This seemingly effortless action is largely thanks to a crucial, yet often overlooked, component: the brake servo, also known as the brake power booster. This ingenious device amplifies the force you apply to the pedal, making braking far less strenuous and significantly more effective. However, like any mechanical part, brake servos can fail, leading to potentially dangerous situations. Understanding how this vital component works and what happens when it breaks is paramount for every driver's safety on the road.

How Your Brake Servo Works: The Science of Stopping Assistance

The brake servo acts as an intermediary between your foot on the pedal and the master cylinder, which is the heart of your car's hydraulic braking system. Its primary role is to augment the effort you apply, effectively multiplying your braking force without requiring you to exert immense physical strength. This is achieved primarily through the clever utilisation of a vacuum.

Most modern vehicles use a vacuum created by the engine's air intake manifold. Diesel engines, and some petrol engines, may instead employ a dedicated vacuum pump to generate the necessary vacuum. This vacuum is fed via a pipe to the brake servo unit, which typically consists of a sealed housing divided into two chambers by a flexible diaphragm. One side of this diaphragm is continuously under vacuum, connected directly to the engine's vacuum source. The other side is initially also under vacuum when the brakes are not applied.

When you press the brake pedal, a pushrod moves forward, activating a valve inside the servo. This valve allows atmospheric air (which is at a much higher pressure than the vacuum) to enter one of the chambers, specifically the side of the diaphragm furthest from the master cylinder. Suddenly, there's a significant pressure difference across the diaphragm: high atmospheric pressure on one side and low vacuum pressure on the other. This pressure differential causes the diaphragm to be pulled powerfully towards the vacuum chamber, which in turn forces the pushrod with amplified strength into the master cylinder.

Inside the master cylinder, this amplified mechanical force is converted into hydraulic pressure. Pistons within the master cylinder push brake fluid down the brake pipes to the brake calipers (or wheel cylinders in drum brakes). These calipers then force the brake pads against the discs (or shoes against drums), generating the friction needed to slow and stop the vehicle. When you release the pedal, the valve closes, the vacuum equalises across the diaphragm, and springs return the system to its resting state, ready for the next braking action.

The Alarming Signs: What Happens When a Brake Servo Fails?

A failing brake servo is not merely an inconvenience; it's a significant safety hazard that directly impacts your ability to stop your vehicle effectively. Recognising the symptoms early can prevent a dangerous situation. If you experience any of these signs, it's crucial to have your vehicle inspected by a professional immediately and, in severe cases, to avoid driving it altogether.

• A Hard, Stiff Brake Pedal: This is by far the most common and tell-tale symptom. If the servo isn't providing assistance, you'll suddenly find that pressing the brake pedal requires significantly more physical effort. It will feel exceptionally hard and resistant, as if you're trying to stop a heavy object without any power assistance. This directly translates to reduced braking force and dramatically increased stopping distances, making emergency stops perilous.
• Hissing Sounds When Braking: As you depress the brake pedal, you might hear a distinct hissing, whooshing, or sucking sound emanating from under the dashboard or bonnet. This noise indicates a vacuum leak within the servo unit. Air is escaping or entering where it shouldn't, compromising the vacuum seal and reducing the pressure differential needed for the servo to function correctly.
• Increased Stopping Distances: A direct and dangerous consequence of a hard pedal and reduced braking assistance. Without the servo's amplification, the brake pads simply aren't pressed against the discs with enough force, meaning your car will take much longer and travel further to come to a complete stop. This is a critical safety concern, especially in traffic or emergency situations.
• Stiff Pedal on First Start-up: If the vacuum leak is slow, the vacuum in the servo might dissipate overnight or after the engine has been off for a while. On the very first press of the brake pedal after starting the car, it might feel unusually stiff until the engine has run for a few moments and rebuilt sufficient vacuum.
• Engine Idling Issues (Less Common): In rare and severe cases, a large vacuum leak within the brake servo can affect the engine's vacuum system, potentially leading to rough idling, stalling, or other engine performance issues as the engine struggles to maintain a stable vacuum.

If you notice any of these symptoms, particularly the hard pedal or hissing sound, do not delay. Your vehicle's braking capability is severely compromised, and driving it puts yourself and others at significant risk. Book an inspection with immediate effect.

The Sealed Unit: Why Servos Aren't Repaired

Inside the brake servo, there's a complex arrangement of valves, springs, seals, and diaphragms, all working in precise concert. Due to the critical safety function of the brake servo and the intricate nature of its internal components, it is manufactured as a sealed unit. This design ensures maximum reliability and prevents tampering that could compromise its operation.

As a result, brake servos are not designed to be repaired or have individual components serviced. If an internal part fails or a seal degrades, the entire unit must be replaced. Attempting to open or repair a brake servo can have detrimental outcomes on its ability to work correctly and, more importantly, could jeopardise your braking system's integrity.

Brake Servo Replacement: A Professional Approach

Changing a brake servo is a routine repair for qualified mechanics and can often be performed both in a workshop environment or even kerbside, provided the location is safe and suitable for the work. The typical cost for this repair is considered 'medium', and lead times usually range from 24 to 48 hours, depending primarily on the availability of the specific part for your vehicle.

While there can be variations between different car manufacturers, the basic steps a mechanic will follow during a brake servo replacement are quite similar:

1. Initial Brake System Inspection: Before any work begins, the mechanic will thoroughly inspect the entire brake system to confirm the servo is indeed the source of the problem and to rule out any other associated issues.

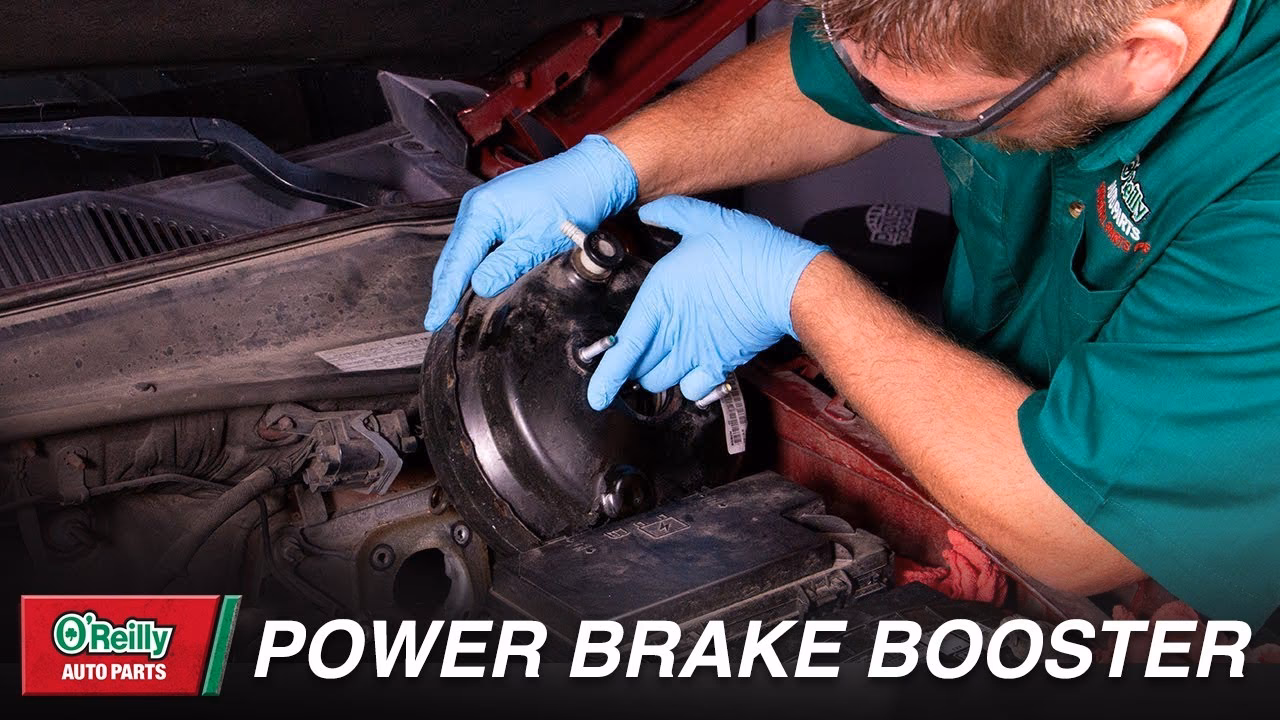

2. Accessing and Removing the Old Servo: The brake servo is typically located in the engine bay, often behind the master cylinder. This usually requires disconnecting the master cylinder from the servo (which will inevitably lead to some brake fluid loss), detaching the vacuum hose, and potentially removing other components that obstruct access. The old servo is then carefully unbolted and removed.
3. Installing the New Servo: The new brake servo unit is then carefully positioned and secured, ensuring all mounting points are correctly aligned and tightened.
4. Reconnecting and Refilling: The master cylinder is reconnected to the new servo, and all vacuum lines and other disturbed connections are securely fastened. The brake fluid level will be checked and topped up as necessary, as some fluid will have been lost during the disconnection of the master cylinder.
5. Brake Fluid System Bleeding: This is a crucial step. Whenever the hydraulic brake system is opened (as it is when the master cylinder is disconnected from the servo), air can enter the brake lines. Air is compressible, unlike brake fluid, and its presence in the lines will lead to a spongy brake pedal and ineffective braking. The mechanic will meticulously bleed the brake fluid system to remove any trapped air, ensuring a firm pedal feel and optimal braking performance.
6. Final System Inspection and Test Drive: After all components are installed and the system is bled, the mechanic will perform a comprehensive final inspection to ensure there are no leaks and all connections are secure. Finally, a cautious test drive will be conducted to verify that the brakes are functioning perfectly and safely under real-world conditions.

When you receive a quote for a brake servo replacement, it will typically cover all aspects of the repair, providing you with peace of mind. This usually includes the cost of the new brake servo unit and any necessary brake fluid, the convenience of the mechanic coming to your location (if a mobile repair is chosen), the professional fitting of the parts, responsible disposal of the old components (unless you request to keep them), any applicable VAT, and a robust 12-month warranty covering both parts and labour.

Comparing Braking Experiences: Healthy Servo vs. Failing Servo

Frequently Asked Questions (FAQs)

Can I supply my own parts for the brake servo replacement?

Generally, no. For insurance and warranty reasons, mechanics typically do not fit customer-supplied parts. This policy ensures that the fitted components meet professional standards and come with a reliable warranty, protecting both the customer and the mechanic. The only exception often considered is if the part is a brand-new item, purchased directly from a main dealership, and accompanied by a valid receipt as proof of purchase. This strict approach is in place to ensure your continued safety and the reliability of the repair.

What happens if the mechanic finds that the brake servo doesn’t require changing and the problem is due to another issue?

In such a scenario, the mechanic will conduct a thorough diagnostic to identify the actual root cause of your braking issue. They will then provide you with a new, no-obligation quote for the correct repair required. Should you accept this new quote, the mechanic can typically adjust the booking accordingly and proceed with the necessary work. If you decide not to go ahead with the alternative repair, the mechanic will usually convert the booking to a 'call out and diagnostic' service, charging you according to the time spent diagnosing the issue with your vehicle and the call-out fee. This ensures transparency and fairness for the diagnostic time invested.

Understanding your brake servo is crucial for safe driving. It's a critical component that enhances your braking power, making stopping your vehicle efficient and comfortable. However, when it fails, the consequences can be severe, significantly increasing your stopping distances and making your car unsafe to drive. Promptly recognising the symptoms and seeking professional inspection and replacement is not just advisable; it's essential for your safety and the well-being of everyone on the road. Don't gamble with your brakes; if you suspect a problem, act immediately.
