Heated Rear Window Repair: Your UK Guide

The heated rear window is an absolutely essential feature for any vehicle, particularly when navigating the unpredictable and often harsh weather conditions typical of the UK winter. This ingenious device, activated by a simple button press from within your car's cabin, plays a crucial role in eliminating bothersome fogging and can even melt accumulated ice on the glass. However, when your heated rear window falters, it can lead to a significant reduction in rear visibility, directly impacting your safety on the road. This comprehensive guide will delve into the intricacies of how your heated rear window operates, detail the most common problems you might encounter, and provide practical, actionable steps on how to diagnose and effectively resolve them.

Understanding Your Heated Rear Window: The Basics

The heated rear window is an integrated system located on your vehicle's back windscreen, meticulously designed to keep the glass free from moisture, condensation, and ice. Its effectiveness stems from several thin, horizontal lines visibly embedded or printed onto the glass surface. These lines are, in fact, electrically conductive wires. When the system is switched on, an electric current flows through these wires, causing them to heat up. This warmth is then transferred directly to the glass, efficiently clearing any fogging or melting any ice that has accumulated.

Activating this system is straightforward, typically involving a dedicated button on your dashboard. Once pressed, the wires rapidly begin to warm, initiating the defogging process. A functional heated rear window not only dramatically improves the driver's rearward visibility but also ensures significantly safer driving by providing a consistently clear visibility through your rearview mirror, reducing accident risks.

Common Culprits: Why Your Heated Rear Window Fails

Like any electrical system within your vehicle, the heated rear window is susceptible to various issues. Understanding these common malfunctions is the first step towards a successful repair:

• Faulty Defogger Button: Sometimes, despite pressing the activation button, nothing happens. This can often be attributed to poor contact within the button itself or an internal defect in its operation.
• Bad Fuses or Relays: A frequent culprit is a blown fuse or a malfunctioning relay. These components are vital for managing the electrical current supplied to the rear window. When they fail, power is simply cut off from the heating elements.
• Broken Circuit (Heating Elements): The conductive wires or elements embedded within the glass can become damaged. This might occur due to impacts, scratches, or even rough handling when removing stickers or using abrasive cleaning chemicals on the glass surface. A break in even one of these lines can interrupt the entire circuit or a section of it.
• Damaged Wiring or Connections: Loose, corroded, or broken wires leading to or from the heating elements can prevent current flow. This includes the main power supply wire and the earth connection.
• Deeper Electrical Problems: If the issue isn't with the fuses, relay, or button, the underlying cause could be a more complex problem within the car's broader electrical system, such as a faulty alternator or a weak car battery that isn't providing sufficient power.

How to Diagnose and Repair a Heated Rear Window

If you suspect your heated rear window is malfunctioning, there are several diagnostic and repair options available. Some problems can be tackled with basic DIY skills and tools, while others will necessitate professional intervention. Here’s a step-by-step guide:

Step 1: Initial Visual Checks and Button Functionality

Begin by checking the simplest things. Is there an indicator light on the defogger button? Does it illuminate when pressed? If not, the issue might be with the button itself or its power supply. Also, visually inspect the heated elements on the rear glass for any obvious breaks, discolouration, or damage.

Step 2: Fuse and Relay Inspection

This is often the first and easiest fix. Locate your car's fuse box, typically found under the bonnet, in the glove compartment, or behind a panel in the footwell (consult your car's owner's manual for its exact location and the specific fuse for the heated rear window). The fuse will usually be labelled with a symbol resembling a rear window with wavy lines or simply "HRW" or "Defrost".

Carefully pull out the corresponding fuse. Inspect the small wire inside; if it's broken or discoloured, the fuse is blown fuse. Replace it with a new fuse of the exact same amperage. If the new fuse blows immediately upon activation, this strongly suggests a short circuit somewhere in the system, requiring further investigation.

If your vehicle's heated rear window was factory-fitted, its circuit likely includes a relay – a small, square, or rectangular box usually situated near the fuse box. To test the relay, place your fingers on it and activate the heater switch. A working relay should produce a subtle click or vibration. If it remains silent, the relay has likely failed and requires replacement.

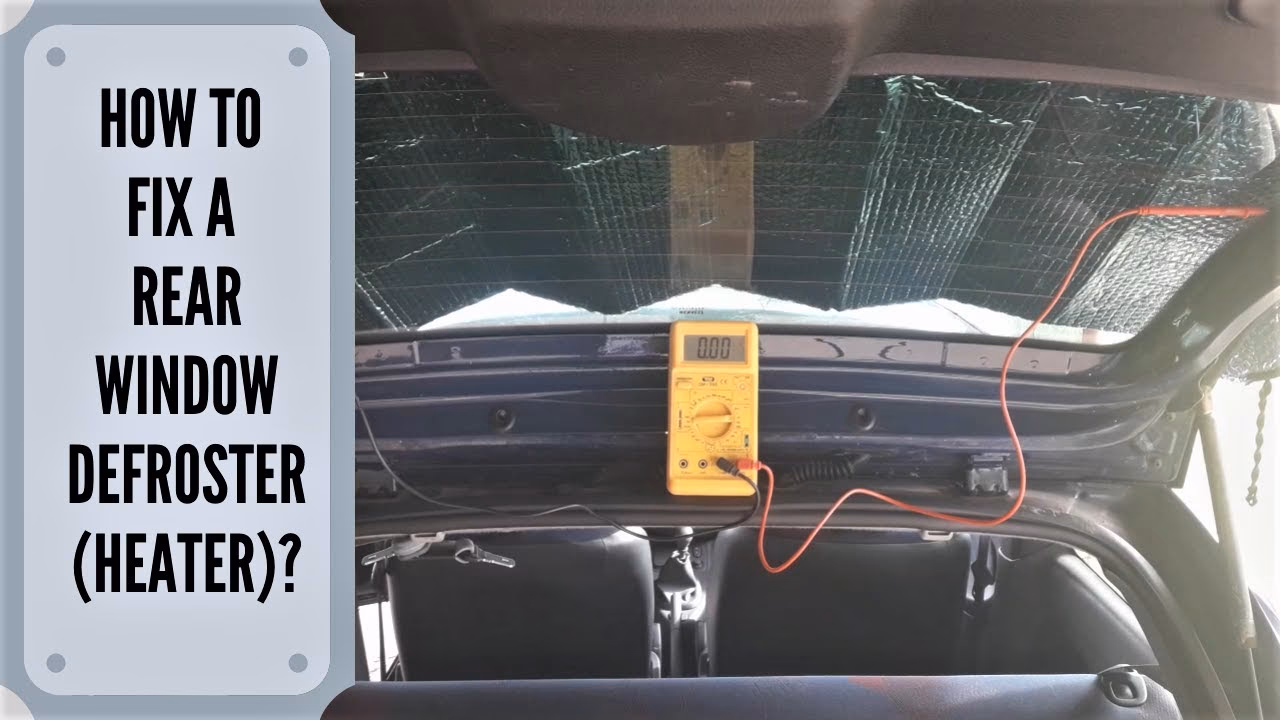

Step 3: Testing for Power with a Test Lamp or Multimeter

If the fuse is intact, you'll need a test lamp or multimeter to trace the electrical current. This tool is invaluable for pinpointing where the power supply is failing.

1. Check at the Fuse Box: Clip the test lamp to a good earth point on the car's chassis. Probe the input side of the heated rear window fuse slot. If the lamp doesn't light, there's a break in the wiring between the battery and the fuse box.
2. Check at the Switch: If power is present at the fuse, next check the input terminal of the defogger switch. If the lamp fails to light here, inspect the wiring between the fuse box and the switch for breaks or loose connections.
3. Check at the Element Connection: Assuming the switch is receiving power, touch the test lamp probe to the output terminal of the switch and turn it on. If it lights, then disconnect the main wire where it connects to the heating element on the rear window. Probe this wire with the test lamp. If no power is evident, meticulously trace the wire's path back through the car, probing at intervals until you locate the break or loose connection.

Step 4: Repairing Broken Heating Elements

One of the most common causes of a heated rear window failure is a break in one or more of the heating elements. These breaks often appear as small, thin gaps in the horizontal lines on the glass. Modern heated rear windows typically have elements printed or adhered to the glass surface, making them repairable.

How to Repair with Conductive Paint:

1. Identify the Break: Carefully inspect each heating element line for any visible breaks. A magnifying glass can be helpful.
2. Clean the Area: Thoroughly clean the glass around the break with rubbing alcohol or a specialist glass cleaner, ensuring no grease or dirt remains. Allow it to dry completely.
3. Mask the Area: Apply masking tape precisely along both sides of the broken element, creating a narrow channel over the break. This helps to ensure a neat repair.
4. Apply Conductive Paint: Using a small brush or applicator provided in the kit, apply a thin, even coat of conductive paint over the break. Silver-based conductive paint kits are specifically designed for this purpose and are widely available at automotive accessory shops.
5. Dry and Reapply: Allow the first coat to dry for at least 20 minutes (or as per the product instructions). Apply a second coat to ensure good conductivity.
6. Remove Masking Tape: Carefully peel off the masking tape before the second coat fully dries to prevent the paint from lifting.
7. Cure Time: Allow the repair to cure completely, which can take several hours (check product instructions, some require 24 hours) before testing the system.
8. Test the Repair: Once cured, start your car and activate the heated rear window to ensure the repair has been successful. You should feel warmth along the repaired line.

Step 5: Checking the Earth Connection

Even if current is reaching the heater element, a poor earth connection can prevent the circuit from completing. Locate the earth wire for the heated rear window (it usually connects to the car's bodywork near the rear window). Ensure the connection is clean, tight, and free from corrosion. If you spot any corrosion, disconnect the wire, clean the contact points thoroughly with wet-or-dry sandpaper, and apply a small amount of Vaseline or dielectric grease to prevent future corrosion. Reconnect securely.

Comparative Table: Heating Element Types

When to Call in the Professionals

While many heated rear window issues can be resolved with DIY methods, there are instances where professional help is warranted:

• Complex Electrical Faults: If you've checked fuses, relays, elements, and wiring but still can't trace the fault, the problem might lie deeper within the car's intricate electrical system. Automotive electricians have specialised diagnostic tools and expertise to tackle these complex issues.
• Inability to Trace the Fault: If you're uncomfortable using a test lamp or multimeter, or simply can't locate the source of the problem, a qualified mechanic will be able to perform a comprehensive diagnosis.
• Full Screen Replacement: In older vehicles where the heating elements are embedded within the glass, a significant break or widespread failure might necessitate replacing the entire rear windscreen. While an aftermarket heater can be fitted to the existing screen as a cheaper alternative, the replacement itself is a job for a professional.

Maintaining Your Heated Rear Window for Longevity

Preventive care can significantly extend the life and reliability of your heated rear window system:

• Gentle Cleaning: Avoid using abrasive cleaning products or harsh chemicals on your rear window, as these can damage the delicate conductive wires over time. Stick to automotive-specific glass cleaners and soft cloths.
• Careful Sticker Removal: Be extremely cautious when removing stickers, decals, or adhesive residue from the rear glass. A careless tug or the use of sharp objects can easily cut a conductive line, rendering it inoperable.
• Regular Checks: Periodically check your car's fuse and relay system as part of your routine maintenance. This can help you identify potential issues before they escalate into larger problems.
• Battery Health: Ensure your car battery is in good condition and properly charged. A weak or failing battery may not supply sufficient electrical power to the heated rear window, leading to reduced performance or complete failure, especially in cold weather when battery performance is already under strain.

If a more complex electrical system problem arises that affects your heated rear window, it's always best to address it promptly. Ignoring such issues could potentially lead to further complications within your vehicle's electrical network.

Frequently Asked Questions (FAQs)

How long does it take for the heated rear window to clear?

Typically, a well-functioning heated rear window should begin to clear fog and light frost within 2-5 minutes, depending on the ambient temperature and the thickness of the ice or condensation. Heavy ice might take a bit longer.

Can I use any cleaning product on my rear window?

It's best to use automotive-specific glass cleaners and a soft microfibre cloth. Avoid ammonia-based cleaners or abrasive pads, as these can degrade or scratch the delicate heating elements over time.

Is it safe to drive with a broken heated rear window?

While your car is still driveable, a non-functional heated rear window significantly compromises rear visibility, especially in adverse weather conditions. This increases the risk of accidents, making it unsafe. It's highly recommended to get it repaired as soon as possible.

How much does it cost to fix a heated rear window?

The cost varies greatly depending on the fault. A blown fuse might cost mere pence. A DIY repair with conductive paint is typically under £20. However, if a professional is needed to diagnose complex electrical issues, or if a full screen replacement is required (for older embedded elements), costs can range from £50 to several hundred pounds.

Why does my new fuse keep blowing?

If a new fuse blows immediately, it indicates a short circuit in the system. This means that power is finding an unintended path to earth, creating an overload. You'll need to meticulously check the wiring for chafing, exposed wires, or faulty components (like the switch or relay) that might be causing the short.

Can a weak car battery affect the heated rear window?

Yes, absolutely. The heated rear window draws a significant amount of electrical power. If your car battery is weak or not holding a charge effectively, it may not be able to supply enough current to properly heat the elements, leading to poor performance or complete failure. Ensuring a healthy battery is crucial for all electrical components.
