Modern vehicles are marvels of engineering, and at the heart of their efficiency and performance lies the sophisticated fuel system. Gone are the days of carburetors; today, fuel injection reigns supreme, precisely delivering fuel to your engine. But even with this advanced technology, there are crucial maintenance practices, such as priming your fuel pump, that are vital for ensuring your car runs smoothly and reliably. Understanding these components and procedures isn't just for mechanics; it's essential knowledge for every car owner looking to maintain their vehicle's longevity and optimal performance.
What Exactly is a Fuel Injected Car?
A fuel injected car is a vehicle that utilises an electronic system to deliver fuel into the internal combustion engine's cylinders. Unlike older carburetor systems, which relied on a venturi effect to mix air and fuel, fuel injection uses high pressure to spray fuel directly into the intake manifold or even directly into the combustion chamber. This precise delivery allows for much finer control over the air-fuel mixture, leading to significant improvements in fuel efficiency, engine performance, and reduced emissions. The system is managed by the Engine Control Unit (ECU), which acts as the vehicle's brain, using data from various sensors to calculate the exact amount of fuel needed at any given moment.
The Core Components of a Fuel Injection System
To appreciate how fuel injection works, it's helpful to understand its key components:
- Fuel Tank: Stores the fuel.
- Fuel Pump: Located in or near the fuel tank, it draws fuel and sends it under pressure through the fuel lines. Modern vehicles typically have an electric fuel pump.
- Fuel Filter: Cleans the fuel, preventing contaminants from reaching the injectors and engine.
- Fuel Lines: Hoses and pipes that transport fuel from the tank to the engine.
- Fuel Rail: A pipe that distributes pressurised fuel to each individual fuel injector.
- Fuel Injectors: Electronically controlled valves that spray a fine mist of fuel into the engine. These are the heart of the system, atomising the fuel for optimal combustion.
- ECU (Engine Control Unit): The computer that monitors engine conditions (via sensors like oxygen sensors, throttle position sensors, manifold absolute pressure sensors) and controls the timing and duration of the fuel injector pulses.
- Pressure Regulator: Maintains a consistent fuel pressure within the fuel rail.
How Fuel Injection Works: A Simplified Overview
When you turn your ignition key, the fuel pump activates, drawing fuel from the tank. This fuel is then pushed through the fuel filter and into the fuel rail, where it's held under constant pressure. The ECU continuously monitors various engine parameters – such as engine speed, load, air temperature, and exhaust gas composition. Based on this information, the ECU calculates the precise amount of fuel required for optimal combustion. It then sends electrical signals to the fuel injectors, causing them to open for a specific duration, spraying a finely atomised mist of fuel into the engine's intake ports or directly into the cylinders. This precise control ensures that the engine receives just the right amount of fuel at the right time, maximising efficiency and performance.
Types of Fuel Injection Systems
Over the years, various types of fuel injection systems have evolved, each with its own characteristics:
- Throttle Body Injection (TBI): An older, simpler system where one or two injectors are mounted in a central throttle body, essentially replacing the carburetor. Fuel is sprayed into a central point before entering the intake manifold.
- Multi-Port Fuel Injection (MPFI) / Port Fuel Injection (PFI): This is perhaps the most common type. Each cylinder has its own injector located in the intake manifold, just upstream of the intake valve. This allows for more precise fuel delivery to individual cylinders.
- Direct Injection (DI): The most advanced system currently in widespread use. Fuel is injected directly into the combustion chamber of each cylinder at very high pressure. This offers even greater precision, allowing for higher compression ratios, improved fuel economy, and increased power output. Many modern engines use a combination of port and direct injection (dual injection) to leverage the benefits of both.
The Advantages of Fuel Injection Over Carburetors
The transition from carburetors to fuel injection brought about numerous benefits, fundamentally changing automotive engineering:
| Feature | Fuel Injection | Carburetor |
|---|---|---|
| Fuel Efficiency | Excellent due to precise fuel control | Variable, often less efficient |
| Engine Performance | Higher power, smoother operation, better throttle response | Less power, often less smooth |
| Emissions | Significantly lower, easier to meet strict standards | Higher, difficult to control precisely |
| Cold Starting | Reliable and quick starts, even in extreme cold | Often difficult, requires manual choke adjustment |
| Altitude Compensation | Automatic adjustment for varying air density | Poor, requires manual adjustment or re-jetting |
| Reliability | Generally high, with fewer moving parts to wear out | Can be prone to clogging and maladjustment |
Why Priming Your Fuel Pump is Absolutely Crucial
Even with the advanced nature of fuel injection, there are specific procedures that ensure its smooth operation. One such vital task is priming your fuel pump. When your fuel pump is not primed, air can become trapped in the fuel lines and pump itself, creating a vacuum that prevents fuel from reaching the engine. This isn't just a minor inconvenience; it can lead to a variety of serious problems, highlighting why this seemingly simple step is so important.
The Risks of an Unprimed Fuel Pump
Ignoring the need to prime your fuel pump can lead to a cascade of issues. Here's why it's a step you shouldn't skip:
- Stalling: The engine may stall or refuse to start entirely due to a critical lack of fuel. Without a steady supply, combustion simply cannot occur.
- Rough Idling: If the engine manages to start, it may run erratically, shake, or idle roughly due to inconsistent fuel flow. This indicates the fuel system is struggling to maintain pressure and delivery.
- Reduced Performance: The engine may not reach its full potential, feeling sluggish or lacking power, all because of an insufficient fuel supply. You might notice poor acceleration or hesitation.
- Engine Damage: In severe cases, an unprimed fuel pump can cause engine damage due to overheating or excessive wear. Lack of fuel can lean out the air-fuel mixture, leading to higher combustion temperatures which are detrimental to engine components. Furthermore, the fuel pump itself can be damaged if it's constantly trying to pump air rather than fuel, as fuel also acts as a lubricant and coolant for the pump.
Priming your fuel pump is a crucial step in ensuring the smooth operation of your vehicle’s engine. A properly primed fuel pump delivers a steady flow of fuel to the engine, preventing these potential issues and safeguarding your engine's health.
When Should You Prime Your Fuel Pump?
While not a daily task, there are several key scenarios where priming your fuel pump becomes absolutely necessary:
- After Replacing the Fuel Pump: Any time the fuel pump is replaced, the entire system will be empty and full of air.
- After Replacing the Fuel Filter: Similar to the pump, replacing the filter can introduce air into the lines.
- Running Out of Fuel: If you've completely run your fuel tank dry, air will have entered the lines.
- After Major Fuel System Repairs: Any work that involves disconnecting fuel lines will require priming.
- After Long-Term Storage: If a vehicle has been stored for an extended period, the fuel system might have dried out, and air could have entered.
How to Effectively Prime a Fuel Pump
Now that we understand the importance, let's explore the different methods you can use to prime your fuel pump, ranging from the most common electronic method to more hands-on approaches.
Method 1: Electric Priming (The Ignition Key Method)
This is by far the most common and easiest method for most modern vehicles, relying on the vehicle's own electrical system to activate the fuel pump.
Steps:
- Without starting the engine, turn the ignition key to the “ON” position for a few seconds. You should hear a faint whirring sound from the rear of the car – this is the fuel pump activating.
- Turn the ignition key back to the “OFF” position.
- Repeat steps 1 and 2 at least 3-5 times. Each cycle allows the fuel pump to circulate fuel, gradually pushing air out of the lines and building pressure.
- After several cycles, attempt to start the engine. It might take a few extra cranks initially.
- Once the engine has started, listen for any unusual noises and check for smooth idling.
This method is highly effective for most situations where air has entered the system without a complete system overhaul.
Method 2: Manual Priming (More Involved)
This method is more hands-on and might be necessary if the electric priming method isn't sufficient or if you're dealing with an older system or a particularly stubborn airlock. It involves physically adding fuel to the line.
Materials:
- Screwdriver or wrench (appropriate for fuel line connections)
- Fuel can or container
- Funnel
- Safety goggles and gloves (fuel can be corrosive and flammable)
Steps:
- Locate the fuel pump: Identify the fuel pump, usually situated under the vehicle near the fuel tank. Consult your vehicle's service manual if unsure.
- Loosen the fuel line: Carefully use a screwdriver or wrench to loosen a fuel line connection on the fuel pump or a convenient point upstream from it. Be prepared for a small amount of fuel to spill. Always have rags ready.
- Pour fuel into the line: Hold the fuel can or container over the open fuel line and pour a small amount of the correct type of fuel into it. This helps to displace the air.
- Tighten the fuel line: Reattach the fuel line to the fuel pump and tighten it securely. Ensure there are no leaks.
- Turn on the ignition: Without starting the engine, turn the ignition key to the “ON” position for a few seconds to allow the fuel pump to circulate the fuel and build pressure.
- Start the engine: Once you're confident the fuel pump has circulated the fuel, start the engine and meticulously check for any leaks or issues around the connection points.
This method requires caution due to the handling of fuel and working under the vehicle. If uncomfortable, professional assistance is recommended.

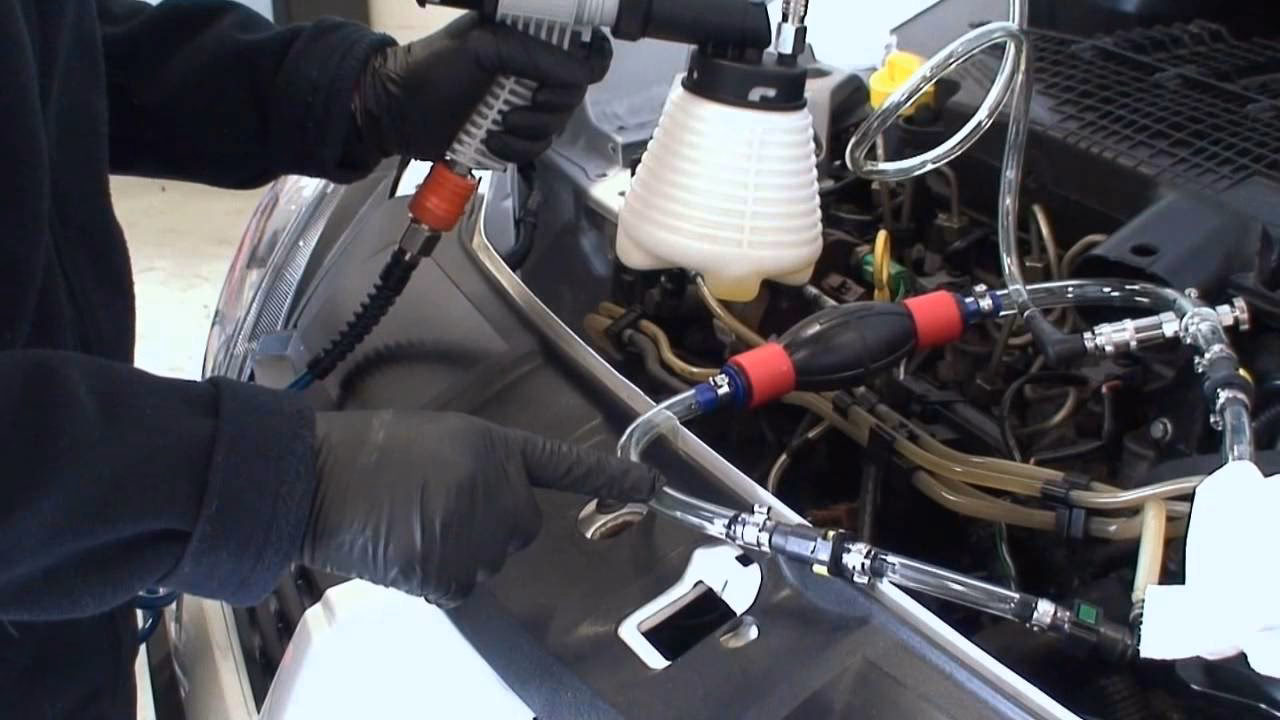

Method 3: Using a Fuel Pump Primer Tool
Specialised tools exist to assist with priming, particularly useful for diesel systems or stubborn petrol systems.
Materials:
- Fuel pump primer tool (often a hand-operated bulb or pump)
- Fuel can or container (if needed for the tool)
Steps:
- Connect the primer tool: Attach the fuel pump primer tool to the fuel line at an appropriate point (consult the tool's instructions and your vehicle's manual).
- Pump the tool: Use the primer tool to manually pump fuel through the fuel line and into the fuel pump, forcing air out. Continue until you feel resistance or see fuel without air bubbles.
- Start the engine: Once the fuel pump has been primed, start the engine and check for any leaks or issues.
Purging Remaining Air After Priming
Even with the pump primed, you'll still have a bit of air in the system, especially within the fuel rails and injectors, that must be purged. There are two common approaches to this: "floor it" and "bump it."
The "Bump It" Approach
The "bump it" school of thought suggests starting the car as you normally would (without applying any throttle) and waiting for the system to purge itself. However, this approach assumes that air trapped in the fuel rails will distribute evenly and be pushed out naturally. While it might work for minor air pockets, it can be slower and less effective, potentially leading to rough running for longer.
The "Floor It" Approach: A More Effective Purge
A better solution, particularly for significant air in the system, is to floor the accelerator pedal while you initially attempt to start the car, then ease off to about half throttle as the engine begins to fire. As the engine stutters to life, gently feather the throttle pedal from the half to 3/4 throttle position and back again. This technique causes the fuel injectors to go wide open, purging the system much faster than merely starting as you normally would. Once the engine is running, hold it at about 2,500 RPM until all stuttering ceases and the car can idle smoothly on its own. This aggressive but controlled method ensures that the high volume of fuel flowing through the wide-open injectors rapidly forces out any remaining air.
The key here is to get the fuel flowing at a high rate through the injectors to literally push the air out. This quick purging minimises the time your engine runs with an inconsistent fuel supply, reducing potential stress on components.
Troubleshooting Priming Issues
If you encounter any issues while priming your fuel pump or after attempting to start the vehicle, here are some troubleshooting tips:
- Check for Leaks: Meticulously inspect all fuel lines and connections for any signs of fuel leaks. A leak means air can get in, and pressure cannot build.
- Replace the Fuel Filter: A clogged fuel filter can severely restrict fuel flow, making it impossible to prime the system effectively or deliver sufficient fuel. This is a common culprit for fuel delivery problems.
- Test the Fuel Pump: If you suspect the pump itself is faulty, use a multimeter to check the voltage and resistance of the fuel pump to ensure it is receiving power and functioning properly. A faulty pump won't prime.
- Check Fuel Level: It sounds obvious, but ensure there is sufficient fuel in the tank for the pump to draw from.
- Seek Professional Help: If you are unable to resolve the priming issue on your own after trying these steps, or if you're uncomfortable working with fuel systems, it is always best to consult a qualified mechanic. Fuel systems can be complex and dangerous if not handled correctly.
Frequently Asked Questions About Fuel Systems
Q: How often should I prime my fuel pump?
A: In general, priming your fuel pump is not a regular maintenance task. It's only necessary after specific events such as running out of fuel, replacing the fuel pump or filter, or after any major repair that involves disconnecting fuel lines and introducing air into the system.
Q: Can I use any type of fuel to prime my fuel pump?
A: No, it is critically important to use the correct type of fuel for your vehicle, as specified in the owner’s manual. Using the wrong fuel can cause severe damage to the fuel pump, fuel lines, injectors, and ultimately the engine itself. Always double-check your vehicle's requirements.
Q: What are the signs of an unprimed fuel pump?
A: Common symptoms of an unprimed fuel pump include difficulty starting the engine (prolonged cranking), the engine stalling shortly after starting, rough or inconsistent idling, noticeable reduction in engine performance (lack of power, hesitation), or the engine simply refusing to start at all.
Q: Is priming a fuel pump dangerous?
A: Working with fuel carries inherent risks due to its flammability. Always ensure you're in a well-ventilated area, free from open flames or sparks. Wear appropriate safety gear like gloves and eye protection. If you're unsure or uncomfortable, it's always safer to seek professional assistance.
Q: How long does it take for a fuel pump to prime?
A: Using the electric priming method (turning the key to ON multiple times), it typically takes a few seconds per cycle. After 3-5 cycles, the system should be sufficiently primed. Manual methods might take a bit longer depending on the amount of air in the system.
In conclusion, understanding your vehicle's fuel injection system is fundamental to appreciating modern automotive performance. From the precise delivery of fuel by the injectors to the critical role of the fuel pump, every component works in harmony. Furthermore, mastering the simple yet vital technique of priming your fuel pump is a skill that can save you from frustrating breakdowns and costly repairs. By following the methods outlined in this guide and paying attention to your vehicle's needs, you can ensure a steady, uninterrupted flow of fuel to your engine, promoting longevity and a consistently smooth driving experience. Regular maintenance and proper priming practices are key to extending the life of your fuel pump and safeguarding your entire fuel system.
