Turbo Oil Seal Removal: A Confident DIY Guide

Is your trusty vehicle starting to feel a bit sluggish, perhaps accompanied by tell-tale plumes of smoke from the exhaust? If you’ve got a turbocharged engine, a failing oil seal on the turbine shaft could be the culprit. While it might sound like a job for a seasoned mechanic, replacing a turbo's oil seal is a surprisingly achievable DIY task for the keen home enthusiast. Not only will tackling this yourself save you a significant chunk of change on garage labour, but it also offers a deep satisfaction in understanding and repairing your own car. This comprehensive guide will walk you through the precise steps to safely and effectively remove that troublesome oil seal from your turbo's turbine shaft, preparing you for the crucial next steps of replacement and reassembly.

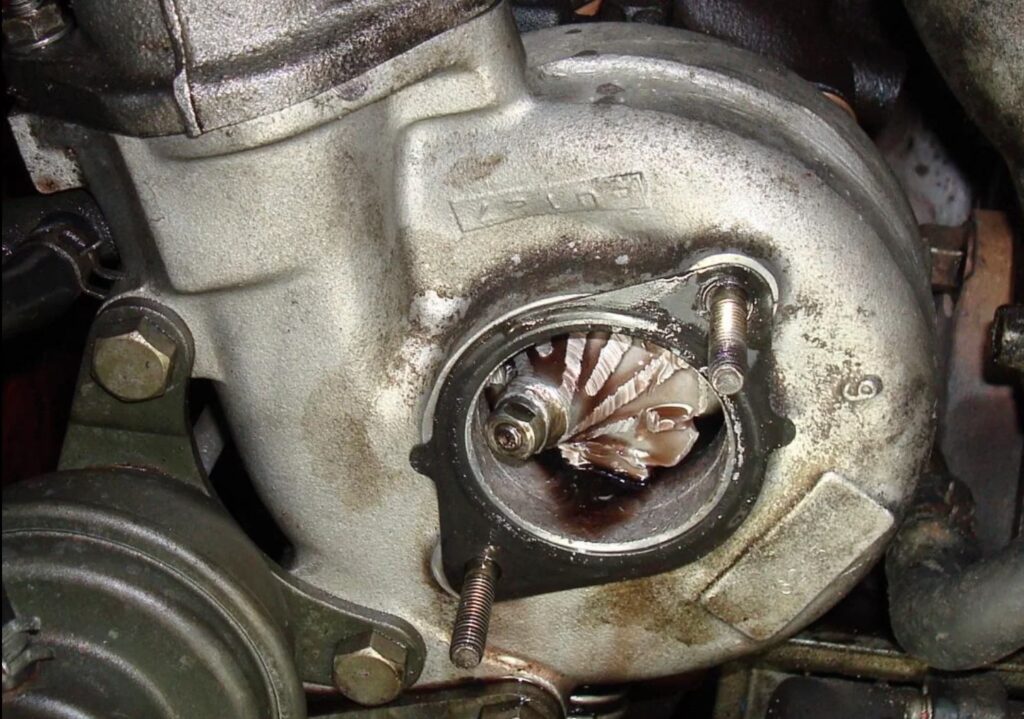

Understanding the Turbocharger and Its Seals

Before diving into the nuts and bolts, it's helpful to understand what we're dealing with. A turbocharger is a forced induction device that uses exhaust gases to spin a turbine, which in turn spins a compressor, forcing more air into the engine. This increased air allows for more fuel to be burned, resulting in a significant boost in power. Central to its operation are seals, particularly the oil seals on the turbine and compressor shafts. These seals are vital for containing the engine oil that lubricates the turbo's bearings, preventing it from escaping into the exhaust or intake systems. When these seals fail, oil can leak, leading to symptoms like excessive exhaust smoke (often blueish), increased oil consumption, and reduced turbo performance.

Essential Preparations and Tools

Preparation is key to any successful DIY project, and turbo repair is no exception. Ensuring you have the right tools to hand will make the process smoother and prevent unnecessary frustration. Safety should always be your top priority, so gather your protective gear before you begin.

Safety First:

• Safety Glasses: Protect your eyes from debris, brake cleaner, and oil.
• Gloves: Protect your hands from grime, chemicals, and sharp edges.
• Well-Ventilated Area: Especially when using brake cleaner.

Tools You'll Need:

Here’s a breakdown of the essential tools required for this delicate operation:

Step-by-Step: Disassembling Your Turbocharger for Seal Access

The journey to the oil seal begins with carefully disassembling the turbocharger itself. Patience and precision are paramount at each stage to avoid damage to delicate components.

1. Removing the Turbocharger from the Vehicle

While this guide focuses on the internal seal removal, the very first step is, of course, to remove the turbocharger assembly from your car. This typically involves disconnecting air intake pipes, exhaust downpipes, oil feed and return lines, and any associated brackets or vacuum lines. Refer to your vehicle’s specific service manual for detailed instructions on this initial removal, as procedures can vary significantly between car models. Ensure all lines are drained of oil and coolant where applicable, and bung any open lines to prevent contamination.

2. Separating the Housings: Compressor and Turbine

With the turbocharger now on your workbench, the next step is to separate the two main housings: the compressor housing (the cold side, connected to the air intake) and the turbine housing (the hot side, connected to the exhaust). These are usually held together by a series of bolts or a large V-band clamp. Carefully remove these fasteners. Once loose, you should be able to gently pry the housings apart. Take care not to damage the delicate compressor or turbine blades during this process. A visual inspection of both sets of blades at this stage is always a good idea; they should be intact and free from chips or bends.

3. Crucial Alignment: Marking Your Turbo Components

This step is absolutely critical for successful reassembly and to prevent future turbo failure. The compressor wheel and turbine shaft are precision-balanced as a unit. If they are not realigned exactly as they were, your turbo will suffer from severe vibrations, leading to premature bearing wear and catastrophic failure. Before proceeding, use a metal scribe to draw a clear, distinctive line across the compressor blades and onto the shaft. This mark will serve as your reference point for reassembly.

Important Note: Some turbos may already have a scribe mark, indicating they were balanced as a unit from the factory or during a previous rebuild. If yours has a mark, use it! If not, create one. Even if a turbo was component-balanced (meaning parts were balanced individually before assembly), adding your own scribe mark is a wise precaution for accurate reassembly.

4. Unlocking the Compressor Wheel: The Tricky Nut

The compressor wheel is secured to the turbine shaft by a small but often stubborn nut. To remove this nut without damaging the delicate blades, you need to immobilise the rotating assembly. The safest way to do this is to temporarily put the compressor and turbine housings back on the CHRA (Centre Housing Rotating Assembly) with a couple of bolts, hand-tightening them just enough to hold everything together. This protects the blades and provides leverage.

Now, locate the nut holding the compressor blades down. This nut is usually a standard right-hand thread, meaning "righty loosey" (turn clockwise to loosen) when viewed from the compressor side. Use two socket wrenches – one to hold the turbine shaft (often a smaller nut on the turbine side, or by holding the shaft itself if carefully possible with appropriate tools) and another to turn the compressor nut. Apply steady, firm pressure. Avoid excessive force that could bend the shaft or damage the blades.

5. Gently Removing the Compressor Wheel

Once the nut is off, the compressor wheel can be removed. Do not yank it off. Instead, gently twist the compressor blades back and forth while pulling upwards. This "walking" motion helps to gradually free the wheel from its tapered fit on the shaft. Be patient; it might take a few moments of wiggling. Once it starts to move, continue with the gentle twisting and pulling until the compressor wheel slides completely off the shaft. Store it safely where it won't be damaged.

6. Extracting the Turbine Shaft and CHRA

With the compressor wheel removed, the turbine blades and shaft assembly should now be accessible. The entire CHRA, including the turbine shaft, compressor wheel shaft, and the bearing housing, should now be able to be separated from the turbine housing. Sometimes, a couple of gentle taps with a rubber mallet on the end of the turbine shaft (or on the CHRA housing itself, away from delicate parts) can help dislodge it from the turbine housing. Ensure you're tapping on a robust part of the assembly, not directly on the blades or the delicate shaft end. The turbine wheel and shaft should then slide cleanly out, revealing the internal components.

The Heart of the Matter: Removing and Cleaning the Seal

With the turbine shaft now separated, you can finally access the oil seal that requires replacement. On the turbine shaft, you will typically find a small piston ring-style seal, often caked in carbon deposits due to its proximity to hot exhaust gases.

1. Identifying the Piston Ring Seal

Locate the sealing piston ring on the turbine shaft. This is usually a thin, metallic ring that sits in a groove near the turbine wheel. It's designed to prevent oil from the bearing housing from entering the exhaust stream. Due to the extreme temperatures and combustion byproducts, these rings often accumulate significant carbon deposits, which can impair their sealing ability and contribute to wear.

2. Thorough Cleaning: Banishing Carbon Deposits

Before removing the old seal, it's a good idea to clean off as much loose carbon as possible. Use a rag and a small amount of brake cleaner spray to wipe down the turbine shaft and the piston ring. This will give you a clearer view and make the next step easier.

The critical part of this stage is to meticulously clean the groove in the CHRA housing where this piston ring sits. Carbon deposits in this groove are a primary cause of seal failure and can prevent a new seal from seating correctly. Use a small pick, a metal scribe, or a tiny flat-head screwdriver to carefully scrape out all the caked-on carbon. Be extremely gentle to avoid scratching or damaging the metal surface of the groove. Any imperfections can compromise the seal's effectiveness. Once you've scraped away the bulk, apply more brake cleaner and use a clean rag or cotton swab to wipe the groove until it is absolutely pristine. Repeat this process until no trace of carbon remains. This thorough cleaning is vital for the success of your repair.

With the groove thoroughly cleaned and the old seal removed (it often comes off with the cleaning process or can be gently pried out once free of carbon), your turbo is now ready for the installation of a new oil seal. Remember, the effectiveness of your new seal hinges on the cleanliness of these surfaces.

Why Do Turbo Seals Fail?

Understanding the common reasons for turbo seal failure can help prevent future issues and inform your driving habits. Primary causes include:

• Oil Starvation: Insufficient or dirty oil supply to the turbo's bearings can lead to excessive heat and wear on the shaft and seals.
• High Exhaust Gas Temperatures (EGTs): Prolonged periods of high EGTs can degrade the seal material over time.
• Worn Bearings: If the turbo's internal bearings wear out, the shaft can develop excessive play, allowing oil to bypass the seals.
• Carbon Buildup: As seen, carbon deposits can physically interfere with the seal's operation, causing it to wear prematurely or stick.
• Poor Quality Oil/Infrequent Changes: Dirty or degraded oil contributes to carbon buildup and inadequate lubrication.

Frequently Asked Questions (FAQs)

Here are some common questions associated with turbo oil seal replacement:

Q1: What are the primary symptoms of a failing turbo oil seal?

A1: Common symptoms include blue or grey smoke from the exhaust (especially on acceleration or after idling), increased engine oil consumption, oil leaks around the turbocharger housing, and a noticeable decrease in engine power or boost pressure.

Q2: Can I replace just the oil seal, or do I need to replace the entire turbocharger?

A2: Often, if only the oil seal is compromised and the turbocharger's bearings and shaft are in good condition, replacing just the seal is a viable and cost-effective solution. However, if there's significant shaft play, bearing noise, or damage to the compressor/turbine wheels, a full turbo rebuild or replacement may be necessary.

Q3: How difficult is it to remove a turbo oil seal for a DIY mechanic?

A3: It's a moderately challenging DIY task. It requires patience, careful handling of delicate components, and attention to detail, especially regarding alignment marks and cleanliness. Having the right tools and a clean workspace is crucial. If you're comfortable with general automotive mechanics, it's certainly achievable.

Q4: Why is cleaning the carbon deposits so important?

A4: Carbon deposits can prevent the new seal from seating correctly, leading to immediate leaks. They can also cause premature wear on the new seal and the shaft, negating all your hard work. A pristine surface ensures optimal sealing and longevity.

Q5: What should I do if the compressor nut is seized?

A5: Apply a penetrating oil and allow it to soak. Use a proper six-point socket to avoid rounding the nut. If it's still stubborn, apply gentle heat (e.g., with a heat gun, not a torch near oil) to the nut itself, but be extremely careful not to overheat the shaft or blades. If it remains seized, professional help might be required to avoid damaging the shaft.

Conclusion

Successfully removing the oil seal from your turbo's turbine shaft is a significant step in restoring your vehicle's performance and preventing further oil consumption. By following these detailed steps, paying close attention to component alignment and maintaining meticulous cleanliness, you've laid the groundwork for a successful repair. Remember, this is just the removal phase; the next crucial steps involve installing a new seal and carefully reassembling your turbocharger. With patience and precision, you'll soon have your turbocharged engine running cleanly and powerfully once again, proving that a little DIY effort can go a long way.
