DIY VW Oil Filter Cartridge Replacement Guide

Performing your own oil change on a Volkswagen, particularly those equipped with the modern oil filter cartridge system, can be a highly rewarding and cost-effective endeavour. Gone are the days of the traditional spin-on filters for many newer VW models, replaced by a more environmentally friendly and often simpler cartridge design. This guide will walk you through the process, providing a comprehensive overview of how to replace your VW's oil filter cartridge, along with insights into the often-discussed plastic oil drain plug.

Understanding your vehicle's maintenance needs is paramount, and regular oil changes are at the very core of engine longevity. Fresh oil lubricates, cools, and cleans your engine, preventing premature wear. The oil filter, in turn, captures contaminants, ensuring the oil remains effective. Let's delve into the specifics of making this a straightforward DIY task.

Essential Tools and Materials

Before you begin, gathering all the necessary tools and materials will ensure a smooth and uninterrupted process. There’s nothing worse than being halfway through a job only to realise you’re missing a crucial item.

• New Oil Filter Cartridge: Ensure it's the correct one for your specific VW model and engine. It should come with new O-rings.
• Engine Oil: Refer to your car's manual for the correct specification (e.g., VW 504 00/507 00 for many modern diesels and petrols). Always use synthetic oil of the recommended viscosity.
• Oil Filter Wrench: A cap-style wrench specifically designed for your VW's oil filter housing. These are typically plastic and fit over the housing like a socket.
• Socket Wrench/Ratchet: To operate the oil filter wrench and potentially the drain plug.
• Torque Wrench: Absolutely crucial for tightening the oil filter housing and drain plug to the correct specifications, preventing leaks or damage.
• Oil Drain Pan: Large enough to hold the entire volume of your engine's oil.
• Jack and Jack Stands: For safely lifting the vehicle and ensuring it's stable. Never work under a car supported only by a jack.
• Wheel Chocks: For added safety, preventing the vehicle from rolling.
• Gloves: Nitrile or latex gloves will protect your hands from oil and grime.
• Rags or Shop Towels: For cleaning up spills.
• Funnel: For refilling the engine oil cleanly.
• New Plastic Oil Drain Plug (Optional but Recommended): While the user noted the cost and questioned the need for replacement, many manufacturers recommend replacing these plastic plugs due to the integrated O-ring and their design for single-use sealing. They are often inexpensive compared to the overall maintenance cost.
• Flathead Screwdriver or Trim Tool: Useful for prying out the plastic drain plug if it's stubborn.

Step-by-Step Guide to Changing Your VW Oil and Filter

1. Preparation and Safety First

Begin by ensuring your car's engine is slightly warm but not hot. This allows the oil to drain more easily. Park the car on a flat, level surface. Engage the parking brake and place wheel chocks behind the rear wheels. Using your jack, carefully lift the front of the vehicle and secure it on jack stands. Give the car a gentle shake to ensure it's stable before getting underneath.

2. Locating the Oil Drain Plug and Filter Housing

Slide your oil drain pan underneath the engine. Locate the oil pan and the drain plug. On many modern VWs, this will be a plastic plug, often requiring a quarter-turn with a large flathead screwdriver or a specific plastic drain plug tool. The oil filter housing is usually located at the top of the engine, often near the front, and will look like a black plastic cap with a hexagonal or multi-fluted shape on top, designed for your cap-style oil filter wrench.

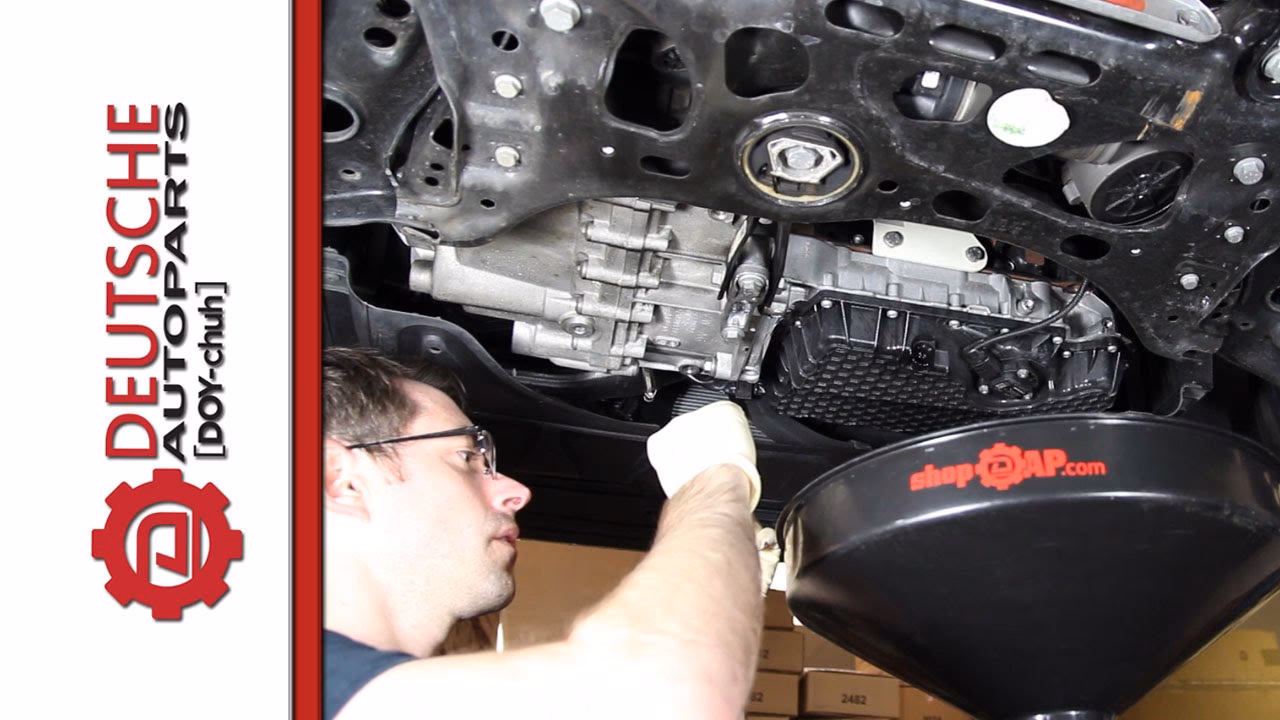

3. Draining the Old Oil

Carefully unscrew the plastic drain plug. Be prepared for the oil to come out quickly. Allow the oil to drain completely into the pan. This can take 10-15 minutes. While the oil is draining, you might observe the nature of the plastic drain plug. As the user mentioned, at £5, it can seem pricey for something that looks reusable. However, these plugs are designed with an integrated sealing mechanism (often an O-ring) that can deform or degrade with heat cycles, making a fresh seal critical for preventing leaks. While some DIYers choose to reuse them, the consensus for optimal peace of mind and leak prevention is replacement, particularly given their low cost.

4. Removing the Old Oil Filter Cartridge

Once the oil has drained, move to the top of the engine. Place rags around the oil filter housing to catch any drips. Using your cap-style oil filter wrench and a ratchet, carefully loosen the oil filter housing. It might be quite tight. Once loose, unscrew it by hand and carefully lift it out. There will be some oil remaining in the housing, so keep it upright. Remove the old filter cartridge from the housing. You will also need to remove the old O-rings (usually one large one on the housing threads and sometimes smaller ones on the stem).

5. Installing the New Filter and O-Rings

Clean the oil filter housing thoroughly. Lubricate the new O-rings with a little fresh engine oil. Install the new O-rings onto the housing in the same locations as the old ones. Insert the new oil filter cartridge into the housing, ensuring it seats correctly. Carefully screw the housing back into its place on the engine by hand until it's finger-tight. Then, use your torque wrench and the cap-style wrench to tighten it to the manufacturer's torque specifications. This is critical; overtightening can crack the plastic housing, leading to leaks and costly repairs, while undertightening will also result in leaks.

6. Replacing the Drain Plug and Refilling Oil

Once the old oil has finished draining, clean the area around the drain plug opening on the oil pan. Insert the new plastic drain plug (or carefully reinsert your old one if you've opted to reuse it, inspecting it for any damage first). Turn it until it clicks or seats firmly, then tighten it to the manufacturer's torque specifications using your torque wrench. Again, this is crucial for preventing leaks. As the user noted, the design of this plastic drain plug and pan is quite ingenious, and its ability to withstand heat without deforming is key to its longevity. If properly torqued, it should provide a secure seal.

Now, using your funnel, slowly pour the new, specified engine oil into the oil filler cap opening on the top of the engine. Refer to your owner's manual for the exact oil capacity. It's often better to slightly underfill and then top up after checking the dipstick, rather than overfilling. Once the oil is in, replace the oil filler cap.

7. Final Checks and Service Light Reset

Lower the car off the jack stands. Start the engine and let it run for a few minutes. Check underneath the car for any leaks around the oil filter housing and the drain plug. Turn off the engine and wait for a few minutes to allow the oil to settle. Check the oil level using the dipstick (or the electronic oil level indicator if your VW has one) and add more oil if necessary until it reaches the 'full' mark.

Finally, you'll need to reset the service reminder light on your dashboard. The procedure varies slightly by model, but it typically involves using buttons on the steering wheel or instrument cluster. Consult your owner's manual for the exact steps for your specific VW.

The VW Plastic Drain Plug: A Closer Look

The plastic drain plug, which some find 'pricey' at a few pounds and question the need for replacement, is a common point of discussion among VW owners. It's a departure from the traditional metal bolt and crush washer. VW engineers designed this for a few reasons:

• Ease of Use: A simple quarter-turn mechanism makes it quicker to remove and install.
• Integrated Seal: The plastic design incorporates the sealing mechanism, eliminating the need for a separate crush washer.
• Weight Reduction: A minor contribution to overall vehicle weight reduction.
• Cost-Effectiveness (for VW): Potentially cheaper to manufacture and install on the assembly line.

While the user's observation about its durability (especially if reused at 15k miles after a 10k dealer install) is valid, the manufacturer's recommendation for replacement stems from the potential for the integrated O-ring to harden or deform over time and heat cycles, compromising the seal. For a few pounds, replacing it ensures a fresh, reliable seal every time. However, if you inspect the plug and it shows no signs of cracking or deformation, and the O-ring feels pliable, some choose to reuse it, accepting the minimal risk. This decision often comes down to personal comfort level and a desire to save a small amount on parts.

Traditional Spin-on vs. Cartridge Filters

Common Mistakes to Avoid

• Incorrect Oil Type: Always use the oil specified in your VW owner's manual. Using the wrong oil can lead to engine damage.
• Overtightening: This is a major culprit for cracked filter housings or stripped drain plugs, leading to leaks. Always use a torque wrench.
• Forgetting O-Rings: Ensure all old O-rings are removed and new ones are installed and lubricated. Missing an O-ring will cause a severe leak.
• Not Changing the Filter: An oil change is incomplete without a new filter. A clogged filter can starve the engine of oil.
• Improper Disposal of Old Oil: Never pour used oil down drains. Take it to a local recycling centre or garage.

Frequently Asked Questions

Q: How often should I change my VW oil and filter?

A: Most modern VWs have long-life service intervals, often every 10,000 miles or annually, whichever comes first. However, driving conditions (heavy city traffic, short journeys) might warrant more frequent changes. Always refer to your owner's manual or the service schedule provided by VW.

Q: What type of oil does my VW need?

A: Volkswagens are particular about their oil specifications. For many modern petrol and diesel engines, VW 504 00 / 507 00 (long-life) or VW 502 00 / 505 00 (fixed interval) are common. Always double-check your owner's manual to ensure you use the correct synthetic oil specification.

Q: Do I really need to replace the plastic drain plug every time?

A: While the manufacturer recommends it due to the integrated sealing mechanism, some DIYers successfully reuse them if they appear undamaged. The cost is minimal (£5), and replacing it offers peace of mind regarding a leak-free seal. If in doubt, replace it.

Q: Is changing the oil and filter on a VW difficult for a DIYer?

A: For someone with basic mechanical aptitude and the right tools, it's a very manageable task. The most critical aspects are safety (properly supporting the vehicle) and using a torque wrench for correct tightening. The cartridge filter system on many VWs can actually be cleaner than old spin-on types.

Q: What should I do if I spill oil?

A: Clean up oil spills immediately using absorbent materials like cat litter or specialised oil absorbent granules. Dispose of contaminated materials responsibly. Oil can be a slip hazard and is harmful to the environment.

Q: Why are VWs now using cartridge filters instead of spin-on ones?

A: The shift to cartridge filters is driven by several factors: environmental benefits (less waste as only the element is replaced), cost efficiency in manufacturing, and often improved filtration performance due to larger surface areas. They also allow for more compact engine designs.
