Vespa Clutch Nut Removal: A Comprehensive Guide

Embarking on a Vespa engine overhaul is a rewarding endeavour, but it often begins with a seemingly simple yet crucial task: removing the clutch nut. While this might sound straightforward, accessing it typically involves a significant amount of disassembly. This guide will walk you through the entire process, from preparing your beloved scooter to the intricate steps of removing the clutch nut and beyond, ensuring you have the knowledge to perform a thorough and successful job.

Before you begin, ensure you have a clean, well-lit workspace and all necessary tools at hand. Patience and meticulous organisation are your best allies in this process. Remember, working on your Vespa is not just about fixing a problem; it's about understanding its mechanics and prolonging its life on the road.

Preparatory Steps: Getting Your Vespa Ready

The journey to the clutch nut starts with careful preparation of your scooter. This initial phase is crucial for safety and efficiency.

Draining the Gearbox Oil

Firstly, locate the oil drain plug screw. Using a spanner, carefully undo this plug and allow the gearbox oil to drain out. Vespas don't hold a vast amount of gearbox oil, so a 10-inch pie plate should be sufficient to collect it. Once drained, transfer the old oil into a 4-litre juice bottle using a funnel. Always ensure proper disposal of used oil by taking it to your nearest recycling station.

Removing the Rear Wheel Assembly

Next, you'll need to gain access to the hub. Remove the rear hub dust cover. Inside, you'll find a large castle nut secured by a cotter pin. Pull out this cotter pin. Using a 22mm socket, attempt to loosen the hub nut. If it proves stubborn, a breaker bar or extending your socket wrench with a piece of pipe over the handle can provide the extra leverage needed. Once the hub nut is loosened, the next critical step is to secure your bike. Place the Vespa securely on sturdy crates. This ensures stability throughout the subsequent procedures, preventing any accidental falls.

With the bike safely elevated, fully remove the hub nut and its washer, then pull the wheel away from the scooter. It's a good practice to place a plastic bag around the brake pads. This offers protection in case any oil spills from the motor during the process. Additionally, lay down some paper or oil-absorbent material beneath the motor to catch any drips.

Initial Engine Disassembly

With the rear wheel off, you can now begin the systematic disassembly of components to clear the path to the engine and, eventually, the clutch.

Electrical Disconnections

Open the junction box and carefully disconnect all the wires inside. It's highly recommended to note down the colour matching of each wire, perhaps by taking photos or making a diagram, to aid reassembly. Be aware there's usually one green wire that extends past the junction box into the ignition box below. Proceed to disconnect all wires from the ignition box and pull the spark plug cap off the spark plug. Keep track of all small rubber bits and seals; if they appear excessively worn, it's wise to replace them.

Removing Engine and Fan Shrouds

Unscrew all the bolts holding the engine and fan shrouds in place, then carefully pull them off the engine. Take care to unhook any electrical cables that may be attached to these shrouds.

Brake and Gear Selector Cables

Disconnect the rear brake cable by unscrewing the harness on the actuator arm of the brake. You will likely need a socket for this. Following this, remove the two 11mm nuts that retain the gear selector box. To facilitate its removal, use the handlebar to 'shift' into 4th gear and then just a little beyond. The selector box should then pop off. Exercise caution not to damage the gasket beneath the box, as a damaged gasket will necessitate a replacement.

Carburettor and Air Box Removal

Remove the top of the carburettor air box by unscrewing the two arrowed screws. Then, remove the air filter by detaching the two screws securing it. Unhook the choke cable (the thin wire located in the centre of the carb) from the choke lever. Unscrew the gas line union nut using a 10mm socket. Loosen any hose clamps holding the fuel line to the union banjo and pull the banjo-shaped union out of the fuel line. Next, loosen the two 11mm bolts that hold the carburettor to the engine, using either a deep socket or an extended wrench. Be extremely careful not to lose any small fasteners within the carburettor. If your model is fuel-injected, avoid tampering with the injector unless it is confirmed faulty. Once everything is loose, pull the carburettor body straight up and out of the air box.

Beneath the carburettor-to-air box gasket, you'll find a flat-head screw that secures the carb box to the motor. Simply unscrew this to detach the air box. Once it's off, pull the injector gear (if applicable) from the motor. This gear should ideally be clean and free of scratches.

Cable and Engine Mount Disconnections

Remove the cable nipple that holds the clutch cable. Pull both the clutch cable and the rear brake cable free from their respective slack adjusters. Now, remove the rear shock bolt and set it aside. Be prepared, as the engine may drop slightly, so take precautions to ensure the bike remains stable. Clamp a pair of Visegrips to the bolt head of the engine mounting bolt, allowing them to catch on a part of the frame. Using a 22mm socket, loosen the nut on the main engine bolt. Once it's loose, collect the nut and lock washer, and then use a hammer and a drift to bang the bolt through. Be ready to catch the motor if it shifts or falls.

Exhaust System Removal

Undo the 17mm exhaust box bolt, collect the lock washer and bolt, and set them aside. Loosen the exhaust clamp and try to wiggle the exhaust off the exhaust stub. If it's stuck (which is often the case), use a large chisel on the side and lever it off with a few sharp blows from a hammer.

Engine Top End Disassembly

To continue the teardown for clutch access, the cylinder head and piston assembly must be removed.

Cylinder Head Removal

Now, remove the cylinder head. Loosen all the bolts a quarter turn at a time, following a specific criss-cross pattern (though not explicitly stated, this is standard practice to prevent warping). The cylinder head is made of a relatively soft metal and can warp easily, so take your time and loosen the nuts properly. Once the cylinder nuts and washers are off, unscrew the spark plug. Finally, gently pull the head off.

Piston and Cylinder Removal

Next, pull the cylinder off the studs and set it aside. Apply a smear of oil on the cylinder wall to prevent rust. Gently pry the alloy seal off the engine case. Remove the two piston circlips and put them aside. Drive the gudgeon pin through the piston using a clean 3/8-inch socket extension or a specialised gudgeon pin extractor tool. Remove the piston and the small end bearing. Note: you'll see a piston ring locator pin in the centre of the ring gap. Push the piston rings apart with your thumbs and push them over the top of the crown; they will come off. Inspect the piston for scuff marks and ensure the pin locators are in position. If your piston shows significant scuffing, it would be wise to replace it, which might necessitate oversizing your cylinder and using a new oversized piston.

Accessing and Removing the Clutch

Now, we finally reach the core of our task: the clutch itself.

Clutch Cover Removal

To get at the clutch, you'll first need to remove the clutch cover. There are usually three 10mm bolts around the clutch cover and another larger 17mm bolt to the right. For now, leave the 17mm bolt alone, as it secures part of the gearing. Be mindful of the small brass push-out bearing in the centre of the cover assembly; it can easily drop out and into the motor.

Removing the Pressure Plate

To remove the clutch, you must first take off the pressure plate. There's a small piece of wire holding the plate in place. All you need to do is push this wire towards the centre with a screwdriver, and the plate will release. A crucial warning: NEVER BEND THE WIRE! Bending it can damage its integrity and function.

The Clutch Nut Itself

Underneath the pressure plate, you'll find the nut that holds the clutch onto the crankshaft. You'll need to pry back the small teeth on the lock washer in order to loosen the clutch nut. This lock washer is designed to prevent the nut from coming loose during operation.

Specialised Tools for Clutch Nut Removal

This is where specialised tools become invaluable. A clutch nut removal tool is a specific tool designed for Vespas, and it is highly recommended to acquire one for this task. While other methods exist, they often prove ineffective or risk damaging components. You will also need a clutch holding tool. This tool ensures the crankshaft doesn't rotate while you apply torque to the clutch nut, saving a lot of grief and preserving the clutch nut teeth much better than improvised methods. If you're pressed for time, a temporary solution for holding the crankshaft is to put a round tool through the small end of the connecting rod. With the clutch holding apparatus in place, carefully undo the clutch centre nut.

Often, the clutch will be loose enough to come off when levered with two screwdrivers. The crankshaft is not tapered, so it shouldn't be a wrestling match. However, the woodruff keys sometimes get sheared, making removal extremely difficult. If you can't get it out now, don't force it; you may need to address it later in the process. Otherwise, pull the clutch out and remove its woodruff key.

Further Engine Teardown and Component Inspection

Even after the clutch nut is removed, the provided information suggests a full engine teardown for comprehensive maintenance. Here's how to proceed:

Flywheel Removal

Before unscrewing the nut on the flywheel, you will have to lock the flywheel. This can be challenging to do correctly. Generally, you can lock the crankshaft by sticking a round tool through the small end of the conrod. Alternatively, you could wedge a tool between the flywheel fins or purchase a rare flywheel holder tool. Once the flywheel is locked, pull the dust cover from it and unscrew the nut underneath. Take the special flywheel pulling tool and thread it about 5 or 6 good turns into the flywheel. Then, using two wrenches, slowly turn the centre of the tool tighter while holding the outside of the tool steady. Eventually, the flywheel will release from the crank and pull away.

Stator and Electrical Components

Underneath the flywheel is the stator, which is your bike's electrical generator. Ensure everything is clean. If you observe frayed or 'ratty' wires, it's a good idea to replace them. Keep this part of the motor exceptionally clean. Remove the woodruff key from the crank taper. Mark your default timing point by lightly tapping a flat-head screwdriver on the case and stator. Be cautious with felt markers as petrol will erase your timing mark, necessitating re-timing the engine. Undo the three Philips head screws that hold the stator plate to the motor. The stator will then hang free. Pull the stator free of the motor and place it somewhere safe. If it requires electrical repairs or wire replacement, address that while awaiting new parts.

Stubborn Woodruff Keys

Sometimes, woodruff keys can be exceptionally difficult to remove. A common and effective method is to use a small metal punch. Position it on the rear of the woodruff key and hit it with a hammer. It should slide forward and eventually pop out without damaging your keyway.

Ignition Box and Case Splitting

Remove the ignition box from the motor. Mounting schemes vary between motors, so adapt accordingly. Next, remove the 'arrowed bolts' that hold the engine cases together. Undo the kickstart lever. With a rubber hammer, gently whack the case a few times while holding the motor flywheel side down. The cases should then slowly peel apart.

Internal Components: Gears and Axles

Once the cases are split, you'll be able to access the internal components. On the flywheel side of the case, collect the kickstart gear and the kickstart spring. Set the flywheel side case aside and turn your attention to the gears. Check the gearbox float using a feeler gauge. The float should ideally be between 0.15-0.40mm (0.50mm is the extreme limit). If it exceeds this, you will need to acquire a larger gearbox shim to reduce the float to around 0.30mm. Remove the gear retainer circlip, followed by the gearbox shim. This shim is crucial for holding the gears tightly, preventing rocking on the output shaft and reducing wear.

Remove the gears one by one, marking the side facing out with a grease pencil for easier reassembly. Inspect them closely for extreme wear, such as chipped notches. A badly chipped gear should always be replaced to prevent rapid wear on the shift cross. With all gears off, pull the plunger to its extreme outer edge. This part is reverse-threaded, so turn the flattened part of the plunger with a 13mm wrench in a clockwise motion (opposite to normal) to loosen it. Extract the plunger and its spacer washer. Turn the cruciform on its side and remove it from the axle housing.

Hub Side Components

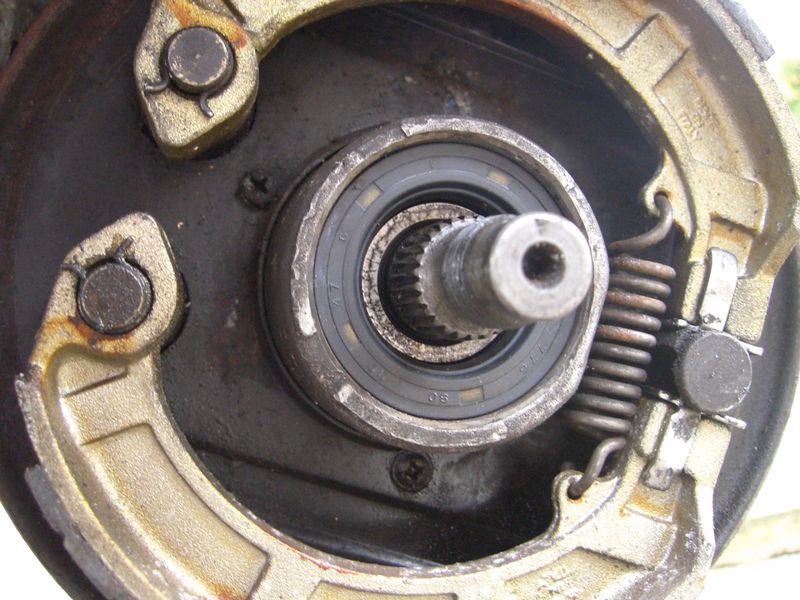

Now, move to the hub side of the case and remove the hub seal. Remove the circlip underneath. Remove both brake clips by hand or with pliers; be cautious as they tend to fly off, so cover them with a rag. Lever the brake shoes off using a wrench and operating the brake cam. The brakes will eventually slide off the cams and collapse. Unscrew the Philips head screws and remove the backing plate. Collect the backing plate and the O-ring style buffers underneath it.

Carefully whack the rear axle using a punch as shown in the original process. Crucially, do NOT hit the axle itself directly, as this risks damaging the threads for the hub nut. Once the rear axle comes out, set it aside and undo the cotter pin on the brake actuating cam. Unhook the spring and pull the brake cam out of the engine case. Collect all the pieces.

Crankshaft and Clutch Side Seal

Returning to the clutch area, with the flywheel side of the case removed, you can now extract the crankshaft and the clutch with a few taps of a hammer. Place a metal punch in the hole on the crank arm and use a metal hammer to tap it out. Resist the urge to hit it excessively hard; you don't want to warp the crankshaft. You should feel a reduction in resistance on the bearing race as you tap. If you are new to engine work, a dedicated crank puller might be a safer investment. As the crankshaft comes out, two very important parts will usually fall out: the clutch spacer and the clutch side seal. This seal should always be replaced when going this deep into the engine. The clutch spacer sits between the clutch and the clutch side bearing. On injected motors, this spacer will have gearing on it.

A common sign of a failed clutch side seal is 'water-like oil' or petrol mixing with the oil in the gearbox. This is a sure indication that the seal has failed and needs immediate replacement.

Clutch Disassembly and Inspection

Compress the clutch by squeezing the top plate and the drive gear. A wood clamp or a screw with large washers can be effective for this. While compressed, remove the circlip by hand. Release the compressor's pressure, and all the plates will push out of the clutch body. Pull off all the plates, carefully memorising their order for reassembly. Always replace both the friction and metal plates during a rebuild. Inspect the drive gear for any gouges, rust, or loose rivets; if present, it's best to replace the part. Under the drive gear, you'll find a brass bushing, springs, and spring caps. Collect them all. While springs and caps may be reusable if they look good, the brass bushing should always be replaced.

Gearing and Layshaft

Return to the motor and loosen the tabbed washer holding the 17mm nut. Then, undo this nut with a socket wrench. You'll collect a special 'square washer', a tabbed washer, and the 17mm nut, along with the elusive clutch spacer. Carefully and slowly flip the motor over. Pull the layshaft slightly to see if it budges. If not, use a punch to gently drift it out a little. Exercise caution here, as a bunch of uncaged needle rollers are about to fall out. There should be 21 of them; they are usually reusable, but for a high-mileage engine, replacing them is a good preventative measure. Now, you can pull the layshaft (primary/spring gear) out. Inspect it for wear and ensure the rivets are tight.

Remaining Case Components

Pull the plastic oil wiper(s) and the kickstart buffers from the case. Push the kickstart spring back with a screwdriver and pry it up and over the lip. The spring has some tension, but it won't go far. Once the pressure is relieved and the spring is off the kickstart crown, the lever shaft will pull right out. You'll also notice the large old flywheel side seal. This black seal in the middle should be pried out and replaced. Unless the main bearings are clearly damaged (e.g., broken race, missing rollers), it's often best to leave them in place as they can be difficult to remove without special tools. Bearings can be cleaned in an industrial parts cleaner.

Clutch Cover Actuator

Pick up the clutch cover. Undo the spring that holds the actuator arm and the push-out actuator in place. This spring is under tension, so watch your fingers. The small brass bearing in the actuator should have no cuts or pitting (other than the oil gap); otherwise, it needs replacing. The tiny O-ring on the actuator arm should be replaced every time, as it's a common source of oil leaks. A little O-ring grease will significantly increase its lifespan. Finally, unscrew the clutch cover breather and spray it with carb cleaner. Ensure there's a clear path for air, as this breather prolongs engine seal life by relieving gearbox pressure as the motor heats up. If you can't unblock it, buy a new one.

Crucial Inspections and Replacements

Once your engine is stripped down, it's the perfect opportunity for thorough inspection and replacement of critical components.

Bearings and Seals

While some bearings can be left if they appear sound, certain ones, like the clutch side bearing and hub bearing, are secured by circlips and case pressure. You can remove these by undoing the circlips and carefully tapping them out. For needle roller style bearings, a special puller is ideal to avoid damage, though sometimes destruction and replacement are the only options. Always replace the clutch side seal and the flywheel side seal, as they are buried deep and relatively inexpensive. The kickstart area engine stud often rusts badly and should also be replaced.

Case Inspection and Cleaning

Inspect the engine cases for any damage, such as large cracks. Minor cracks might be repairable by an aluminium welder, but severe damage may necessitate investing in matched cases. When the cases are stripped, a thorough cleaning is highly recommended. For a small fee, you can have them put in an ultrasonic parts washer at a machine shop, or you can use a large can of engine degreaser and a wire brush and rag for a manual clean. Go over every part meticulously, checking for play, especially the crankshaft. Hold the crank webs in one hand and the con rod in the other. Any significant play (like a joystick) or grinding noises indicates a need for a new big end bearing, which is an expensive repair. You should also have your crankshaft runout tested at a machine shop to ensure it's not warped, particularly if you're unsure of the engine's history. Check for gouges and flecks of metal in the cases and try to identify their source.

Tools You'll Need

Frequently Asked Questions (FAQs)

Q: Why is it so difficult to remove the clutch nut on a Vespa?

A: The clutch nut itself isn't inherently difficult, but it requires specialised tools like a clutch holding tool and a specific clutch nut removal tool to prevent damage to the crankshaft or the nut itself. Additionally, it's often very tight from factory torquing and can be seized over time, requiring significant leverage.

Q: What is a woodruff key and why is it important?

A: A woodruff key is a small, semi-circular key that fits into a keyway (groove) on a shaft and a corresponding keyway in a hub or gear. It's crucial for transmitting torque and ensuring that components like the clutch or flywheel rotate in sync with the crankshaft. If it shears, the component can spin freely, leading to loss of power or engine damage.

Q: Why do I need to replace the clutch side seal if it's not leaking?

A: The clutch side seal, along with the flywheel side seal, are critical for separating engine compartments and preventing oil and fuel mixtures from contaminating each other or leaking externally. They are inexpensive and buried deep within the engine, meaning if you have the engine apart, it's highly cost-effective and preventative to replace them now, rather than having to split the cases again later for a leak.

Q: What does 'gearbox float' mean and why is it important to check it?

A: Gearbox float refers to the amount of axial (side-to-side) play in the gearbox gears on the output shaft. Checking it with feeler gauges ensures the gears are neither too tight nor too loose. Excessive float can lead to rapid wear of the gears and the shift cross, while insufficient float can cause binding and heat build-up. Adjusting it with shims ensures optimal gear operation and longevity.

Q: How do I know if my crankshaft needs replacing?

A: Inspect your crankshaft for excessive play (wobble) in the connecting rod, especially at the big end bearing. If it moves like a 'joystick' or makes grinding noises, the big end bearing is likely worn and requires replacement, which often means a new crankshaft. Also, having a machine shop test its 'runout' (straightness) is essential, especially if you suspect it's warped from an impact or engine failure.
