Fixing a Leaky Oil Drain Plug

A leaking oil drain plug is a common automotive issue that, if left unaddressed, can lead to significant engine problems. The culprit is often a worn or damaged gasket, or perhaps stripped threads on the plug or the oil pan itself. This not only results in messy garage floors but also allows contaminants to enter your engine's oil pan, potentially causing internal damage. While temporary fixes like compression plugs exist, they are just that – temporary. A more robust solution is often required to ensure a proper seal and protect your engine.

Understanding the Oil Drain Plug and Gasket

The oil drain plug is a crucial component of your vehicle's lubrication system. It's a bolt that seals the opening in the oil pan, allowing for controlled drainage of old engine oil during an oil change. Crucially, many vehicles utilise an oil drain plug gasket, also known as a crush washer. This small but vital part sits between the drain plug and the oil pan. Its purpose is to create a watertight and oil-tight seal, preventing any leaks. These gaskets are typically made from materials like copper, aluminium, or fibre, designed to deform slightly when the plug is tightened, effectively filling any microscopic imperfections and ensuring a secure fit. Over time, or due to improper tightening, this gasket can become compressed, cracked, or lost, leading to the dreaded oil leak.

Why Do Oil Drain Plugs Leak?

Several factors can contribute to an oil drain plug leak:

• Worn or Damaged Gasket: This is the most frequent cause. Gaskets degrade over time due to heat cycles and pressure. If the gasket is old, brittle, or has been damaged during a previous oil change (perhaps by being overtightened or cross-threaded), it will fail to create a proper seal.
• Stripped Threads: Both the threads on the drain plug and the threads within the oil pan can become stripped. This can happen due to overtightening, cross-threading the plug during installation, or simply wear and tear. Stripped threads mean the plug cannot be tightened sufficiently to create a seal.
• Loose Plug: In some cases, the plug may simply not have been tightened enough during the last oil change. Vibrations from driving can gradually loosen it further, leading to a slow leak.
• Cracked Oil Pan: While less common, a physical crack in the oil pan itself around the drain plug hole can also cause leaks, irrespective of the plug or gasket's condition.

The Consequences of Ignoring a Leaky Drain Plug

Ignoring an oil leak from the drain plug can have serious repercussions for your engine:

• Low Oil Levels: A persistent leak will gradually reduce the engine oil level. Insufficient oil can lead to increased friction, overheating, and severe internal engine damage, including seized bearings and scored cylinder walls.
• Contamination: Leaks can allow dirt, water, and other road debris to enter the oil pan. This abrasive material can circulate with the oil, accelerating wear on engine components.
• Environmental Hazard: Oil leaks create unsightly and environmentally damaging puddles on your driveway or garage floor.
• Increased Repair Costs: Addressing a minor leak early is far cheaper than repairing the extensive engine damage that can result from prolonged oil starvation or contamination.

When Conventional Fixes Aren't Enough

You might be tempted to use a 'thread chaser' or a 'Heli-Coil' to repair stripped threads. However, these methods carry their own risks. Using a thread chaser can dislodge tiny aluminium shavings that can then fall into the crankcase and oil pan – something you absolutely want to avoid. Similarly, installing a Heli-Coil, while a more robust repair, also carries the risk of introducing metal fragments into your oil system if not performed with extreme care. A compression plug, which deforms a rubber gasket to seal the hole, is often suggested as a quick fix. However, this is a temporary solution at best and doesn't address the underlying problem of damaged threads or a missing/damaged gasket.

Replacing the Oil Drain Plug and Gasket: A Step-by-Step Guide

Replacing a faulty drain plug and its gasket is a relatively straightforward task for most DIY mechanics. Here's how:

Tools and Materials You'll Need:

• New oil drain plug (if threads are damaged)
• New oil drain plug gasket/crush washer
• Socket wrench set
• Oil drain pan
• Funnel
• Gloves
• Safety glasses
• Rags or shop towels
• Car jack and jack stands (if needed for access)

The Process:

1. Prepare the Vehicle: Ensure the engine is warm but not hot. This allows the oil to flow more freely. If necessary, safely raise the front of the vehicle using a car jack and secure it with jack stands. Never work under a vehicle supported only by a jack.
2. Locate the Drain Plug: Position the oil drain pan directly underneath the oil drain plug, which is typically found at the lowest point of the oil pan.
3. Remove the Old Plug: Using the correct size socket wrench, carefully loosen the oil drain plug. Be prepared for the oil to start flowing as soon as the plug is sufficiently unscrewed. Continue to unscrew the plug by hand, being mindful of the hot oil.
4. Clean the Area: Once the old plug is removed and the majority of the oil has drained, use a rag to clean the area around the drain hole on the oil pan. Remove any old gasket material or debris.
5. Inspect the Threads: Carefully inspect the threads on both the oil pan and the drain plug. If the threads are stripped or significantly damaged, you may need to consider a more involved repair, such as an oversized plug or a thread repair kit.

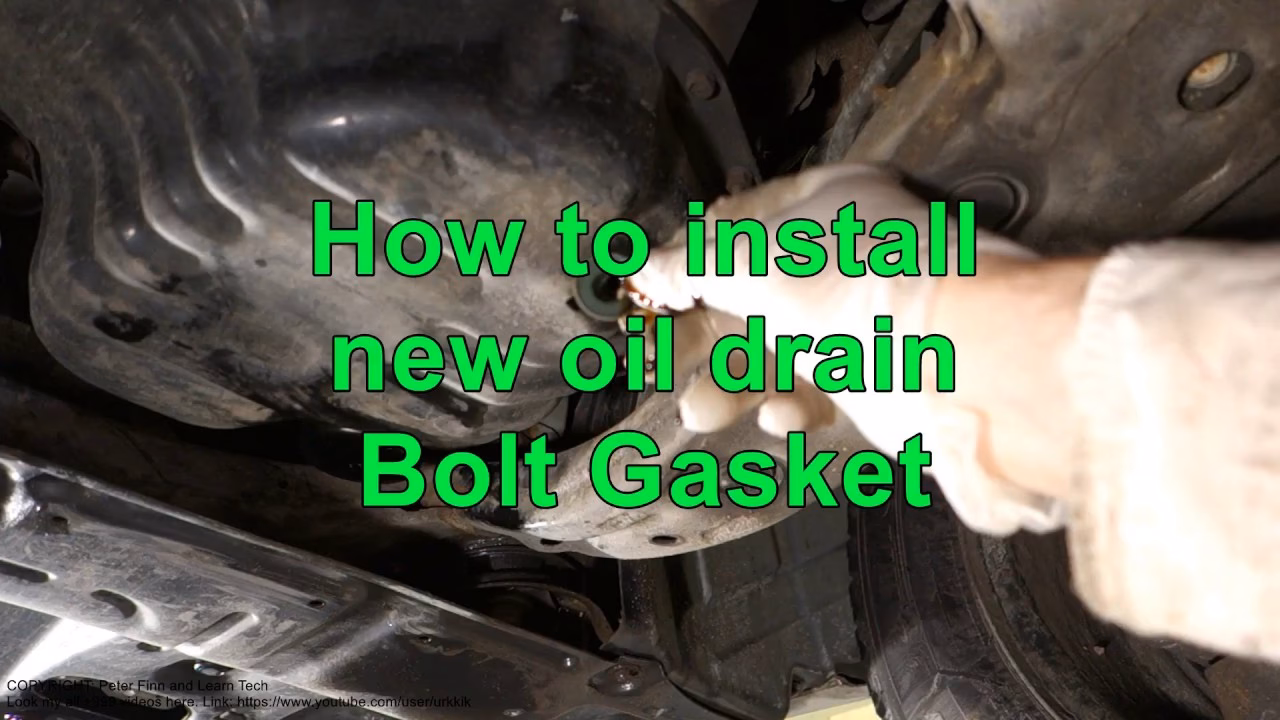

6. Install the New Gasket: Place the new oil drain plug gasket onto the drain plug. Ensure it sits flush and is correctly positioned.
7. Reinstall the Drain Plug: Screw the drain plug back into the oil pan by hand to start. This helps prevent cross-threading. Once it's snug, use the socket wrench to tighten it. Do not overtighten. Consult your vehicle's manual for the recommended torque specification. Overtightening can strip the threads or damage the new gasket.
8. Refill with Oil: Once the drain plug is secure, lower the vehicle if it was raised. Using a funnel, refill the engine with the correct type and amount of engine oil as specified in your owner's manual.
9. Check for Leaks: Start the engine and let it run for a few minutes. While the engine is running, carefully inspect the drain plug area for any signs of leaks. Turn off the engine, wait a few minutes for the oil to settle, and then re-check the oil level with the dipstick and inspect the drain plug area again.

When to Consider Replacing the Oil Pan

In some cases, the oil pan itself might be damaged beyond simple repair. If the oil pan is cracked, severely corroded, or if the threads in the oil pan are completely ruined and cannot be repaired with standard methods, replacing the entire oil pan may be the only viable option. This is a more complex job and might involve removing components like frame crossmembers, which can make it a task best left to experienced mechanics. However, for most minor leaks related to the drain plug or gasket, a simple replacement is usually sufficient.

Frequently Asked Questions (FAQs)

Q1: How often should I replace my oil drain plug gasket?
It's generally recommended to replace the oil drain plug gasket every time you change your oil. They are inexpensive, and replacing it ensures a fresh, reliable seal.

Q2: Can I reuse an old oil drain plug gasket?
No, it's not recommended. Crush washers are designed to be used once. Reusing an old one significantly increases the risk of leaks.

Q3: What happens if I overtighten the oil drain plug?
Overtightening can strip the threads on the plug or the oil pan, damage the gasket, or even crack the oil pan itself, leading to more significant and costly repairs.

Q4: My drain plug is still leaking after replacing the gasket. What else could it be?
If the leak persists, check the threads on the plug and the oil pan for damage. The oil pan itself might have a hairline crack, or the new gasket might be faulty or incorrectly seated.

Q5: How much does an oil drain plug gasket typically cost?
Oil drain plug gaskets are very affordable, typically costing only a few pounds or dollars. They are a small investment for preventing larger issues.

Conclusion

Maintaining a proper seal on your oil drain plug is a fundamental aspect of engine care. By understanding the role of the gasket and addressing leaks promptly, you can prevent potentially catastrophic engine damage, save money on repairs, and keep your vehicle running smoothly. Regular checks and timely replacement of the drain plug gasket are simple yet effective ways to ensure the longevity of your engine.
