Coolant Stat Replacement Guide

Understanding Your Car's Coolant Thermostat

The coolant thermostat is a vital component of your vehicle's cooling system, playing a crucial role in regulating engine temperature. It acts like a valve, controlling the flow of coolant between the engine and the radiator. When the engine is cold, the thermostat remains closed, preventing coolant from circulating to the radiator. This allows the engine to warm up quickly to its optimal operating temperature. Once the engine reaches this temperature, the thermostat opens, allowing coolant to flow to the radiator for cooling. This continuous cycle ensures your engine operates efficiently, preventing both overheating and undercooling, which can lead to significant damage and reduced performance.

Many modern vehicles, particularly those with more complex cooling systems, may feature more than one thermostat. The information provided highlights a common scenario with two thermostats: a main radiator thermostat and a secondary thermostat specifically designed to regulate coolant flow to an oil cooler. It is often the case that a faulty oil cooler thermostat is the culprit behind a persistently low engine running temperature. This secondary thermostat is typically located at the back of the water pump and is visually identifiable by a small hose attached to it.

Symptoms of a Faulty Thermostat

A malfunctioning thermostat can manifest in several ways, often leading to noticeable changes in your car's behaviour. The most common symptom of a thermostat stuck in the open position is a prolonged period before the engine reaches its normal operating temperature, or even failing to reach it at all. You might notice your temperature gauge consistently reading lower than usual, even after a substantial drive. This can lead to reduced fuel efficiency, as the engine's computer will continue to inject more fuel, assuming the engine is still cold. Conversely, a thermostat stuck in the closed position will cause the engine to overheat rapidly, leading to steam from under the bonnet and a very high temperature reading on your gauge. Other indicators can include coolant leaks around the thermostat housing or a heater that blows cold air even when the engine should be warm.

Identifying the Oil Cooler Thermostat

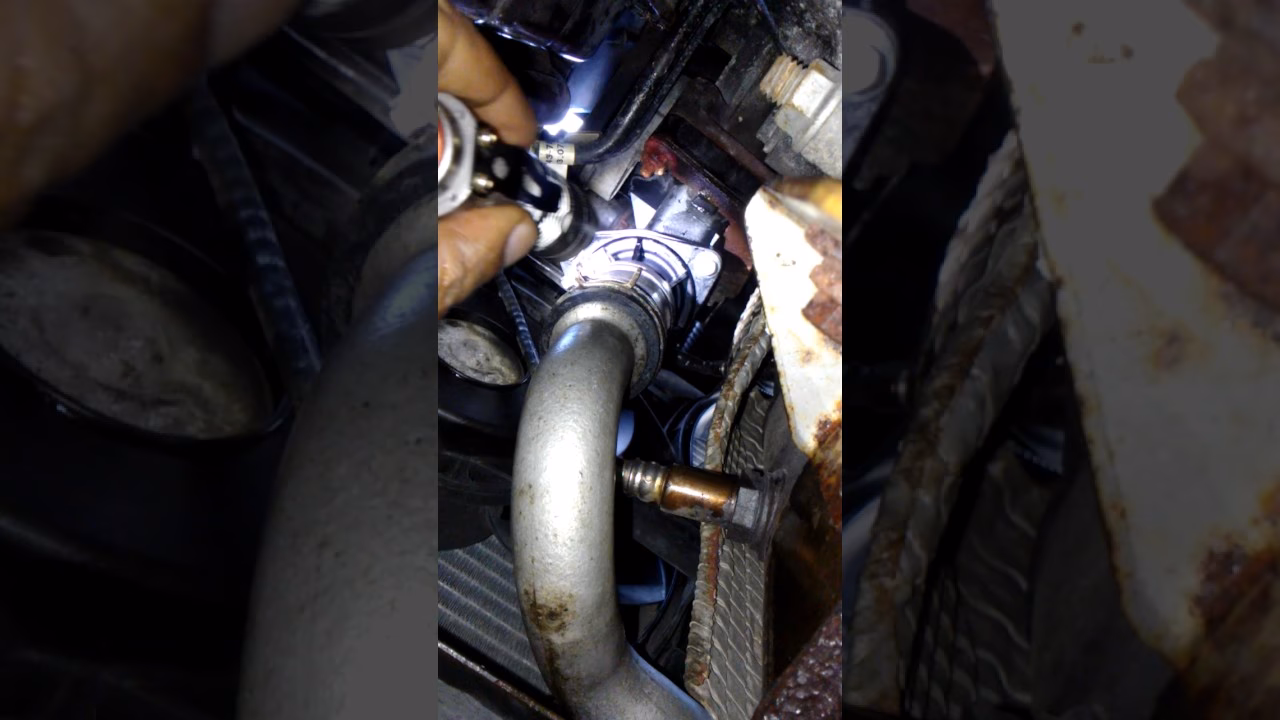

The provided information specifically points to an oil cooler thermostat as a potential cause for low running temperatures. This particular thermostat is usually found at the rear of the water pump. To access it, you'll typically need to remove the airbox to gain a clear view. Once the airbox is out of the way, you should be able to locate it on the left-hand side of the water pump. It's a small unit, often secured by a single bolt, and will have a small hose connected to it. Having a visual reference, like the description provided, is invaluable for correct identification.

How to Replace the Oil Cooler Thermostat

Replacing the oil cooler thermostat is a relatively straightforward process for those with basic mechanical knowledge. Here’s a step-by-step guide:

1. Locate the Thermostat: As mentioned, with the airbox removed, you'll find the oil cooler thermostat on the left side of the water pump, identifiable by its small attached hose.
2. Prepare for Removal: Ensure you have your replacement thermostat and any necessary tools readily available. It's a good idea to have some rags or absorbent cloths handy to catch any minor coolant spillage.
3. Remove the Securing Bolt: The thermostat is typically held in place by a single bolt. Use the appropriate size wrench or socket to carefully undo this bolt.
4. Remove the Old Thermostat: Once the bolt is removed, you can gently pull the thermostat out. The description suggests using your finger to block the opening temporarily. This is a practical tip to minimise coolant loss while you prepare to install the new part.
5. Install the New Thermostat: Carefully insert the new thermostat into the opening, ensuring it's seated correctly. It's often beneficial to apply a small amount of silicone grease or Vaseline to the rubber seal of the new thermostat to aid in its installation and ensure a good seal.
6. Refit the Securing Bolt: Reinstall the bolt and tighten it securely, but be careful not to overtighten, which could strip the threads or damage the housing.
7. Check for Leaks: After reassembly, it's crucial to start the engine and check for any signs of coolant leaks around the thermostat housing.

Replacing the Main Radiator Thermostat

If you suspect the main radiator thermostat is also faulty, or if you're performing a comprehensive cooling system service, replacing it is also a manageable task. The process is slightly different from the oil cooler thermostat but follows a similar logic.

Locating the Main Radiator Thermostat

The main radiator thermostat is typically situated under the air intake trunking, on the right-hand side of the engine block (towards the gearbox end). A good way to locate it is to follow the coolant pipe that runs from the bottom of the expansion tank. This pipe will lead you directly to the thermostat housing.

Step-by-Step Replacement

Here’s how to replace the main radiator thermostat:

1. Identify the Housing: The thermostat housing is usually a black plastic or metal component secured to the engine block by several bolts, commonly three.
2. Prepare for the Change: Before you begin, you'll need to prevent excessive coolant loss. Gently clamp the coolant hose that connects to the housing, typically the one coming from the bottom of the expansion tank. This will minimise the amount of coolant that escapes when you open the system.
3. Remove the Housing Cover: Undo the bolts holding the thermostat housing cover in place. Be prepared for a small amount of residual coolant to spill out once the cover is loosened.
4. Remove Old Components: Carefully pull out the old thermostat and its seal from the housing. Note the orientation of the thermostat, as it needs to be installed in the same way.
5. Install New Parts: Fit the new seal into the housing first, ensuring it sits flush. Then, insert the new thermostat. As with the oil cooler thermostat, applying a small amount of Vaseline to the seal can greatly assist in seating the thermostat correctly and preventing damage to the seal during installation.
6. Reassemble the Housing: Reattach the housing cover and tighten the bolts evenly. Again, avoid overtightening.
7. Release the Clamp and Check: Once the housing is secured, carefully unclamp the hose you previously secured. Start the engine and allow it to reach operating temperature. Keep a close eye on the temperature gauge and meticulously inspect the thermostat housing for any signs of coolant leaks.

Important Considerations

When replacing thermostats, it's generally advisable to replace the seals as a matter of course. For the main radiator thermostat, you typically only need to purchase a new thermostat and a new seal; the housing itself is usually reusable unless it's visibly damaged.

Coolant Thermostat Comparison Table

Frequently Asked Questions (FAQs)

Q1: How do I know if my thermostat is faulty?

A1: Common signs include your engine taking too long to warm up or not reaching its normal operating temperature, the temperature gauge reading too low, or the engine overheating rapidly. Poor cabin heating can also be an indicator.

Q2: Can I drive my car with a faulty thermostat?

A2: Driving with a thermostat stuck open is generally less harmful, though it will reduce fuel efficiency and may cause discomfort due to poor heating. However, driving with a thermostat stuck closed can lead to severe engine overheating, causing significant and costly damage. It's best to address thermostat issues promptly.

Q3: Do I need to flush the coolant system when replacing the thermostat?

A3: While not strictly mandatory for a thermostat replacement, it is a good practice, especially if the coolant is old or dirty. Flushing the system ensures that any debris or sediment is removed, promoting the longevity of the cooling system components. Always refill with the correct type and mixture of coolant as specified by your vehicle manufacturer.

Q4: What kind of coolant should I use?

A4: Always refer to your vehicle's owner's manual for the specific type of coolant recommended. Using the wrong type of coolant can lead to corrosion and damage to the cooling system. Coolants are typically colour-coded, but it's the chemical composition that is most important.

Q5: Is it necessary to replace both thermostats if one is faulty?

A5: Not necessarily. If you've definitively identified that only one thermostat is faulty, you can replace just that one. However, as thermostats are wear-and-tear items, and given the labour involved in accessing them, some mechanics recommend replacing both if they are of a similar age, especially if the vehicle has high mileage.

Conclusion

Replacing a coolant thermostat, whether it's the main radiator unit or the oil cooler variant, is a crucial maintenance task that can significantly impact your vehicle's performance and longevity. By understanding the symptoms of a faulty thermostat and following these detailed steps, you can confidently tackle this repair yourself, ensuring your engine operates at its ideal temperature, saving you money on fuel and preventing potentially catastrophic engine damage. Always remember to use the correct parts and proceed with caution, and if you're ever in doubt, consult a qualified mechanic.
