Camshaft Seal Installation: Best Practices

The camshaft is a vital component in your vehicle's engine, orchestrating the precise opening and closing of the intake and exhaust valves. Keeping the engine's internal workings lubricated is paramount, and that's where camshaft seals come into play. These unassuming components are critical barriers, preventing the lifeblood of your engine – the oil – from escaping. A leaking camshaft seal isn't just a messy annoyance; it can lead to significant oil loss, potential damage to other engine components, and even an MOT failure. Understanding the correct installation procedure is therefore essential for any home mechanic or professional.

While the goal is always a leak-free seal, the methods for achieving this can sometimes spark debate. The conventional approach involves installing new seals after the camshaft covers are in place, typically using a specialised tool or a makeshift alternative like a PVC pipe and a gentle tap with a hammer. However, some mechanics, especially when faced with tight working spaces or specific engine designs, might consider an alternative: installing the seals onto the camshaft first before reassembling the entire assembly. This article will delve into both methods, weigh their pros and cons, and provide comprehensive guidance to ensure a successful, leak-free installation.

Understanding the Camshaft and Its Seals

Before diving into installation methods, let's briefly recap the role of the camshaft and why its seals are so important. The camshaft, driven by the crankshaft via a timing belt or chain, features a series of lobes (cams) that push against the hydraulic lifters or rocker arms, which in turn open and close the engine's valves. This precise timing is crucial for engine performance and efficiency. As the camshaft rotates, it's constantly bathed in engine oil for lubrication. Camshaft seals are positioned at the ends of the camshaft, where it exits the engine block or cylinder head, to contain this oil within the engine.

These seals are typically made of rubber or a synthetic elastomer and are designed to create a tight interference fit with both the camshaft journal and the bore in which they sit. Over time, due to heat cycling, exposure to oil, and natural wear, these seals can harden, crack, or lose their elasticity, leading to oil leaks. Replacing them is a common maintenance task, often undertaken when performing other engine work, such as replacing hydraulic lifters, as you're contemplating.

The Conventional Method: Seal Installation After Cover Assembly

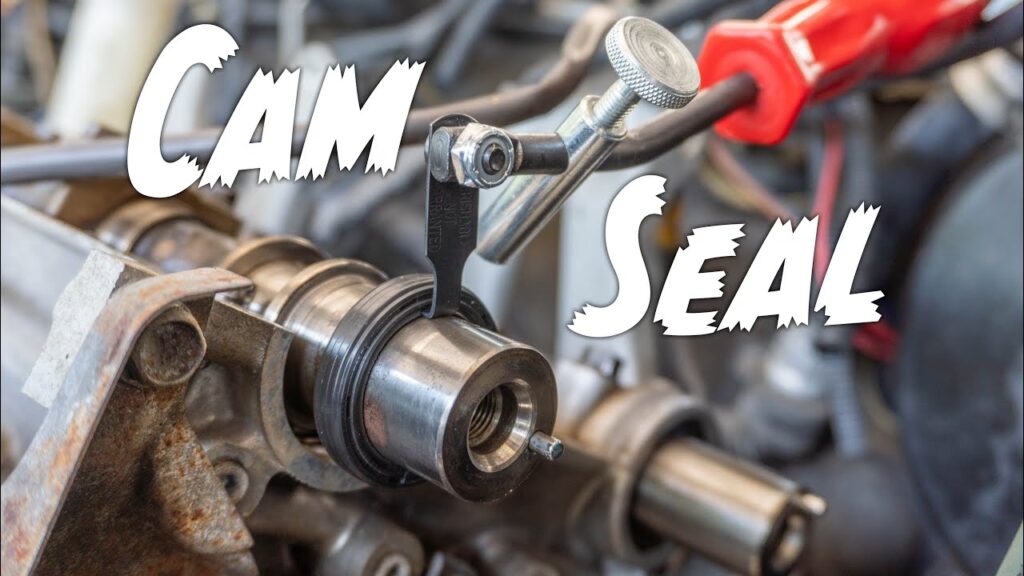

The widely accepted and most recommended method for installing new camshaft seals involves placing the seal into its bore in the cylinder head or camshaft cover *after* the camshaft itself has been installed. This ensures that the seal is seated correctly and uniformly within its housing.

Step-by-Step Overview:

1. Ensure the camshaft and its journals are clean and free of any debris or old seal residue.
2. Lightly lubricate the inner lip of the new camshaft seal with clean engine oil. This aids in smooth installation and prevents the seal from tearing or snagging.
3. Carefully position the new seal into its bore.
4. Using a dedicated seal installation tool (a seal driver) or a suitably sized socket or PVC pipe that matches the outer diameter of the seal, gently and evenly tap the seal into place. The goal is to drive the seal squarely into its bore until it is flush or recessed to the manufacturer's specified depth. Even pressure is critical to avoid tilting or damaging the seal.
5. Once the seal is seated, visually inspect it to ensure it's not cocked, pinched, or damaged.

Pros of the Conventional Method:

• Reduced Risk of Damage: By installing the seal directly into the bore, you minimise the chance of the delicate seal lip being damaged or rolled over as the camshaft is reinserted. The camshaft slides through the already seated seal.
• Proper Seating: This method allows for a more controlled and precise installation of the seal within its housing, ensuring it sits squarely and at the correct depth.
• Manufacturer Recommended: This is typically the procedure outlined in vehicle service manuals for most applications.

Cons of the Conventional Method:

• Tool Requirement: Often requires a specific seal driver tool for proper installation, though suitable alternatives can sometimes be improvised.
• Space Constraints: As you've highlighted, in some engine bays, there simply isn't enough room to swing a hammer or manipulate a long driver tool, making the process challenging.

The Alternative Method: Pre-installing Seals onto the Camshaft

You've observed mechanics using an alternative method where the new seals are placed onto the camshaft itself *before* the camshaft is reinstalled into the cylinder head. This approach is often considered when space is extremely limited, as it appears to simplify the final seating process.

Step-by-Step Overview (as observed):

1. Clean the camshaft thoroughly.
2. Lightly lubricate the inner lip of the new seal.
3. Slide the new seal onto the camshaft, positioning it near where it will eventually seat.
4. Install the camshaft back into the cylinder head, carefully guiding the pre-installed seal into its bore as the camshaft is lowered.
5. As the camshaft is fully seated, the seal is theoretically pushed into its bore without the need for a separate driving tool or hammer.

Pros of the Alternative Method:

• Easier in Tight Spaces: This is the primary advantage. If there's no room to swing a hammer or use a driver tool, this method seems to bypass that problem.
• No Special Tools: Potentially eliminates the need for a dedicated seal driver.

Cons and Risks of the Alternative Method:

While seemingly convenient, this method carries significant risks and is generally not recommended for most applications. The video you referenced might show it, but it's crucial to understand why it's a risky manoeuvre for the average DIYer or even for engines not specifically designed to accommodate it.

• Damage to Seal Lip: As the camshaft is lowered and slid into place, the seal's delicate inner lip can easily snag, tear, or roll over on sharp edges, bearing surfaces, or even the camshaft lobes themselves. This often results in an immediate or very rapid oil leak once the engine is run.
• Improper Seating: It's difficult to ensure the seal is seated squarely and at the correct depth when it's being pushed in by the camshaft itself. It might cock sideways, not go in far enough, or go in too far, compromising its sealing ability.
• Distortion: The act of sliding the camshaft through the seal, especially if not perfectly aligned, can distort the seal's shape, leading to premature failure.
• Engine Specificity: Some *very few* engine designs might allow for this, possibly with chamfered edges on the camshaft or a bore that guides the seal perfectly, but these are exceptions rather than the rule. Relying on this without explicit manufacturer endorsement for your specific engine is ill-advised.

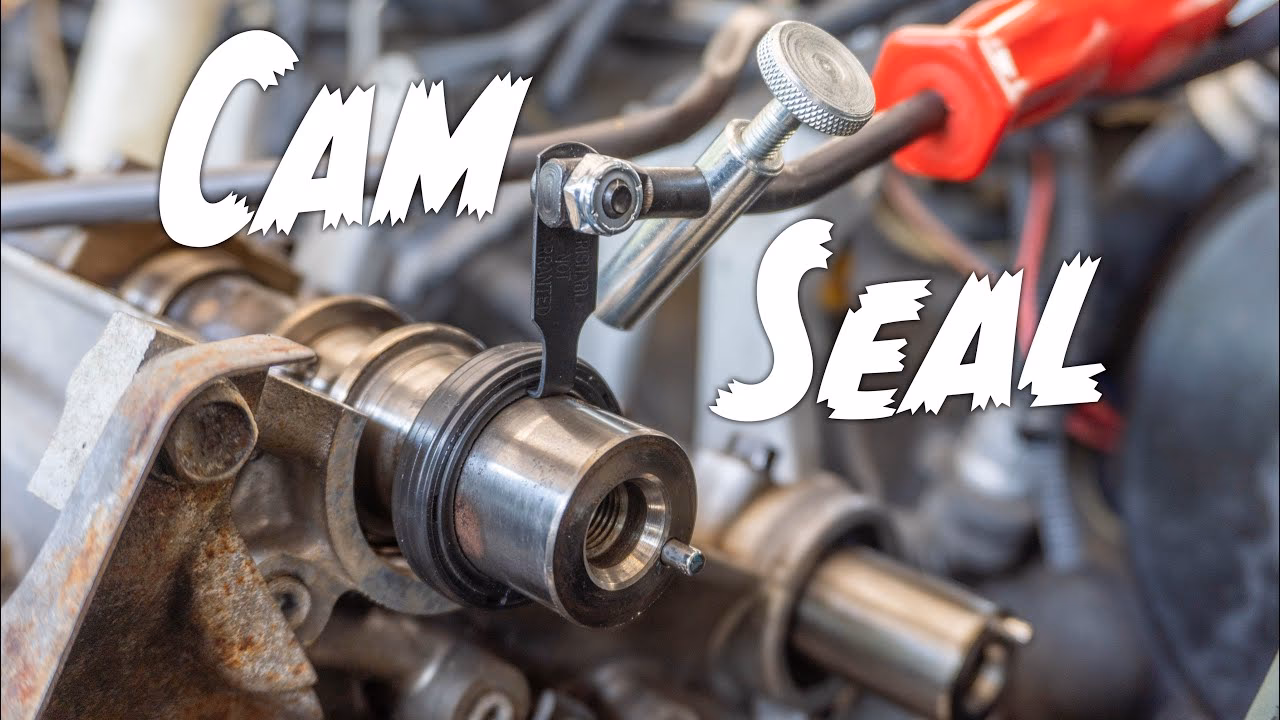

Do You Put Oil on a Camshaft and its Seals?

This is a crucial question that often arises during reassembly. The answer is nuanced:

Lubricating the Camshaft:

Yes, absolutely. When reinstalling the camshaft, it is essential to lubricate the camshaft journals (the smooth surfaces that ride in the bearings) and the camshaft lobes (which actuate the valves) with clean engine oil or a dedicated engine assembly lube. This provides initial lubrication, preventing metal-on-metal contact and wear during the engine's first few revolutions before the oil pump can fully circulate oil to these critical areas. A dry start can cause significant and irreversible damage to bearing surfaces.

Lubricating the Camshaft Seal:

Yes, but sparingly and specifically. You should apply a thin film of clean engine oil to the *inner lip* of the new camshaft seal. This lubrication helps the seal glide smoothly over the camshaft during installation, reducing friction and preventing the delicate lip from tearing or rolling over. However, avoid applying excessive oil to the *outer diameter* of the seal or to the bore where it sits. The outer diameter relies on an interference fit to create a seal, and too much oil here can sometimes compromise that grip, allowing the seal to weep or even push out under pressure.

Comparison of Methods

Let's summarise the two methods in a comparative table:

Addressing Your Specific Situation: Tight Space

Your concern about the limited space between the engine and the chassis is a valid one. This is a common challenge for mechanics. While the alternative method might seem like an appealing shortcut, the risks often outweigh the benefits. A damaged seal will require you to dismantle everything again, costing more time, effort, and potentially another new seal.

Instead of risking the alternative method, consider these options for tight spaces when using the conventional approach:

• Specialised Short Drivers: Many tool manufacturers offer compact or angled seal drivers specifically designed for cramped engine bays. Investing in one of these can save a lot of frustration.
• Careful Tapping with Improvised Tools: If a dedicated driver isn't available, a short, wide socket or a section of PVC pipe that fits perfectly over the outer diameter of the seal can still be used. Instead of a full hammer swing, use short, controlled taps with a lightweight hammer or even the palm of your hand if space allows, ensuring even pressure around the seal.
• Gradual Seating: Rather than trying to seat the seal in one go, you can gently tap it a little at a time from different angles (if the tool allows) to walk it into place squarely.
• Double-Check Alignment: Before applying force, ensure the seal is perfectly aligned with its bore. A slightly crooked start can lead to problems.

General Tips for Camshaft Seal Replacement

• Cleanliness is Key: Ensure all mating surfaces, the camshaft itself, and the seal bore are meticulously clean and free of old oil, dirt, or sealant residue. Even a tiny piece of grit can compromise the seal.
• Inspect the Camshaft Surface: Before installing the new seal, carefully inspect the surface of the camshaft where the seal lip will ride. Look for any grooves, nicks, or wear patterns that could prevent the new seal from creating an effective barrier. If significant wear is present, a new seal might not solve your leak, and further investigation (e.g., camshaft replacement or repair sleeve) might be needed.
• Use Genuine or Quality Aftermarket Seals: The quality of the seal matters. Cheap, low-quality seals may not last as long or provide as effective a seal.
• Avoid Over-Driving: Do not drive the seal in too far. Most seals are designed to sit flush or at a specific recessed depth. Over-driving can deform the seal or push it past its optimal sealing position. Consult your vehicle's service manual for the exact depth.
• One-Time Use: Once a seal has been installed, it should not be reused if removed for any reason. They are designed to deform slightly to create their seal, and removing them compromises this integrity.
• Test for Leaks: After reassembly, run the engine and carefully inspect for any signs of leaks around the new seal. It's best to do this before fully buttoning up all covers if possible.

Frequently Asked Questions (FAQs)

Q1: How do I know if my camshaft seal is leaking?

A leaking camshaft seal will typically leave oil stains or drips on the front of the engine, often near the timing belt or chain cover. You might also notice a burning oil smell if oil drips onto hot exhaust components. Significant leaks can lead to noticeable oil consumption.

Q2: Can I use RTV sealant with a camshaft seal?

Generally, no. Camshaft seals are designed to create a tight interference fit without the need for additional sealant on their outer diameter. Applying RTV here can prevent the seal from seating correctly or even cause it to slip. The only place you might consider a tiny amount of RTV is if the manufacturer specifies it for the *outer edge* of the seal bore in certain rare cases, but never on the sealing lip.

Q3: What happens if a camshaft seal is installed incorrectly?

An incorrectly installed seal will almost certainly lead to an oil leak. This could be due to the seal being cocked, torn, or not seated to the correct depth. A persistent leak can lead to low oil levels, which can cause significant engine wear and damage if not addressed promptly.

Q4: Do I need to remove the timing belt/chain to replace a camshaft seal?

In most cases, yes. The camshaft seal is usually located behind the timing belt or chain sprocket. To access and replace the seal, the timing belt/chain, and often the sprocket, must be removed. This means the engine's timing will need to be reset correctly upon reassembly.

Q5: How long do camshaft seals typically last?

Camshaft seals are designed to last for a long time, often for the life of the vehicle, or at least for well over 100,000 miles. However, factors like extreme temperatures, oil type, engine vibrations, and age can cause them to degrade prematurely.

Conclusion

While the idea of pre-installing camshaft seals onto the camshaft before reassembly might seem like a clever workaround for tight spaces, it introduces a substantial risk of damaging the new seal and leading to an almost guaranteed oil leak. For most vehicles and engine designs, the conventional method of driving the seal into its bore *after* the camshaft is in place remains the safest and most reliable approach.

Even in cramped engine bays, patience, the right tools (or carefully improvised ones), and meticulous attention to detail will yield far better results than risking the alternative method. Always prioritise the integrity of the seal over perceived ease of installation. A properly installed camshaft seal ensures your engine's oil stays where it belongs, contributing to its longevity and reliable performance for many miles to come. Remember, consult your vehicle's specific service manual for the definitive procedure for your make and model, as manufacturer guidelines always take precedence.
