VW Brake Disc Profiles Explained

When it comes to the intricate workings of your Volkswagen, few components are as critical to your safety and driving experience as the braking system. Within this vital system, the brake discs, often referred to as brake rotors, play a starring role. While many owners understand the basic function of brake discs – to provide a surface for the brake pads to clamp onto, thus slowing the vehicle – the concept of a 'brake disc profile' might be less familiar. This article aims to demystify what a VW brake disc profile is, why it's important, and how it contributes to the overall performance and longevity of your braking system. Understanding these nuances can help you make informed decisions about maintenance and replacement, ensuring your VW remains as safe and responsive as the day it left the factory.

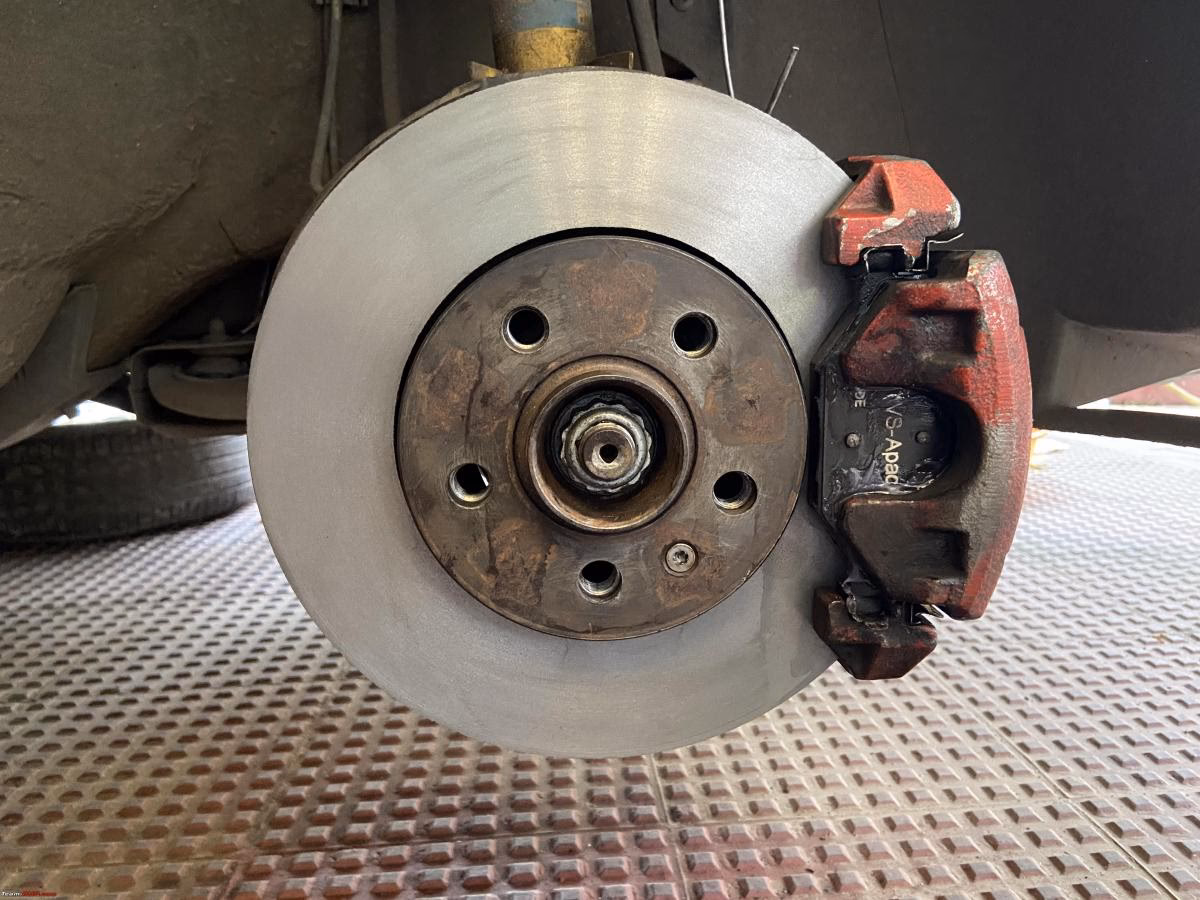

What Exactly is a Brake Disc Profile?

At its core, a brake disc profile refers to the precise shape and surface characteristics of the brake disc. This isn't just about the overall diameter or thickness; it encompasses a range of design elements that influence how the brake disc interacts with the brake pads and the braking system as a whole. Think of it as the disc's unique fingerprint, designed by Volkswagen's engineers to optimise performance for specific models and driving conditions. Key aspects of a brake disc profile include:

• Surface Finish: This refers to the texture and smoothness of the disc's friction surface. It can range from a fine, polished finish to a more grooved or textured surface, each designed to affect pad bedding-in and initial bite.
• Venting and Cooling: Many VW brake discs are 'ventilated' or 'drilled/slotted'. Ventilated discs have internal vanes that allow air to circulate and dissipate heat, crucial for preventing brake fade. Drilled or slotted discs have holes or grooves on their surface, which serve similar purposes: to help dissipate heat, remove water and brake dust, and improve initial pad contact. The pattern and size of these holes or slots are all part of the disc's profile.
• Chamfering and Deburring: The edges of the brake disc, particularly around the friction surface and bolt holes, are often chamfered (angled) or deburred (smoothed) to prevent sharp edges from causing premature wear on brake pads or creating unwanted noise.
• Weight and Material Composition: While not strictly a 'shape', the metallurgy and any weight-saving designs (like lightweight two-piece discs) are integral to the disc's overall design profile and performance characteristics.
• Runout and Thickness Variation: Even microscopic variations in flatness or thickness can affect braking performance, leading to pulsing brake pedals. The manufacturing tolerances for these are part of the disc's designed profile.

Why Do Brake Disc Profiles Matter for Your VW?

The seemingly subtle differences in a brake disc's profile are far from trivial. They are meticulously engineered to achieve specific performance goals. Here's why paying attention to your VW's brake disc profile is important:

1. Braking Performance and Feel

The surface finish and any drilling or slotting patterns directly influence how the brake pads engage with the disc. A smoother finish might offer a more progressive feel, while drilled or slotted discs can provide a sharper initial bite, especially in wet conditions by clearing water and debris. The optimal profile ensures consistent and predictable braking power across a wide range of temperatures and conditions.

2. Heat Dissipation and Fade Resistance

Braking generates significant heat. If this heat isn't dissipated effectively, the brake pads and fluid can overheat, leading to 'brake fade' – a dangerous reduction in braking effectiveness. Ventilated discs, and those with well-designed slots, are engineered to maximise airflow and surface area for heat dissipation, keeping the brakes within their optimal operating temperature range. This is particularly important for performance-oriented VW models or for drivers who frequently encounter demanding braking situations, such as downhill driving or track use.

3. Wear Characteristics and Longevity

The profile of a brake disc affects how it wears down over time, and how it wears the brake pads. A disc with a poor surface finish or aggressive slotting could lead to faster pad wear. Conversely, a well-designed profile, including proper chamfering, can promote even wear for both the disc and the pads, extending their lifespan and reducing the frequency of replacements. Ensuring the disc remains flat and true is also paramount for longevity.

4. Noise and Vibration Damping

Engineers also consider noise, vibration, and harshness (NVH) when designing brake disc profiles. Specific surface patterns, the quality of the metal casting, and the precise machining can all contribute to a quieter and smoother braking experience. Issues like brake judder or squeal can sometimes be traced back to a disc profile that isn't performing as intended or has developed uneven wear.

5. Compatibility with Brake Pads

Different brake pad compounds have different characteristics. Some perform best with a smoother disc surface, while others benefit from the extra surface area and 'bite' provided by drilled or slotted discs. Using the correct disc profile in conjunction with the appropriate brake pads ensures the entire braking system works harmoniously. Mixing and matching incompatible components can lead to reduced performance, increased wear, and potential safety issues.

Common VW Brake Disc Types and Their Profiles

Volkswagen utilises various brake disc designs across its extensive model range, from the compact Polo to the performance-oriented Golf GTI and the robust Touareg. While specific details are proprietary, we can broadly categorise common profiles:

Solid Discs

Typically found on smaller, lighter VW models or rear axles, solid discs are essentially a solid metal disc. Their profile is relatively simple, focusing on surface finish and thickness. They are generally less effective at dissipating heat compared to ventilated discs.

Ventilated Discs

These are the most common type for front axles on most VWs. The profile includes internal vanes that create airflow as the disc rotates. This significantly improves heat dissipation, making them suitable for a wider range of driving conditions. The design of these vanes is a key part of their profile.

Drilled Discs

Often seen on performance models like the Golf R or GTI, these discs have holes drilled through their surface. The profile includes the size, depth, and pattern of these holes. They excel at dissipating heat and expelling water and brake dust, offering a sharper initial response. However, they can be more prone to cracking under extreme stress if not designed correctly.

Slotted Discs

Similar to drilled discs in function, slotted discs feature grooves machined into their surface. The profile here relates to the depth, width, and pattern of the slots (e.g., straight, J-hook). Slots help to deglaze the brake pads, clear dust and water, and can offer a more consistent friction surface than drilled discs under certain conditions, often without the same susceptibility to cracking.

Two-Piece Discs

Higher-performance VWs may feature two-piece discs, where the friction ring (the part the pads contact) is separate from the hub or 'hat' which bolts to the suspension. The profile of the friction ring is critical here, but the connection between the two pieces (often via metal 'knuckles' or a floating design) is also part of the overall engineering profile. This design reduces unsprung weight and allows for better thermal management.

Maintaining Your VW's Brake Disc Profile

The original Volkswagen brake disc profile is designed for optimal performance and longevity. However, wear and tear are inevitable. Here’s how to maintain it:

• Use Genuine or High-Quality Replacement Parts: When it's time to replace your brake discs, always opt for genuine VW parts or reputable aftermarket manufacturers that specifically state compatibility with your VW model. These parts will have the correct profile engineered for your vehicle. Avoid cheap, unbranded discs, as their profile may be inferior, leading to poor performance and premature wear.
• Proper Bedding-In Procedure: After installing new brake discs and pads, a proper bedding-in process is crucial. This involves a series of moderate stops from increasing speeds, allowing the new pad material to transfer evenly onto the disc surface. This process helps establish the correct initial friction characteristics and prevents uneven wear. Follow the manufacturer's recommended bedding-in procedure carefully.
• Regular Inspections: Have your brake discs inspected regularly by a qualified mechanic. They will check for minimum thickness, signs of cracking, excessive scoring, or warping (indicated by runout). Replacing discs before they reach their minimum thickness is essential for safety and to prevent damage to other braking system components.
• Avoid Over-Tightening Lug Nuts: Incorrectly torqued lug nuts can distort brake discs, leading to runout and premature wear. Always ensure lug nuts are tightened to the manufacturer's specified torque using a torque wrench.
• Choose Appropriate Driving Styles: Aggressive driving, heavy braking, and prolonged downhill braking without using lower gears can generate excessive heat, accelerating wear and potentially damaging the disc profile. Smooth, progressive braking is best for extending the life of your brakes.

When to Replace Your VW Brake Discs

Knowing when to replace your brake discs is vital. Look out for these common signs:

• Worn Down to Minimum Thickness: Discs have a minimum thickness specification stamped on their edge. Exceeding this is unsafe.
• Grooves or Scoring: Deep grooves on the disc surface can indicate worn-out brake pads or foreign debris trapped between the pad and disc.
• Cracks: Cracks, especially around drilled holes or on the edges, are a serious safety concern and necessitate immediate replacement.
• Warping/Runout: A pulsating sensation felt in the brake pedal or steering wheel during braking usually indicates warped discs.
• Brake Judder or Squeal: While sometimes caused by pads, persistent noise can also point to uneven disc wear or damage.

Frequently Asked Questions (FAQs)

Q1: Can I fit drilled or slotted discs to any VW model?
While you can physically fit them, it's recommended to only use drilled or slotted discs if they were originally specified for your VW model or if you are upgrading with a reputable kit designed for your vehicle. The suspension and braking system are engineered to work with specific disc profiles. Using incompatible types might negatively affect handling and safety.

Q2: How often should I replace my VW brake discs?
Brake disc lifespan varies greatly depending on driving habits, conditions, and the quality of the discs. Typically, they should be replaced every 30,000 to 70,000 miles, often coinciding with 2-3 sets of brake pads. Regular inspections are the best way to determine their actual condition.

Q3: What is the difference between brake discs and brake rotors?
There is no difference. 'Brake disc' and 'brake rotor' are interchangeable terms for the same component.

Q4: Does the colour of the brake disc matter?
Surface discolouration, such as blueing, can indicate that the disc has been overheated. While not always immediately dangerous, it suggests excessive heat buildup, which can compromise performance and longevity. Some aftermarket discs come with protective coatings that burn off during the first use.

Q5: Should I replace brake discs and pads at the same time?
Yes, it is almost always recommended to replace brake discs and pads together. This ensures optimal performance, as worn discs can quickly damage new pads, and new pads won't bed in correctly on worn discs.

Conclusion

The 'VW brake disc profile' is a sophisticated design element that dictates how your brake discs perform, last, and interact with your vehicle's braking system. From the subtle texture of the friction surface to the strategic placement of cooling vanes or slots, every aspect is engineered for safety and performance. By understanding these profiles and adhering to proper maintenance practices, you can ensure your Volkswagen's braking system remains in peak condition, providing the confidence and control you need on the road.
