Two-Stroke Top End Rebuild: A Planned Approach

For any dedicated enthusiast of two-stroke engines, the phrase "top end rebuild" isn't a matter of if, but when. Far from being an unexpected setback, it's a vital component of a comprehensive planned maintenance schedule designed to keep your engine running efficiently and reliably. This isn't merely about fixing a problem after it arises; it's a proactive measure to prevent costly and inconvenient engine failures. While two-stroke engines are celebrated for their relative simplicity, a successful top end rebuild demands a thorough understanding of their mechanics, meticulous attention to detail, and a systematic approach to every step of the process.

This article delves into the critical steps and invaluable tips for installing a new piston and ring(s) in your two-stroke engine. We'll guide you through each phase, from essential pre-rebuild preparations and careful disassembly, right through to the reassembly and crucial post-build procedures. Our focus will be on often-overlooked details and incredibly important techniques that ensure a robust and long-lasting repair. So, whether you're a seasoned mechanic or embarking on your first top end rebuild, let's get started and ensure your two-stroke continues to deliver thrilling performance.

Pre-Teardown Preparations: Setting the Stage for Success

Before you even think about reaching for your spanners, a few preparatory steps can significantly ease the entire rebuild process and prevent potential headaches down the line.

Accurate Diagnosis

If your decision to rebuild stems from an existing running problem, take a moment to assess the specific issue. Are there any tell-tale signs? Perhaps a loss of power, unusual noises, or excessive smoke? Consider performing diagnostic tests such as a compression test or a crankcase leak-down test. These can offer crucial insights into the engine's condition and help confirm if a top end rebuild is indeed the primary solution, or if other issues might be at play.

A Clean Machine is a Happy Machine

Thoroughly cleaning your machine before opening up the engine is paramount. This is especially true if you plan to service the top end without removing the engine from the chassis. Dirt, grit, and grime are your engine's worst enemies. Ensuring a spotless work area and a clean exterior minimises the risk of contaminants entering delicate internal components during disassembly and reassembly. A pressure washer followed by a good scrub can make a world of difference here.

Your Indispensable Service Manual

Attempting any significant engine maintenance without an OEM factory service manual is strongly discouraged. This document is your bible, providing precise service limits, critical torque specifications, detailed exploded diagrams, and step-by-step procedures unique to your specific machine. It's the only reliable source for accurate data that ensures components are installed correctly and tightened to the exact specifications required for optimal performance and longevity. Make sure you have the correct manual for your make and model before starting any work.

Disassembly: A Methodical Approach

Once preparations are complete, the disassembly phase requires careful execution to prevent damage and maintain cleanliness.

Limiting Contaminants

As soon as the cylinder is removed, immediately wrap a clean, lint-free rag around the top of the crankcase opening. This simple yet critical step prevents dirt, debris, or small dropped components from falling into the crankcase, which could lead to catastrophic engine wear. Maintain this protective barrier at all times while the crankcase is exposed.

Piston Removal Techniques

Removing the piston circlips can be fiddly, but a pick tool combined with needle-nose pliers makes the job much easier. Insert the pick into the dimple on the piston, behind the circlip, and use it as a lever to partially pry the circlip out. Once it's partially dislodged, carefully grab it with the needle-nose pliers and remove it. The utmost care must be taken not to scratch or mar the wrist pin bore during this process, as any damage here will make subsequent wrist pin removal significantly more challenging.

The ease of wrist pin removal varies depending on the engine design and the pin's condition. If it slides out by hand, fantastic! If not, gentle tapping while adequately supporting the connecting rod is permissible. For stubborn pins, a dedicated pin puller is ideal. These can be purchased or fabricated simply from an appropriately sized bolt, nut, and socket. Once the wrist pin is out, the piston can be carefully separated from the connecting rod.

Power Valve Disassembly and Organisation

The power valve system, while crucial for performance, can appear complex. Before dismantling it, dedicate time to reviewing the procedure in your service manual. Pay close attention to exploded views and consult online part microfiches (often found on motorcycle dealer websites) for additional insight into how the components interact. This pre-study will greatly assist during reassembly.

As you remove the power valve components, lay them out on a clean rag in an organised manner that mirrors their installation orientation within the engine. This visual aid is incredibly helpful for remembering their correct placement later. When cleaning these parts, clean them one at a time or in small batches to prevent them from getting mixed up. This meticulous approach saves time and prevents errors during reassembly.

Thorough Inspection: Identifying Wear and Tear

Before any new components are installed, a diligent inspection of existing parts is non-negotiable. Any signs of excessive wear or damage necessitate replacement.

Reed Valve Assessment

Carefully inspect the condition of the reed valve petals, the reed cage, and any stopper plates. Your service manual will specify acceptable clearances between the petal tips and the cage, as well as the correct stopper plate height. Also, ensure any rubber coatings on the reed cage are intact and in good condition, as these are vital for proper sealing and performance.

Intake Manifold Integrity

Check the intake manifold thoroughly for any signs of cracks. These are more prevalent on older engines and can lead to air leaks if they propagate all the way through, causing lean running conditions and potential engine damage.

Exhaust Flange Condition

Examine the exhaust flange for excessive wear. A worn flange makes it difficult to achieve a proper exhaust gas seal, which can hamper performance and lead to the infamous "spooge" (unburnt oil residue) leaking from the exhaust joint.

Power Valve Component Wear

Take a moment to review the condition of all power valve components. Over time, significant wear can occur on these parts, leading to noticeable losses in engine performance and responsiveness.

Rod Small End Inspection

The small end bore of the connecting rod is a critical inspection point. Look for any surface defects such as pitting, scratches, or marring. Severe defects in this bore will compromise the small end bearing and ultimately necessitate rod replacement to prevent catastrophic top end failure.

Sourcing Quality Components: The Foundation of a Reliable Rebuild

The longevity and performance of your rebuilt top end are heavily dependent on the quality of the new components you choose. A properly prepared cylinder is paramount.

Cylinder Preparation

A cylinder that has been either deglazed and honed, or bored and replated, is critical for ensuring reliable performance from your new top end. Your local cylinder reconditioning shop can handle boring and replating when necessary. For a simple refresh, deglazing can be achieved with a Scotch-Brite pad, ensuring you maintain the crucial 45-degree honing mark angle for proper ring seating. This cross-hatch pattern is essential for oil retention and ring lubrication.

Piston Choices: OEM vs. Aftermarket

When it comes to new pistons, the aftermarket offers a wide array of choices. Many owners prefer to stick with OEM (Original Equipment Manufacturer) parts for guaranteed fit and quality. However, ordering individual OEM parts (piston, ring, pin, clips, gaskets) can be cumbersome, involving multiple part numbers and the risk of forgetting a crucial component, not to mention the often higher cost.

Alternatively, reputable aftermarket brands like ProX offer comprehensive two-stroke piston kits. ProX pistons are manufactured by the same OEM suppliers to exact OE specifications and are available in various sizing options (A, B, C, and D) for most applications. A key advantage of ProX kits is that they typically include the piston, ring(s), pin, and circlips all conveniently under a single part number. Furthermore, complete top-end gasket kits can often be ordered with a single part number, simplifying the sourcing process and often proving more cost-effective. While some OE pistons may have a slightly different finish, the dimensional accuracy and material quality of high-end aftermarket options like ProX are often on par, if not exceeding, OEM offerings in terms of fit and performance.

Precise Measurements: Ensuring Optimal Fitment

The number of measurements taken during a top end rebuild can vary, but for optimal results and confidence, taking numerous precise measurements before reassembly is highly recommended. This safeguards against external oversights and ensures a high level of fitment.

Critical Measurements to Consider

Below is a list of measurements routinely made by experienced builders when rebuilding a two-stroke top end:

Of these, confirming or adjusting the ring end gaps is by far the most important, followed closely by ensuring the cylinder bore is within specification regarding diameter, straightness, and roundness. While some measurements may require specialised equipment not always found in a home garage, a competent machine shop will be able to assist with these precise checks.

For checking ring end gaps, simply install the ring into the cylinder bore without the piston, ensure it's square, and then use a feeler gauge to determine the gap. New ProX pistons often come with pre-gapped rings, but verification against the provided specification is always a good practice.

Piston-to-cylinder clearance involves measuring both the cylinder bore and the piston itself. Use a bore gauge for the cylinder and micrometers for the piston. For ProX pistons, measure perpendicular to the wrist pin, approximately a quarter of the way up from the bottom of the piston skirt. Subtracting the piston measurement from the bore measurement gives you the clearance, which should fall within the range specified on the ProX instruction sheet.

Finally, measuring the rod small end diameter is a frequently overlooked but critical step. Wear here can introduce excessive play for the small end bearing, leading to premature bearing failure and potential damage to the entire top end. Use the same method as for bore diameter measurement and compare it against the acceptable range in your owner's manual.

Preparation Work: Attention to Detail

Even with new components, proper preparation before final assembly is crucial for performance and longevity.

Cylinder Cleaning: The Final Rinse

After your cylinder has been deglazed or returned from replating, it requires one final, thorough cleaning. There is almost always residual honing grit that must be removed. Use warm soapy water and a bristle brush to scrub the bore, followed by automatic transmission fluid or a similar cleaning solution with a brush or lint-free rag. To verify cleanliness, wipe a cotton swab around the bore; continue cleaning until no contaminants are visible on the swab. Any remaining honing grit will cause premature wear of your new piston rings.

Power Valve Functionality Check

For cylinders that have been exchanged or replated, the power valve system should be reinstalled and checked for proper movement before the final engine assembly. Sometimes, excess plating can inhibit power valve movement; this excess material must be carefully removed. For cylinders with blade-style power valves, it’s imperative to check that the blade position does not protrude into the cylinder bore when closed, as this would interfere with piston movement.

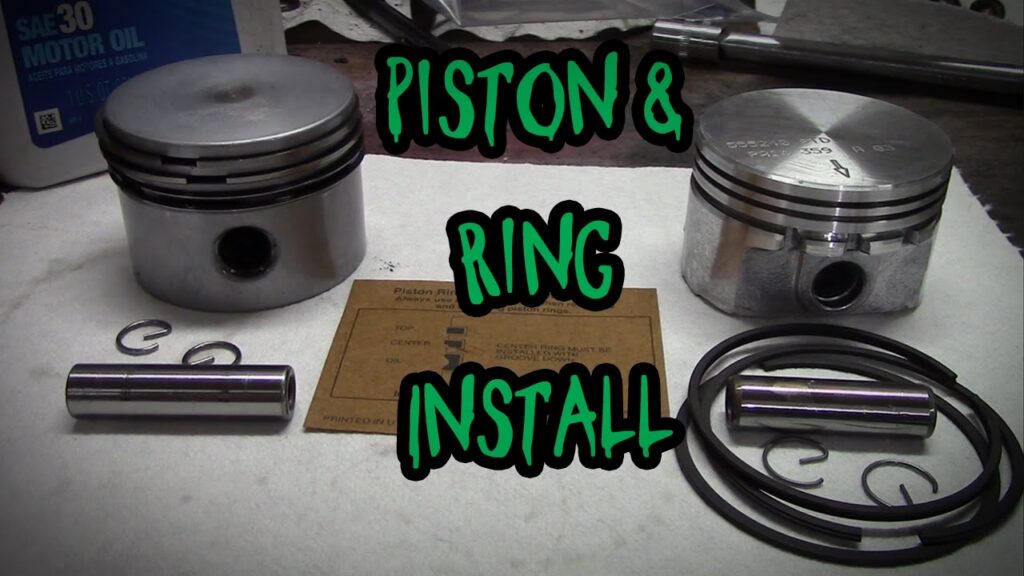

Piston Preparation: Ready for Installation

It's generally easiest to prepare the new piston as much as possible before attaching it to the connecting rod. This involves installing one of the circlips and the ring pack. Unless your service manual specifies which circlip to install first, choose the side that offers the easiest installation orientation for you. Typically, this is dictated by your dominant hand and preferred working angle.

Consult your service manual for the correct circlip orientation, which usually involves positioning the open end of the circlip at the 12 or 6 o’clock position (or away from the piston dimple). Temporarily install the wrist pin to act as a backstop, forcing the circlip fully into its groove. Circlip installation should ideally be done by hand to minimise the chance of deformation. Once installed, use a pick or small screwdriver to confirm the circlip is fully seated and cannot rotate. Any circlips that can rotate must be replaced, as they have been compromised and deformed during installation and could potentially come loose.

The compression ring(s) are directional; the top of the ring is usually indicated by markings near the end gaps. Apply a thin coat of oil to the ring, then carefully work it into position, ensuring the ring end gaps are perfectly aligned with the locating pin in each ring groove. This pin prevents the ring from rotating and catching on port openings.

Installation: The Moment of Truth

With all components prepared and inspected, the installation phase requires precision and care.

Piston to Connecting Rod

Locate the arrow imprinted on the top of the new piston; this typically denotes the exhaust side. Always confirm the proper orientation with your service manual. Apply a light amount of assembly lube to the small end bearing and the wrist pin bore on the piston, then install the small end bearing. Align the piston with the small end of the connecting rod and carefully slide the wrist pin into place. Once again, use the wrist pin as a temporary backstop for installing the second circlip. Confirm it is fully seated and does not rotate with a pick or screwdriver.

Cylinder to Piston: A Gentle Fit

In most two-stroke applications, a ring compressor isn't strictly necessary for installing the piston into the cylinder. Begin by lightly oiling the cylinder bore with assembly lube or clean engine oil. Also, lubricate the piston skirt and ring faces. Before lowering the cylinder, double-check one final time that the piston ring ends are correctly oriented to their respective locating pins.

Position the piston at or near Top Dead Centre (TDC). Carefully lower the cylinder bore down onto the piston. As the cylinder descends, use your fingers to gently compress the ring(s) and simultaneously ensure the cylinder bore remains square to the piston. Feel for a smooth, unresisted slide as the cylinder moves over the piston and rings. If you encounter any significant resistance, stop immediately. This typically indicates that a ring has come out of its groove or snagged the cylinder bore as it transitions from your fingers into the cylinder. Correct this before proceeding. Once the cylinder is safely over the ring, slide it all the way down, keeping the piston at TDC. Remember to torque your cylinder base nuts and cylinder head nuts to the exact specifications outlined in your service manual.

Post-Build Procedures: Final Checks and Break-In

The job isn't done until the final checks are complete and the engine has been properly broken in.

Torquing All Fasteners

Your cylinder base nuts and cylinder head nuts must always be torqued to the precise specifications provided in your service manual. Double-check that all nuts are set to their corresponding values. This ensures proper sealing and prevents warpage or component damage.

New Spark Plug

Don’t forget to install a brand new spark plug and, if necessary, ensure it is gapped appropriately according to your manual's specifications. A fresh plug ensures reliable ignition and efficient combustion.

Clean Air Filter

Before the first start-up, always install a clean, properly oiled air filter. This is crucial for preventing dirt ingestion, which can rapidly damage your newly rebuilt top end.

Crankcase Leak Down Test

As a final precautionary measure, perform a crankcase leak down test. This invaluable test confirms that all seals, gaskets, and joints are sealing as they should, providing peace of mind that your engine is airtight and ready for operation. Any leaks here can lead to lean running and engine damage.

The Crucial Break-In Procedure

Proper break-in procedure is paramount for the longevity of your new top end. When running your rebuilt engine for the first time, keep the engine slightly above idle with slow, mild revs until it becomes too hot to comfortably touch. Then, shut the engine off and allow it to cool until it's merely warm to the touch. Repeat this cycle, gradually increasing revs and allowing the engine to get slightly hotter each time. After three such cycles, let the engine cool completely. Once cool, re-check all fluid levels and re-torque your cylinder and head bolts, as these can sometimes settle after initial heat cycles.

Once the static break-in is complete, you can begin break-in runs while riding the bike. Crucially, keep the RPMs varied during these initial rides. Avoid prolonged idling, lugging the engine, or holding constant RPMs. A safe approach is to perform short rides: perhaps 5 minutes, then 10 minutes, and finally 15 minutes, with adequate cooling periods between each session. This varied load and temperature cycling ensures that your piston ring(s) seat evenly and properly against the cylinder bore. After the riding break-in, it's always a good idea to double-check your fluids and re-torque your cylinder and head bolts one final time after a complete cool-down. This diligent break-in process ensures maximum performance and lifespan from your freshly rebuilt engine.

Frequently Asked Questions About Two-Stroke Top End Rebuilds

Q: How often should I rebuild my two-stroke top end?

A: The frequency depends heavily on the engine type (e.g., motocross vs. trail), riding style, and maintenance. High-performance racing engines might need a top end every 20-50 hours, while trail or casual riding engines could go 100+ hours. Consult your service manual for manufacturer recommendations and monitor performance for signs of wear.

Q: What are the common signs that my two-stroke needs a top end rebuild?

A: Common indicators include a noticeable loss of power, difficulty starting, excessive smoke (especially blue smoke), unusual noises (e.g., rattling or knocking), increased oil consumption, or a significant drop in compression (check with a compression tester).

Q: Do I always need to replate my cylinder during a top end rebuild?

A: Not always. If the cylinder bore is still within specifications and shows no significant scoring or wear, it can often be deglazed and honed. However, if there's damage, excessive wear, or if you're upsizing the piston, replating or boring is typically required. Always measure the cylinder bore for roundness, taper, and diameter.

Q: Can I reuse my old wrist pin bearing?

A: It is highly recommended to replace the wrist pin bearing (small end bearing) during every top end rebuild. This bearing operates under extreme stress, and it's a relatively inexpensive component that can prevent catastrophic failure if it wears out.

Q: Why is the break-in procedure so important?

A: The break-in procedure allows the new piston rings to properly seat and conform to the cylinder bore. This creates an optimal seal, essential for compression and heat transfer. Skipping or improperly performing break-in can lead to premature wear, reduced performance, and even engine seizure.
