Diesel Injection Pump Calibration: UK Guide

Every diesel vehicle owner understands the intricate dance of components under the bonnet. At the heart of a diesel engine's fuel delivery system lies the injection pump, a crucial component that dictates not only how much fuel your engine receives but also precisely when it gets it. A properly functioning injection pump is paramount for your vehicle's overall health, performance, and, significantly, its fuel economy. Neglecting this vital component can lead to a cascade of issues, from a noticeable drop in miles per gallon and diminished engine power to increased emissions and even potential engine damage. This comprehensive guide will delve into the world of diesel injection pump calibration, providing you with the knowledge and steps required to optimise your vehicle's performance and ensure it runs as smoothly and efficiently as possible on the UK roads.

What is a Diesel Injection Pump and Why is Calibration Essential?

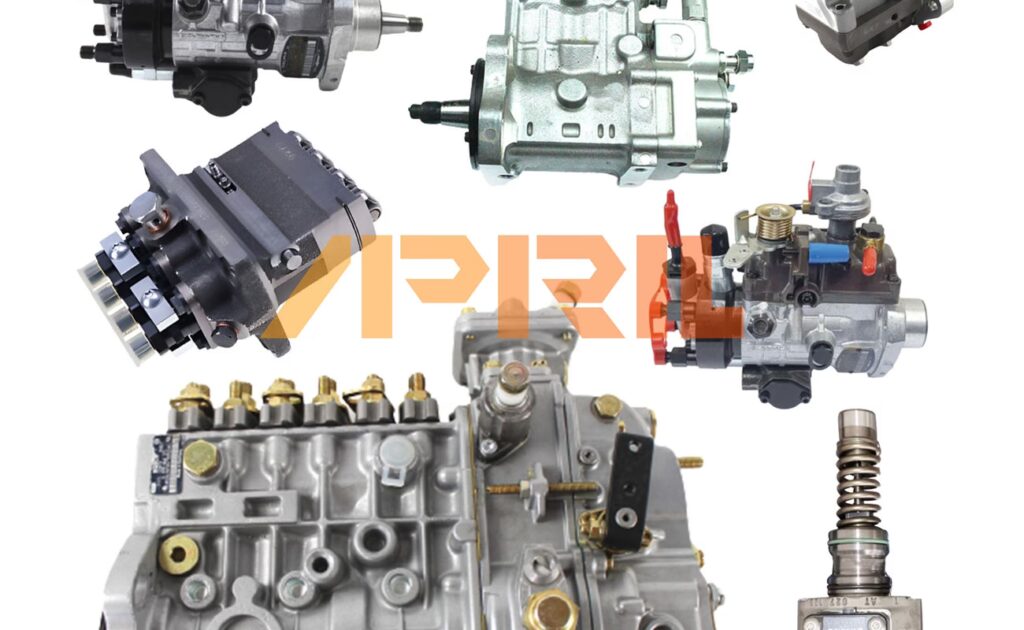

The diesel injection pump serves as the maestro of your engine's fuel system. Its primary role is to ensure the precise amount of fuel is delivered to each cylinder at the exact right moment. This timing is critical; even a slight deviation can throw the entire combustion process out of sync, impacting everything from power output to exhaust emissions. Calibration, in essence, is the process of fine-tuning this maestro. It involves comparing the pump's current performance measurements against the manufacturer's specified standards and making necessary adjustments. This meticulous process eliminates inconsistencies, ensuring the pump works in perfect synchronisation with other engine components. Think of it as tuning a musical instrument; without proper tuning, even the most capable instrument will produce a discordant sound. Similarly, an uncalibrated injection pump will cause your engine to run less efficiently, potentially leading to a host of problems.

When to Calibrate Your Injection Pump: Recognising the Warning Signs

Diesel injection pumps, like any mechanical component, are subject to wear and tear over time, gradually losing their factory calibration. Recognising the early warning signs that your pump requires attention can save you significant headaches and costs down the line. Here are the common indicators that point to a misaligned pump:

• Drop in Fuel Efficiency: This is often one of the first and most noticeable signs. If you find yourself filling up more frequently or your MPG figures are consistently lower than usual, an uncalibrated pump could be the culprit. The engine might be receiving too much or too little fuel, or the timing could be off, leading to inefficient combustion.
• Poor Engine Performance: You might experience a noticeable lack of power, sluggish acceleration, or a general feeling that your vehicle isn't performing as it once did. This is directly related to the incorrect fuel delivery and timing.
• Excess Smoke: Dark smoke (black or grey) from the exhaust pipe, especially under acceleration, can indicate incomplete combustion, often due to incorrect fuel-air mixture caused by a miscalibrated pump.
• Difficulty Starting: Hard starting, particularly when the engine is cold, can be a symptom of incorrect injection timing. The fuel isn't being injected at the optimal moment for ignition.
• Rough Idling: If your engine idles unevenly, shakes, or sounds 'lumpy' when stationary, it could be a sign that fuel is not being delivered consistently to all cylinders.
• Knocking Sounds: A distinct knocking or pinging sound, often more pronounced under load, can be indicative of advanced injection timing or uneven fuel delivery.
• Increased Vibrations: Similar to rough idling, excessive engine vibrations felt through the steering wheel or chassis can suggest an imbalance in the engine's operation due to improper fuel injection.

Factors Contributing to Injection Pump Wear and Tear

Understanding why injection pumps lose calibration is crucial. Several factors contribute to their gradual degradation:

• Friction: The internal moving parts of the pump – such as pistons, gears, camshafts, and bearings – are constantly interacting. This constant rubbing creates microscopic damage over time. As these components thin or wear down, their precise dimensions change, leading to a loss of the original factory calibration.
• Abrasion: This is particularly prevalent in vehicles that use lower-quality or contaminated fuel. Impurities, dirt particles, or even microscopic metallic debris can act like sandpaper as they flow through the pump's intricate components with the fuel. This abrasive action significantly accelerates wear, compromising the pump's internal tolerances and efficiency.
• Corrosion: The pump is susceptible to corrosion, especially if exposed to corrosive substances like water, oxygen, acids (which can form from fuel degradation), and salts. These elements can instigate chemical reactions that weaken the metal components of the pump. As corrosion progresses, it erodes the structural integrity of the pump, potentially leading to leaks, blockages, or even complete failure of critical internal parts.

The Diesel Injection Pump Calibration Process: A Detailed DIY Guide

Calibrating a diesel injection pump is a procedure that demands precision. Even the slightest error can have a significant impact on your engine's performance, fuel efficiency, and longevity. While professional calibration on a test bench offers the utmost accuracy, understanding the fundamental steps can empower you to perform a basic adjustment or at least comprehend what's involved. Please note, this guide assumes a level of mechanical aptitude. If in doubt, always consult a qualified mechanic.

1. Essential Equipment

Before you begin, ensure you have the correct tools. Using the right equipment is non-negotiable for accuracy and safety.

2. Accessing the Injection Pump

This step requires careful observation and a basic understanding of your engine layout.

• Begin by opening your vehicle's bonnet.
• Locate the engine and look for components with labels or markings that might indicate the pump's presence.
• Diesel injection pumps are invariably connected to the fuel lines that supply diesel fuel to the engine’s cylinders. You can often identify the general area of the pump by following these lines, starting from the fuel tank or fuel filter towards the engine.
• The pump is typically driven by the engine’s camshaft or timing gear, so look for a mechanical link that connects these parts.
• Most commonly, the injection pump is situated near the engine’s front, on either side. However, depending on your vehicle's make and model, it can occasionally be found on the engine's side or towards the rear.
• Physically, injection pumps are usually compact, robust units, often cylindrical or rectangular in shape, made of metal. They are securely mounted on the engine block and will have multiple fuel lines and electrical connections leading to other engine components.

3. Locating Top Dead Centre (TDC)

Finding Top Dead Centre (TDC) for cylinder number one is a critical step for accurately timing the fuel injection and ignition. TDC is the point in the engine’s piston stroke where the piston reaches its absolute highest position within the cylinder, momentarily stationary before beginning its downward stroke.

• First, identify which cylinder is designated as cylinder number one for your specific engine. This information can usually be found in your vehicle's workshop manual.
• To prepare, carefully remove the glow plug (or injector, depending on access) from cylinder number one. This allows you to feel the piston's movement and helps in releasing compression.
• Now, you will need to manually rotate the crankshaft in its normal direction of rotation (clockwise for most engines, but verify for your specific model). You can often do this by using a large socket and ratchet on the crankshaft pulley bolt, or by carefully turning the engine using the fan belt if safe to do so.
• As you turn the engine, you should eventually feel resistance, indicating that you are reaching the top of the compression stroke for cylinder one. This resistance is the air being compressed within the cylinder.
• Once you feel this resistance, continue to turn the crankshaft very slowly and carefully. The goal is to reach the exact peak where the piston momentarily stops before it begins its descent. This precise point is TDC for cylinder one.
• To verify your position, check the alignment of the timing marks on the crankshaft pulley with the corresponding marks on the engine’s front cover or timing cover. These marks should align perfectly when cylinder one is at TDC. If they don't, re-adjust until they do. This ensures maximum precision.

4. Connecting the Dial Gauge

The dial gauge is your instrument for measuring the exact vertical movement and position of the injection pump’s plunger. This measurement is vital for setting the injection timing correctly.

• Select a stable and secure mounting point for the dial gauge. This could be a sturdy bracket on the engine itself or a robust nearby component that won't flex or move during the process. Ensure the mounting is rigid.
• Carefully attach the dial gauge to this mounting point.
• Adjust the dial gauge’s indicator or stylus so that it makes direct contact with the injection pump’s plunger or the specific measurement point indicated by your vehicle's service manual.
• The stylus must be precisely vertical to the plunger to ensure accurate readings.
• Before any movement, the dial gauge should be set to zero, indicating no movement or pressure applied to the plunger. This establishes your baseline measurement.

5. Setting the Timing

This step involves using the timing light to set the injection system’s timing to the value specified by the manufacturer. This value is absolutely critical for optimal engine performance and emissions.

• Connect the timing light according to its instructions, typically clamping it around the fuel line of cylinder number one or connecting it to the engine's electrical system if it's an inductive type.
• Start the engine and allow it to reach its normal operating temperature.
• Point the timing light at the crankshaft pulley's timing marks. The strobe light will illuminate the marks at the exact moment of injection.
• Compare the illuminated timing marks with the manufacturer's specified timing mark on the engine. They should align.
• If the marks do not align, you will need to adjust the injection pump's position. Most injection pumps are mounted with slotted holes or adjustable bolts. Carefully loosen the mounting bolts of the injection pump.
• Slowly rotate the pump body (or use its adjustment mechanism) in small increments until the timing marks align perfectly under the strobe of the timing light. Rotating the pump in one direction will advance the timing, and rotating it in the other will retard it. Always refer to your vehicle's specific service manual for the correct rotational direction and timing specifications.
• Once aligned, carefully tighten the mounting bolts to secure the pump in its new position, ensuring the timing does not shift during tightening.

6. Adjusting the Fuel Delivery

The final critical step in the diesel injection pump calibration process is adjusting the fuel delivery. This determines the precise amount of fuel that will be delivered to each cylinder during the engine’s combustion cycle, directly impacting power and efficiency.

• The injection pump has an adjustment mechanism specifically designed for controlling fuel delivery. This is typically an adjustment screw or a similar designated component. Access its location as per your vehicle's service manual.
• Making this adjustment usually requires small, incremental turns of the screw. A clockwise turn often increases fuel delivery, while an anti-clockwise turn decreases it, but again, confirm this with your manual.
• Unlike timing, which can be precisely measured with a timing light, adjusting fuel delivery often requires a 'feel' for the engine's response and potentially road testing.
• After making a small adjustment, test the vehicle under various conditions (idle, acceleration, cruising) and observe the results in performance, exhaust smoke, and engine sound.
• You may need to repeat this process of adjusting and testing several times until you achieve optimal engine performance, minimal smoke, and desired fuel efficiency. It’s a balance, and patience is key. Over-fuelling can lead to excessive smoke and reduced efficiency, while under-fuelling can cause a lack of power and potential engine damage.

Troubleshooting Common Calibration Issues

Even with careful adherence to the steps, you might encounter issues.

• Timing still off after adjustment? Double-check your TDC mark, ensure the timing light is correctly connected, and that the pump mounting bolts are sufficiently loose to allow movement. Sometimes, wear in the timing belt/chain or pump drive gear can make exact alignment challenging.
• Fuel delivery seems incorrect despite adjustment? Verify fuel filter cleanliness and fuel pressure from the lift pump. Air in the fuel system can also cause inconsistent delivery. If the pump is severely worn internally, calibration alone may not be sufficient, and a rebuild or replacement might be necessary.
• When to seek professional help: If you've followed all steps meticulously and still cannot achieve optimal performance, or if you suspect internal pump damage, it's always best to consult a qualified diesel specialist. They have access to advanced diagnostic equipment and test benches that can precisely calibrate the pump under controlled conditions.

Benefits of a Properly Calibrated Diesel Injection Pump

Investing time in calibrating your diesel injection pump yields significant returns:

• Enhanced Fuel Efficiency: One of the most immediate and tangible benefits. Correct fuel timing and delivery ensure complete combustion, meaning you get more miles per gallon from your diesel.
• Restored Engine Power: Your engine will regain its original responsiveness and horsepower, making driving more enjoyable and safer, especially when overtaking or carrying heavy loads.
• Reduced Emissions: A properly calibrated pump ensures a cleaner burn, leading to fewer harmful pollutants being released into the atmosphere. This is crucial for passing the annual MOT emissions test in the UK.
• Smoother Operation and Less Noise: An engine running with correctly timed and delivered fuel will typically operate more smoothly, with less vibration and reduced knocking sounds.
• Extended Engine Lifespan: By ensuring the engine runs efficiently and without undue stress from incorrect fuel delivery, you contribute significantly to the longevity of your engine and its components.

Frequently Asked Questions (FAQs)

Q1: How often should I calibrate my diesel injection pump?

A1: There isn't a fixed schedule, as it largely depends on the pump's age, usage, and fuel quality. However, if you notice any of the warning signs discussed (e.g., drop in fuel efficiency, poor performance, excessive smoke), it's time for an inspection and potential calibration. As a general preventative measure, some mechanics recommend checking calibration during major service intervals, especially for older vehicles or those with high mileage.

Q2: Can I calibrate my diesel injection pump myself if I'm not an experienced mechanic?

A2: While this guide provides detailed steps, calibrating a diesel injection pump requires a degree of mechanical aptitude, precision, and the correct tools. If you are not confident in your abilities or lack the necessary equipment, it is highly recommended to seek professional assistance. Incorrect calibration can lead to further engine damage or poor performance.

Q3: What happens if I don't calibrate my diesel injection pump when needed?

A3: Ignoring the need for calibration can lead to several negative consequences: significantly reduced fuel efficiency (costing you more at the pumps), diminished engine power, increased exhaust emissions (potentially failing MOT), rough engine running, increased engine noise (knocking), and accelerated wear and tear on other engine components due to inefficient combustion. In severe cases, it could lead to costly engine damage.

Q4: Is specialist equipment always needed for calibration?

A4: Yes, for accurate calibration, tools like a dial gauge and a timing light are essential. While some basic adjustments might be attempted without them, precise calibration to manufacturer specifications is virtually impossible without these specialised tools. Professional workshops also use dedicated test benches for the most accurate and comprehensive calibration.

Q5: What's the difference between calibration and a pump rebuild?

A5: Calibration is the process of adjusting an existing pump to ensure it delivers fuel precisely according to specifications. A pump rebuild, on the other hand, involves dismantling the pump, inspecting all internal components, replacing worn or damaged parts (like seals, springs, plungers), and then reassembling and calibrating it. A rebuild is performed when the pump's internal components are too worn for calibration alone to restore proper function.

Conclusion

The diesel injection pump is undoubtedly the linchpin of your vehicle's fuel system. Understanding its function and knowing when and how to approach its calibration is a vital skill for any diesel car owner in the UK. By recognising the symptoms of a misaligned pump and following the detailed steps outlined in this article – from identifying Top Dead Centre to fine-tuning fuel delivery – you can significantly improve your vehicle's fuel efficiency, restore its power, reduce harmful emissions, and ultimately extend its lifespan. While the process demands precision and the right tools, the benefits of a properly calibrated pump are undeniable. Regular inspection and timely calibration are not just maintenance tasks; they are investments in your vehicle's long-term health and your driving experience.
