ADAS Calibration Costs Explained

Understanding ADAS Calibration Costs for UK Drivers

Modern vehicles are becoming increasingly sophisticated, integrating a range of Advanced Driver Assistance Systems (ADAS) designed to enhance safety and driving comfort. Features like lane-keeping assist, adaptive cruise control, automatic emergency braking, and blind-spot monitoring all rely on a complex network of sensors and cameras. For these systems to function optimally and reliably, they require precise calibration. This article delves into the typical costs associated with ADAS calibration in the UK and explores the key factors that influence these prices, ensuring you're well-informed about maintaining your vehicle's cutting-edge safety technology.

What is ADAS Calibration and Why is it Necessary?

ADAS calibration is the process of precisely aligning the sensors and cameras that power your vehicle's advanced safety features. These systems use components like cameras mounted on the windscreen, radar sensors in the grille or bumpers, and other sensors strategically placed around the car. Even minor shifts in their position, often caused by everyday driving, impacts, or repairs, can significantly affect their accuracy. Without proper calibration, these systems may provide inaccurate warnings, fail to detect hazards, or even interfere with your vehicle's handling. Essentially, ADAS calibration ensures that your car's 'eyes' and 'brain' are working in perfect harmony.

The Average Cost of ADAS Calibration in the UK

The cost of ADAS calibration can vary significantly depending on several factors, including the vehicle's make and model, the complexity of its ADAS features, and the calibration method required. At specialist garages, such as Elite Garages, you can typically expect to pay from £190 plus VAT for ADAS calibration. This price often includes essential complementary services to ensure maximum accuracy and compliance with manufacturer specifications. These can include a 4-wheel alignment check and adjustment, as well as a comprehensive diagnostic scan to identify any underlying issues that might affect the ADAS performance. If any additional work is identified as necessary, technicians will always advise you beforehand, providing a clear breakdown of costs.

Key Factors Influencing ADAS Calibration Pricing

Several elements contribute to the final cost of your ADAS calibration:

• Vehicle Make and Model: Luxury brands and the latest models often feature more intricate and numerous ADAS systems, potentially increasing calibration complexity and cost.
• Sensor Type: Systems relying solely on cameras might be less complex to calibrate than those incorporating radar or lidar technology. Radar and lidar sensors often require more intricate setup and specialised equipment.
• Calibration Method: There are primarily two types of calibration:
• Static Calibration: Performed in the workshop using specialised equipment and targets. This is often more time-consuming and requires a controlled environment.
• Dynamic Calibration: Conducted on the road, requiring the vehicle to be driven under specific conditions to gather data. This method can also be time-intensive and depends on road access and conditions.
• Many modern vehicles require a combination of both static and dynamic calibration, which naturally impacts the labour time and equipment usage, thereby affecting the price.

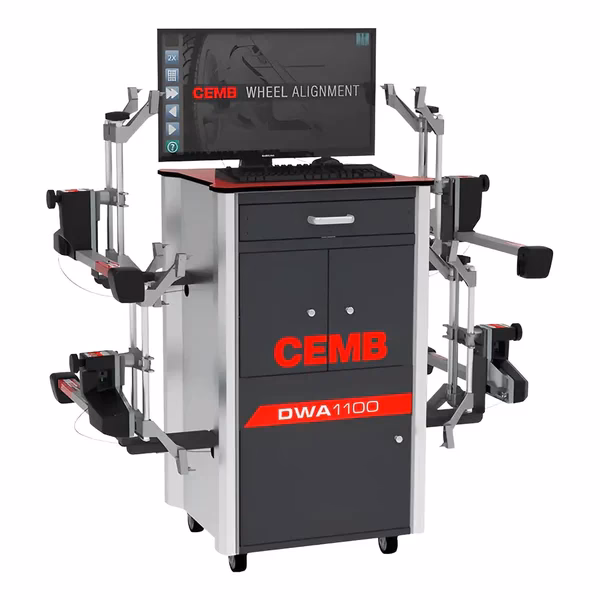

• Ancillary Services: Often, a precise wheel alignment is a prerequisite for accurate ADAS calibration. If your vehicle requires alignment adjustments before calibration, this will be an additional cost. Similarly, diagnostic checks are crucial for identifying any faults that could interfere with the calibration process.
• Recent Repairs: If you've recently had a new windscreen fitted, or any repairs to bumpers or bodywork where ADAS sensors are located, recalibration is almost always necessary. The specific parts replaced and the nature of the repair can influence the calibration procedure and, consequently, the cost.

When is ADAS Calibration Required?

It's crucial to have your ADAS recalibrated in specific circumstances to ensure the continued safety and functionality of these systems. You may need calibration if:

• After a Windscreen Replacement: The forward-facing camera, often mounted behind the windscreen, is critical for many ADAS features. A new windscreen can slightly alter its viewing angle, necessitating recalibration.
• Following a Collision or Minor Accident: Even minor impacts can subtly misalign sensors and cameras, compromising their accuracy.
• After Suspension Work or Wheel Alignment: Changes to your vehicle's suspension geometry or a wheel alignment can affect the vehicle's ride height and angle, which in turn impacts the calibration of sensors that rely on a level vehicle.
• After Replacing an ADAS Camera or Sensor: Any replacement of ADAS-related components will require recalibration to ensure they function correctly with the vehicle's other systems.
• When Experiencing False Alerts or Malfunctioning Features: If you notice your ADAS features behaving erratically, providing false warnings, or failing to activate when expected, it's a strong indicator that recalibration is needed.

Common ADAS Features Requiring Calibration

A wide array of ADAS features rely on correctly calibrated sensors and cameras. These include:

Each of these systems depends on sensors and cameras being precisely aligned. Misalignment can lead to the system not accurately interpreting the environment, rendering it ineffective or even dangerous.

Consequences of Uncalibrated Advanced Systems

Ignoring the need for ADAS calibration can have serious repercussions:

• Compromised Safety: The most significant risk is that the systems designed to protect you may fail to do so. This could mean an AEB system not engaging when needed, or LKA incorrectly nudging you towards another vehicle.
• False Alerts or Missed Warnings: You might experience annoying false alarms, or worse, the system might fail to alert you to a genuine hazard.
• Impact on Vehicle Handling: In some cases, miscalibrated systems can interfere with steering or braking inputs, leading to unpredictable vehicle behaviour.
• MOT Failures: If an ADAS system triggers a warning light on your dashboard (e.g., an engine management light indicating a sensor fault), your vehicle could fail its MOT test.
• Invalidated Insurance: In the event of an accident, if it's found that crucial safety systems were not properly maintained or calibrated, your insurance claim could be jeopardised. Manufacturers design these systems to work together and rely on their accurate calibration.

The Importance of Vehicle Diagnostics and Regular Maintenance

Modern vehicles are complex, and ADAS is just one facet of their integrated electronic systems. Regular vehicle diagnostics are vital for identifying potential issues that might not be immediately apparent or trigger a warning light but could still impact ADAS performance. It is highly recommended to incorporate an ADAS calibration check as part of your routine vehicle servicing, especially if any work has been carried out on the suspension, steering, or if you've had a new windscreen fitted. Expert technicians can detect subtle signs of misalignment or electronic faults that could compromise your car's safety features.

Why Choose a Specialist for ADAS Calibration?

ADAS calibration requires specialised equipment, software, and trained technicians. Attempting calibration without the correct tools or expertise can lead to inaccurate results, further system malfunctions, or even damage to the vehicle's components. Specialist garages like Elite Garages invest in:

• State-of-the-art Calibration Equipment: Including diagnostic tools, calibration rigs, and targets specific to various vehicle manufacturers.
• Ongoing Technician Training: Ensuring their staff are up-to-date with the latest ADAS technologies and calibration procedures across a wide range of vehicle makes and models.
• Manufacturer Compliance: Adhering to strict calibration protocols set by vehicle manufacturers to guarantee accuracy and system integrity.

FAQs

Q1: How often should ADAS calibration be performed?
Calibration is typically recommended after specific events like windscreen replacement, collision repairs, or suspension work. However, if you notice any ADAS malfunctions or false alerts, it's advisable to get it checked immediately. Some manufacturers may also recommend periodic checks as part of regular servicing.

Q2: Can I calibrate ADAS myself?
No, ADAS calibration requires specialised equipment, software, and a controlled environment. It's a task best left to trained professionals at reputable garages.

Q3: Does a wheel alignment affect ADAS calibration?
Yes, a precise wheel alignment is often a prerequisite for accurate ADAS calibration, as the vehicle's geometry can affect sensor readings.

Q4: What is the difference between static and dynamic calibration?
Static calibration is done in the workshop using targets, while dynamic calibration involves driving the vehicle under specific conditions. Many vehicles require a combination of both.

Q5: Will a new windscreen require ADAS calibration?
Yes, in most cases, the camera for ADAS is mounted behind the windscreen. Even a slight difference in the glass can affect the camera's view, necessitating calibration.

Conclusion: Proactive Maintenance for Advanced Safety

Advanced Driver Assistance Systems are a significant leap forward in vehicle safety. However, their effectiveness hinges on precise calibration. Understanding the costs involved and the specific circumstances that necessitate recalibration empowers you to make informed decisions about your vehicle's maintenance. Don't wait for a warning light or a system failure; proactive ADAS calibration ensures that your car's advanced safety features are always operating at their peak performance, providing you with the confidence and protection you deserve on the road.
