Understanding Fuel Injection: The Heartbeat of Your Engine

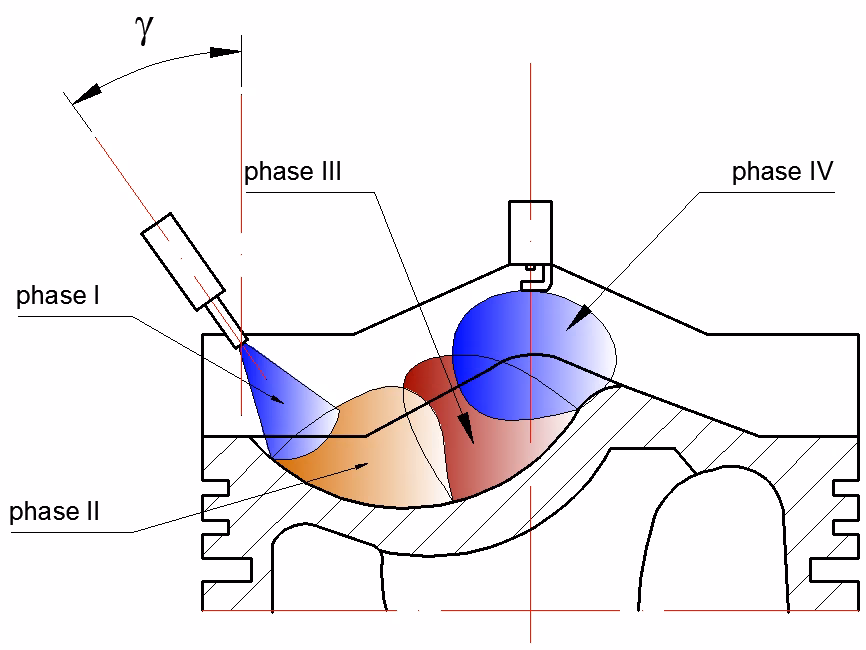

The intricate dance of fuel injection is fundamental to the operation of modern internal combustion engines. It's a precisely orchestrated process where fuel is atomised and delivered into the engine's cylinders to mix with air, creating the combustible charge that ultimately generates power. But how do we quantify this vital process? How do we know precisely how much fuel is being injected during each engine cycle? This article will delve into the core principles, demystifying the calculations and factors that govern fuel delivery, ensuring your engine receives the optimal fuel-air mixture for performance and efficiency.

The Pillars of Fuel Injection Calculation

At its core, determining the amount of fuel injected per cycle relies on three key pieces of information: fuel pressure, injector flow rate, and injector pulse width. Each of these elements plays a crucial role, and understanding their interplay is essential for anyone looking to fine-tune or understand their vehicle's fuelling system.

1. Fuel Pressure: The Driving Force

Fuel pressure is the force that pushes fuel through the injector. It's a critical parameter, as it directly influences how much fuel can be delivered within a given time. Higher fuel pressure generally means more fuel can be injected, assuming other factors remain constant. This pressure is typically regulated by a fuel pressure regulator, ensuring a consistent and optimal pressure is maintained within the fuel rail, regardless of engine load or speed.

2. Injector Flow Rate: The Capacity of the Nozzle

The injector flow rate, often measured in pounds per hour (lb/hr) or cubic centimetres per minute (cc/min), defines the maximum amount of fuel an injector can deliver at a specific pressure over a set period. This is an inherent characteristic of the injector itself, determined by its design and orifice size. When selecting injectors for a performance build, matching the flow rate to the engine's power demands is paramount. A common misconception is that a higher flow rate automatically means better performance; however, an injector that is too large can lead to poor atomisation and drivability issues, especially at low engine speeds.

3. Injector Pulse Width: The Duration of the Spray

The injector pulse width is the amount of time, measured in milliseconds (ms), that the injector remains open and allows fuel to flow. This is the primary control variable that the Engine Control Unit (ECU) uses to regulate the amount of fuel delivered to the engine. The ECU calculates the required pulse width based on numerous sensor inputs, including throttle position, engine speed (RPM), air mass, and manifold absolute pressure (MAP). A longer pulse width means more fuel is injected, while a shorter pulse width means less fuel. You can typically retrieve this crucial data from the ECU by accessing specific Programmable Data Identifiers (PIDs).

The Calculation: Bringing it All Together

The fundamental formula to estimate the fuel injected per cycle is:

Fuel Injected (per cycle) = (Injector Flow Rate / Engine Speed Factor) * Pulse Width

Let's break down the components:

• Injector Flow Rate: This needs to be converted into a rate per unit of time that aligns with the pulse width measurement. For example, if flow rate is in lb/hr, it needs to be converted to lb/ms.
• Engine Speed Factor: This accounts for the fact that fuel is injected at specific points in the engine cycle. For a four-stroke engine, fuel is typically injected once every two crankshaft revolutions. Therefore, the engine speed in revolutions per minute (RPM) needs to be converted to a factor that reflects the number of injection events per unit of time relevant to the pulse width.
• Pulse Width: This is the duration the injector is open, usually measured in milliseconds (ms).

It's important to note that this is a simplified calculation. Real-world fuel injection systems employ sophisticated algorithms within the ECU to account for various factors such as fuel trim, injector dead time (the time it takes for the injector to physically open and close, which is independent of the electrical pulse), and variations in fuel pressure. The ECU continuously adjusts the pulse width to maintain the desired air-fuel ratio (AFR).

Injector Sizing for Performance: Supporting Your Power Goals

A common application of understanding fuel injection calculations is in determining the appropriate size of injectors for a particular engine build. The goal here is to ensure that the injectors are capable of supplying enough fuel to support the engine's maximum power output without running at their absolute limit. Running injectors at or near 100% duty cycle (meaning they are open for almost the entire time they are commanded to fire) for extended periods can lead to premature failure and unpredictable fuelling.

The calculations used in this context often don't directly ask for a "Desired Crankshaft Power." Instead, they expect you to have an understanding of your engine's expected power output. This understanding typically comes from:

• Dyno Numbers: If your engine has been tested on a dynamometer, you'll have empirical data on its power output.
• Engine Combination Knowledge: For custom builds, experienced tuners can estimate power output based on the components used (e.g., camshafts, turbocharger size, compression ratio).

The process involves working backwards. If you know your engine makes, say, 400 horsepower, you can use established formulas and charts to determine the required injector flow rate. These calculations typically consider factors like the target air-fuel ratio (e.g., 12.5:1 for naturally aspirated, 11.5:1 for forced induction), BSFC (Brake Specific Fuel Consumption – a measure of how much fuel an engine uses per horsepower per hour), and a safety margin (often around 15-20%) to ensure the injectors aren't overstressed.

Example Injector Sizing Calculation (Simplified):

This table illustrates how you can estimate the minimum required injector flow rate. It's crucial to remember that injector flow rates are often quoted at a specific fuel pressure (e.g., 43.5 psi). If your fuel system operates at a different pressure, you'll need to adjust the flow rate accordingly using injector flow rate calculators that factor in pressure changes.

Challenges and Considerations

Reading fuel injection data directly from the ECU can be challenging due to the high frequency at which these events occur. The ECU is constantly making micro-adjustments, and observing these rapid changes visually can be difficult. Furthermore, every vehicle is unique. The specific ECU calibration, injector characteristics, and engine setup mean that a one-size-fits-all answer for exact fuel quantities is not feasible without specific data for that particular vehicle.

Injector dead time is another factor that significantly impacts accuracy. This is the inherent delay between when the ECU signals the injector to open and when it actually starts to flow, and also the delay in closing. This dead time varies between injector models and is often compensated for by the ECU's fuel injection map. Without accounting for dead time, especially at very short pulse widths, the actual amount of fuel injected can be significantly different from the calculated value.

Injector latency is a term often used interchangeably with dead time. It represents the time lag in the injector's response. Understanding and accurately mapping injector latency is critical for precise fuelling, particularly in high-performance applications where precise control is essential.

Frequently Asked Questions (FAQs)

Q1: How does fuel pressure affect injector flow rate?

A1: Injector flow rate is directly proportional to the square root of fuel pressure. This means that if you double the fuel pressure, the flow rate will increase by approximately 1.414 times (the square root of 2). Conversely, if you halve the fuel pressure, the flow rate will decrease.

Q2: What is injector duty cycle?

A2: Injector duty cycle is the percentage of time an injector is open during a given engine cycle. For example, if an injector is commanded to open for 10ms during a cycle that repeats every 20ms, its duty cycle is 50%. It's crucial to keep duty cycle below 100% to ensure reliable operation and prevent injector failure.

Q3: Can I use larger injectors than what my engine came with?

A3: Yes, you can, but it requires proper tuning. If you install larger injectors without recalibrating the ECU, your engine will likely run rich (too much fuel), leading to poor performance, increased fuel consumption, and potential engine damage. A professional tune is highly recommended when changing injector sizes.

Q4: How do I find out my injector's flow rate?

A4: The flow rate is usually printed on the injector itself or can be found in the manufacturer's specifications. If you've purchased aftermarket injectors, the seller or manufacturer will provide this information. For OEM injectors, you can often find specifications through vehicle-specific repair manuals or online databases.

Q5: What is the role of the ECU in fuel injection?

A5: The ECU is the brain of the fuel injection system. It receives data from various sensors (e.g., mass airflow sensor, oxygen sensor, throttle position sensor) and uses this information to calculate the precise amount of fuel needed and the exact pulse width required to deliver it. It continuously adjusts fuelling to maintain optimal performance, emissions, and fuel economy.

Conclusion: Precision for Performance

Understanding how much fuel is injected per cycle is not just an academic exercise; it's fundamental to engine performance, efficiency, and longevity. By grasping the interplay between fuel pressure, injector flow rate, and pulse width, and by correctly sizing injectors for your specific needs, you gain invaluable insight into the sophisticated workings of your vehicle's engine. Whether you're a seasoned mechanic or a budding enthusiast, this knowledge empowers you to make informed decisions about engine tuning and maintenance, ensuring your engine runs at its peak potential.
